LIGHTING (EXT)
_0501103
SIDE TURN SIGNAL LIGHT ASSEMBLY
A
LIGHTING (EXT) SIDE TURN SIGNAL LIGHT ASSEMBLY REMOVAL
CAUTION / NOTICE / HINT

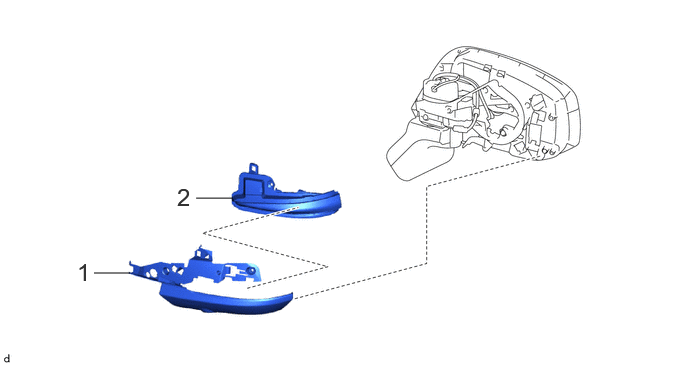

COMPONENTS (REMOVAL)
2.417,2.063 2.042,2.063
false
1.354,2.844 0.979,2.844
false
1.844,1.906 2.125,2.26
0.281,0.354
18
false
2
0.802,2.688 1.083,3.042
0.281,0.354
18
false
1
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | OUTER MIRROR LOWER COVER | - | - | - | - |
| 2 | SIDE TURN SIGNAL LIGHT ASSEMBLY | 81740 | - | - | - |
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
1.REMOVE OUTER MIRROR LOWER COVER
81740
2.REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY
a.
