RM38T0EC _59 Vehicle Exterior _112294 LIGHTING (EXT) _0501098 HEADLIGHT ASSEMBLY(for LED Headlight) A

LIGHTING (EXT) HEADLIGHT ASSEMBLY(for LED Headlight) REMOVAL

CAUTION / NOTICE / HINT

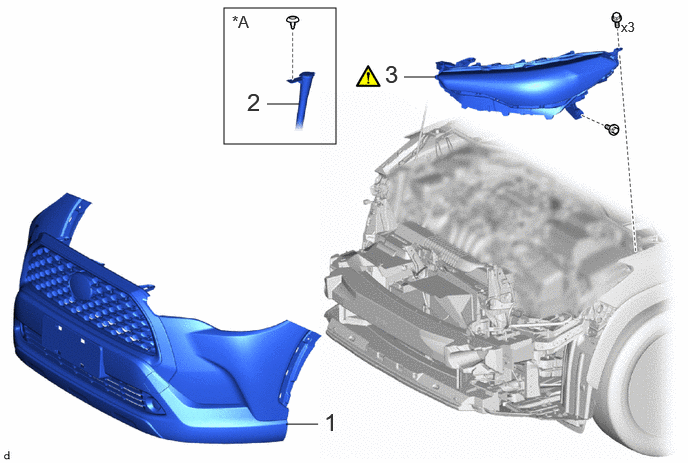

COMPONENTS (REMOVAL)

2.333,0.083 3.5,1.5 1.167,1.417 2.979,4.417 3.313,4.417 false 2.781,1.083 3.115,1.083 false 4.208,0.802 4.542,0.802 false 6.469,0.198 6.781,0.396 0.313,0.198 10 false x3 2.417,0.125 2.792,0.365 0.375,0.24 12 false *A 3.375,4.25 3.656,4.604 0.281,0.354 18 false 1 2.573,0.917 2.854,1.271 0.281,0.354 18 false 2 4.01,0.625 4.292,0.979 0.281,0.354 18 false 3

Procedure		Part Name Code
1	FRONT BUMPER ASSEMBLY	-	-	-	-
2	WASHER INLET	85319E	-	-	-
3	HEADLIGHT ASSEMBLY	81150	(202201,999999,_59,_112294,_0501098,RM100000001Z4WR_13_0001,)	-	-

for RH Side

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE FRONT BUMPER ASSEMBLY

for TFTM Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>REMOVAL202201,202307,_59,_114126,_0505908,RM100000001ZPA9,202307,999999,_59,_114126,_0505908,RM100000002CTH8,

for GTMC Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>REMOVAL202201,202307,_59,_114126,_0505910,RM100000001ZPAH,202307,999999,_59,_114126,_0505910,RM100000002CTHC,

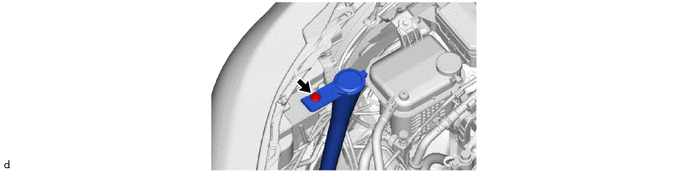

Hide Display 85319E 2.SEPARATE WASHER INLET (for RH Side)

Hide Display 81150 3.REMOVE HEADLIGHT ASSEMBLY

0.375,0.021 0.542,0.302 0.167,0.281 18 true i 3.833,0.031 4.031,0.375 0.198,0.344 18 false ii 0.302,3.125 0.521,3.438 0.219,0.313 18 false iii 3.823,3.042 4.052,3.333 0.229,0.292 18 true iv 5.094,0.896 5.333,1.083 0.24,0.188 12 true *A

*A	for TFTM Made	-	-
	Remove in this Direction	-	-

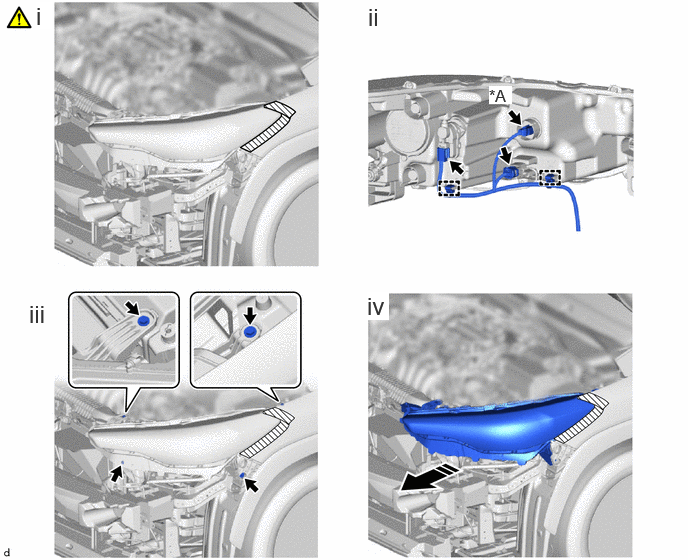

Apply protective tape around the headlight assembly as shown in the illustration.

ii.

Disengage the clamps and disconnect each connector.

iii.

Remove the bolt and 3 screws.

iv.

Remove the headlight assembly as shown in the illustration.
