RM38T0EC _58 Vehicle Interior _112289 METER / GAUGE / DISPLAY _0501082 COMBINATION METER A

METER / GAUGE / DISPLAY COMBINATION METER REMOVAL

CAUTION / NOTICE / HINT

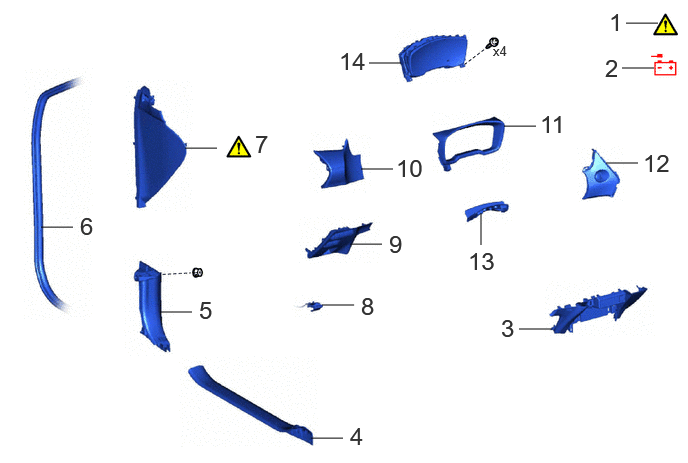

COMPONENTS (REMOVAL)

6.521,0.24 6.854,0.24 false 6.479,0.708 6.813,0.708 false 5.25,1.313 5.583,1.313 false 6.313,1.698 6.646,1.698 false 5.406,3.427 5.74,3.427 false 3.354,3.177 3.688,3.177 false 3.646,2.542 3.979,2.542 false 3.76,1.76 4.094,1.76 false 3.844,0.656 4.177,0.656 false 5.01,2.552 5.01,2.219 false 3.24,4.563 3.573,4.563 false 1.667,3.25 2,3.25 false 0.427,2.365 0.76,2.365 false 1.927,1.542 2.26,1.542 false 5.135,0.448 5.448,0.646 0.313,0.198 10 false x4 6.344,0.083 6.625,0.438 0.281,0.354 18 false 1 6.302,0.563 6.583,0.917 0.281,0.354 18 false 2 5.219,3.271 5.5,3.625 0.281,0.354 18 false 3 3.646,4.396 3.927,4.75 0.281,0.354 18 false 4 2.073,3.083 2.354,3.438 0.281,0.354 18 false 5 0.833,2.208 1.115,2.563 0.281,0.354 18 false 6 2.656,1.354 2.938,1.708 0.281,0.354 18 false 7 3.76,3.042 4.042,3.396 0.281,0.354 18 false 8 4.052,2.396 4.333,2.75 0.281,0.354 18 false 9 4.125,1.604 4.49,1.958 0.365,0.354 18 false 10 5.625,1.146 5.99,1.5 0.365,0.354 18 false 11 6.698,1.552 7.063,1.906 0.365,0.354 18 false 12 4.875,2.573 5.24,2.927 0.365,0.354 18 false 13 3.531,0.49 3.896,0.844 0.365,0.354 18 false 14

Procedure		Part Name Code
1	PRECAUTION	-	(202307,999999,_58,_112289,_0501082,RM100000002BH9M_01_0130,)	-	-
2	DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
3	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	55434F	-	-	-
4	FRONT DOOR SCUFF PLATE LH	67914B	-	-	-
5	COWL SIDE TRIM SUB-ASSEMBLY LH	62112A	-	-	-
6	FRONT DOOR OPENING TRIM WEATHERSTRIP LH	62312B	-	-	-
7	NO. 1 INSTRUMENT SIDE PANEL	55317E	(202307,999999,_58,_112289,_0501082,RM100000002BH9M_01_0103,)	-	-
8	HOOD LOCK CONTROL LEVER SUB-ASSEMBLY	53601	-	-	-
9	LOWER INSTRUMENT PANEL FINISH PANEL	55432B	-	-	-
10	INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY	55403F	-	-	-
11	INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY	55410C	-	-	-
12	CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL	55413D	-	-	-
13	INSTRUMENT CLUSTER FINISH PANEL RETAINER	55416C	-	-	-

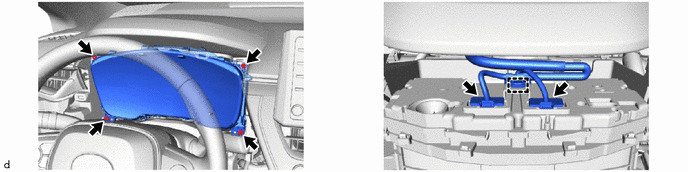

14	COMBINATION METER ASSEMBLY	83100	-	-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during combination meter assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Combination meter assembly	software update	-	See Service Bulletin for the registration method.
Combination meter assembly	Update ECU security key	Vehicle control history (RoB) are stored	(202201,202405,_V1,_106911,_0485801,RM100000001XG8S,202405,999999,_V1,_106911,_0485801,RM100000002NHZW,)

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*1: for Gasoline Model
Front camera system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)	(202307,999999,_51,_115233,_0510781,RM100000002CS0B,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

Hide Display 1. PRECAUTION

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-)auxiliary battery terminal.; Click here(202307,999999,_V1,_106911,_0485800,RM100000002CEKY,)

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

for M20A-FKS, M20C-FKS, M20E-FKS:

Click hereGeneral>MAINTENANCE>M20A-FKS, M20C-FKS, M20E-FKS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_104397,_0505262,RM100000002CKOR,

for M20F-FXS, M20G-FXS:

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_104397,_0604345,RM100000002BTXA,

Hide Display 55434F 3.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>LIGHTING (INT)>INTERIOR ILLUMINATION LIGHT (for Instrument Panel)>REMOVAL202201,999999,_58,_112288,_0501076,RM100000001Z4UH,

Hide Display 67914B 4.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0001,

Hide Display 62112A 5.REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0268,

Hide Display 62312B 6.DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
