RM38T0EC _59 Vehicle Exterior _112292 MIRROR (EXT) _0501089 OUTER REAR VIEW MIRROR A

MIRROR (EXT) OUTER REAR VIEW MIRROR REMOVAL

CAUTION / NOTICE / HINT

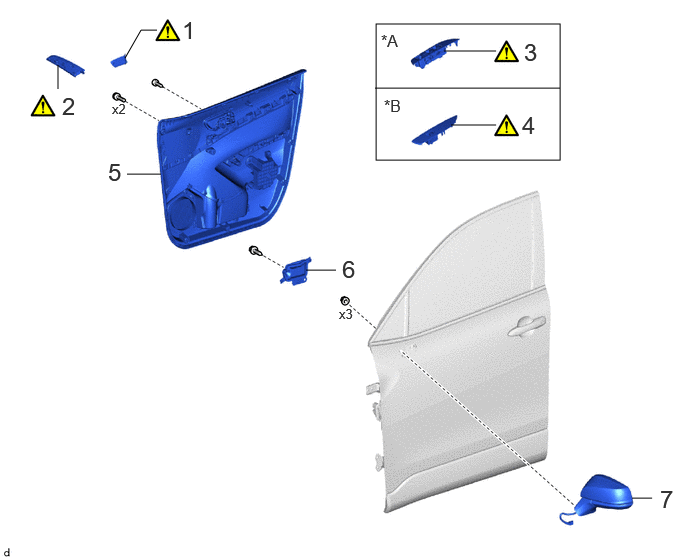

COMPONENTS (REMOVAL)

3.917,0.25 5.833,1.667 1.917,1.417 4.625,0.531 5.167,0.531 false 4.698,1.302 5.167,1.302 false 3.188,2.813 3.5,2.813 false 1.323,1.813 1.677,1.813 false 3.906,0.917 5.833,0.917 false 1.302,0.604 1.469,0.313 1.469,0.313 1.635,0.313 false 6.583,5.188 6.792,5.188 false 0.604,0.927 0.604,0.677 false 1.896,0.167 2.177,0.521 0.281,0.354 18 false 1 0.646,0.958 0.927,1.313 0.281,0.354 18 false 2 1.125,1.646 1.406,2 0.281,0.354 18 false 5 3.563,2.656 3.844,3.01 0.281,0.354 18 false 6 5.438,1.156 5.719,1.51 0.281,0.354 18 false 4 5.458,0.396 5.74,0.75 0.281,0.354 18 false 3 6.875,5.052 7.042,5.375 0.167,0.323 18 false 7 3.531,3.188 3.75,3.375 0.219,0.188 10 false x3 3.969,0.323 4.25,0.583 0.281,0.26 12 false *A 4,1 4.281,1.26 0.281,0.26 12 false *B 1.167,1.052 1.479,1.25 0.313,0.198 10 false x2

Procedure		Part Name Code
1	FRONT DOOR INSIDE HANDLE BEZEL PLUG	69284F	(202307,999999,_59,_112292,_0501089,RM100000002D0NL_01_0134,)	-	-
2	DOOR ASSIST GRIP COVER	74646	(202307,999999,_59,_112292,_0501089,RM100000002D0NL_01_0135,)	-	-
3	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL	-	(202307,999999,_59,_112292,_0501089,RM100000002D0NL_01_0136,)	-	-
4	POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL	-	(202307,999999,_59,_112292,_0501089,RM100000002D0NL_01_0137,)	-	-
5	FRONT DOOR TRIM BOARD SUB-ASSEMBLY	67602	-	-	-

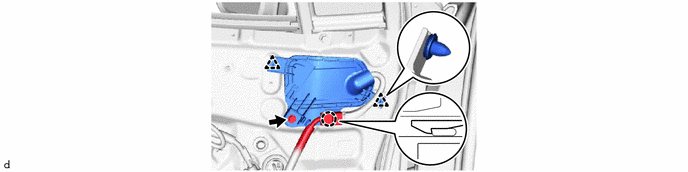

6	OUTER MIRROR INSTALL HOLE COVER	87964	-	-	-

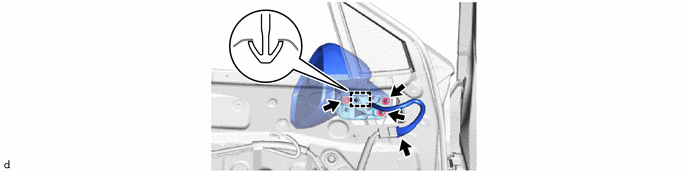

7	OUTER REAR VIEW MIRROR ASSEMBLY	87940	-	-	-

for Driver Side

for Front Passenger Side

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the outer rear view mirror assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedure	Effect/Inoperative when not Performed	Link
· Side television camera assembly LH (Including removal and installation) · Outer rear view mirror assembly LH (Including removal and installation) · Side television camera assembly RH (Including removal and installation) · Outer rear view mirror assembly RH (Including removal and installation)	Side television camera view adjustment	Panoramic view monitor system	(202201,999999,_56,_111969,_0587004,RM1000000029RN8,)
