RM38T0EC _59 Vehicle Exterior _112292 MIRROR (EXT) _0502811 POWER MIRROR CONTROL SYSTEM J

MIRROR (EXT)  POWER MIRROR CONTROL SYSTEM  Power Retractable Mirrors do not Operate with Power Retract Mirror Switch


DESCRIPTION

When the outer mirror switch assembly is operated, the mirror retract/return signal is sent to the main body ECU (multiplex network body ECU) and then to power distribution box assembly via CXPI communication.

The power distribution box assembly retracts or returns the outer rear view mirror assemblies based on the signal.

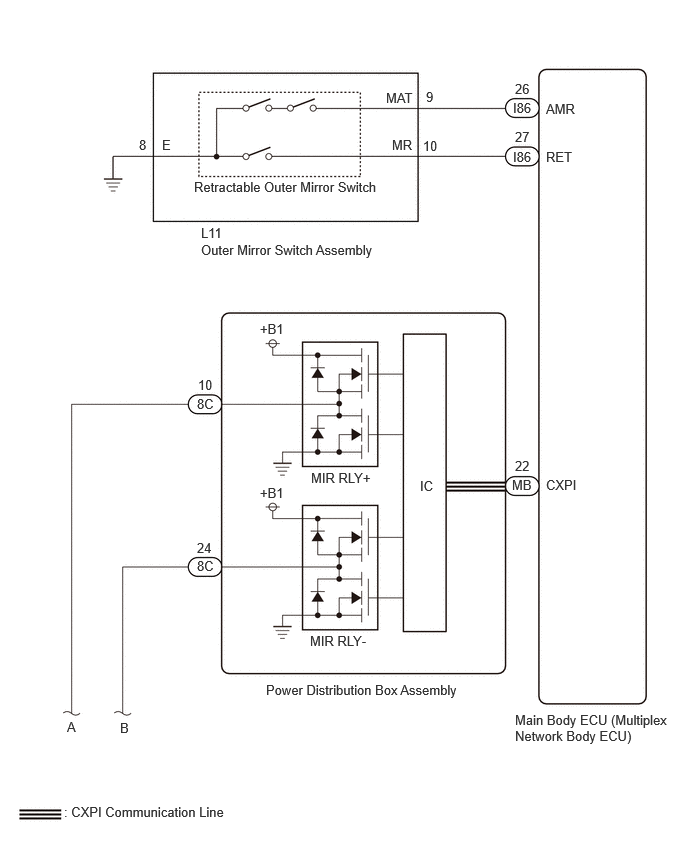

WIRING DIAGRAM

E434502E13
2.094,2.521 4.24,2.719 2.146,0.198 10 false Outer Mirror Switch Assembly 2.021,1.865 4.167,2.063 2.146,0.198 10 false Retractable Outer Mirror Switch 4.021,0.938 4.615,1.271 0.594,0.333 10 false MAT 5.688,1.052 6.281,1.385 0.594,0.333 10 false AMR 5.688,1.552 6.281,1.885 0.594,0.333 10 false RET 5.365,0.844 5.958,1.177 0.594,0.333 10 false 26 5.365,1.344 5.958,1.677 0.594,0.333 10 false 27 5.344,1.552 5.938,1.885 0.594,0.333 10 false I86 5.344,1.042 5.938,1.375 0.594,0.333 10 false I86 4.083,1.427 4.677,1.76 0.594,0.333 10 false MR 1.688,1.427 2.281,1.76 0.594,0.333 10 false E 1.448,1.427 2.042,1.76 0.594,0.333 10 false 8 4.438,0.927 5.031,1.26 0.594,0.333 10 false 9 4.406,1.438 5,1.771 0.594,0.333 10 false 10 3.24,4.896 4.063,5.146 0.823,0.25 10 false MIR RLY+ 3.229,6.594 4.052,6.844 0.823,0.25 10 false MIR RLY- 4.375,4.979 5.198,5.229 0.823,0.25 10 false IC 5.333,4.969 6.156,5.219 0.823,0.25 10 false MB 5.365,4.771 6.188,5.021 0.823,0.25 10 false 22 2.052,4.125 2.875,4.375 0.823,0.25 10 false 8C 2.052,5.813 2.875,6.063 0.823,0.25 10 false 8C 2.063,3.927 2.885,4.177 0.823,0.25 10 false 10 2.052,5.625 2.875,5.875 0.823,0.25 10 false 24 0.667,8.375 3.344,8.615 2.677,0.24 10 false : CXPI Communication Line 5.365,7.417 7.031,8.063 1.667,0.646 10 false Main Body ECU (Multiplex Network Body ECU) 2.771,7.104 5.021,7.896 2.25,0.792 10 false Power Distribution Box Assembly 0.698,7.49 1.521,7.74 0.823,0.25 10 false A 1.25,7.5 2.073,7.75 0.823,0.25 10 false B 5.688,4.969 6.802,5.188 1.115,0.219 10 false CXPI 2.094,2.344 4.24,2.542 2.146,0.198 10 false L11 2.708,3.344 3.531,3.594 0.823,0.25 10 false +B1 2.708,5.052 3.531,5.302 0.823,0.25 10 false +B1

E438005E04
0.542,0.313 0.698,0.51 0.156,0.198 10 false A 1.094,0.313 1.25,0.51 0.156,0.198 10 false B 2.792,2.219 3.146,2.479 0.354,0.26 10 false K17 2.813,3.708 3.167,3.969 0.354,0.26 10 false L17 2.979,1.698 3.333,1.958 0.354,0.26 10 false MF 3.813,1.708 4.167,1.969 0.354,0.26 10 false MR 3.813,3.188 4.167,3.448 0.354,0.26 10 false MR 2.958,3.188 3.313,3.448 0.354,0.26 10 false MF 2.802,3.875 4.26,4.542 1.458,0.667 10 false Outer Rear View Mirror Assembly LH 4.146,1.708 4.5,1.969 0.354,0.26 10 false 12 2.708,3.198 3.063,3.458 0.354,0.26 10 false 13 4.146,3.188 4.5,3.448 0.354,0.26 10 false 12 2.719,1.708 3.073,1.969 0.354,0.26 10 false 13 2.781,2.396 4.24,3.063 1.458,0.667 10 false Outer Rear View Mirror Assembly RH

CAUTION / NOTICE / HINT

NOTICE:
·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

The power mirror control system uses the CXPI communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the power mirror control system after confirming that the communication system is functioning properly.

·

Before replacing the main body ECU (multiplex network body ECU), refer to Service Bulletin.*

*: w/ Smart Entry and Start System




PROCEDURE

1.READ VALUE USING GTS (OUTER MIRROR FOLD SWITCH)
a.

Read the Data List according to the display on the GTS.

Body Electrical > Main Body > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Outer Mirror Fold Switch Retractable outer mirror switch signal OFF or ON OFF: Retractable outer mirror switch not in retract position
ON: Retractable outer mirror switch in retract position 		-
Body Electrical > Main Body > Data List
Tester Display
Outer Mirror Fold Switch
50003 449 71
OK:

On the GTS screen, ON or OFF is displayed accordingly.



Result:
Proceed to
OK
NG



OK

2.CHECK VEHICLE CONDITION

NG

12.INSPECT OUTER MIRROR SWITCH ASSEMBLY
2.CHECK VEHICLE CONDITION
a.

Check the malfunctioning parts.


Result:
Result Proceed to
Both outer rear view mirror assemblies are malfunctioning A
Outer rear view mirror assembly LH is malfunctioning B
Outer rear view mirror assembly RH is malfunctioning C



A

3.PERFORM ACTIVE TEST USING GTS (MIRROR FOLD SIGNAL / MIRROR RETURM SIGNAL)

B

8.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH

C

10.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH
3.PERFORM ACTIVE TEST USING GTS (MIRROR FOLD SIGNAL / MIRROR RETURM SIGNAL)
a.

Perform the Active Test according to the display on the GTS.

Body Electrical > Main Body > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Mirror Fold Signal Retract mirror operation OFF or ON -
Mirror Return Signal Retract mirror operation OFF or ON -
Body Electrical > Main Body > Active Test
Tester Display
Mirror Fold Signal
50004 449 91
Body Electrical > Main Body > Active Test
Tester Display
Mirror Return Signal
50004 449 92

Result:
Proceed to
OK
NG



OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


NG

4.READ VALUE USING GTS (POWER RETRACT MIRROR INPUT SIGNAL)
4.READ VALUE USING GTS (POWER RETRACT MIRROR INPUT SIGNAL)
a.

Read the Data List according to the display on the GTS.

Body Electrical > Power Distribution Box > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Power Retract Mirror Input Signal Power retract mirror drive signal (Input) Stop, Retract, Return Stop: Not operate the retractable outer mirror switch
Retract: retractable outer mirror switch in retract position
Return: retractable outer mirror switch in return position 		-
Body Electrical > Power Distribution Box > Data List
Tester Display
Power Retract Mirror Input Signal
50003 475 1300
OK:

The GTS display changes correctly according to the outer mirror switch assembly operation.



Result:
Proceed to
OK
NG



OK

5.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - OUTER REAR VIEW MIRROR ASSEMBLY)

NG

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


5.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - OUTER REAR VIEW MIRROR ASSEMBLY)
a.

Disconnect the 8C power distribution box assembly connector.


b.

Disconnect the L17 outer rear view mirror assembly LH connector.


c.

Disconnect the K17 outer rear view mirror assembly RH connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
8C-10 - L17-13 (MF) Always Below 1 Ω
8C-10 - K17-13 (MF) Always Below 1 Ω
8C-24 - L17-12 (MR) Always Below 1 Ω
8C-24 - K17-12 (MR) Always Below 1 Ω
8C-10 - Body Ground Always 10 kΩ or higher
8C-24 - Body Ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

6.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>INSPECTION

Result:
Proceed to
OK
NG



OK

7.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH

NG

REPLACE OUTER REAR VIEW MIRROR ASSEMBLY LH

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL


8.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>INSPECTION

Result:
Proceed to
OK
NG



OK

9.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - OUTER REAR VIEW MIRROR ASSEMBLY LH)

NG

REPLACE OUTER REAR VIEW MIRROR ASSEMBLY LH

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL


9.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - OUTER REAR VIEW MIRROR ASSEMBLY LH)
a.

Disconnect the 8C power distribution box assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
8C-10 - L17-13 (MF) Always Below 1 Ω
8C-24 - L17-12 (MR) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

10.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>INSPECTION

Result:
Proceed to
OK
NG



OK

11.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - OUTER REAR VIEW MIRROR ASSEMBLY RH)

NG

REPLACE OUTER REAR VIEW MIRROR ASSEMBLY RH

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL


11.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - OUTER REAR VIEW MIRROR ASSEMBLY RH)
a.

Disconnect the 8C power distribution box assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
8C-10 - K17-13 (MF) Always Below 1 Ω
8C-24 - K17-12 (MR) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

12.INSPECT OUTER MIRROR SWITCH ASSEMBLY

Click hereVehicle Exterior>MIRROR (EXT)>OUTER MIRROR SWITCH>INSPECTION

Result:
Proceed to
OK
NG



OK

13.CHECK HARNESS AND CONNECTOR (OUTER MIRROR SWITCH ASSEMBLY - MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU))

NG

REPLACE OUTER MIRROR SWITCH ASSEMBLY

Click hereVehicle Exterior>MIRROR (EXT)>OUTER MIRROR SWITCH>REMOVAL


13.CHECK HARNESS AND CONNECTOR (OUTER MIRROR SWITCH ASSEMBLY - MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU))
a.

Disconnect the I86 main body ECU (multiplex network body ECU).


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
L11-9 (MAT) - I86-26 (AMR) Always Below 1 Ω
L11-10 (MR) - I86-27 (RET) Always Below 1 Ω
L11-8 (E) - Body ground Always Below 1 Ω
L11-9 (MAT) or I86-26 (AMR) - Body ground Always 10 kΩ or higher
L11-10 (MR) or I86-27 (RET) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
