RM38T0EC
_59
Vehicle Exterior
_112292
MIRROR (EXT)
_0501092
OUTER MIRROR SWITCH
A
MIRROR (EXT) OUTER MIRROR SWITCH REMOVAL
CAUTION / NOTICE / HINT

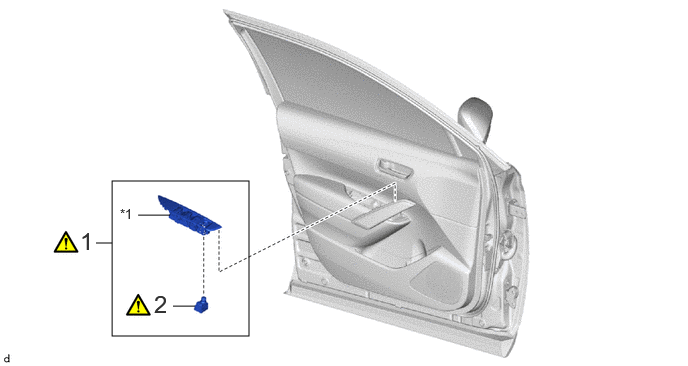

COMPONENTS (REMOVAL)
1.167,1.885 2.594,3.5
1.427,1.615
1,2.531 1.167,2.531
false
1.802,3.188 2.031,3.188
false
1.438,2.24 1.771,2.24
false
0.833,2.365 1.115,2.719
0.281,0.354
18
false
1
1.604,3.021 1.885,3.375
0.281,0.354
18
false
2
1.25,2.146 1.563,2.344
0.313,0.198
10
false
*1
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL | - | ( 202201,999999,_59,_112292,_0501092,RM100000001Z4W3_01_0042,)
|
- | - |
| 2 | OUTER MIRROR SWITCH ASSEMBLY | 84870A | (202201,999999,_59,_112292,_0501092,RM100000001Z4W3_01_0040,)
|
- | - |
| *1 | FRONT DOOR UPPER ARMREST BASE PANEL | - | - |
PROCEDURE
1.REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL
84870A

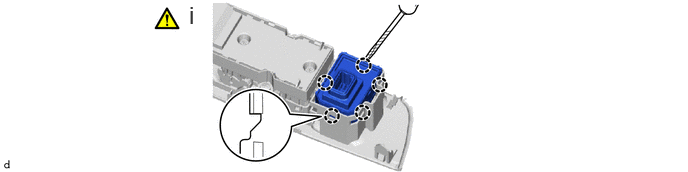

2.REMOVE OUTER MIRROR SWITCH ASSEMBLY
a.
1.969,0.01 2.219,0.365
0.25,0.354
18
false
i
i.
Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove the outer mirror switch assembly.
