RM38T0EC _59 Vehicle Exterior _112292 MIRROR (EXT) _0501092 OUTER MIRROR SWITCH G

MIRROR (EXT)  OUTER MIRROR SWITCH  INSPECTION


PROCEDURE

Hide 84870A 1.INSPECT OUTER MIRROR SWITCH ASSEMBLY (w/ Power Retract Mirror)

a.

Check the mirror select and surface adjust switch.

i.

Turn the mirror select and surface adjust switch to the L position.


ii.

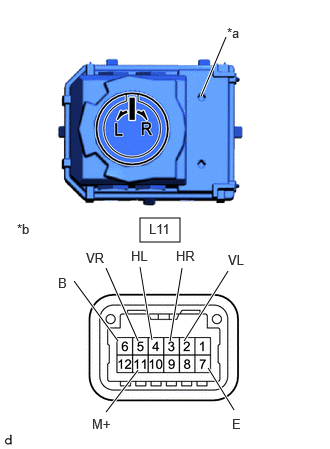

B581957C05
1.458,2.271 1.875,2.521 0.417,0.25 2.094,1 2.354,0.385 true 1.229,3.552 0.771,2.927 true 1.438,3.552 1.104,2.792 true 1.583,3.542 1.458,2.781 true 1.771,3.552 1.896,2.792 true 1.917,3.552 2.375,2.823 true 2.438,4.271 2.167,3.833 true 1.104,4.292 1.438,3.854 true 2.365,0.26 2.698,0.51 0.333,0.25 10 false *a 0.177,2.302 0.531,2.51 0.354,0.208 10 false *b 0.604,2.865 0.854,3.115 0.25,0.25 10 false B 0.896,2.604 1.229,2.854 0.333,0.25 10 false VR 1.365,2.583 1.698,2.833 0.333,0.25 10 false HL 1.833,2.583 2.167,2.833 0.333,0.25 10 false HR 2.375,2.625 2.708,2.875 0.333,0.25 10 false VL 0.958,4.333 1.292,4.583 0.333,0.25 10 false M+ 2.417,4.333 2.667,4.583 0.25,0.25 10 false E 1.552,2.302 1.885,2.552 0.333,0.25 10 false L11
*a Mirror Select and Surface Adjust Switch
*b Component without harness connected
(Outer Mirror Switch Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance (for left side):
Tester Connection Condition Specified Condition
L11-6 (B) - L11-2 (VL) Up Below 1 Ω
L11-7 (E) - L11-11 (M+) Up Below 1 Ω
L11-6 (B) - L11-2 (VL) Off 10 kΩ or higher
L11-7 (E) - L11-11 (M+) Off 10 kΩ or higher
L11-6 (B) - L11-11 (M+) Down Below 1 Ω
L11-7 (E) - L11-2 (VL) Down Below 1 Ω
L11-6 (B) - L11-11 (M+) Off 10 kΩ or higher
L11-7 (E) - L11-2 (VL) Off 10 kΩ or higher
L11-6 (B) - L11-4 (HL) Left Below 1 Ω
L11-7 (E) - L11-11 (M+) Left Below 1 Ω
L11-6 (B) - L11-4 (HL) Off 10 kΩ or higher
L11-7 (E) - L11-11 (M+) Off 10 kΩ or higher
L11-6 (B) - L11-11 (M+) Right Below 1 Ω
L11-7 (E) - L11-4 (HL) Right Below 1 Ω
L11-6 (B) - L11-11 (M+) Off 10 kΩ or higher
L11-7 (E) - L11-4 (HL) Off 10 kΩ or higher



iii.

Turn the mirror select and surface adjust switch to the R position.


iv.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for right side):
Tester Connection Condition Specified Condition
L11-6 (B) - L11-5 (VR) Up Below 1 Ω
L11-7 (E) - L11-11 (M+) Up Below 1 Ω
L11-6 (B) - L11-5 (VR) Off 10 kΩ or higher
L11-7 (E) - L11-11 (M+) Off 10 kΩ or higher
L11-6 (B) - L11-11 (M+) Down Below 1 Ω
L11-7 (E) - L11-5 (VR) Down Below 1 Ω
L11-6 (B) - L11-11 (M+) Off 10 kΩ or higher
L11-7 (E) - L11-5 (VR) Off 10 kΩ or higher
L11-6 (B) - L11-3 (HR) Left Below 1 Ω
L11-7 (E) - L11-11 (M+) Left Below 1 Ω
L11-6 (B) - L11-3 (HR) Off 10 kΩ or higher
L11-7 (E) - L11-11 (M+) Off 10 kΩ or higher
L11-6 (B) - L11-11 (M+) Right Below 1 Ω
L11-7 (E) - L11-3 (HR) Right Below 1 Ω
L11-6 (B) - L11-11 (M+) Off 10 kΩ or higher
L11-7 (E) - L11-3 (HR) Off 10 kΩ or higher


If the result is not as specified, replace the outer mirror switch assembly.



b.

Check that the LED illuminates.

i.

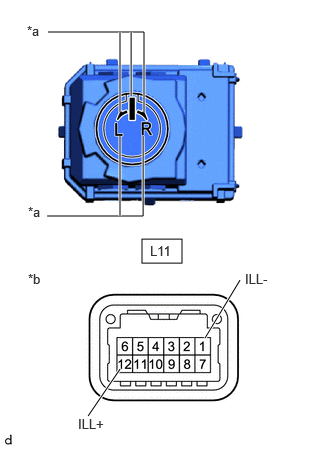

B581957C07
1.479,2.49 1.896,2.74 0.417,0.25 2.135,3.521 2.5,2.917 true 0.917,4.333 1.25,3.844 true 0.5,0.333 1.5,0.333 1.5,0.333 1.5,1.167 true 1.25,1.167 1.25,0.333 true 1.365,1 1.365,0.333 true 0.49,2.25 1.49,2.25 1.49,2.25 1.49,1.417 true 1.25,2.25 1.25,1.417 true 0.813,4.333 1.302,4.552 0.49,0.219 10 false ILL+ 2.552,2.823 3.042,3.042 0.49,0.219 10 false ILL- 0.292,2.823 0.75,3.135 0.458,0.313 10 false *b 1.563,2.531 2.052,2.75 0.49,0.219 10 false L11 0.281,0.24 0.74,0.552 0.458,0.313 10 false *a 0.292,2.125 0.75,2.438 0.458,0.313 10 false *a
*a LED
*b Component without harness connected
(Outer Mirror Switch Assembly)


Apply auxiliary battery voltage to the terminals of the connector, and check that the LED illuminates.

OK:
Tester Connection Specified Condition
L11-12 (ILL+) - Auxiliary battery positive (+)
L11-1 (ILL-) - Auxiliary battery negative (-) 		LED illuminates


If the result is not as specified, replace the outer mirror switch assembly.



Hide 84870A 2.INSPECT OUTER MIRROR SWITCH ASSEMBLY (w/o Power Retract Mirror)

a.

Check the mirror select and surface adjust switch.

i.

Turn the mirror select switch to the L position.


ii.

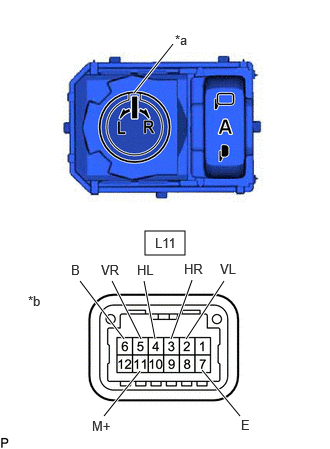

E398408C20
1.51,2.406 1.927,2.656 0.417,0.25 1.396,0.969 1.802,0.458 true 1.292,3.531 0.833,2.927 true 1.469,3.531 1.167,2.927 true 1.615,3.531 1.5,2.927 true 1.781,3.531 2,2.917 true 1.938,3.531 2.333,2.927 true 2.104,3.854 2.5,4.333 true 1.458,3.865 1.083,4.333 true 1.823,0.333 2.135,0.531 0.313,0.198 10 false *a 0.292,3.052 0.604,3.25 0.313,0.198 10 false *b 0.74,2.729 1.052,2.927 0.313,0.198 10 false B 1.052,2.729 1.365,2.927 0.313,0.198 10 false VR 1.427,2.729 1.74,2.927 0.313,0.198 10 false HL 1.917,2.719 2.229,2.917 0.313,0.198 10 false HR 2.292,2.719 2.604,2.917 0.313,0.198 10 false VL 2.51,4.344 2.823,4.542 0.313,0.198 10 false E 0.958,4.354 1.271,4.552 0.313,0.198 10 false M+ 1.615,2.448 1.927,2.646 0.313,0.198 10 false L11
*a Mirror Select and Surface Adjust Switch
*b Component without harness connected
(Outer Mirror Switch Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance (for left side):
Tester Connection Condition Specified Condition
L11-2 (VL) - L11-6 (B) Up Below 1 Ω
L11-11 (M+) - L11-7 (E) Up Below 1 Ω
L11-2 (VL) - L11-6 (B) Off 10 kΩ or higher
L11-11 (M+) - L11-7 (E) Off 10 kΩ or higher
L11-2 (VL) - L11-7 (E) Down Below 1 Ω
L11-11 (M+) - L11-6 (B) Down Below 1 Ω
L11-2 (VL) - L11-7 (E) Off 10 kΩ or higher
L11-11 (M+) - L11-6 (B) Off 10 kΩ or higher
L11-4 (HL) - L11-6 (B) Left Below 1 Ω
L11-11 (M+) - L11-7 (E) Left Below 1 Ω
L11-4 (HL) - L11-6 (B) Off 10 kΩ or higher
L11-11 (M+) - L11-7 (E) Off 10 kΩ or higher
L11-4 (HL) - L11-7 (E) Right Below 1 Ω
L11-11 (M+) - L11-6 (B) Right Below 1 Ω
L11-4 (HL) - L11-7 (E) Off 10 kΩ or higher
L11-11 (M+) - L11-6 (B) Off 10 kΩ or higher



iii.

Turn the mirror select switch to the R position.


iv.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for right side):
Tester Connection Condition Specified Condition
L11-5 (VR) - L11-6 (B) Up Below 1 Ω
L11-11 (M+) - L11-7 (E) Up Below 1 Ω
L11-5 (VR) - L11-6 (B) Off 10 kΩ or higher
L11-11 (M+) - L11-7 (E) Off 10 kΩ or higher
L11-5 (VR) - L11-7 (E) Down Below 1 Ω
L11-11 (M+) - L11-6 (B) Down Below 1 Ω
L11-5 (VR) - L11-7 (E) Off 10 kΩ or higher
L11-11 (M+) - L11-6 (B) Off 10 kΩ or higher
L11-3 (HR) - L11-6 (B) Left Below 1 Ω
L11-11 (M+) - L11-7 (E) Left Below 1 Ω
L11-3 (HR) - L11-6 (B) Off 10 kΩ or higher
L11-11 (M+) - L11-7 (E) Off 10 kΩ or higher
L11-3 (HR) - L11-7 (E) Right Below 1 Ω
L11-11 (M+) - L11-6 (B) Right Below 1 Ω
L11-3 (HR) - L11-7 (E) Off 10 kΩ or higher
L11-11 (M+) - L11-6 (B) Off 10 kΩ or higher


If the result is not as specified, replace the outer mirror switch assembly.



b.

Check the mirror retract switch.

i.

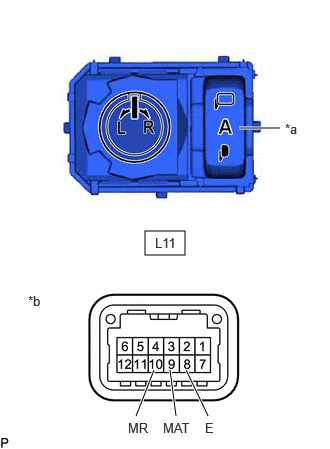

E398408C21
1.51,2.406 1.927,2.656 0.417,0.25 2.49,1.333 2.917,1.333 true 1.938,3.854 2.167,4.333 true 1.771,3.854 1.833,4.333 true 1.604,3.854 1.417,4.333 true 2.969,1.26 3.281,1.458 0.313,0.198 10 false *a 0.292,3.052 0.604,3.25 0.313,0.198 10 false *b 2.135,4.375 2.448,4.573 0.313,0.198 10 false E 1.698,4.375 2.094,4.573 0.396,0.198 10 false MAT 1.333,4.375 1.646,4.573 0.313,0.198 10 false MR 1.615,2.448 1.927,2.646 0.313,0.198 10 false L11
*a Retractable Outer Mirror Switch
*b Component without harness connected
(Outer Mirror Switch Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
L11-9 (MAT) - L11-8 (E) AUTO position Below 1 Ω
L11-9 (MAT) - L11-8 (E) Except AUTO position 10 kΩ or higher
L11-10 (MR) - L11-8 (E) Retract position Below 1 Ω
L11-10 (MR) - L11-8 (E) Except retract position 10 kΩ or higher


If the result is not as specified, replace the outer mirror switch assembly.



c.

Check that the LED illuminates.

i.

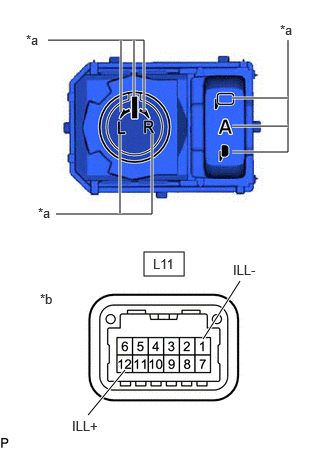

E398408C11
1.5,2.625 1.917,2.875 0.417,0.25 2.115,3.531 2.5,2.927 true 0.917,4.323 1.302,3.854 true 2.417,1.583 3,1.583 3,1.583 3,0.417 true 2.417,1.313 3,1.313 true 2.417,1.021 3,1.021 true 1.5,1.167 1.5,0.417 1.5,0.417 0.5,0.417 true 1.396,1 1.396,0.417 true 1.26,1.167 1.26,0.417 true 0.583,2.229 1.583,2.229 1.583,2.229 1.583,1.396 true 1.25,2.229 1.25,1.396 true 0.75,4.354 1.24,4.573 0.49,0.219 10 false ILL+ 2.427,2.729 2.917,2.948 0.49,0.219 10 false ILL- 0.417,3.031 0.906,3.25 0.49,0.219 10 false *b 1.594,2.667 1.938,2.833 0.344,0.167 10 false L11 0.271,0.333 0.583,0.531 0.313,0.198 10 false *a 0.396,2.135 0.708,2.333 0.313,0.198 10 false *a 2.917,0.229 3.229,0.427 0.313,0.198 10 false *a
*a LED
*b Component without harness connected
(Outer Mirror Switch Assembly)


Apply auxiliary battery voltage to the terminals of the connector, and check that the LED illuminates.

OK:
Tester Connection Specified Condition
L11-12 (ILL+) - Auxiliary battery positive (+)
L11-1 (ILL-) - Auxiliary battery negative (-) 		LED illuminates


If the result is not as specified, replace the outer mirror switch assembly.
