MIRROR (EXT) OUTER REAR VIEW MIRROR INSPECTION

Hide Display 87940 1.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH (w/o Panoramic View Monitor System)

a.

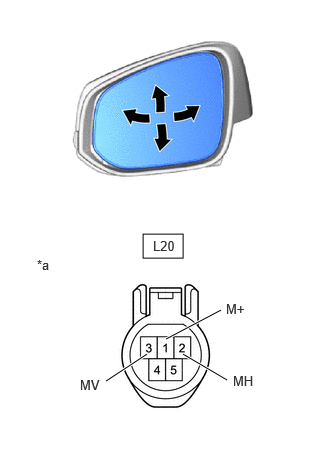

Check the operation of the mirror surface.

NOTICE:: If the mirror surface is fully turned to the right, left, upward or downward position, the motor slips and produces a clicking noise. This is not a malfunction.

i.

1.49,2.438 1.906,2.688 0.417,0.25 2.365,3.958 1.906,3.688 true 1.729,3.531 2.302,3.229 true 1.104,3.969 1.531,3.688 true 0.385,2.677 0.698,2.833 0.313,0.156 10 false *a 2.427,3.885 2.74,4.042 0.313,0.156 10 false MH 2.354,3.135 2.667,3.292 0.313,0.156 10 false M+ 0.833,3.927 1.146,4.083 0.313,0.156 10 false MV 1.594,2.479 1.906,2.729 0.313,0.25 10 false L20

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Apply auxiliary battery voltage and check the operation of the mirror surface.

OK:

Tester Connection	Specified Condition
L20-3 (MV) - Auxiliary battery positive (+) L20-1 (M+) - Auxiliary battery negative (-)	Turns upward
L20-1 (M+) - Auxiliary battery positive (+) L20-3 (MV) - Auxiliary battery negative (-)	Turns downward
L20-2 (MH) - Auxiliary battery positive (+) L20-1 (M+) - Auxiliary battery negative (-)	Turns left
L20-1 (M+) - Auxiliary battery positive (+) L20-2 (MH) - Auxiliary battery negative (-)	Turns right

If the result is not as specified, replace the outer rear view mirror assembly LH.

b.

Check the side turn signal light assembly LH.

i.

1.5,0.167 1.917,0.417 0.417,0.25 2.188,1.792 1.823,1.49 true 1.25,1.833 1.635,1.49 true 0.156,0.125 0.469,0.281 0.313,0.156 10 false *a 1.083,1.781 1.49,2.031 0.406,0.25 10 false B 2.25,1.75 2.531,1.906 0.281,0.156 10 false E 1.594,0.208 2,0.458 0.406,0.25 10 false L20

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Apply auxiliary battery voltage to the terminals of the connector, and check the illumination condition.

OK:

Tester Connection	Specified Condition
L20-4 (B) - Auxiliary battery positive (+) L20-5 (E) - Auxiliary battery negative (-)	Side turn light illuminates

If the result is not as specified, inspect the side turn signal light assembly LH or replace the outer rear view mirror assembly LH.

Hide Display 87910 2.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH (w/o Panoramic View Monitor System)

a.

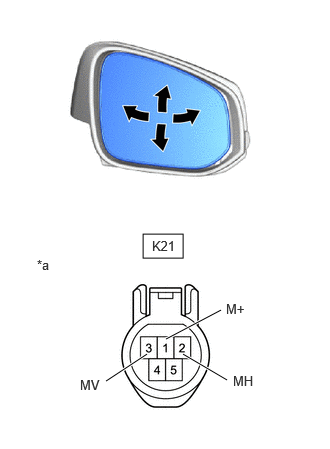

Check the operation of the mirror surface.

NOTICE:: If the mirror surface is fully turned to the right, left, upward or downward position, the motor slips and produces a clicking noise. This is not a malfunction.

i.

1.49,2.438 1.906,2.688 0.417,0.25 2.365,3.958 1.906,3.688 true 1.729,3.531 2.302,3.229 true 1.104,3.969 1.531,3.688 true 0.385,2.677 0.698,2.833 0.313,0.156 10 false *a 2.427,3.885 2.74,4.042 0.313,0.156 10 false MH 2.354,3.135 2.667,3.292 0.313,0.156 10 false M+ 0.833,3.927 1.146,4.083 0.313,0.156 10 false MV 1.583,2.479 1.896,2.729 0.313,0.25 10 false K21

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Apply auxiliary battery voltage and check the operation of the mirror surface.

OK:

Tester Connection	Specified Condition
K21-3 (MV) - Auxiliary battery positive (+) K21-1 (M+) - Auxiliary battery negative (-)	Turns upward
K21-1 (M+) - Auxiliary battery positive (+) K21-3 (MV) - Auxiliary battery negative (-)	Turns downward
K21-2 (MH) - Auxiliary battery positive (+) K21-1 (M+) - Auxiliary battery negative (-)	Turns left
K21-1 (M+) - Auxiliary battery positive (+) K21-2 (MH) - Auxiliary battery negative (-)	Turns right

If the result is not as specified, replace the outer rear view mirror assembly RH.

b.

Check the side turn signal light assembly RH.

i.

1.5,0.167 1.917,0.417 0.417,0.25 2.188,1.792 1.823,1.49 true 1.25,1.833 1.635,1.49 true 0.156,0.125 0.469,0.281 0.313,0.156 10 false *a 1.083,1.781 1.49,2.031 0.406,0.25 10 false B 2.25,1.75 2.531,1.906 0.281,0.156 10 false E 1.594,0.208 2,0.458 0.406,0.25 10 false K21

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Apply auxiliary battery voltage to the terminals of the connector, and check the illumination condition.

OK:

Tester Connection	Specified Condition
K21-4 (B) - Auxiliary battery positive (+) K21-5 (E) - Auxiliary battery negative (-)	Side turn light illuminates

If the result is not as specified, inspect the side turn signal light assembly RH or replace the outer rear view mirror assembly RH.

Hide Display 87940 3.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH (w/ Panoramic View Monitor System)

a.

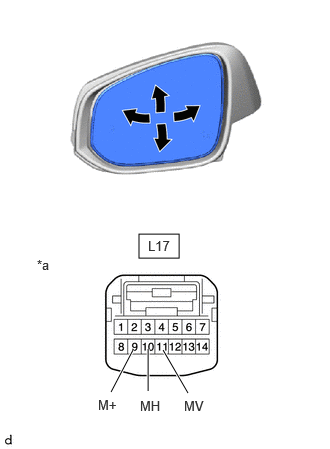

Check the operation of the mirror surface.

NOTICE:: If the mirror surface is fully turned to the right, left, upward or downward position, the motor slips and produces a clicking noise. This is not a malfunction.

i.

1.448,2.438 1.865,2.688 0.417,0.25 1.156,4.083 1.385,3.646 true 1.542,4.073 1.542,3.635 true 1.698,3.646 1.958,4.094 true 0.385,2.677 0.698,2.833 0.313,0.156 10 false *a 1.458,4.146 1.771,4.302 0.313,0.156 10 false MH 1.021,4.135 1.333,4.292 0.313,0.156 10 false M+ 1.917,4.146 2.229,4.302 0.313,0.156 10 false MV 1.542,2.479 1.854,2.729 0.313,0.25 10 false L17

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Apply auxiliary battery voltage and check the operation of the mirror surface.

OK:

Tester Connection	Specified Condition
L17-11 (MV) - Auxiliary battery positive (+) L17-9 (M+) - Auxiliary battery negative (-)	Turns upward
L17-9 (M+) - Auxiliary battery positive (+) L17-11 (MV) - Auxiliary battery negative (-)	Turns downward
L17-10 (MH) - Auxiliary battery positive (+) L17-9 (M+) - Auxiliary battery negative (-)	Turns left
L17-9 (M+) - Auxiliary battery positive (+) L17-10 (MH) - Auxiliary battery negative (-)	Turns right

If the result is not as specified, replace the outer rear view mirror assembly LH.

b.

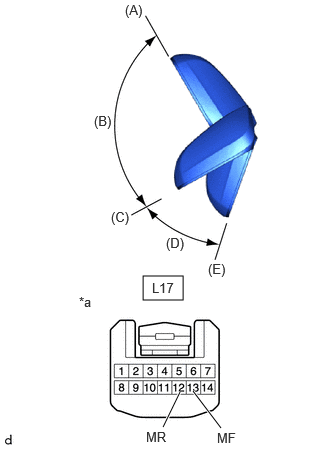

Check the operation of the retractable mirror. (w/ Power Retractor Mirror)

NOTICE:: ·

Disconnect and reconnect the auxiliary battery between each mirror position check.

·

The mirror position cannot be changed manually when the auxiliary battery is connected. To change the mirror position manually, the auxiliary battery must be disconnected first.

·

If the motor is kept energized, even after each mirror position check, it may lead to a motor malfunction. Make sure to disconnect the auxiliary battery immediately after performing each mirror position check.

i.

1.49,2.875 1.906,3.125 0.417,0.25 1.875,4.083 1.698,4.448 true 2.302,4.458 2.01,4.073 true 1.302,0.021 1.635,0.198 0.333,0.177 10 false (A) 1.521,4.469 1.844,4.667 0.323,0.198 10 false MR 2.26,4.479 2.573,4.635 0.313,0.156 10 false MF 0.979,1.177 1.302,1.375 0.323,0.198 10 false (B) 1.156,2.177 1.469,2.396 0.313,0.219 10 false (C) 1.729,2.448 2.042,2.688 0.313,0.24 10 false (D) 2.167,2.719 2.49,2.99 0.323,0.271 10 false (E) 0.823,3.063 1.042,3.24 0.219,0.177 10 false *a 1.583,2.917 2.042,3.115 0.458,0.198 10 false L17

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

For each position: Disconnect the auxiliary battery, set the mirror position by hand, connect the auxiliary battery, and check the retractable mirror's movement.

OK:

Tester Connection	Condition	Specified Condition
L17-12 (MR) - Auxiliary battery positive (+) L17-13 (MF) - Auxiliary battery negative (-)	Forward position (A)	Moves from (A) to (E)
L17-13 (MF) - Auxiliary battery positive (+) L17-12 (MR) - Auxiliary battery negative (-)	Forward position (A)	Does not move
L17-12 (MR) - Auxiliary battery positive (+) L17-13 (MF) - Auxiliary battery negative (-)	Position between forward position (A) and driving position (C)	Moves from (B) to (E)
L17-13 (MF) - Auxiliary battery positive (+) L17-12 (MR) - Auxiliary battery negative (-)	Position between forward position (A) and driving position (C)	Moves from (B) to (A)
L17-12 (MR) - Auxiliary battery positive (+) L17-13 (MF) - Auxiliary battery negative (-)	Driving position (C)	Moves from (C) to (E)
L17-13 (MF) - Auxiliary battery positive (+) L17-12 (MR) - Auxiliary battery negative (-)	Driving position (C)	Does not move
L17-12 (MR) - Auxiliary battery positive (+) L17-13 (MF) - Auxiliary battery negative (-)	Position between driving position (C) and retracted position (E)	Moves from (D) to (E)
L17-13 (MF) - Auxiliary battery positive (+) L17-12 (MR) - Auxiliary battery negative (-)	Position between driving position (C) and retracted position (E)	Moves from (D) to (C)
L17-12 (MR) - Auxiliary battery positive (+) L17-13 (MF) - Auxiliary battery negative (-)	Retracted position (E)	Does not move
L17-13 (MF) - Auxiliary battery positive (+) L17-12 (MR) - Auxiliary battery negative (-)	Retracted position (E)	Moves from (E) to (C)

If the result is not as specified, replace the outer mirror retractor LH.

c.

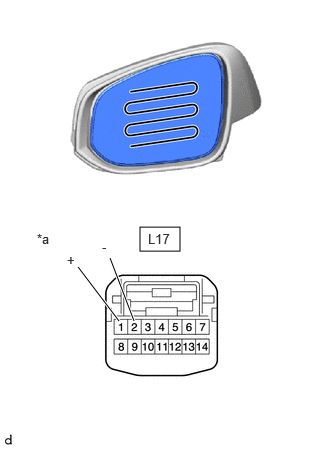

Check the operation of the mirror heater.

i.

1.458,2.365 1.875,2.615 0.417,0.25 0.813,2.781 1.24,3.344 true 1.146,2.688 1.396,3.344 true 1.542,2.406 2,2.604 0.458,0.198 10 false L17 0.698,2.625 1.01,2.823 0.313,0.198 10 false + 0.385,2.406 0.698,2.604 0.313,0.198 10 false *a 1.063,2.49 1.375,2.688 0.313,0.198 10 false -

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
L17-1 (+) - L17-2 (-)	25°C	7.5 to 9.1 Ω

If the result is not as specified, inspect the outer mirror LH or replace the outer rear view mirror assembly LH.

ii.

Connect a cable from the positive (+) auxiliary battery terminal to L17-1 (+) and negative (-) auxiliary battery terminal to L17-2 (-), then check that the mirror becomes warm.

HINT:: It takes a short time for the mirror to become warm.

OK:: Mirror becomes warm.

If the result is not as specified, inspect the outer mirror LH or replace the outer rear view mirror assembly LH.

d.

Check the side turn signal light assembly LH.

i.

1.5,0.281 1.917,0.531 0.417,0.25 2.313,1.896 2.146,1.531 true 1.167,1.906 1.292,1.521 true 0.156,0.125 0.469,0.281 0.313,0.156 10 false *a 1.135,1.948 1.542,2.146 0.406,0.198 10 false B 2.302,1.948 2.583,2.104 0.281,0.156 10 false E 1.604,0.323 2.01,0.573 0.406,0.25 10 false L17

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Apply auxiliary battery voltage to the terminals of the connector, and check the illumination condition.

OK:

Tester Connection	Specified Condition
L17-8 (B) - Auxiliary battery positive (+) L17-14 (E) - Auxiliary battery negative (-)	Side turn light illuminates

If the result is not as specified, inspect the side turn signal light assembly LH or replace the outer rear view mirror assembly LH.

Hide Display 87910 4.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH (w/ Panoramic View Monitor System)

a.

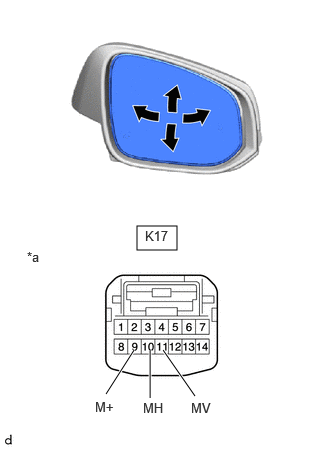

Check the operation of the mirror surface.

NOTICE:: If the mirror surface is fully turned to the right, left, upward or downward position, the motor slips and produces a clicking noise. This is not a malfunction.

i.

1.427,2.354 1.844,2.604 0.417,0.25 1.104,4.104 1.396,3.646 true 1.563,4.146 1.563,3.646 true 2.031,4.125 1.698,3.646 true 0.281,2.594 0.552,2.802 0.271,0.208 10 false *a 1.49,4.167 1.792,4.344 0.302,0.177 10 false MH 0.99,4.156 1.281,4.354 0.292,0.198 10 false M+ 1.99,4.167 2.271,4.354 0.281,0.188 10 false MV 1.51,2.375 1.792,2.563 0.281,0.188 10 false K17

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Apply auxiliary battery voltage and check the operation of the mirror surface.

OK:

Tester Connection	Specified Condition
K17-11 (MV) - Auxiliary battery positive (+) K17-9 (M+) - Auxiliary battery negative (-)	Turns upward
K17-9 (M+) - Auxiliary battery positive (+) K17-11 (MV) - Auxiliary battery negative (-)	Turns downward
K17-10 (MH) - Auxiliary battery positive (+) K17-9 (M+) - Auxiliary battery negative (-)	Turns left
K17-9 (M+) - Auxiliary battery positive (+) K17-10 (MH) - Auxiliary battery negative (-)	Turns right

If the result is not as specified, replace the outer rear view mirror assembly RH.

b.

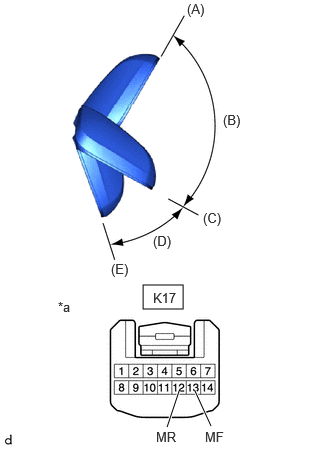

Check the operation of the retractable mirror. (w/ Power Retractor Mirror)

NOTICE:: ·

Disconnect and reconnect the auxiliary battery between each mirror position check.

·

The mirror position cannot be changed manually when the auxiliary battery is connected. To change the mirror position manually, the auxiliary battery must be disconnected first.

·

If the motor is kept energized, even after each mirror position check, it may lead to a motor malfunction. Make sure to disconnect the auxiliary battery immediately after performing each mirror position check.

i.

1.49,2.969 1.906,3.219 0.417,0.25 2.198,4.438 2.031,4.073 true 1.74,4.448 1.865,4.073 true 0.604,3.115 0.917,3.271 0.313,0.156 10 false *a 2.323,1.167 2.646,1.385 0.323,0.219 10 false (B) 2.115,2.188 2.458,2.406 0.344,0.219 10 false (C) 1.594,2.427 1.979,2.688 0.385,0.26 10 false (D) 1.156,2.719 1.438,2.917 0.281,0.198 10 false (E) 1.625,4.469 1.896,4.667 0.271,0.198 10 false MR 2.135,4.469 2.406,4.667 0.271,0.198 10 false MF 1.594,3.021 1.865,3.219 0.271,0.198 10 false K17 1.948,0.01 2.271,0.229 0.323,0.219 10 false (A)

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

For each position: Disconnect the auxiliary battery, set the mirror position by hand, connect the auxiliary battery, and check the retractable mirror's movement.

OK:

Tester Connection	Condition	Specified Condition
K17-12 (MR) - Auxiliary battery positive (+) K17-13 (MF) - Auxiliary battery negative (-)	Forward position (A)	Moves from (A) to (E)
K17-13 (MF) - Auxiliary battery positive (+) K17-12 (MR) - Auxiliary battery negative (-)	Forward position (A)	Does not move
K17-12 (MR) - Auxiliary battery positive (+) K17-13 (MF) - Auxiliary battery negative (-)	Position between forward position (A) and driving position (C)	Moves from (B) to (E)
K17-13 (MF) - Auxiliary battery positive (+) K17-12 (MR) - Auxiliary battery negative (-)	Position between forward position (A) and driving position (C)	Moves from (B) to (A)
K17-12 (MR) - Auxiliary battery positive (+) K17-13 (MF) - Auxiliary battery negative (-)	Driving position (C)	Moves from (C) to (E)
K17-13 (MF) - Auxiliary battery positive (+) K17-12 (MR) - Auxiliary battery negative (-)	Driving position (C)	Does not move
K17-12 (MR) - Auxiliary battery positive (+) K17-13 (MF) - Auxiliary battery negative (-)	Position between driving position (C) and retracted position (E)	Moves from (D) to (E)
K17-13 (MF) - Auxiliary battery positive (+) K17-12 (MR) - Auxiliary battery negative (-)	Position between driving position (C) and retracted position (E)	Moves from (D) to (C)
K17-12 (MR) - Auxiliary battery positive (+) K17-13 (MF) - Auxiliary battery negative (-)	Retracted position (E)	Does not move
K17-13 (MF) - Auxiliary battery positive (+) K17-12 (MR) - Auxiliary battery negative (-)	Retracted position (E)	Moves from (E) to (C)

If the result is not as specified, replace the outer mirror retractor RH.

c.

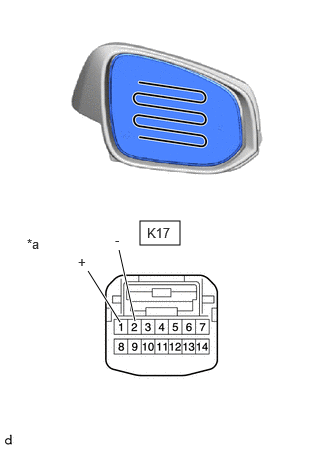

Check the operation of the mirror heater.

i.

1.458,2.302 1.875,2.552 0.417,0.25 1.406,3.344 1.24,2.604 true 1.25,3.354 0.917,2.823 true 0.281,2.458 0.594,2.656 0.313,0.198 10 false *a 1.531,2.344 1.844,2.542 0.313,0.198 10 false K17 0.813,2.646 1.125,2.844 0.313,0.198 10 false + 1.198,2.417 1.51,2.615 0.313,0.198 10 false -

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
K17-1 (+) - K17-2 (-)	25°C	7.5 to 9.1 Ω

If the result is not as specified, inspect the outer mirror RH or replace the outer rear view mirror assembly RH.

ii.

Connect a cable from the positive (+) auxiliary battery terminal to K17-1 (+) and negative (-) auxiliary battery terminal to K17-2 (-), then check that the mirror becomes warm.

HINT:: It takes a short time for the mirror to become warm.

OK:: Mirror becomes warm.

If the result is not as specified, inspect the outer mirror RH or replace the outer rear view mirror assembly RH.

d.

Check the side turn signal light assembly RH.

i.

1.5,0.281 1.917,0.531 0.417,0.25 2.313,1.896 2.146,1.531 true 1.167,1.906 1.292,1.521 true 0.156,0.125 0.469,0.281 0.313,0.156 10 false *a 1.135,1.948 1.542,2.146 0.406,0.198 10 false B 2.302,1.948 2.583,2.104 0.281,0.156 10 false E 1.604,0.313 2.01,0.563 0.406,0.25 10 false K17

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Apply auxiliary battery voltage to the terminals of the connector, and check the illumination condition.

OK:

Tester Connection	Specified Condition
K17-8 (B) - Auxiliary battery positive (+) K17-14 (E) - Auxiliary battery negative (-)	Side turn light illuminates

If the result is not as specified, inspect the side turn signal light assembly RH or replace the outer rear view mirror assembly RH.
