RM38N0EC _59 Vehicle Exterior _111837 MIRROR (EXT) _0509771 POWER MIRROR CONTROL SYSTEM(w/ Memory) J

MIRROR (EXT)  POWER MIRROR CONTROL SYSTEM(w/ Memory)  Reverse Shift-linked Function of Power Mirrors does not Operate


DESCRIPTION

The hybrid vehicle control ECU sends the reverse signal to the main body ECU (multiplex network body ECU) via CAN communication. When receiving the reverse signal, the main body ECU (multiplex network body ECU) sends the reverse request signal to each outer mirror control ECU assembly. Based on the signal, each outer mirror control ECU assembly then performs control.

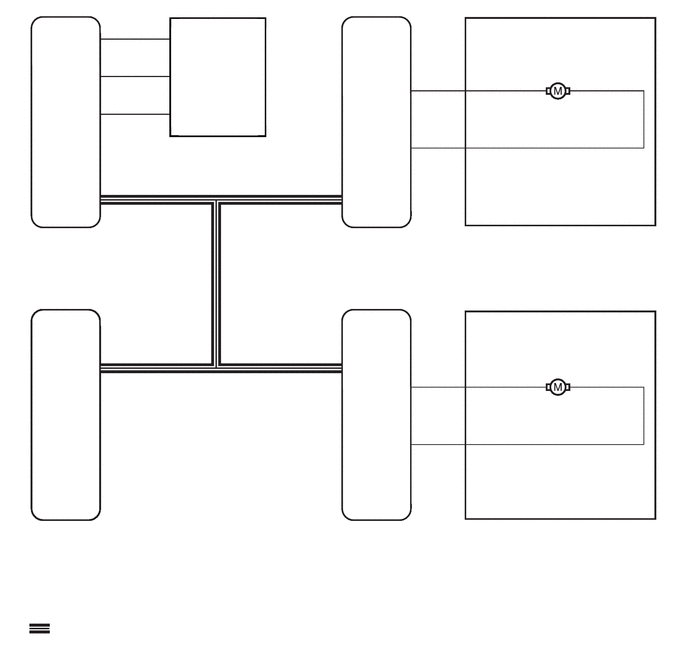

WIRING DIAGRAM

B630323
0.115,5.49 2.521,6.135 2.406,0.646 10 false ECM*1 1.365,1.521 3.323,2.125 1.958,0.604 10 false Outer Mirror Switch Assembly 0.125,2.552 1.771,3.021 1.646,0.469 10 false Main Body ECU (Multiplex Network Body ECU) 2.615,2.417 4.177,3.031 1.563,0.615 10 false Outer Mirror Control ECU Assembly (Driver Door) 4.813,5.594 6.865,6.219 2.052,0.625 10 false Outer Rear View Mirror Assembly (Front Passenger Door) 2.604,5.396 3.719,5.75 1.115,0.354 10 false G19 2.594,5.563 4.156,6.146 1.563,0.583 10 false Outer Mirror Control ECU Assembly (Front Passenger Door) 4.854,2.563 6.906,3.042 2.052,0.479 10 false Outer Rear View Mirror Assembly (Driver Door) 3.844,3.948 4.302,4.146 0.458,0.198 10 false RMVR 3.833,4.531 4.292,4.729 0.458,0.198 10 false RM+R 3.854,0.854 4.313,1.052 0.458,0.198 10 false LMVR 3.854,1.448 4.313,1.646 0.458,0.198 10 false LM+R 4.344,0.74 4.802,0.938 0.458,0.198 11 false 1 4.344,3.833 4.802,4.031 0.458,0.198 10 false 1 4.333,4.448 4.792,4.646 0.458,0.198 10 false 10 4.323,1.365 4.781,1.563 0.458,0.198 10 false 10 5.188,1.073 6.698,1.313 1.51,0.24 10 false Vertical Mirror Motor 5.198,4.167 6.542,4.448 1.344,0.281 10 false Vertical Mirror Motor 0.563,6.448 2.646,6.688 2.083,0.24 10 false : CAN Communication Line 2.625,2.229 3.74,2.583 1.115,0.354 10 false G21 1.375,1.375 1.833,1.573 0.458,0.198 10 false I8 1.823,0.333 2.281,0.531 0.458,0.198 10 false M+ 1.813,0.719 2.271,0.917 0.458,0.198 10 false MSW 1.823,1.125 1.979,1.323 0.156,0.198 10 false E 0.646,0.323 1.26,0.521 0.615,0.198 10 false MIRB 0.646,0.729 1.26,0.927 0.615,0.198 10 false MIRS 0.646,1.104 1.26,1.302 0.615,0.198 10 false MIRE 0.125,2.385 0.583,2.583 0.458,0.198 10 false E38 1.094,0.24 1.573,0.802 0.479,0.563 10 false 22 1.094,1.01 1.25,1.208 0.156,0.198 10 false 21 1.094,0.625 1.427,1.25 0.333,0.625 10 false 20 1.625,0.229 1.781,0.427 0.156,0.198 10 false 4 1.625,0.615 1.781,0.813 0.156,0.198 10 false 5 1.625,1 2.104,1.563 0.479,0.563 10 false 7 0.104,5.792 2.51,6.438 2.406,0.646 10 false Hybrid Vehicle Control ECU*2 2.677,6.365 4.156,6.646 1.479,0.281 10 false *1: for Gasoline Model 4.167,6.365 6.302,6.677 2.135,0.313 10 false *2: for HV Model 4.802,5.427 5.917,5.781 1.115,0.354 10 false G13 4.854,2.385 5.969,2.74 1.115,0.354 10 false G15 4.917,0.75 5.375,0.948 0.458,0.198 10 false MV 4.938,3.802 5.396,4 0.458,0.198 10 false MV 4.948,1.302 5.406,1.5 0.458,0.198 10 false M+ 4.927,4.417 5.385,4.615 0.458,0.198 10 false M+ 4.698,0.74 5.156,0.938 0.458,0.198 11 false 7 4.719,1.365 5.177,1.563 0.458,0.198 10 false 8 4.698,3.833 5.156,4.031 0.458,0.198 10 false 7 4.698,4.427 5.156,4.625 0.458,0.198 10 false 8

CAUTION / NOTICE / HINT

NOTICE:
·

The power mirror control system (w/ Memory) uses the CAN communication system. Inspect the communication functions by following How to Proceed with Troubleshooting. Troubleshoot the power mirror control system (w/ Memory) after confirming that the communication systems are functioning properly.

Click hereVehicle Exterior>MIRROR (EXT)>POWER MIRROR CONTROL SYSTEM (w/ Memory)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before replacing the main body ECU (multiplex network body ECU), refer to Service Bulletin.



PROCEDURE

1.CHECK ELECTRICAL REMOTE CONTROL MIRROR FUNCTION
a.

Check the electrical remote control mirror function operates normally.

Click hereVehicle Exterior>MIRROR (EXT)>POWER MIRROR CONTROL SYSTEM (w/ Memory)>OPERATION CHECK

OK:

Power electrical remote control mirror function operates normally.



Result:
Result Proceed to
Electrical remote control mirror function is normal A
Driver door electrical remote control mirror function is not normal B
Front passenger door electrical remote control mirror function is not normal C



A

2.CHECK MEMORY AND REACTIVATION FUNCTION

B

GO TO OTHER DIAGNOSTIC PROCEDURE (Driver Side Power Mirror cannot be Adjusted with Power Mirror Switch)

Click hereVehicle Exterior>MIRROR (EXT)>POWER MIRROR CONTROL SYSTEM (w/ Memory)>Driver Side Power Mirror cannot be Adjusted with Power Mirror Switch


C

GO TO OTHER DIAGNOSTIC PROCEDURE (Front Passenger Side Power Mirror cannot be Adjusted with Power Mirror Switch)

Click hereVehicle Exterior>MIRROR (EXT)>POWER MIRROR CONTROL SYSTEM (w/ Memory)>Front Passenger Side Power Mirror cannot be Adjusted with Power Mirror Switch


2.CHECK MEMORY AND REACTIVATION FUNCTION
a.

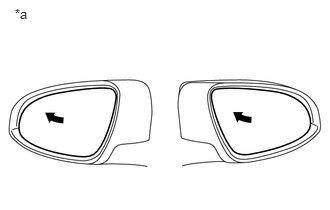

B293945C13
0.155,0.062 0.311,0.232 0.156,0.17 10 *a
*a Turn to Fully Left Position


Turn the ignition switch to ON.


b.

Using the outer mirror switch assembly, turn the mirror surface to the fully left position.


c.

Press the M1 switch while the SET switch is being pressed.


d.

Check that the buzzer sounds for 0.5 seconds and the mirror surface position is memorized.


e.

Using the outer mirror switch assembly, turn the mirror surface to the fully right position.


f.

Press the M1 switch.


g.

Check that the buzzer sounds for 0.1 seconds and the outer mirror automatically moves to the memorized fully left position.


Result:
Result Proceed to
Memory and reactivation functions are normal A
Memory function is not normal B
Reactivation function is not normal C



A

3.SYSTEM CHECK

B

GO TO OTHER DIAGNOSTIC PROCEDURE (Power Mirror Surface Position is not Memorized)

Click hereVehicle Exterior>MIRROR (EXT)>POWER MIRROR CONTROL SYSTEM (w/ Memory)>Power Mirror Surface Position is not Memorized


C

GO TO OTHER DIAGNOSTIC PROCEDURE (Power Mirrors do not Return to Memorized Position)

Click hereVehicle Exterior>MIRROR (EXT)>POWER MIRROR CONTROL SYSTEM (w/ Memory)>Power Mirror Surface Position is not Memorized


3.SYSTEM CHECK
a.

Check the vehicle specification.


Result:
Result Proceed to
for HV Model A
for Gasoline Model B



A

4.CHECK FOR DTC

B

7.CHECK FOR DTC
4.CHECK FOR DTC
a.

Check if hybrid control system DTCs are output.

Powertrain > Hybrid Control > Trouble Codes
50001 397
OK:

Hybrid control DTCs are not output.



Result:
Proceed to
OK
NG



OK

5.CHECK COMBINATION METER ASSEMBLY

NG

GO TO HYBRID CONTROL SYSTEM

for 2WD: Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM (for 2WD)>HOW TO PROCEED WITH TROUBLESHOOTING

for AWD: Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM (for AWD)>HOW TO PROCEED WITH TROUBLESHOOTING


5.CHECK COMBINATION METER ASSEMBLY
a.

Check if the shift position indicator light in the combination meter assembly operates normally.

OK:

Shift position indicator light indicates the actual shift position correctly.



Result:
Proceed to
OK
NG



OK

6.CHECK REVERSE SHIFT-LINKED FUNCTION

NG

GO TO METER / GAUGE SYSTEM

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


6.CHECK REVERSE SHIFT-LINKED FUNCTION
a.
B294057
0.177,0.115 0.49,0.313 0.313,0.198 10 false *a
*a Turns Downward


Turn the ignition switch to ON.


b.

Turn the mirror select switch R or L switch on.


c.

Check that the mirror surface turns downward when the shift lever is moved to R.


Result:
Result Proceed to
Reverse shift-linked functions on both mirrors are not normal A
Reverse shift-linked function on driver door is not normal B
Reverse shift-linked function on front passenger door is not normal C



A

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


B

REPLACE OUTER MIRROR CONTROL ECU ASSEMBLY (DRIVER DOOR)

Click hereVehicle Exterior>MIRROR (EXT)>OUTER MIRROR CONTROL ECU>REMOVAL


C

REPLACE OUTER MIRROR CONTROL ECU ASSEMBLY (FRONT PASSENGER DOOR)

Click hereVehicle Exterior>MIRROR (EXT)>OUTER MIRROR CONTROL ECU>REMOVAL


7.CHECK FOR DTC
a.

Check if hybrid control system DTCs are output.

Powertrain > Engine > Trouble Codes
50001 372
OK:

Engine control DTCs are not output.



Result:
Proceed to
OK
NG



OK

5.CHECK COMBINATION METER ASSEMBLY

NG

GO TO SFI SYSTEM

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING
