RM38N0EC _59 Vehicle Exterior _111837 MIRROR (EXT) _0509771 POWER MIRROR CONTROL SYSTEM(w/ Memory) J

MIRROR (EXT)  POWER MIRROR CONTROL SYSTEM(w/ Memory)  Power Mirror Surface Position is not Memorized


DESCRIPTION

If the M1 or M2 seat memory switch is pressed, the outer mirror control ECU assembly (driver door) detects the switch operation and sends the seat memory switch signal to the main body ECU (multiplex network body ECU) via CAN communication. On receiving the seat memory switch signal, the main body ECU (multiplex network body ECU) sends the memory request signal to each outer mirror control ECU assembly via CAN communication. When receiving this signal, each outer mirror control ECU assembly stores the mirror surface position based on information from the mirror position sensor, which is built into the outer rear view mirror assembly.

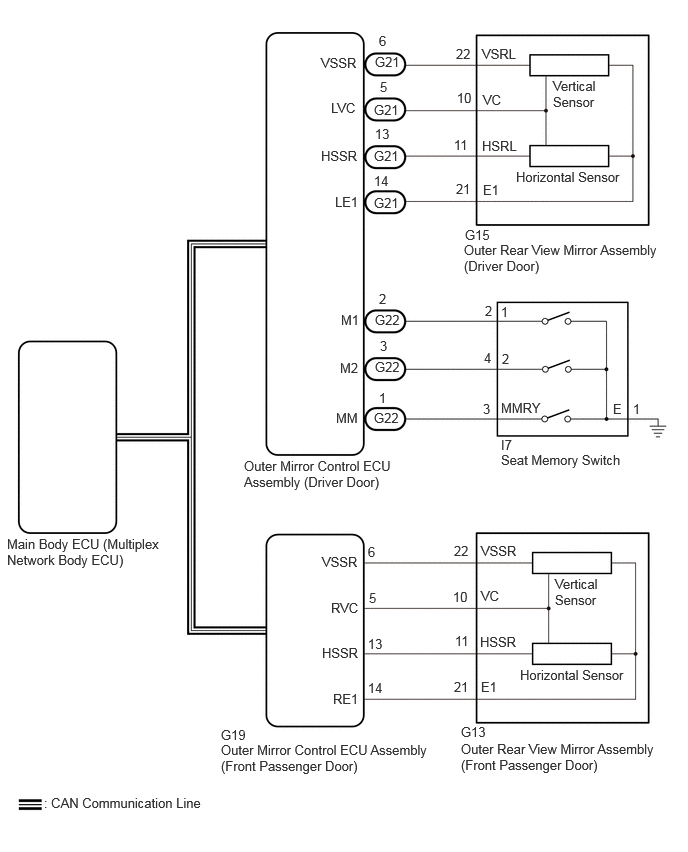

WIRING DIAGRAM

B490274E28
0.073,5.583 1.708,6 1.635,0.417 10 false Main Body ECU (Multiplex Network Body ECU) 0.458,8.281 2.219,8.542 1.76,0.26 10 false : CAN Communication Line 2.302,7.573 3.063,7.844 0.76,0.271 10 false G19 3.469,7.198 4.01,7.427 0.542,0.229 10 false RE1 3.354,6.719 3.896,6.948 0.542,0.229 10 false HSSR 3.448,6.25 3.99,6.479 0.542,0.229 10 false RVC 3.354,5.771 3.896,6 0.542,0.229 10 false VSSR 2.542,4.771 4.104,5.188 1.563,0.417 10 false Outer Mirror Control ECU Assembly (Driver Door) 5.219,4.552 5.76,4.781 0.542,0.229 10 false I7 4.802,7.542 5.792,7.802 0.99,0.26 10 false G13 4.802,7.719 6.875,8.26 2.073,0.542 10 false Outer Rear View Mirror Assembly (Front Passenger Door) 3.833,7.083 4.375,7.313 0.542,0.229 10 false 14 3.833,6.625 4.375,6.854 0.542,0.229 10 false 13 3.844,6.146 4.385,6.375 0.542,0.229 10 false 5 3.833,5.667 4.375,5.896 0.542,0.229 10 false 6 6.385,4.177 6.927,4.406 0.542,0.229 10 false E 2.302,7.729 4.51,8.583 2.208,0.854 10 false Outer Mirror Control ECU Assembly (Front Passenger Door) 3.906,3.25 4.448,3.479 0.542,0.229 10 false G22 3.906,0.563 4.448,0.792 0.542,0.229 10 false G21 3.552,3.25 4.094,3.479 0.542,0.229 10 false M1 5.219,4.708 6.771,4.969 1.552,0.26 10 false Seat Memory Switch 4.844,2.365 5.958,2.646 1.115,0.281 10 false G15 4.833,2.521 6.885,3.01 2.052,0.49 10 false Outer Rear View Mirror Assembly (Driver Door) 5.76,0.813 6.271,1.229 0.51,0.417 10 false Vertical Sensor 5.375,1.76 6.542,1.99 1.167,0.229 10 false Horizontal Sensor 3.344,0.573 3.885,0.802 0.542,0.229 10 false VSSR 3.448,1.042 3.99,1.271 0.542,0.229 10 false LVC 3.344,1.542 3.885,1.771 0.542,0.229 10 false HSSR 3.49,2.021 4.031,2.25 0.542,0.229 10 false LE1 5.021,0.479 5.563,0.708 0.542,0.229 10 false VSRL 5.031,0.958 5.573,1.188 0.542,0.229 10 false VC 5.021,1.438 5.563,1.667 0.542,0.229 10 false HSRL 5.031,1.896 5.573,2.125 0.542,0.229 10 false E1 3.542,3.75 4.083,3.979 0.542,0.229 10 false M2 3.5,4.271 4.042,4.5 0.542,0.229 10 false MM 5.219,3.167 5.76,3.396 0.542,0.229 10 false 1 5.229,3.656 5.771,3.885 0.542,0.229 10 false 2 5.219,4.167 5.76,4.396 0.542,0.229 10 false MMRY 3.948,4.063 4.49,4.292 0.542,0.229 10 false 1 4.76,0.938 5.052,1.281 0.292,0.344 10 false 10 3.948,3.031 4.49,3.26 0.542,0.229 10 false 2 5.052,3.156 5.594,3.385 0.542,0.229 10 false 2 4.75,1.885 5.094,2.24 0.344,0.354 10 false 21 3.948,0.344 4.49,0.573 0.542,0.229 10 false 6 5.042,3.646 5.583,3.875 0.542,0.229 10 false 4 3.958,0.823 4.5,1.052 0.542,0.229 10 false 5 3.906,1.313 4.448,1.542 0.542,0.229 10 false 13 3.896,1.802 4.438,2.031 0.542,0.229 10 false 14 3.958,3.521 4.5,3.75 0.542,0.229 10 false 3 5.031,4.177 5.573,4.406 0.542,0.229 10 false 3 5.01,7.073 5.552,7.302 0.542,0.229 10 false E1 5,6.604 5.542,6.833 0.542,0.229 10 false HSSR 5.01,6.125 5.552,6.354 0.542,0.229 10 false VC 5.01,5.656 5.552,5.885 0.542,0.229 10 false VSSR 6.594,4.177 6.823,4.385 0.229,0.208 10 false 1 5.781,6 6.292,6.417 0.51,0.417 10 false Vertical Sensor 5.417,6.948 6.583,7.177 1.167,0.229 10 false Horizontal Sensor 4.729,7.073 5.073,7.417 0.344,0.344 10 false 21 4.719,6.135 5.031,6.5 0.313,0.365 10 false 10 4.729,5.656 5.052,6 0.323,0.344 10 false 22 4.75,0.479 5.073,0.823 0.323,0.344 10 false 22 4.729,1.427 5.094,1.771 0.365,0.344 10 false 11 4.74,6.594 5.104,6.938 0.365,0.344 10 false 11 3.896,1.063 4.438,1.292 0.542,0.229 10 false G21 3.896,1.542 4.438,1.771 0.542,0.229 10 false G21 3.896,2.031 4.438,2.26 0.542,0.229 10 false G21 3.906,3.74 4.448,3.969 0.542,0.229 10 false G22 3.896,4.271 4.438,4.5 0.542,0.229 10 false G22

CAUTION / NOTICE / HINT

NOTICE:
·

The power mirror control system (w/ Memory) uses the CAN communication system. Inspect the communication functions by following How to Proceed with Troubleshooting. Troubleshoot the power mirror control system (w/ Memory) after confirming that the communication systems are functioning properly.

Click hereVehicle Exterior>MIRROR (EXT)>POWER MIRROR CONTROL SYSTEM (w/ Memory)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before replacing the main body ECU (multiplex network body ECU), refer to Service Bulletin.

·

The mirror surface position will not be memorized if the ignition switch is not ON.

·

The mirror surface position will not be stored if the seat memory SET switch and 2 or more seat memory switches are pressed simultaneously.

·

If the operation fails, the mirror surface position will not be memorized until the seat memory SET switch is released and the operation is attempted again.

·

The mirror surface position will not be memorized when the mirror is operated manually.



HINT:

Each outer rear view mirror assembly has a built-in mirror vertical position sensor and mirror horizontal position sensor.


PROCEDURE

1.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Body Electrical > Mirror L > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Seat Memory Switch1 Seat memory switch M1 switch signal OFF or ON OFF: Seat memory switch M1 switch off
ON: Seat memory switch M1 switch on
-
Seat Memory Switch2 Seat memory switch M2 switch signal OFF or ON OFF: Seat memory switch M2 switch off
ON: Seat memory switch M2 switch on
-
Seat Memory Set SW Seat memory switch SET switch signal OFF or ON OFF: Seat memory switch SET switch off
ON: Seat memory switch SET switch on
-
Body Electrical > Mirror L > Data List
Tester Display
Seat Memory Switch1
Seat Memory Switch2
Seat Memory Set SW
50003 225 1,2,4
Body Electrical > Mirror R > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Seat Memory Switch1 Seat memory switch M1 switch signal OFF or ON OFF: Seat memory switch M1 switch off
ON: Seat memory switch M1 switch on
-
Seat Memory Switch2 Seat memory switch M2 switch signal OFF or ON OFF: Seat memory switch M2 switch off
ON: Seat memory switch M2 switch on
-
Seat Memory Set SW Seat memory switch SET switch signal OFF or ON OFF: Seat memory switch SET switch off
ON: Seat memory switch SET switch on
-
Body Electrical > Mirror R > Data List
Tester Display
Seat Memory Switch1
Seat Memory Switch2
Seat Memory Set SW
50003 224 1,2,4
OK:

On the GTS screen, ON or OFF is displayed accordingly.



Result:
Proceed to
OK
NG



OK

2.CHECK SEAT MEMORY SWITCH (SEAT POSITION MEMORY FUNCTION)

NG

8.INSPECT SEAT MEMORY SWITCH
2.CHECK SEAT MEMORY SWITCH (SEAT POSITION MEMORY FUNCTION)
a.

When any seat memory switch (M1 or M2) is pressed, check that the driver seat moves to the memorized position.

Click hereVehicle Exterior>MIRROR (EXT)>POWER MIRROR CONTROL SYSTEM (w/ Memory)>OPERATION CHECK

OK:

The driver seat moves to the memorized position.



Result:
Proceed to
OK
NG



OK

3.CHECK MEMORY AND REACTIVATION FUNCTION

NG

3.CHECK MEMORY AND REACTIVATION FUNCTION
a.
B293945C13
0.155,0.062 0.311,0.232 0.156,0.17 10 *a
*a Turn to Fully Left Position


Turn the ignition switch to ON.


b.

Using the outer mirror switch assembly, turn the mirror surface to the fully left position.


c.

Press the M1 switch while the SET switch is being pressed.


d.

Check that the buzzer sounds for 0.5 seconds and the mirror surface position is memorized.


e.

Using the outer mirror switch assembly, turn the mirror surface to the fully right position.


f.

Press the M1 switch.


g.

Check that the buzzer sounds for 0.1 seconds and the outer mirror automatically moves to the memorized fully left position.


Result:
Result Proceed to
Memory and reactivation functions on both mirrors are not normal A
Memory and reactivation functions on driver door mirror are not normal B
Memory and reactivation functions on front passenger door mirror are not normal C



A

B

4.REPLACE OUTER REAR VIEW MIRROR ASSEMBLY (DRIVER DOOR)

C

6.REPLACE OUTER REAR VIEW MIRROR ASSEMBLY (FRONT PASSENGER DOOR)
4.REPLACE OUTER REAR VIEW MIRROR ASSEMBLY (DRIVER DOOR)

NEXT

5.CHECK MEMORY AND REACTIVATION FUNCTION
5.CHECK MEMORY AND REACTIVATION FUNCTION
a.
B293945C13
0.155,0.062 0.311,0.232 0.156,0.17 10 *a
*a Turn to Fully Left Position


Turn the ignition switch to ON.


b.

Using the outer mirror switch assembly, turn the mirror surface to the fully left position.


c.

Press the M1 switch while the SET switch is being pressed.


d.

Check that the buzzer sounds for 0.5 seconds and the mirror surface position is memorized.


e.

Using the outer mirror switch assembly, turn the mirror surface to the fully right position.


f.

Press the M1 switch.


g.

Check that the buzzer sounds for 0.1 seconds and the outer mirror automatically moves to the memorized fully left position.


Result:
Proceed to
OK
NG



OK

END (OUTER REAR VIEW MIRROR ASSEMBLY (DRIVER DOOR) WAS DEFECTIVE)

NG

6.REPLACE OUTER REAR VIEW MIRROR ASSEMBLY (FRONT PASSENGER DOOR)

Result:
Proceed to
NEXT



NEXT

7.CHECK MEMORY AND REACTIVATION FUNCTION
7.CHECK MEMORY AND REACTIVATION FUNCTION
a.
B293945C13
0.155,0.062 0.311,0.232 0.156,0.17 10 *a
*a Turn to Fully Left Position


Turn the ignition switch to ON.


b.

Using the outer mirror switch assembly, turn the mirror surface to the fully left position.


c.

Press the M1 switch while the SET switch is being pressed.


d.

Check that the buzzer sounds for 0.5 seconds and the mirror surface position is memorized.


e.

Using the outer mirror switch assembly, turn the mirror surface to the fully right position.


f.

Press the M1 switch.


g.

Check that the buzzer sounds for 0.1 seconds and the outer mirror automatically moves to the memorized fully left position.


Result:
Proceed to
OK
NG



OK

END (OUTER REAR VIEW MIRROR ASSEMBLY (FRONT PASSENGER DOOR) WAS DEFECTIVE)

NG

REPLACE OUTER MIRROR CONTROL ECU ASSEMBLY (FRONT PASSENGER DOOR)

8.INSPECT SEAT MEMORY SWITCH

OK

9.CHECK HARNESS AND CONNECTOR (SEAT MEMORY SWITCH - OUTER MIRROR CONTROL ECU ASSEMBLY (DRIVER DOOR) AND BODY GROUND)

NG

9.CHECK HARNESS AND CONNECTOR (SEAT MEMORY SWITCH - OUTER MIRROR CONTROL ECU ASSEMBLY (DRIVER DOOR) AND BODY GROUND)
a.

Disconnect the G22 outer mirror control ECU assembly (driver door) connector.


b.

Measure the resistance according to the value(s) in the table below.


Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(I7,G22)Location & Routing

Click Connector(I7)Body>No. 2 Front Door Wire RH / No. 2 Front Door Wire LH>Seat Memory Switch

Click Connector(G22)Body>Front Door Wire RH / Front Door Wire LH>Outer Mirror Control ECU Assembly LH

I7-3 (MMRY) - G22-1 (MM) Always Below 1 Ω
I7-2 (1) - G22-2 (M1) Always Below 1 Ω
I7-4 (2) - G22-3 (M2) Always Below 1 Ω
I7-1 (E) - Body ground Always Below 1 Ω
I7-3 (MMRY) or G22-1 (MM) - Body ground Always 10 kΩ or higher
I7-2 (1) or G22-2 (M1) - Body ground Always 10 kΩ or higher
I7-4 (2) or G22-3 (M2) - Body ground Always 10 kΩ or higher


Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
