SEAT  SEAT MEMORY SWITCH  INSPECTION

1.125,2.333 1.125,1.75 true 1.667,2.333 1.667,1.75 true 2.167,2.333 2.167,1.75 true 1.052,2.344 1.365,2.542 0.313,0.198 10 false *a 2.104,2.354 2.417,2.552 0.313,0.198 10 false *b 1.594,2.344 1.906,2.542 0.313,0.198 10 false *c 0.75,2.833 1.063,3.031 0.313,0.198 10 false *d

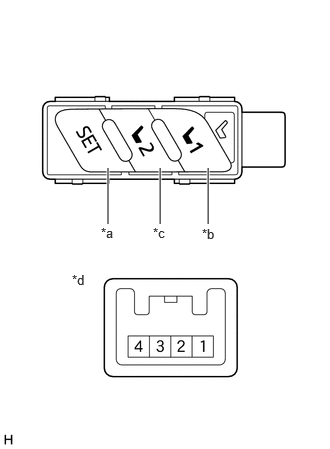

*a	SET Switch
*b	M1 Switch
*c	M2 Switch
*d	Component without harness connected (Seat Memory Switch)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
If the result is not as specified, replace the seat memory switch.
2 - 1	M1 switch pressed	Below 1 Ω
	M1 switch not pressed	10 kΩ or higher
4 - 1	M2 switch pressed	Below 1 Ω
	M2 switch not pressed	10 kΩ or higher
3 - 1	SET switch pressed	Below 1 Ω
	SET switch not pressed	10 kΩ or higher
