MIRROR (EXT) OUTER REAR VIEW MIRROR REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during outer rear view mirror assembly with cover removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. |
|||
·
Side television camera assembly LH* ·
Outer rear view mirror assembly LH* ·
Side television camera assembly RH* ·
Outer rear view mirror assembly RH* |
Side television camera view adjustment | Panoramic View Monitor System | ( 202409,999999,_56,_111825,_0500432,RM100000002O1F6,)
|
Replacement or removal and installation of 2 or more parts:
·
Front television camera assembly, radiator grille sub-assembly or front bumper assembly ·
Rear television camera assembly ·
Side television camera assembly LH or outer rear view mirror assembly LH ·
Side television camera assembly RH or outer rear view mirror assembly RH |
Television camera view adjustment | ||
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
69278B
1.REMOVE FRONT DOOR INSIDE HANDLE BEZEL
74222A
2.REMOVE FRONT DOOR ARMREST COVER
67602
3.REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
87964
4.REMOVE OUTER MIRROR INSTALL HOLE COVER

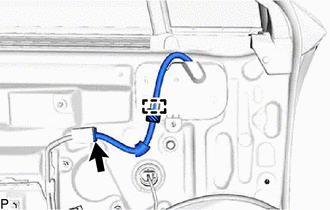

Disconnect the connector.
Disengage the clamp.
Remove the screw.

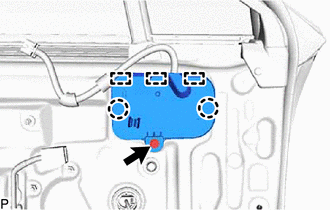

Disengage the 2 claws and 3 guides to remove the outer mirror install hole cover.
87940
5.REMOVE OUTER REAR VIEW MIRROR ASSEMBLY

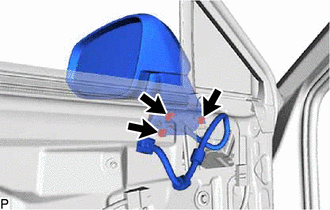

Remove the 3 nuts.

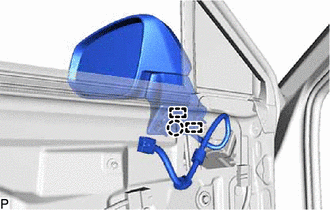

Disengage the claw and 2 guides to remove the outer rear view mirror assembly.
