WINDOW / GLASS  POWER WINDOW CONTROL SYSTEM  Rear Power Window LH does not Operate with Rear Power Window Switch LH


DESCRIPTION

When the ignition switch is ON, the power window regulator motor assembly (for rear LH door) is operated by the rear power window regulator switch assembly (for LH door). The power window regulator motor assembly (for rear LH door) has motor, regulator, and ECU functions.

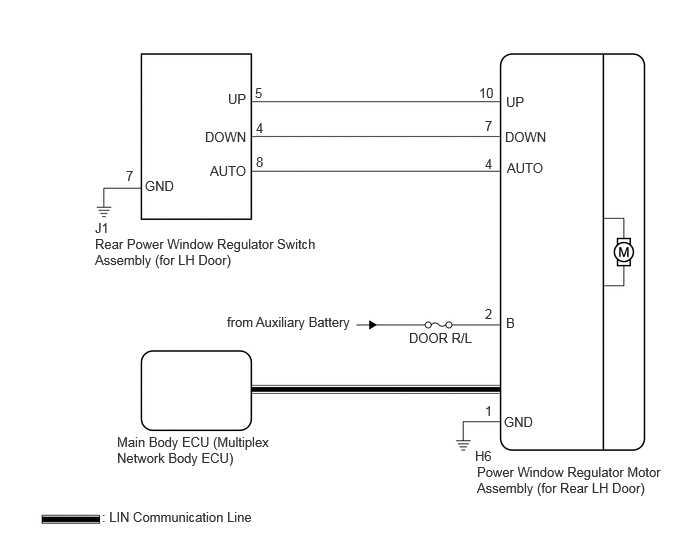

WIRING DIAGRAM

B520649E30
2.375,0.948 2.688,1.146 0.313,0.198 10 false UP 2.135,1.344 2.75,1.542 0.615,0.198 10 false DOWN 2.188,1.698 2.802,1.896 0.615,0.198 10 false AUTO 1.51,1.854 1.969,2.052 0.458,0.198 10 false GND 1.313,1.75 1.469,1.948 0.156,0.198 10 false 7 2.656,0.885 2.813,1.083 0.156,0.198 10 false 5 2.667,1.25 2.823,1.448 0.156,0.198 10 false 4 2.667,1.604 2.823,1.802 0.156,0.198 10 false 8 4.99,0.885 5.302,1.083 0.313,0.198 10 false 10 5.052,1.229 5.208,1.427 0.156,0.198 10 false 7 5.052,1.625 5.208,1.823 0.156,0.198 10 false 4 5.271,0.979 5.74,1.167 0.469,0.188 10 false UP 5.26,1.344 5.875,1.542 0.615,0.198 10 false DOWN 5.281,1.667 5.896,1.865 0.615,0.198 10 false AUTO 5.052,3.188 5.208,3.385 0.156,0.198 10 false 2 5.271,3.281 5.427,3.479 0.156,0.198 10 false B 0.99,2.292 1.583,2.49 0.594,0.198 10 false J1 0.99,2.458 3.313,2.927 2.323,0.469 10 false Rear Power Window Regulator Switch Assembly (for LH Door) 4.26,3.438 5.49,3.635 1.229,0.198 10 false DOOR R/L 2.365,3.271 4.198,3.469 1.833,0.198 10 false from Auxiliary Battery 1.219,4.521 2.885,5.302 1.667,0.781 10 false Main Body ECU (Multiplex Network Body ECU) 1.063,5.302 4.729,5.5 3.667,0.198 10 false : LIN Communication Line 4.948,4.667 5.26,4.865 0.313,0.198 10 false H6 4.969,4.833 6.927,5.719 1.958,0.885 10 false Power Window Regulator Motor Assembly (for Rear LH Door) 5.25,4.313 5.708,4.51 0.458,0.198 10 false GND 5.052,4.198 5.208,4.396 0.156,0.198 10 false 1

CAUTION / NOTICE / HINT

NOTICE:
·

The power window control system uses the LIN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the power window control system after confirming that the communication system is functioning properly.

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING

·

If the power window regulator motor assembly (for rear LH door) has been replaced with a new one, initialize the power window control system.

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM>INITIALIZATION

·

Check that the window lock switch is off before performing the following procedure.

·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

Before replacing the main body ECU (multiplex network body ECU), refer to Service Bulletin.



PROCEDURE

1.READ VALUE USING GTS (MAIN BODY)
a.

Read the Data List according to the display on the GTS.

Body Electrical > Main Body > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Communication RL-Door Motor Connection status between power window regulator motor assembly (for rear LH door) and main body ECU (multiplex network body ECU) STOP or OK STOP: Communication stopped
OK: Normal communication
-
Body Electrical > Main Body > Data List
Tester Display
Communication RL-Door Motor
50003 449 1649
OK:

OK is displayed for each Data List item above.



Result:
Proceed to
OK
NG



OK

2.READ VALUE USING GTS (RL-DOOR MOTOR)

NG

2.READ VALUE USING GTS (RL-DOOR MOTOR)
a.

Read the Data List according to the display on the GTS.

Body Electrical > RL-Door Motor > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
RL Door P/W Up SW Rear LH door power window manual up switch signal OFF or ON OFF: Rear LH door power window manual up switch not being operated
ON: Rear LH door power window manual up switch being operated
-
RL Door P/W Down SW Rear LH door power window manual down switch signal OFF or ON OFF: Rear LH door power window manual down switch not being operated
ON: Rear LH door power window manual down switch being operated
-
Body Electrical > RL-Door Motor > Data List
Tester Display
RL Door P/W Up SW
RL Door P/W Down SW
50003 146 2,3
OK:

On the GTS screen, ON or OFF is displayed accordingly.



Result:
Proceed to
OK
NG



OK

3.PERFORM ACTIVE TEST USING GTS (RL-DOOR MOTOR)

NG

4.INSPECT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (for LH Door)
3.PERFORM ACTIVE TEST USING GTS (RL-DOOR MOTOR)
a.

Perform the Active Test according to the display on the GTS.

CAUTION:

Be careful to avoid injuries as this test causes vehicle parts to move. During the Active Test, the jam protection function will not operate.


Body Electrical > RL-Door Motor > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Power Window Power window OFF / DOWN / UP -
Body Electrical > RL-Door Motor > Active Test
Tester Display
Power Window
50004 146 1
OK:

Rear LH door power window operates normally.



Result:
Proceed to
OK
NG



OK

NG

4.INSPECT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (for LH Door)

OK

5.CHECK HARNESS AND CONNECTOR (REAR POWER WINDOW REGULATOR SWITCH (for LH Door) - POWER WINDOW REGULATOR MOTOR (for Rear LH Door) AND BODY GROUND)

NG

REPLACE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (for LH Door)

5.CHECK HARNESS AND CONNECTOR (REAR POWER WINDOW REGULATOR SWITCH (for LH Door) - POWER WINDOW REGULATOR MOTOR (for Rear LH Door) AND BODY GROUND)
a.

Disconnect the H6 power window regulator motor assembly (for rear LH door) connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(J1,H6)Location & Routing

Click Connector(J1)Body>Rear Door Wire LH / Rear Door Wire RH>Rear Power Window Regulator Switch Assembly (for LH Door)

Click Connector(H6)Body>No. 1 Rear Door Wire / No. 2 Rear Door Wire>Power Window Regulator Motor Assembly LH (for Rear Door)

J1-5 (UP) - H6-10 (UP) Always Below 1 Ω
J1-5 (UP) or H6-10 (UP) - Body ground Always 10 kΩ or higher
J1-4 (DOWN) - H6-7 (DOWN) Always Below 1 Ω
J1-4 (DOWN) or H6-7 (DOWN) - Body ground Always 10 kΩ or higher
J1-7 (GND) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
