The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the rear transfer case oil seal removal/installation are shown below.
| Replacement Part or Procedure | Necessary Procedure | Effect/Inoperative when not Performed | Link |
|---|---|---|---|
| Continuously variable transaxle assembly | Air bleed oil pump with motor assembly | Stop and start system | ( 202409,999999,_51,_083056,_0402418,RM100000002NSFT,)
|
·
Input transaxle compensation code into ECM ·
Perform reset memory ·
Deceleration sensor zero point calibration ·
CVT oil pressure calibration ·
Perform road test to allow ECM to learn |
·
Large shift shock ·
Deterioration of fuel efficiency |
for Initialization:
( 202409,999999,_52,_138817,_0596468,RM100000002NRBH,)
for Registration: ( 202304,999999,_52,_138817,_0596468,RM100000002AWR8,)
|
|
| CVT fluid | ATF thermal degradation estimate reset | The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly | ( 202409,999999,_52,_138817,_0596468,RM100000002NRBH,)
|
| Air bleed oil pump with motor assembly | Stop and start system | ( 202409,999999,_51,_083056,_0402418,RM100000002NSFT,)
|
|
| Front electro magnetic control clutch sub-assembly (transfer assembly) | Disconnect system function check | Dynamic torque vectoring AWD system | ( 201910,999999,_52,_083068,_0401882,RM100000001JEAV,)
|
| Front wheel alignment adjustment | ·
Perform reset memory ·
Perform acceleration sensor zero point calibration and store system information memorization |
·
VSC is disabled or malfunctions ·
DTCs are output ·
Slip indicator light illuminates ·
ABS warning light illuminates |
( 202304,999999,_54,_083077,_0402316,RM100000002AG8P,)
|
| Suspension, tires, etc. | Parking assist ECU initialization | Panoramic view monitor system | ( 202304,999999,_56,_083082,_0586733,RM1000000029R9F,)
|
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Learning completes when vehicle is driven
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Stop and start system | Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). | ( 202409,999999,_51,_083056,_0402418,RM100000002NSFO,)
|
| Lane tracing assist system | Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. | ( 201910,999999,_58,_083101,_0401880,RM100000001JE9I,)
|
| Pre-collision system |
Learning completes when vehicle is operated normally
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
|
*: w/ Power back door system |
||
| Power back door function* | Fully close the back door by hand.
|
( 202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
|
| Power door lock control system | If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. | ( 202409,999999,_58,_083092,_0403003,RM100000002NS90,)
|
| Air conditioning system | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
| *a | An Object Exceeding Weight Limit of Engine Lifter |
The engine assembly with transaxle is very heavy. Be sure to follow the procedure described in the repair manual, or the engine lifter may suddenly drop or the engine assembly with transaxle may fall off the engine lifter.
To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.
| *a | An Object Exceeding Weight Limit of Transmission Jack |
The automatic transaxle assembly is very heavy. Be sure to follow the procedure described in the repair manual, or the transmission jack may suddenly drop.
1.REMOVE TRANSFER ASSEMBLY
36100A
2.REMOVE TRANSFER AND TRANSAXLE SETTING STUD BOLT
36100
3.SECURE TRANSFER ASSEMBLY
4.INSPECT TOTAL PRELOAD
5.REMOVE OUTPUT SHAFT COMPANION FLANGE NUT
33309B
6.REMOVE OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY
36111X
7.REMOVE NO. 2 TRANSFER CASE OIL SEAL
| *1 | No. 2 Transfer Case Oil Seal |

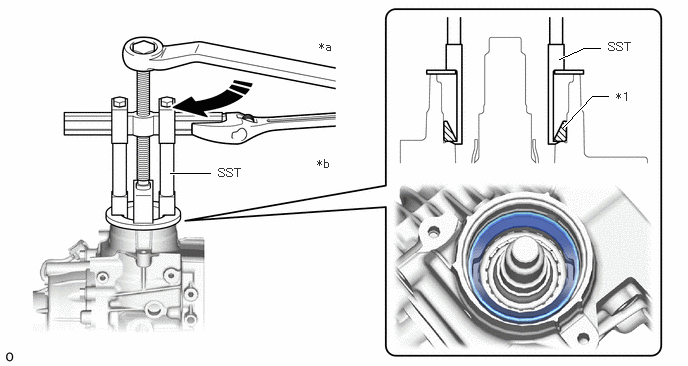

Using SST, remove the No. 2 transfer case oil seal from the transfer case.
Do not damage the No. 2 transfer case oil seal press-fit surface.
Remove the spacer.
| *1 | Rear Drive Pinion Bearing (Inner Race) |

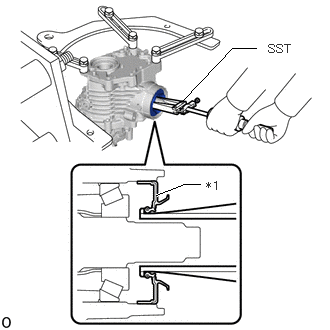

Using SST, remove the rear drive pinion bearing (inner race).
Remove the transfer pinion bearing spacer.
Using SST, remove the rear drive pinion bearing (outer race).
| *1 | Rear Drive Pinion Bearing (Outer Race) | - | - |
| *a | Turn | *b | Hold |
36111X
8.INSTALL NO. 2 TRANSFER CASE OIL SEAL
| *1 | Rear Drive Pinion Bearing (Outer Race) |

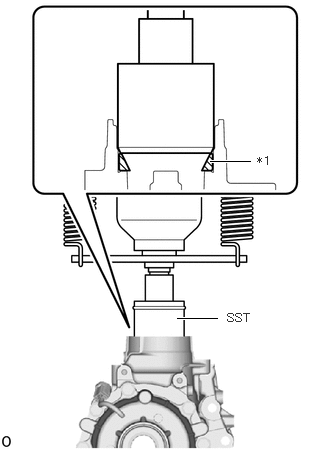

Using SST and a press, install the rear drive pinion bearing (outer race).
Install a new transfer pinion bearing spacer.
Temporarily install the output shaft companion flange.
| *a | Turn |
| *b | Hold |

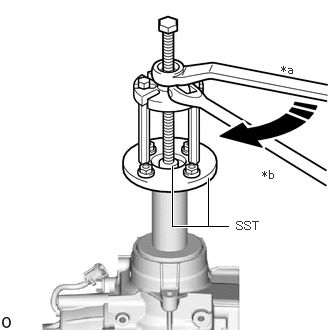

Using SST, install the rear drive pinion bearing (inner race).
| *a | Turn |
| *b | Hold |

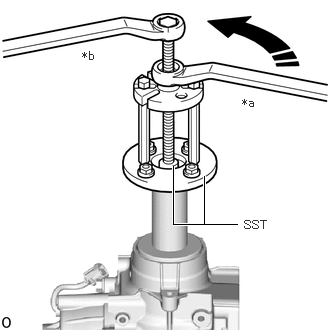

Using SST, remove the output shaft companion flange.
install the spacer.
Apply a small amount of MP grease to the lip of a new No.2 transfer case oil seal.
| *1 | No. 2 Transfer Case Oil Seal |

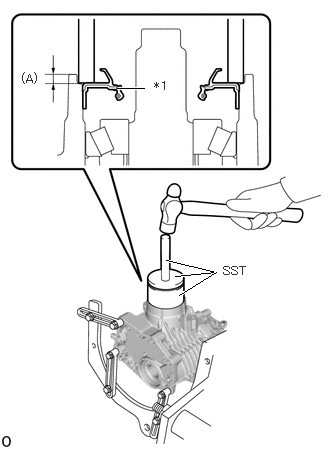

Using SST, install a new No. 2 transfer case oil seal to the transfer case.
3.9 to 4.9 mm (0.154 to 0.193 in.)
Do not damage the No. 2 transfer case oil seal press-fit surface.
Press using the A surface.
33309B
9.INSTALL OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY
10.INSPECT TOTAL PRELOAD
11.INSTALL OUTPUT SHAFT COMPANION FLANGE NUT
36100
12.REMOVE TRANSFER ASSEMBLY
36100A
13.INSTALL TRANSFER AND TRANSAXLE SETTING STUD BOLT
14.INSTALL TRANSFER ASSEMBLY
