NETWORKING  CAN COMMUNICATION SYSTEM(for SFTM Made Gasoline Model)  Check Bus 6 Line


DESCRIPTION

Symptom Trouble Area

*: for AWD

There are ECUs or sensors that display a communication stop on the bus diagnostic screen. Or, there are ECUs or sensors that store a communication stop history on the "Detail" screen.
·

CAN bus lines or connector

·

Central gateway ECU (network gateway ECU)

·

Tire pressure warning ECU and receiver

·

4WD ECU assembly*

·

No. 6 CAN junction connector

·

No. 2 CAN junction terminal

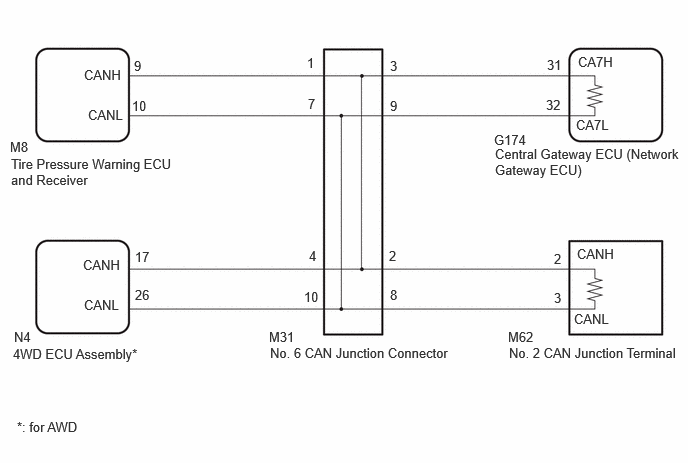

WIRING DIAGRAM

C531565E01
5.156,1.521 7.104,1.927 1.948,0.406 10 false Central Gateway ECU (Network Gateway ECU) 0.115,1.625 1.823,1.979 1.708,0.354 10 false Tire Pressure Warning ECU and Receiver 5.302,3.594 7.156,4 1.854,0.406 10 false No. 2 CAN Junction Terminal 2.813,3.594 4.792,3.813 1.979,0.219 10 false No. 6 CAN Junction Connector 5.146,1.375 5.646,1.594 0.5,0.219 10 false G174 6.021,0.563 6.521,0.781 0.5,0.219 10 false CA7H 6,1.219 6.5,1.438 0.5,0.219 10 false CA7L 6.01,2.563 6.51,2.781 0.5,0.219 10 false CANH 5.698,0.594 6,0.833 0.302,0.24 10 false 31 5.688,1.01 5.99,1.25 0.302,0.24 10 false 32 5.979,3.24 6.479,3.458 0.5,0.219 10 false CANL 5.771,2.615 6.073,2.854 0.302,0.24 10 false 2 5.771,3.021 6.073,3.26 0.302,0.24 10 false 3 0.875,0.698 1.375,0.917 0.5,0.219 10 false CANH 0.917,1.115 1.417,1.333 0.5,0.219 10 false CANL 1.375,1.021 1.677,1.26 0.302,0.24 10 false 10 1.396,0.604 1.698,0.844 0.302,0.24 10 false 9 2.802,3.427 3.302,3.646 0.5,0.219 10 false M31 5.292,3.427 5.792,3.646 0.5,0.219 10 false M62 0.104,1.448 0.604,1.667 0.5,0.219 10 false M8 3.198,0.573 3.5,0.813 0.302,0.24 10 false 1 3.208,1 3.51,1.24 0.302,0.24 10 false 7 4.063,1.021 4.365,1.26 0.302,0.24 10 false 9 4.063,0.604 4.365,0.844 0.302,0.24 10 false 3 4.063,2.99 4.365,3.229 0.302,0.24 10 false 8 4.052,2.583 4.354,2.823 0.302,0.24 10 false 2 0.146,3.427 0.646,3.646 0.5,0.219 10 false N4 0.135,3.604 1.677,3.833 1.542,0.229 10 false 4WD ECU Assembly* 0.177,4.365 1.719,4.594 1.542,0.229 10 false *: for AWD 0.865,2.677 1.365,2.896 0.5,0.219 10 false CANH 0.875,3.094 1.375,3.313 0.5,0.219 10 false CANL 1.406,2.594 1.708,2.833 0.302,0.24 10 false 17 1.406,2.99 1.708,3.229 0.302,0.24 10 false 26 3.219,2.583 3.521,2.823 0.302,0.24 10 false 4 3.167,3.01 3.469,3.25 0.302,0.24 10 false 10

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for SFTM Made Gasoline Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the battery.

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for SFTM Made Gasoline Model)>DIAGNOSIS SYSTEM



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR OPEN IN CAN BUS WIRE
NOTICE:

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.


HINT:

Operating the ignition switch , any other switches or door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.


a.

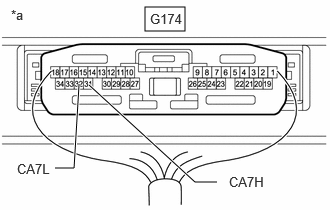

C502817C07
1.51,0.073 1.927,0.323 0.417,0.25 0.573,1.75 0.771,1.75 0.771,1.75 0.823,0.875 true 0.927,0.885 2.031,1.896 2.031,1.896 2.26,1.896 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 1.563,0.115 2.021,0.313 0.458,0.198 10 false G174 2.385,1.813 2.854,2.031 0.469,0.219 10 false CA7H 0.177,1.677 0.74,1.927 0.563,0.25 10 false CA7L
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))


Disconnect the cable from the negative (-) battery terminal.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G174-31 (CA7H) - G174-32 (CA7L) Cable disconnected from negative (-) battery terminal Below 70 Ω



Result:
Proceed to
OK
NG



OK

2.CHECK FOR SHORT IN CAN BUS WIRES

NG

32.CHECK FOR OPEN IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
2.CHECK FOR SHORT IN CAN BUS WIRES
a.
C502817C07
1.51,0.073 1.927,0.323 0.417,0.25 0.573,1.75 0.771,1.75 0.771,1.75 0.823,0.875 true 0.927,0.885 2.031,1.896 2.031,1.896 2.26,1.896 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 1.563,0.115 2.021,0.313 0.458,0.198 10 false G174 2.385,1.813 2.854,2.031 0.469,0.219 10 false CA7H 0.177,1.677 0.74,1.927 0.563,0.25 10 false CA7L
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G174-31 (CA7H) - G174-32 (CA7L) Cable disconnected from negative (-) battery terminal 54 Ω or higher



Result:
Proceed to
OK
NG



OK

3.CHECK FOR SHORT TO B+ IN CAN BUS WIRE

NG

23.CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
3.CHECK FOR SHORT TO B+ IN CAN BUS WIRE
a.
C502817C07
1.51,0.073 1.927,0.323 0.417,0.25 0.573,1.75 0.771,1.75 0.771,1.75 0.823,0.875 true 0.927,0.885 2.031,1.896 2.031,1.896 2.26,1.896 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 1.563,0.115 2.021,0.313 0.458,0.198 10 false G174 2.385,1.813 2.854,2.031 0.469,0.219 10 false CA7H 0.177,1.677 0.74,1.927 0.563,0.25 10 false CA7L
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G174-31 (CA7H) - Positive (+) battery terminal Cable disconnected from negative (-) battery terminal 6 kΩ or higher
G174-32 (CA7L) - Positive (+) battery terminal



Result:
Proceed to
OK
NG



OK

4.CHECK FOR SHORT TO GND IN CAN BUS WIRE

NG

14.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
4.CHECK FOR SHORT TO GND IN CAN BUS WIRE
a.
C502817C07
1.51,0.073 1.927,0.323 0.417,0.25 0.573,1.75 0.771,1.75 0.771,1.75 0.823,0.875 true 0.927,0.885 2.031,1.896 2.031,1.896 2.26,1.896 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 1.563,0.115 2.021,0.313 0.458,0.198 10 false G174 2.385,1.813 2.854,2.031 0.469,0.219 10 false CA7H 0.177,1.677 0.74,1.927 0.563,0.25 10 false CA7L
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G174-31 (CA7H) - Body ground Cable disconnected from negative (-) battery terminal 200 Ω or higher
G174-32 (CA7L) - Body ground



Result:
Proceed to
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

5.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
5.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the M31 No. 6 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

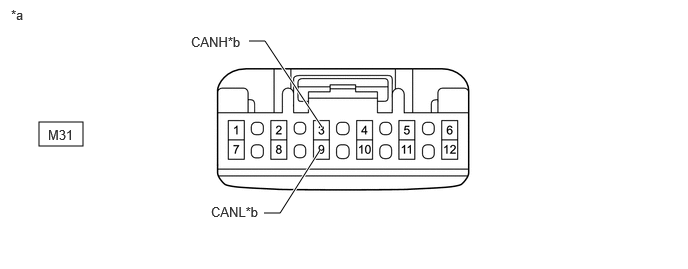

C414853C28
0.406,1.271 0.865,1.521 0.458,0.25 2.594,0.427 2.76,0.427 2.76,0.427 3.354,1.323 true 2.75,2.219 2.917,2.219 2.917,2.219 3.333,1.563 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.5,1.323 1.135,1.656 0.635,0.333 10 false M31 1.99,0.354 2.844,0.708 0.854,0.354 10 false CANH*b 2.198,2.125 2.885,2.375 0.688,0.25 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
M31-3 (CANH) - Body ground Cable disconnected from negative (-) battery terminal 200 Ω or higher
M31-9 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

6.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

NG

10.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
6.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
a.

Measure the resistance according to the value(s) in the table below.

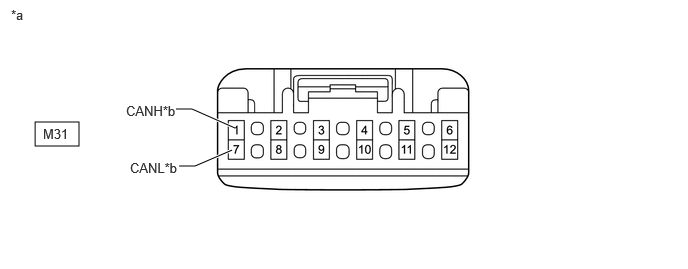

C414853C29
0.365,1.271 0.823,1.521 0.458,0.25 1.833,1.135 2,1.135 2,1.135 2.448,1.333 true 1.865,1.729 2.031,1.729 2.031,1.729 2.417,1.563 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.448,1.313 1.01,1.625 0.563,0.313 10 false M31 1.313,1.073 1.865,1.25 0.552,0.177 10 false CANH*b 1.354,1.667 1.906,1.844 0.552,0.177 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to Tire Pressure Warning ECU and Receiver


Standard Resistance:
Tester Connection Condition Specified Condition
M31-1 (CANH) - Body ground Cable disconnected from negative (-) battery terminal 200 Ω or higher
M31-7 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

7.CHECK FOR VEHICLE TYPE

NG

11.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
7.CHECK FOR VEHICLE TYPE
a.

Check for vehicle type.


Result:
Result Proceed to
for AWD A
except AWD B



A

8.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)

B

9.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
8.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

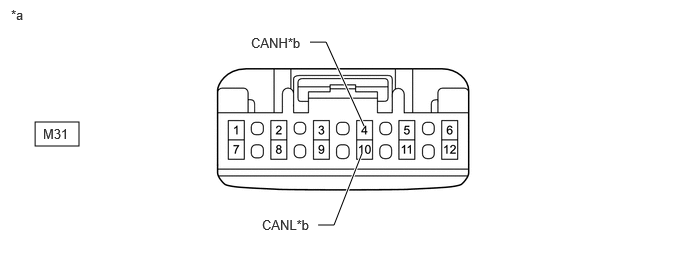

C414853C33
0.365,1.271 0.823,1.521 0.458,0.25 3.229,0.438 3.396,0.438 3.396,0.438 3.792,1.313 true 3.313,2.344 3.479,2.344 3.479,2.344 3.771,1.594 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.448,1.313 1.01,1.625 0.563,0.313 10 false M31 2.615,0.365 3.167,0.542 0.552,0.177 10 false CANH*b 2.729,2.26 3.281,2.438 0.552,0.177 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to 4WD ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
M31-4 (CANH) - Body ground Cable disconnected from negative (-) battery terminal 200 Ω or higher
M31-10 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

9.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)

NG

12.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
9.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
a.

Measure the resistance according to the value(s) in the table below.

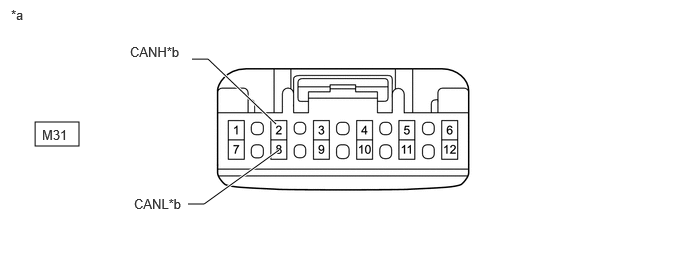

C414853C30
0.365,1.271 0.823,1.521 0.458,0.25 2,0.615 2.167,0.615 2.167,0.615 2.875,1.292 true 1.958,2.125 2.125,2.125 2.125,2.125 2.906,1.563 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.438,1.323 0.99,1.635 0.552,0.313 10 false M31 1.354,0.458 1.906,0.635 0.552,0.177 10 false CANH*b 1.396,2.042 2.094,2.292 0.698,0.25 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to No. 2 CAN Junction Teminal


Standard Resistance:
Tester Connection Condition Specified Condition
M31-2 (CANH) - Body ground Cable disconnected from negative (-) battery terminal 200 Ω or higher
M31-8 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

REPLACE NO. 6 CAN JUNCTION CONNECTOR

NG

13.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
10.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the G174 central gateway ECU (network gateway ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

C414853C28
0.406,1.271 0.865,1.521 0.458,0.25 2.594,0.427 2.76,0.427 2.76,0.427 3.354,1.323 true 2.75,2.219 2.917,2.219 2.917,2.219 3.333,1.563 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.5,1.323 1.135,1.656 0.635,0.333 10 false M31 1.99,0.354 2.844,0.708 0.854,0.354 10 false CANH*b 2.198,2.125 2.885,2.375 0.688,0.25 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
M31-3 (CANH) - Body ground Cable disconnected from negative (-) battery terminal 200 Ω or higher
M31-9 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 6 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

11.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
a.

Disconnect the M8 tire pressure warning ECU and receiver connector.


b.

Measure the resistance according to the value(s) in the table below.

C414853C29
0.365,1.271 0.823,1.521 0.458,0.25 1.833,1.135 2,1.135 2,1.135 2.448,1.333 true 1.865,1.729 2.031,1.729 2.031,1.729 2.417,1.563 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.448,1.313 1.01,1.625 0.563,0.313 10 false M31 1.313,1.073 1.865,1.25 0.552,0.177 10 false CANH*b 1.354,1.667 1.906,1.844 0.552,0.177 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to Tire Pressure Warning ECU and Receiver


Standard Resistance:
Tester Connection Condition Specified Condition
M31-1 (CANH) - Body ground Cable disconnected from negative (-) battery terminal 200 Ω or higher
M31-7 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER

Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING RECEIVER>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 6 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

12.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
a.

Disconnect the N4 4WD ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C414853C33
0.365,1.271 0.823,1.521 0.458,0.25 3.229,0.438 3.396,0.438 3.396,0.438 3.792,1.313 true 3.313,2.344 3.479,2.344 3.479,2.344 3.771,1.594 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.448,1.313 1.01,1.625 0.563,0.313 10 false M31 2.615,0.365 3.167,0.542 0.552,0.177 10 false CANH*b 2.729,2.26 3.281,2.438 0.552,0.177 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to 4WD ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
M31-4 (CANH) - Body ground Cable disconnected from negative (-) battery terminal 200 Ω or higher
M31-10 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

REPLACE 4WD ECU ASSEMBLY

for Dynamic Torque Control AWD System: Click hereDrivetrain>GF1A (TRANSFER / 4WD / AWD)>4WD CONTROL ECU>REMOVAL

for Dynamic Torque Vectoring AWD System: Click hereDrivetrain>GF2A (TRANSFER / 4WD / AWD)>4WD CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 6 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)

13.CHECK FOR SHORT TO GND IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
a.

Disconnect the M62 No. 2 CAN junction terminal connector.


b.

Measure the resistance according to the value(s) in the table below.

C414853C30
0.365,1.271 0.823,1.521 0.458,0.25 2,0.615 2.167,0.615 2.167,0.615 2.875,1.292 true 1.958,2.125 2.125,2.125 2.125,2.125 2.906,1.563 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.438,1.323 0.99,1.635 0.552,0.313 10 false M31 1.354,0.458 1.906,0.635 0.552,0.177 10 false CANH*b 1.396,2.042 2.094,2.292 0.698,0.25 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to No. 2 CAN Junction Teminal


Standard Resistance:
Tester Connection Condition Specified Condition
M31-2 (CANH) - Body ground Cable disconnected from negative (-) battery terminal 200 Ω or higher
M31-8 (CANL) - Body ground



Result:
Proceed to
OK
NG



OK

REPLACE NO. 2 CAN JUNCTION TERMINAL

NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 6 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)

14.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the M31 No. 6 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C414853C28
0.406,1.271 0.865,1.521 0.458,0.25 2.594,0.427 2.76,0.427 2.76,0.427 3.354,1.323 true 2.75,2.219 2.917,2.219 2.917,2.219 3.333,1.563 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.5,1.323 1.135,1.656 0.635,0.333 10 false M31 1.99,0.354 2.844,0.708 0.854,0.354 10 false CANH*b 2.198,2.125 2.885,2.375 0.688,0.25 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
M31-3 (CANH) - Positive (+) battery terminal Cable disconnected from negative (-) battery terminal 6 kΩ or higher
M31-9 (CANL) - Positive (+) battery terminal



Result:
Proceed to
OK
NG



OK

15.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

NG

19.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
15.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
a.

Measure the resistance according to the value(s) in the table below.

C414853C29
0.365,1.271 0.823,1.521 0.458,0.25 1.833,1.135 2,1.135 2,1.135 2.448,1.333 true 1.865,1.729 2.031,1.729 2.031,1.729 2.417,1.563 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.448,1.313 1.01,1.625 0.563,0.313 10 false M31 1.313,1.073 1.865,1.25 0.552,0.177 10 false CANH*b 1.354,1.667 1.906,1.844 0.552,0.177 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to Tire Pressure Warning ECU and Receiver


Standard Resistance:
Tester Connection Condition Specified Condition
M31-1 (CANH) - Positive (+) battery terminal Cable disconnected from negative (-) battery terminal 6 kΩ or higher
M31-7 (CANL) - Positive (+) battery terminal



Result:
Proceed to
OK
NG



OK

16.CHECK FOR VEHICLE TYPE

NG

20.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
16.CHECK FOR VEHICLE TYPE
a.

Check for vehicle type.


Result:
Result Proceed to
for AWD A
except AWD B



A

17.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)

B

18.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
17.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C414853C33
0.365,1.271 0.823,1.521 0.458,0.25 3.229,0.438 3.396,0.438 3.396,0.438 3.792,1.313 true 3.313,2.344 3.479,2.344 3.479,2.344 3.771,1.594 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.448,1.313 1.01,1.625 0.563,0.313 10 false M31 2.615,0.365 3.167,0.542 0.552,0.177 10 false CANH*b 2.729,2.26 3.281,2.438 0.552,0.177 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to 4WD ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
M31-4 (CANH) - Positive (+) battery terminal Cable disconnected from negative (-) battery terminal 6 kΩ or higher
M31-10 (CANL) - Positive (+) battery terminal



Result:
Proceed to
OK
NG



OK

18.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)

NG

21.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
18.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
a.

Measure the resistance according to the value(s) in the table below.

C414853C30
0.365,1.271 0.823,1.521 0.458,0.25 2,0.615 2.167,0.615 2.167,0.615 2.875,1.292 true 1.958,2.125 2.125,2.125 2.125,2.125 2.906,1.563 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.438,1.323 0.99,1.635 0.552,0.313 10 false M31 1.354,0.458 1.906,0.635 0.552,0.177 10 false CANH*b 1.396,2.042 2.094,2.292 0.698,0.25 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to No. 2 CAN Junction Teminal


Standard Resistance:
Tester Connection Condition Specified Condition
M31-2 (CANH) - Positive (+) battery terminal Cable disconnected from negative (-) battery terminal 6 kΩ or higher
M31-8 (CANL) - Positive (+) battery terminal



Result:
Proceed to
OK
NG



OK

REPLACE NO. 6 CAN JUNCTION CONNECTOR

NG

22.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
19.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the G174 central gateway ECU (network gateway ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

C414853C28
0.406,1.271 0.865,1.521 0.458,0.25 2.594,0.427 2.76,0.427 2.76,0.427 3.354,1.323 true 2.75,2.219 2.917,2.219 2.917,2.219 3.333,1.563 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.5,1.323 1.135,1.656 0.635,0.333 10 false M31 1.99,0.354 2.844,0.708 0.854,0.354 10 false CANH*b 2.198,2.125 2.885,2.375 0.688,0.25 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
M31-3 (CANH) - Positive (+) battery terminal Cable disconnected from negative (-) battery terminal 6 kΩ or higher
M31-9 (CANL) - Positive (+) battery terminal



Result:
Proceed to
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 6 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

20.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
a.

Disconnect the M8 tire pressure warning ECU and receiver connector.


b.

Measure the resistance according to the value(s) in the table below.

C414853C29
0.365,1.271 0.823,1.521 0.458,0.25 1.833,1.135 2,1.135 2,1.135 2.448,1.333 true 1.865,1.729 2.031,1.729 2.031,1.729 2.417,1.563 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.448,1.313 1.01,1.625 0.563,0.313 10 false M31 1.313,1.073 1.865,1.25 0.552,0.177 10 false CANH*b 1.354,1.667 1.906,1.844 0.552,0.177 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to Tire Pressure Warning ECU and Receiver


Standard Resistance:
Tester Connection Condition Specified Condition
M31-1 (CANH) - Positive (+) battery terminal Cable disconnected from negative (-) battery terminal 6 kΩ or higher
M31-7 (CANL) - Positive (+) battery terminal



Result:
Proceed to
OK
NG



OK

REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER

Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING RECEIVER>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 6 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

21.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
a.

Disconnect the N4 4WD ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C414853C33
0.365,1.271 0.823,1.521 0.458,0.25 3.229,0.438 3.396,0.438 3.396,0.438 3.792,1.313 true 3.313,2.344 3.479,2.344 3.479,2.344 3.771,1.594 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.448,1.313 1.01,1.625 0.563,0.313 10 false M31 2.615,0.365 3.167,0.542 0.552,0.177 10 false CANH*b 2.729,2.26 3.281,2.438 0.552,0.177 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to 4WD ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
M31-4 (CANH) - Positive (+) battery terminal Cable disconnected from negative (-) battery terminal 6 kΩ or higher
M31-10 (CANL) - Positive (+) battery terminal



Result:
Proceed to
OK
NG



OK

REPLACE 4WD ECU ASSEMBLY

for Dynamic Torque Control AWD System: Click hereDrivetrain>GF1A (TRANSFER / 4WD / AWD)>4WD CONTROL ECU>REMOVAL

for Dynamic Torque Vectoring AWD System: Click hereDrivetrain>GF2A (TRANSFER / 4WD / AWD)>4WD CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 6 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)

22.CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
a.

Disconnect the M62 No. 2 CAN junction terminal connector.


b.

Measure the resistance according to the value(s) in the table below.

C414853C30
0.365,1.271 0.823,1.521 0.458,0.25 2,0.615 2.167,0.615 2.167,0.615 2.875,1.292 true 1.958,2.125 2.125,2.125 2.125,2.125 2.906,1.563 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.438,1.323 0.99,1.635 0.552,0.313 10 false M31 1.354,0.458 1.906,0.635 0.552,0.177 10 false CANH*b 1.396,2.042 2.094,2.292 0.698,0.25 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to No. 2 CAN Junction Teminal


Standard Resistance:
Tester Connection Condition Specified Condition
M31-2 (CANH) - Positive (+) battery terminal Cable disconnected from negative (-) battery terminal 6 kΩ or higher
M31-8 (CANL) - Positive (+) battery terminal



Result:
Proceed to
OK
NG



OK

REPLACE NO. 2 CAN JUNCTION TERMINAL

NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 6 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)

23.CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the M31 No. 6 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C414853C28
0.406,1.271 0.865,1.521 0.458,0.25 2.594,0.427 2.76,0.427 2.76,0.427 3.354,1.323 true 2.75,2.219 2.917,2.219 2.917,2.219 3.333,1.563 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.5,1.323 1.135,1.656 0.635,0.333 10 false M31 1.99,0.354 2.844,0.708 0.854,0.354 10 false CANH*b 2.198,2.125 2.885,2.375 0.688,0.25 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
M31-3 (CANH) - M31-9 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

24.CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

NG

28.CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
24.CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
a.

Measure the resistance according to the value(s) in the table below.

C414853C29
0.365,1.271 0.823,1.521 0.458,0.25 1.833,1.135 2,1.135 2,1.135 2.448,1.333 true 1.865,1.729 2.031,1.729 2.031,1.729 2.417,1.563 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.448,1.313 1.01,1.625 0.563,0.313 10 false M31 1.313,1.073 1.865,1.25 0.552,0.177 10 false CANH*b 1.354,1.667 1.906,1.844 0.552,0.177 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to Tire Pressure Warning ECU and Receiver


Standard Resistance:
Tester Connection Condition Specified Condition
M31-1 (CANH) - M31-7 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

25.CHECK FOR VEHICLE TYPE

NG

29.CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
25.CHECK FOR VEHICLE TYPE
a.

Check for vehicle type.


Result:
Result Proceed to
for AWD A
except AWD B



A

26.CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)

B

27.CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
26.CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C414853C33
0.365,1.271 0.823,1.521 0.458,0.25 3.229,0.438 3.396,0.438 3.396,0.438 3.792,1.313 true 3.313,2.344 3.479,2.344 3.479,2.344 3.771,1.594 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.448,1.313 1.01,1.625 0.563,0.313 10 false M31 2.615,0.365 3.167,0.542 0.552,0.177 10 false CANH*b 2.729,2.26 3.281,2.438 0.552,0.177 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to 4WD ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
M31-4 (CANH) - M31-10 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

27.CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)

NG

30.CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
27.CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
a.

Measure the resistance according to the value(s) in the table below.

C414853C30
0.365,1.271 0.823,1.521 0.458,0.25 2,0.615 2.167,0.615 2.167,0.615 2.875,1.292 true 1.958,2.125 2.125,2.125 2.125,2.125 2.906,1.563 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.438,1.323 0.99,1.635 0.552,0.313 10 false M31 1.354,0.458 1.906,0.635 0.552,0.177 10 false CANH*b 1.396,2.042 2.094,2.292 0.698,0.25 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to No. 2 CAN Junction Teminal


Standard Resistance:
Tester Connection Condition Specified Condition
M31-2 (CANH) - M31-8 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

REPLACE NO. 6 CAN JUNCTION CONNECTOR

NG

31.CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
28.CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the G174 central gateway ECU (network gateway ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

C414853C28
0.406,1.271 0.865,1.521 0.458,0.25 2.594,0.427 2.76,0.427 2.76,0.427 3.354,1.323 true 2.75,2.219 2.917,2.219 2.917,2.219 3.333,1.563 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.5,1.323 1.135,1.656 0.635,0.333 10 false M31 1.99,0.354 2.844,0.708 0.854,0.354 10 false CANH*b 2.198,2.125 2.885,2.375 0.688,0.25 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
M31-3 (CANH) - M31-9 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 6 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

29.CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)
a.

Disconnect the M8 tire pressure warning ECU and receiver connector.


b.

Measure the resistance according to the value(s) in the table below.

C414853C29
0.365,1.271 0.823,1.521 0.458,0.25 1.833,1.135 2,1.135 2,1.135 2.448,1.333 true 1.865,1.729 2.031,1.729 2.031,1.729 2.417,1.563 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.448,1.313 1.01,1.625 0.563,0.313 10 false M31 1.313,1.073 1.865,1.25 0.552,0.177 10 false CANH*b 1.354,1.667 1.906,1.844 0.552,0.177 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to Tire Pressure Warning ECU and Receiver


Standard Resistance:
Tester Connection Condition Specified Condition
M31-1 (CANH) - M31-7 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER

Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING RECEIVER>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 6 CAN JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU AND RECEIVER)

30.CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)
a.

Disconnect the N4 4WD ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C414853C33
0.365,1.271 0.823,1.521 0.458,0.25 3.229,0.438 3.396,0.438 3.396,0.438 3.792,1.313 true 3.313,2.344 3.479,2.344 3.479,2.344 3.771,1.594 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.448,1.313 1.01,1.625 0.563,0.313 10 false M31 2.615,0.365 3.167,0.542 0.552,0.177 10 false CANH*b 2.729,2.26 3.281,2.438 0.552,0.177 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to 4WD ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
M31-4 (CANH) - M31-10 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

REPLACE 4WD ECU ASSEMBLY

for Dynamic Torque Control AWD System: Click hereDrivetrain>GF1A (TRANSFER / 4WD / AWD)>4WD CONTROL ECU>REMOVAL

for Dynamic Torque Vectoring AWD System: Click hereDrivetrain>GF2A (TRANSFER / 4WD / AWD)>4WD CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 6 CAN JUNCTION CONNECTOR - 4WD ECU ASSEMBLY)

31.CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
a.

Disconnect the M62 No. 2 CAN junction terminal connector.


b.

Measure the resistance according to the value(s) in the table below.

C414853C30
0.365,1.271 0.823,1.521 0.458,0.25 2,0.615 2.167,0.615 2.167,0.615 2.875,1.292 true 1.958,2.125 2.125,2.125 2.125,2.125 2.906,1.563 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.438,1.323 0.99,1.635 0.552,0.313 10 false M31 1.354,0.458 1.906,0.635 0.552,0.177 10 false CANH*b 1.396,2.042 2.094,2.292 0.698,0.25 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to No. 2 CAN Junction Teminal


Standard Resistance:
Tester Connection Condition Specified Condition
M31-2 (CANH) - M31-8 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

REPLACE NO. 2 CAN JUNCTION TERMINAL

NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 6 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)

32.CHECK FOR OPEN IN CAN BUS WIRE (NO. 6 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the M31 No. 6 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C414853C28
0.406,1.271 0.865,1.521 0.458,0.25 2.594,0.427 2.76,0.427 2.76,0.427 3.354,1.323 true 2.75,2.219 2.917,2.219 2.917,2.219 3.333,1.563 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.5,1.323 1.135,1.656 0.635,0.333 10 false M31 1.99,0.354 2.844,0.708 0.854,0.354 10 false CANH*b 2.198,2.125 2.885,2.375 0.688,0.25 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
M31-3 (CANH) - M31-9 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

33.CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)

NG

34.CHECK FOR OPEN IN CAN BUS WIRE (CENTRAL GATEWAY ECU [NETWORK GATEWAY ECU] - NO. 6 CAN JUNCTION CONNECTOR)
33.CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION TERMINAL)
a.

Measure the resistance according to the value(s) in the table below.

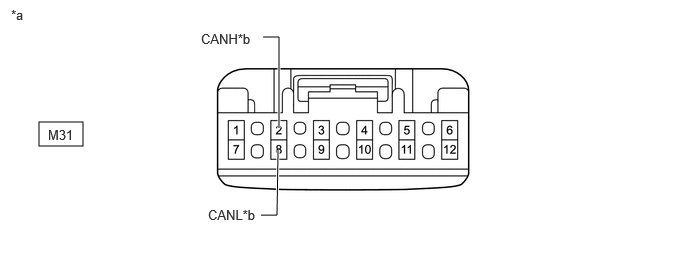

C414853C31
0.406,1.271 0.865,1.521 0.458,0.25 2.74,0.385 2.906,0.385 2.906,0.385 2.906,1.333 true 2.719,2.24 2.885,2.24 2.885,2.24 2.896,1.563 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 0.5,1.323 1.135,1.656 0.635,0.333 10 false M31 2.094,0.323 2.948,0.677 0.854,0.354 10 false CANH*b 2.167,2.156 2.854,2.406 0.688,0.25 10 false CANL*b
*a Front view of wire harness connector
(to No. 6 CAN Junction Connector) 		*b to No. 2 CAN Junction Teminal


Standard Resistance:
Tester Connection Condition Specified Condition
M31-2 (CANH) - M31-8 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher



Result:
Proceed to
OK
NG



OK

REPLACE NO. 6 CAN JUNCTION CONNECTOR

NG

35.CHECK FOR OPEN IN CAN BUS WIRE (NO. 2 CAN JUNCTION TERMINAL - NO. 6 CAN JUNCTION CONNECTOR)
34.CHECK FOR OPEN IN CAN BUS WIRE (CENTRAL GATEWAY ECU [NETWORK GATEWAY ECU] - NO. 6 CAN JUNCTION CONNECTOR)
a.

Reconnect the M31 No. 6 CAN junction connector.


b.

Disconnect the G174 central gateway ECU (network gateway ECU) connector.


c.

Measure the resistance according to the value(s) in the table below.

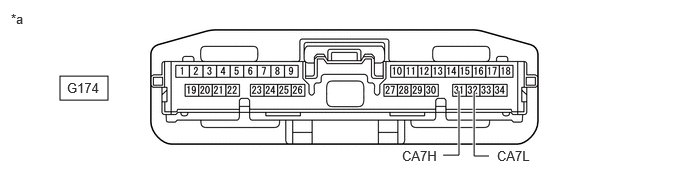

C422308C53
0.625,0.792 1.125,1.042 0.5,0.25 4.781,0.948 4.781,1.615 4.781,1.615 4.615,1.615 true 4.938,0.958 4.938,1.625 4.938,1.625 5.094,1.625 true 0.115,0.115 0.427,0.313 0.313,0.198 10 false *a 0.698,0.833 1.135,1.052 0.438,0.219 10 false G174 4.188,1.542 4.802,1.74 0.615,0.198 10 false CA7H 5.177,1.542 5.792,1.74 0.615,0.198 10 false CA7L
*a Front view of wire harness connector
(to Central Gateway ECU [Network Gateway ECU]) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
G174-31 (CA7H) - G174-32 (CA7L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (CENTRAL GATEWAY ECU [NETWORK GATEWAY ECU] - NO. 6 CAN JUNCTION CONNECTOR)

35.CHECK FOR OPEN IN CAN BUS WIRE (NO. 2 CAN JUNCTION TERMINAL - NO. 6 CAN JUNCTION CONNECTOR)
a.

Reconnect the M31 No. 6 CAN junction connector.


b.

Disconnect the M62 No. 2 CAN junction teminal connector.


c.
C369111C63
1.5,0.333 1.917,0.583 0.417,0.25 1.729,1.135 1.563,0.667 1.563,0.667 1.417,0.667 true 1.948,1.146 2.073,0.667 2.073,0.667 2.24,0.667 true 0.073,0.052 0.385,0.25 0.313,0.198 10 false *a 1.594,0.375 2.104,0.615 0.51,0.24 10 false M62 0.969,0.604 1.458,0.885 0.49,0.281 10 false CANH 2.302,0.604 2.792,0.865 0.49,0.26 10 false CANL
*a Front view of wire harness connector
(to No. 2 CAN Junction Terminal)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
M62-2 (CANH) - M62-3 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

REPLACE NO. 2 CAN JUNCTION TERMINAL

NG

REPAIR OR REPLACE CAN BUS WIRE OR CONNECTOR (NO. 2 CAN JUNCTION TERMINAL - NO. 6 CAN JUNCTION CONNECTOR)
