RM36D0EC _52 Drivetrain _083067 GF1A TRANSFER / 4WD / AWD _0402916 4WD CONTROL ECU A

GF1A TRANSFER / 4WD / AWD 4WD CONTROL ECU REMOVAL

PROCEDURE

Hide Display 1.REMOVE REAR SEAT ASSEMBLY

·

for GTMC Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for GTMC Made)>REMOVAL202004,999999,_58,_083102,_0419060,RM100000001MO2W,

·

for SFTM Made:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202004,999999,_58,_083102,_0419059,RM100000001MO2R,

Hide Display 73706 2.REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

Click hereVehicle Interior>SEAT BELT>CHILD RESTRAINT SEAT ANCHOR BRACKET>REMOVAL202004,999999,_58,_083103,_0401777,RM100000001MO7X_01_0002,

Hide Display 58410B 3.REMOVE DECK BOARD ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0009,

Hide Display 58417H 4.REMOVE REAR NO. 3 FLOOR BOARD

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0030,

Hide Display 58386 5.REMOVE REAR FLOOR FINISH PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0011,

Hide Display 58577E 6.REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0034,

Hide Display 62332C 7.REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP>REMOVAL201910,999999,_59,_083093,_0403690,RM100000001JUGH_02_0002,

Hide Display 62552F 8.REMOVE REAR SEAT SIDE GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0026,

Hide Display 73708A 9.REMOVE TETHER ANCHOR BRACKET SET

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0028,

Hide Display 58460D 10.REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0001,

Hide Display 64740E 11.REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202304,999999,_58,_083106,_0400609,RM1000000029RST_01_0003,

Hide Display 89630A 12.REMOVE 4WD ECU ASSEMBLY

a.

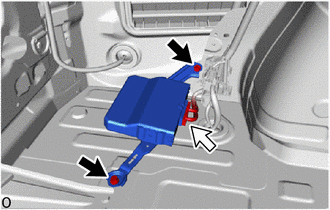

C405126C01

0,0 0,0 false

	Bolt
	Connector

Disconnect the connector.

b.

Remove the 2 bolts and 4WD ECU assembly.
