The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front engine support member sub-assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Gas leaks from exhaust system | Inspection after repair | ·
Poor idle, etc. ·
Engine start function, etc. |
for M20C-FKS:
( 202405,999999,_51,_087036,_0418131,RM100000002IF8T,)
for M20D-FKS: ( 202409,999999,_51,_083058,_0401834,RM100000002NA8M,)
|
| CVT fluid | ATF thermal degradation estimate reset | The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly | for K121:
( 202409,999999,_52,_138176,_0584691,RM100000002NRHB,)
for K121F: ( 202409,999999,_52,_138817,_0596468,RM100000002NRBH,)
|
| Air bleed oil pump with motor assembly | Stop and start system | ( 202409,999999,_51,_083056,_0402418,RM100000002NSFT,)
|
|
| Front wheel alignment adjustment | 1.
Perform "Reset Memory" 2.
Perform acceleration sensor zero point calibration and store system information memorization |
·
VSC is disabled or malfunctions ·
DTCs are output ·
Slip indicator light illuminates ·
ABS warning light illuminates |
( 202304,999999,_54,_083077,_0402316,RM100000002AG8P,)
|
| Front bumper assembly (Including removal and installation) | Front television camera view adjustment | Panoramic view monitor system | ( 202304,999999,_56,_083082,_0586733,RM1000000029R9F,)
|
| Suspension, tires, etc. | Parking assist ECU initialization |
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Learning completes when vehicle is driven
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Stop and start system | Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). | ( 202409,999999,_51,_083056,_0402418,RM100000002NSFO,)
|
| Lane tracing assist system | Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. | ( 201910,999999,_58,_083101,_0401880,RM100000001JE9I,)
|
| Pre-collision system |
Learning completes when vehicle is operated normally
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
|
*: w/ Power back door system |
||
| Power back door function* | Fully close the back door by hand.
|
( 202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
|
| Power door lock control system | If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. | ( 202409,999999,_58,_083092,_0403003,RM100000002NS90,)
|
| Air conditioning system | After the ignition switch is turned to ON, the servo motor standard position is recognized | - |
1.REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
23825
2.REMOVE FUEL DELIVERY GUARD
3.INSTALL ENGINE HANGERS
45319
4.REMOVE STEERING GEAR HEAT INSULATOR

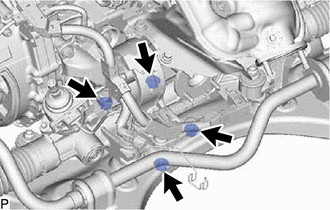

5.DISCONNECT WIRE HARNESS
51021A
6.REMOVE FRONT ENGINE SUPPORT MEMBER SUB-ASSEMBLY (for 2WD)

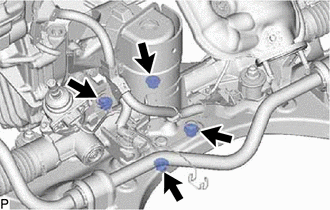

Remove the 3 nuts and separate the front engine mounting insulator from the front engine support member sub-assembly.

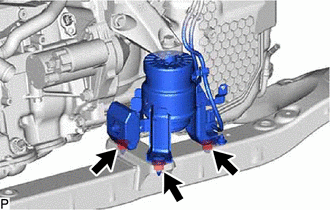

Remove the 4 nuts and separate the rear engine mounting insulator from the front engine support member sub-assembly.
51021A
7.REMOVE FRONT ENGINE SUPPORT MEMBER SUB-ASSEMBLY (for AWD)
Remove the 3 nuts and separate the front engine mounting insulator from the front engine support member sub-assembly.
Remove the 4 nuts and separate the rear engine mounting insulator from the front engine support member sub-assembly.
8.REMOVE FRONT STABILIZER BAR WITH BRACKET
9.REMOVE RACK AND PINION POWER STEERING GEAR ASSEMBLY
48069
10.REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

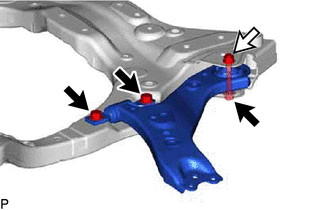

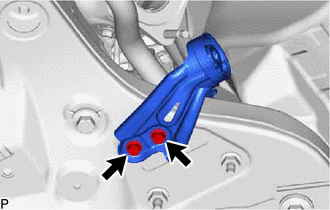

Remove the 3 bolts, nut and front lower No. 1 suspension arm sub-assembly LH from the front engine support member sub-assembly.
Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
Remove the front lower arm bushing stopper from the front lower No. 1 suspension arm sub-assembly.
48068
11.REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH
Perform the same procedure as for the LH side.
17572B
12.REMOVE NO. 2 EXHAUST PIPE SUPPORT BRACKET
Remove the 2 bolts and No. 2 exhaust pipe support bracket from the front engine support member sub-assembly.
