METER / GAUGE / DISPLAY  METER / GAUGE SYSTEM(for SFTM Made)  B150718  Turn Signal Light Circuit Current Below Threshold


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area
B150718 Turn Signal Light Circuit Current Below Threshold
Diagnosis Condition:

Auxiliary battery voltage is 10 V or more


Malfunction Status:
·

Open in front turn signal light circuit

·

Open in side turn signal light circuit

·

Open in rear turn signal light circuit


·

Harness or connector

·

Headlight unit assembly

·

Headlight assembly*1

·

Headlight front turn signal LED*2

·

Outer rear view mirror assembly

·

Side turn signal light assembly

·

Rear combination light socket and wire

·

Combination meter assembly



*1: for Triple Beam Headlight

*2: for Single Beam Headlight

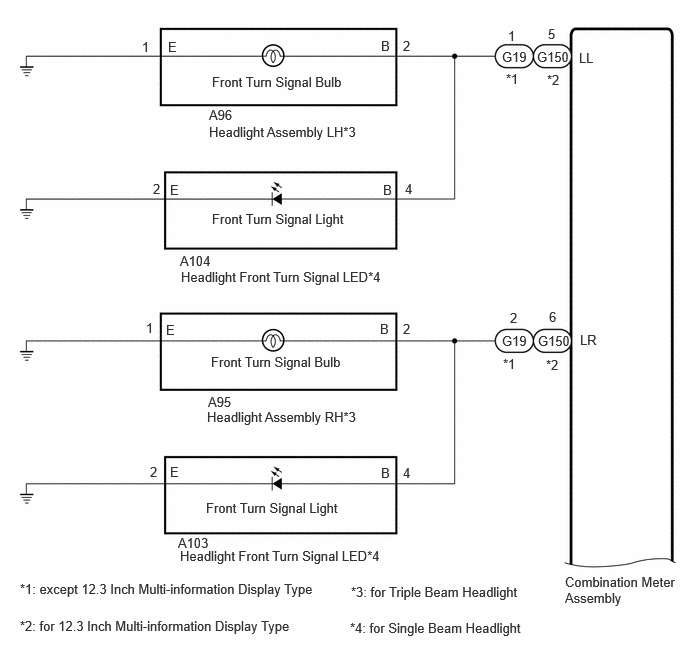

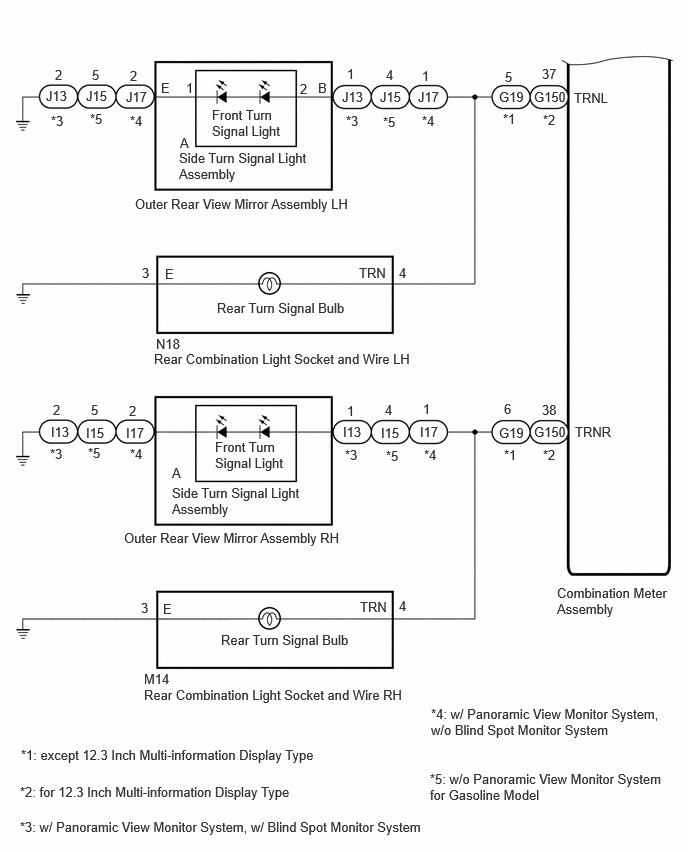

WIRING DIAGRAM

B724431E01
2.177,1.115 2.635,1.313 0.458,0.198 10 false A96 2.177,1.292 4.74,1.531 2.563,0.24 10 false Headlight Assembly LH*3 1.479,0.406 1.938,0.604 0.458,0.198 10 false 1 4.198,0.396 4.656,0.594 0.458,0.198 10 false 2 1.75,0.406 2.208,0.604 0.458,0.198 10 false E 3.969,0.396 4.427,0.594 0.458,0.198 10 false B 2.208,0.771 4.771,1.01 2.563,0.24 10 false Front Turn Signal Bulb 6.031,0.521 6.49,0.719 0.458,0.198 10 false LL 5.229,0.51 5.688,0.708 0.458,0.198 10 false G19 5.594,0.51 6.052,0.708 0.458,0.198 10 false G150 5.292,0.292 5.75,0.49 0.458,0.198 10 false 1 5.708,0.271 6.167,0.469 0.458,0.198 10 false 5 1.594,1.885 2.24,2.125 0.646,0.24 10 false 2 1.771,1.896 2.229,2.094 0.458,0.198 10 false E 3.99,1.896 4.448,2.094 0.458,0.198 10 false B 4.219,1.885 4.865,2.125 0.646,0.24 10 false 4 2.208,2.198 4.771,2.438 2.563,0.24 10 false Front Turn Signal Light 1.854,5.573 3.865,5.823 2.01,0.25 10 false A103 1.885,2.802 4.448,3.042 2.563,0.24 10 false Headlight Front Turn Signal LED*4 5.885,5.979 7.063,6.49 1.177,0.51 10 false Combination Meter Assembly 0.208,6.052 3.385,6.302 3.177,0.25 10 false *1: except 12.3 Inch Multi-information Display Type 0.208,6.438 3.333,6.708 3.125,0.271 10 false *2: for 12.3 Inch Multi-information Display Type 3.656,6.083 5.823,6.552 2.167,0.469 10 false *3: for Triple Beam Headlight 3.646,6.458 5.823,6.76 2.177,0.302 10 false *4: for Single Beam Headlight 5.271,0.74 5.583,0.938 0.313,0.198 10 false *1 5.24,3.708 5.552,3.906 0.313,0.198 10 false *1 5.698,0.75 6.01,0.948 0.313,0.198 10 false *2 5.688,3.719 6,3.917 0.313,0.198 10 false *2 6.042,3.458 6.354,3.656 0.313,0.198 10 false LR 5.604,3.469 6.063,3.667 0.458,0.198 10 false G150 5.229,3.469 5.688,3.667 0.458,0.198 10 false G19 5.313,3.229 5.583,3.646 0.271,0.417 10 false 2 5.719,3.219 6.375,3.802 0.656,0.583 10 false 6 2.167,4.104 2.625,4.302 0.458,0.198 10 false A95 2.156,4.26 5.677,4.458 3.521,0.198 10 false Headlight Assembly RH*3 1.875,5.708 4.438,5.948 2.563,0.24 10 false Headlight Front Turn Signal LED*4 1.875,2.635 3.885,2.885 2.01,0.25 10 false A104 2.146,5.208 4.708,5.448 2.563,0.24 10 false Front Turn Signal Light 2.198,3.688 4.76,3.927 2.563,0.24 10 false Front Turn Signal Bulb 3.958,3.344 4.417,3.542 0.458,0.198 10 false B 3.969,4.844 4.427,5.042 0.458,0.198 10 false B 1.729,3.354 2.188,3.552 0.458,0.198 10 false E 1.771,4.833 2.229,5.031 0.458,0.198 10 false E 4.198,3.344 4.656,3.542 0.458,0.198 10 false 2 1.563,4.833 2.021,5.031 0.458,0.198 10 false 2 1.521,3.333 1.979,3.531 0.458,0.198 10 false 1 4.198,4.844 4.844,5.083 0.646,0.24 10 false 4

B724432E01
5.802,6.094 7.021,6.635 1.219,0.542 10 false Combination Meter Assembly 5.979,0.938 6.594,1.135 0.615,0.198 10 false TRNL 5.563,0.927 6.177,1.125 0.615,0.198 10 false G150 5.198,0.927 5.656,1.125 0.458,0.198 10 false G19 5.26,0.719 5.719,0.917 0.458,0.198 10 false 5 5.646,0.688 6.26,0.885 0.615,0.198 10 false 37 1.406,2.042 6.604,2.24 5.198,0.198 10 false Outer Rear View Mirror Assembly LH 1.292,5.521 6.49,5.719 5.198,0.198 10 false Outer Rear View Mirror Assembly RH 1.875,1.406 2.073,1.604 0.198,0.198 10 false A 3.125,0.844 3.281,1.042 0.156,0.198 10 false 2 3.313,0.833 3.469,1.031 0.156,0.198 10 false B 1.677,0.833 1.833,1.031 0.156,0.198 10 false E 1.938,0.833 2.094,1.031 0.156,0.198 10 false 1 2.208,1.115 2.958,1.646 0.75,0.531 10 false Front Turn Signal Light 2.24,4.573 2.99,5.104 0.75,0.531 10 false Front Turn Signal Light 1.792,4.844 1.99,5.042 0.198,0.198 10 false A 1.865,1.563 3.292,2.198 1.427,0.635 10 false Side Turn Signal Light Assembly 1.792,5.052 3.219,5.688 1.427,0.635 10 false Side Turn Signal Light Assembly 2.26,3.125 5.469,3.323 3.208,0.198 10 false Rear Turn Signal Bulb 1.604,3.656 4.698,4.073 3.094,0.417 10 false Rear Combination Light Socket and Wire LH 1.625,3.5 2.083,3.698 0.458,0.198 10 false N18 1.479,2.76 1.75,2.979 0.271,0.219 10 false 3 4.156,2.76 4.313,2.958 0.156,0.198 10 false 4 3.74,2.76 4.198,2.958 0.458,0.198 10 false TRN 1.719,2.771 1.875,2.969 0.156,0.198 10 false E 0.219,7.781 3.583,8.031 3.365,0.25 10 false *1: except 12.3 Inch Multi-information Display Type 0.208,8.167 3.156,8.427 2.948,0.26 10 false *2: for 12.3 Inch Multi-information Display Type 0.208,8.531 4.646,8.865 4.438,0.333 10 false *3: w/ Panoramic View Monitor System, w/ Blind Spot Monitor System 4.49,7.354 6.927,8.26 2.438,0.906 10 false *4: w/ Panoramic View Monitor System, w/o Blind Spot Monitor System 4.479,8.031 6.979,8.698 2.5,0.667 10 false *5: w/o Panoramic View Monitor System for Gasoline Model 0.479,0.917 0.938,1.115 0.458,0.198 10 false J13 3.563,0.927 4.021,1.125 0.458,0.198 10 false J13 3.615,0.688 4.073,0.885 0.458,0.198 10 false 1 0.573,0.698 1.031,0.896 0.458,0.198 10 false 2 0.896,0.917 1.354,1.115 0.458,0.198 10 false J15 3.958,0.927 4.417,1.125 0.458,0.198 10 false J15 0.958,0.698 1.417,0.896 0.458,0.198 10 false 5 4.021,0.698 4.479,0.896 0.458,0.198 10 false 4 1.313,0.927 1.771,1.125 0.458,0.198 10 false J17 4.354,0.927 4.813,1.125 0.458,0.198 10 false J17 4.396,0.708 4.854,0.906 0.458,0.198 10 false 1 1.354,0.708 1.813,0.906 0.458,0.198 10 false 2 5.24,1.156 5.552,1.354 0.313,0.198 10 false *1 5.25,4.656 5.563,4.854 0.313,0.198 10 false *1 5.198,4.427 5.656,4.625 0.458,0.198 10 false G19 5.563,4.417 6.177,4.615 0.615,0.198 10 false G150 5.656,1.167 5.969,1.365 0.313,0.198 10 false *2 5.656,4.656 5.969,4.854 0.313,0.198 10 false *2 1.5,7.156 4.594,7.573 3.094,0.417 10 false Rear Combination Light Socket and Wire RH 1.5,6.99 1.958,7.188 0.458,0.198 10 false M14 3.75,6.24 4.208,6.438 0.458,0.198 10 false TRN 2.302,6.583 5.51,6.781 3.208,0.198 10 false Rear Turn Signal Bulb 1.698,6.26 1.854,6.458 0.156,0.198 10 false E 1.469,6.25 1.74,6.469 0.271,0.219 10 false 3 4.156,6.229 4.438,6.51 0.281,0.281 10 false 4 4.396,1.177 4.708,1.375 0.313,0.198 10 false *4 1.354,1.177 1.667,1.375 0.313,0.198 10 false *4 3.99,1.188 4.302,1.385 0.313,0.198 10 false *5 0.938,1.156 1.25,1.354 0.313,0.198 10 false *5 0.531,1.177 0.844,1.375 0.313,0.198 10 false *3 3.604,1.177 3.917,1.375 0.313,0.198 10 false *3 3.594,4.656 3.906,4.854 0.313,0.198 10 false *3 0.917,4.635 1.229,4.833 0.313,0.198 10 false *5 4.021,4.667 4.333,4.865 0.313,0.198 10 false *5 0.521,4.646 0.833,4.844 0.313,0.198 10 false *3 1.354,4.646 1.667,4.844 0.313,0.198 10 false *4 4.417,4.656 4.729,4.854 0.313,0.198 10 false *4 3.573,4.417 4.031,4.615 0.458,0.198 10 false I13 1.313,4.427 1.771,4.625 0.458,0.198 10 false I17 4.375,4.417 4.833,4.615 0.458,0.198 10 false I17 3.969,4.427 4.427,4.625 0.458,0.198 10 false I15 0.896,4.427 1.354,4.625 0.458,0.198 10 false I15 0.531,4.417 0.99,4.615 0.458,0.198 10 false I13 1.344,4.198 1.802,4.396 0.458,0.198 10 false 2 0.948,4.188 1.406,4.385 0.458,0.198 10 false 5 0.552,4.188 1.01,4.385 0.458,0.198 10 false 2 4.406,4.177 4.865,4.375 0.458,0.198 10 false 1 3.615,4.198 4.073,4.396 0.458,0.198 10 false 1 4.01,4.188 4.469,4.385 0.458,0.198 10 false 4 5.99,4.417 6.604,4.615 0.615,0.198 10 false TRNR 5.25,4.177 5.667,4.542 0.417,0.365 10 false 6 5.646,4.188 5.958,4.385 0.313,0.198 10 false 38

CAUTION / NOTICE / HINT

NOTICE:
·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

Bulb Type Turn Light:

Inspect the bulbs before performing the following procedure.



PROCEDURE

1.INSPECT LIGHTS
a.

Inspect the illumination of each turn signal light.


Result:
Result Proceed to
Front turn signal light LH does not blink. A
Side turn signal light LH does not blink. B
Front turn signal light RH does not blink. C
Side turn signal light RH does not blink. D
Rear turn signal light LH and side turn signal light LH do not blink. E
Rear turn signal light RH and side turn signal light RH do not blink. F
Rear turn signal light LH does not blink. G
Rear turn signal light RH does not blink. H



A

2.CHECK VEHICLE TYPE

B

5.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH

C

7.CHECK VEHICLE TYPE

D

10.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH

E

12.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR COMBINATION LIGHT SOCKET AND WIRE LH)

F

13.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR COMBINATION LIGHT SOCKET AND WIRE RH)

G

14.CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT SOCKET AND WIRE LH - COMBINATION METER ASSEMBLY AND BODY GROUND)

H

16.CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT SOCKET AND WIRE RH - COMBINATION METER ASSEMBLY AND BODY GROUND)
2.CHECK VEHICLE TYPE
a.

Check vehicle condition.


Result:
Result Proceed to
for Triple Beam Headlight A
for Single Beam Headlight B



A

3.CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY LH - COMBINATION METER ASSEMBLY AND BODY GROUND)

B

4.CHECK HARNESS AND CONNECTOR (HEADLIGHT FRONT TURN SIGNAL LED - COMBINATION METER ASSEMBLY AND BODY GROUND)
3.CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY LH - COMBINATION METER ASSEMBLY AND BODY GROUND)

*1: except 12.3 Inch Multi-information Display Type

*2: for 12.3 Inch Multi-information Display Type


a.

Disconnect the G19*1 or G150*2 combination meter assembly connector.


b.

Disconnect the A96 headlight assembly LH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
except 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G19-1 (LL) - A96-2 (B) Always Below 1 Ω
A96-1 (E) - Body ground Always Below 1 Ω

for 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G150-5 (LL) - A96-2 (B) Always Below 1 Ω
A96-1 (E) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE HEADLIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for Triple Beam Headlight)>DISASSEMBLY


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK HARNESS AND CONNECTOR (HEADLIGHT FRONT TURN SIGNAL LED - COMBINATION METER ASSEMBLY AND BODY GROUND)
a.

Disconnect the G150 combination meter assembly connector.


b.

Disconnect the A104 headlight front turn signal LED connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G150-5 (LL) - A104-4 (B) Always Below 1 Ω
A104-2 (E) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE HEADLIGHT FRONT TURN SIGNAL LED

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for Single Beam Headlight)>DISASSEMBLY


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH
a.

Remove the outer rear view mirror assembly LH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL


b.

Inspect the outer rear view mirror assembly LH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>INSPECTION


Result:
Proceed to
OK
NG



OK

REPAIR OR REPLACE HARNESS OR CONNECTOR

NG

6.INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY LH
7.CHECK VEHICLE TYPE
a.

Check vehicle condition.


Result:
Result Proceed to
for Triple Beam Headlight A
for Single Beam Headlight B



A

8.CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY RH - COMBINATION METER ASSEMBLY AND BODY GROUND)

B

9.CHECK HARNESS AND CONNECTOR (HEADLIGHT FRONT TURN SIGNAL LED - COMBINATION METER ASSEMBLY AND BODY GROUND)
8.CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY RH - COMBINATION METER ASSEMBLY AND BODY GROUND)

*1: except 12.3 Inch Multi-information Display Type

*2: for 12.3 Inch Multi-information Display Type


a.

Disconnect the G19*1 or G150*2 combination meter assembly connector.


b.

Disconnect the A95 headlight assembly RH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
except 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G19-2 (LR) - A95-2 (B) Always Below 1 Ω
A95-1 (E) - Body ground Always Below 1 Ω

for 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G150-6 (LR) - A95-2 (B) Always Below 1 Ω
A95-1 (E) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE HEADLIGHT ASSEMBLY RH

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for Triple Beam Headlight)>DISASSEMBLY


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

9.CHECK HARNESS AND CONNECTOR (HEADLIGHT FRONT TURN SIGNAL LED - COMBINATION METER ASSEMBLY AND BODY GROUND)
a.

Disconnect the G150 combination meter assembly connector.


b.

Disconnect the A103 headlight front turn signal LED connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G150-6 (LR) - A103-4 (B) Always Below 1 Ω
A103-2 (E) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE HEADLIGHT FRONT TURN SIGNAL LED

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for Single Beam Headlight)>DISASSEMBLY


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

10.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH
a.

Remove the outer rear view mirror assembly RH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL


b.

Inspect the outer rear view mirror assembly RH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>INSPECTION


Result:
Proceed to
OK
NG



OK

REPAIR OR REPLACE HARNESS OR CONNECTOR

NG

11.INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY RH
12.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR COMBINATION LIGHT SOCKET AND WIRE LH)

*1: w/ Panoramic View Monitor System, w/ Blind Spot Monitor System

*2: w/ Panoramic View Monitor System, w/o Blind Spot Monitor System

*3: w/o Panoramic View Monitor System

*4: except 12.3 Inch Multi-information Display Type

*5: for 12.3 Inch Multi-information Display Type

*6: for Gasoline Model

*7: w/ Panoramic View Monitor System


a.

Disconnect the G19*4 or G150*5 combination meter assembly connector.


b.

Disconnect the N18 rear combination light socket and wire LH connector.


c.

Disconnect the J13*1, J15*3*6 or J17*2 outer rear view mirror assembly LH connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
except 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G19-5 (TRNL) - N18-4 (TRN) Always Below 1 Ω

for 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G150-37 (TRNL) - N18-4 (TRN) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

13.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR COMBINATION LIGHT SOCKET AND WIRE RH)

*1: w/ Panoramic View Monitor System, w/ Blind Spot Monitor System

*2: w/ Panoramic View Monitor System, w/o Blind Spot Monitor System

*3: w/o Panoramic View Monitor System

*4: except 12.3 Inch Multi-information Display Type

*5: for 12.3 Inch Multi-information Display Type

*6: for Gasoline Model

*7: w/ Panoramic View Monitor System


a.

Disconnect the G19*4 or G150*5 combination meter assembly connector.


b.

Disconnect the M14 rear combination light socket and wire RH connector.


c.

Disconnect the I13*1, I15*3*6 or I17*2 outer rear view mirror assembly LH connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
except 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G19-6 (TRNR) - M14-4 (TRN) Always Below 1 Ω

for 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G150-38 (TRNR) - M14-4 (TRN) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

14.CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT SOCKET AND WIRE LH - COMBINATION METER ASSEMBLY AND BODY GROUND)

*1: except 12.3 Inch Multi-information Display Type

*2: for 12.3 Inch Multi-information Display Type


a.

Disconnect the N18 rear combination light socket and wire LH connector.


b.

Disconnect the G19*1 or G150*2 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
except 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
N18-4 (TRN) - G19-5 (TRNL) Always Below 1 Ω
N18-3 (E) - Body ground Always Below 1 Ω

for 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
N18-4 (TRN) - G150-37 (TRNL) Always Below 1 Ω
N18-3 (E) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

15.INSPECT REAR COMBINATION LIGHT SOCKET AND WIRE LH

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

15.INSPECT REAR COMBINATION LIGHT SOCKET AND WIRE LH
a.
E409905C02
1.469,0.177 1.969,0.51 0.5,0.333 1.208,1.844 1.375,1.844 1.375,1.844 1.604,1.552 true 2.313,1.844 2.125,1.844 2.125,1.844 1.802,1.573 true 2.385,1.719 2.844,1.917 0.458,0.198 10 false TRN 1.052,1.719 1.51,1.917 0.458,0.198 10 false E 0.125,0.177 0.583,0.375 0.458,0.198 10 false *a 1.583,0.25 2.042,0.448 0.458,0.198 10 false N18
*a Component without harness connected
(Rear Combination Light Socket and Wire LH)


Disconnect the N18 rear combination light socket and wire LH connector.


b.

Apply auxiliary battery voltage to the rear combination light socket and wire LH and check that the light illuminates.

OK:
Condition Specified Condition
Auxiliary battery positive (+) → Terminal 4 (TRN)
Auxiliary battery negative (-) → Terminal 3 (E) 		Turn signal light illuminates



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPLACE REAR COMBINATION LIGHT SOCKET AND WIRE LH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY>DISASSEMBLY


16.CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT SOCKET AND WIRE RH - COMBINATION METER ASSEMBLY AND BODY GROUND)

*1: except 12.3 Inch Multi-information Display Type

*2: for 12.3 Inch Multi-information Display Type


a.

Disconnect the M14 rear combination light socket and wire RH connector.


b.

Disconnect the G19*1 or G150*2 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
except 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
M14-4 (TRN) - G19-6 (TRNR) Always Below 1 Ω
M14-3 (E) - Body ground Always Below 1 Ω

for 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
M14-4 (TRN) - G150-38 (TRNR) Always Below 1 Ω
M14-3 (E) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

17.INSPECT REAR COMBINATION LIGHT SOCKET AND WIRE RH

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

17.INSPECT REAR COMBINATION LIGHT SOCKET AND WIRE RH
a.
E409905C03
1.51,0.26 1.979,0.615 0.469,0.354 1.208,1.844 1.375,1.844 1.375,1.844 1.604,1.552 true 2.313,1.844 2.125,1.844 2.125,1.844 1.802,1.573 true 2.385,1.719 2.844,1.917 0.458,0.198 10 false TRN 1.052,1.719 1.51,1.917 0.458,0.198 10 false E 0.125,0.177 0.583,0.375 0.458,0.198 10 false *a 1.604,0.354 2.063,0.552 0.458,0.198 10 false M14
*a Component without harness connected
(Rear Combination Light Socket and Wire RH)


Disconnect the M14 rear combination light socket and wire RH connector.


b.

Apply auxiliary battery voltage to the rear combination light socket and wire RH and check that the light illuminates.

OK:
Condition Specified Condition
Auxiliary battery positive (+) → Terminal 4 (TRN)
Auxiliary battery negative (-) → Terminal 3 (E) 		Turn signal light illuminates



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPLACE REAR COMBINATION LIGHT SOCKET AND WIRE RH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY>DISASSEMBLY
