RM36D0EC _59 Vehicle Exterior _083096 LIGHTING (EXT) _0402632 REAR COMBINATION LIGHT ASSEMBLY A

LIGHTING (EXT)  REAR COMBINATION LIGHT ASSEMBLY  DISASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure described below is for the LH side.



PROCEDURE

Hide 81550L 1.REMOVE REAR TURN SIGNAL LIGHT BULB

a.

for Type A:

i.

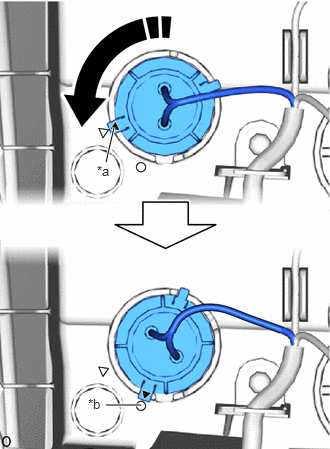

B555542C01
1.104,1.688 1.188,1.323 true 1.469,4.219 1.104,4.219 true 1.01,1.698 1.208,1.896 0.198,0.198 10 true *a 0.917,4.125 1.094,4.302 0.177,0.177 10 true *b
*a Matchmark
*b Unlock Position Mark
V113147

Turn in this Direction


Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark and disconnect the bulb socket.



b.

for Type B:

i.

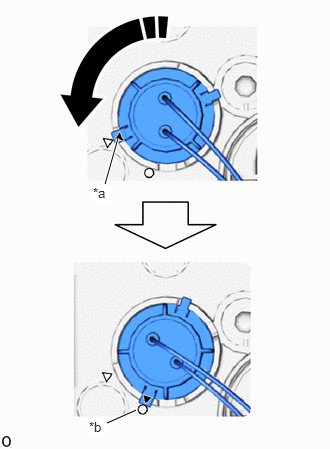

B573490C01
1.094,1.917 1.229,1.438 true 1.417,4.271 1.115,4.406 true 0.969,1.927 1.167,2.125 0.198,0.198 10 true *a 0.927,4.365 1.104,4.542 0.177,0.177 10 true *b
*a Matchmark
*b Unlock Position Mark
V113147

Turn in this Direction


Turn the bulb socket counterclockwise until the matchmark is aligned with the unlock position mark and disconnect the bulb socket.



c.

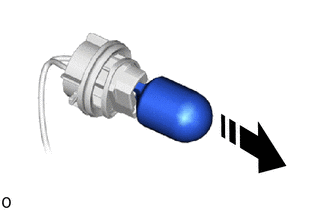

B555544C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the rear turn signal light bulb from the bulb socket.


Hide 81536E 2.REMOVE STOP LIGHT LED LH (for Type C)

a.

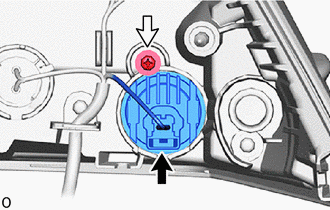

B557686C01
0,0 0,0 false
V100135

Connector
V100136

Screw


Disconnect the connector.


b.

Remove the screw.


c.
B555547C01
0.927,1.542 1.469,1.438 true 1.688,4.396 1.802,4.104 true 0.719,1.479 0.917,1.667 0.198,0.188 10 true *a 1.615,4.417 1.802,4.594 0.188,0.177 10 true *b
*a Matchmark
*b Unlock Position Mark
V113147

Turn in this Direction


Turn the stop light LED LH counterclockwise until the matchmark is aligned with the unlock position mark and remove it.


Hide 81536E 3.REMOVE STOP LIGHT LED LH (for Type D)

a.

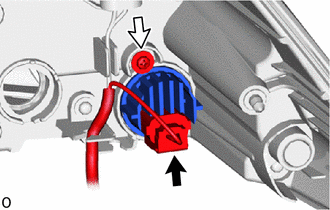

B555546C01
0,0 0,0 false
V100135

Connector
V100136

Screw


Disconnect the connector.


b.

Remove the screw.


c.

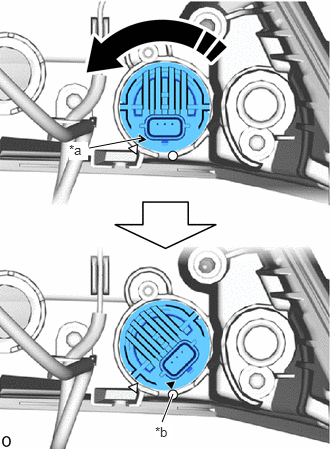

B557688C02
0.927,1.542 1.469,1.438 true 1.688,4.396 1.802,4.104 true 0.719,1.479 0.917,1.667 0.198,0.188 10 true *a 1.615,4.417 1.802,4.594 0.188,0.177 10 true *b
*a Matchmark
*b Unlock Position Mark
V113147

Turn in this Direction


Turn the stop light LED LH counterclockwise until the matchmark is aligned with the unlock position mark and remove it.


Hide 81565E 4.REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE LH (for Type A)

a.

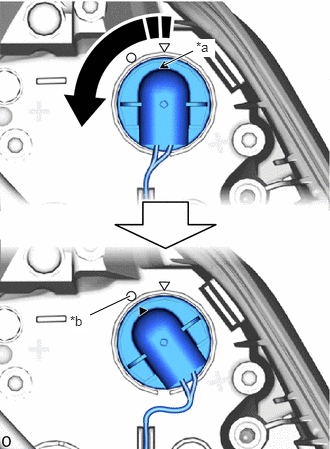

B555549C01
1.708,0.677 2.01,0.531 true 1.354,3.083 0.938,3.281 true 2.042,0.406 2.24,0.594 0.198,0.188 10 true *a 0.729,3.26 0.927,3.458 0.198,0.198 10 true *b
*a Matchmark
*b Unlock Position Mark
V113147

Turn in this Direction


Turn the LED socket counterclockwise until the matchmark is aligned with the unlock position mark and disconnect the LED socket.


b.
B555551

Disconnect the connector.


c.

Detach the wire harness clamp and remove the rear combination light socket and wire LH.
