MIRROR (EXT) OUTER REAR VIEW MIRROR INSPECTION

Hide Display 87940 1.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH (w/o Retract Mirror)

a.

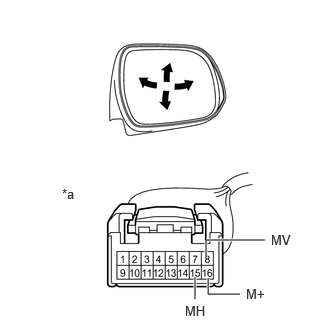

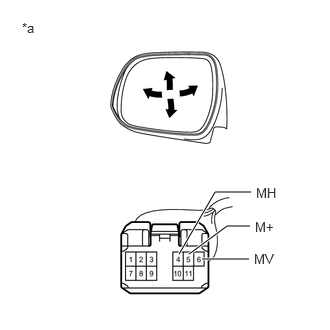

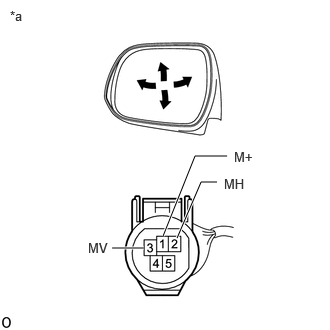

Check the operation of the mirror surface.

i.

Disconnect the outer rear view mirror assembly LH connector.

ii.

1.167,2.583 1.5,2.583 true 1.698,2.458 2.031,1.625 2.031,1.625 2.365,1.625 true 1.844,2.479 2.094,1.896 2.094,1.896 2.26,1.896 true 0.104,0.083 0.417,0.281 0.313,0.198 10 false *a 0.917,2.5 1.229,2.698 0.313,0.198 10 false MV 2.333,1.833 2.646,2.031 0.313,0.198 10 false MH 2.438,1.552 2.75,1.75 0.313,0.198 10 false M+

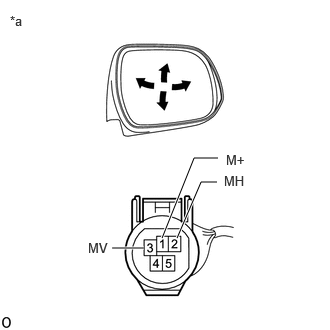

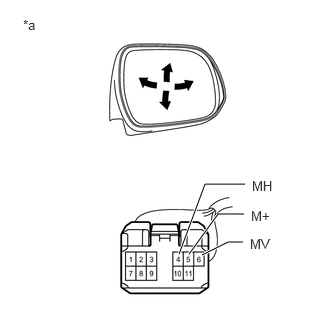

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Apply auxiliary battery voltage and check the operation of the mirror.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 3 (MV) Auxiliary battery negative (-) → 1 (M+)	Turns upward
Auxiliary battery positive (+) → 1 (M+) Auxiliary battery negative (-) → 3 (MV)	Turns downward
Auxiliary battery positive (+) → 2 (MH) Auxiliary battery negative (-) → 1 (M+)	Turns right
Auxiliary battery positive (+) → 1 (M+) Auxiliary battery negative (-) → 2 (MH)	Turns left

If the result is not as specified, replace the outer rear view mirror assembly LH.

b.

Check the side turn signal light assembly LH.

i.

Disconnect the outer rear view mirror assembly LH connector.

ii.

1.74,1.354 2.167,1.635 true 1.219,1.573 1.563,1.344 true 1.063,1.542 1.219,1.74 0.156,0.198 10 false B 2.219,1.604 2.375,1.802 0.156,0.198 10 false E 0.083,0.094 0.396,0.292 0.313,0.198 10 false *a

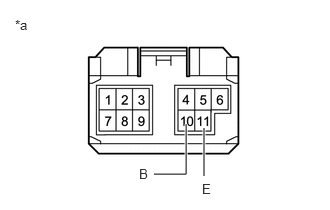

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Apply auxiliary battery voltage to the terminals of the connector, and check the illumination condition.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 4 (B) Auxiliary battery negative (-) → 5 (E)	Side turn light illuminates

If the result is not as specified, inspect the side turn signal light assembly LH or replace the outer rear view mirror assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>INSPECTION201910,999999,_59,_083096,_0402630,RM100000001JJWB_01_0003,

Hide Display 87910 2.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH (w/o Retract Mirror)

a.

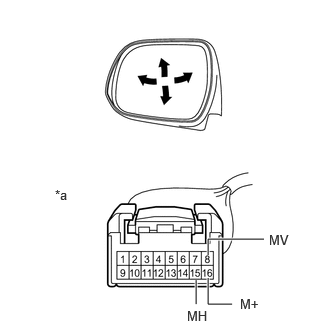

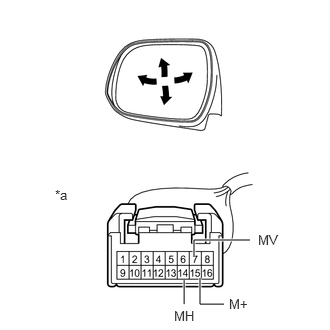

Check the operation of the mirror surface.

i.

Disconnect the outer rear view mirror assembly RH connector.

ii.

1.167,2.583 1.5,2.583 true 1.688,2.479 2.021,1.646 2.021,1.646 2.271,1.646 true 1.844,2.479 2.094,1.896 2.094,1.896 2.26,1.896 true 0.104,0.135 0.417,0.333 0.313,0.198 10 false *a 2.333,1.802 2.646,2 0.313,0.198 10 false MH 0.917,2.5 1.229,2.698 0.313,0.198 10 false MV 2.354,1.583 2.667,1.781 0.313,0.198 10 false M+

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Apply auxiliary battery voltage and check the operation of the mirror.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 3 (MV) Auxiliary battery negative (-) → 1 (M+)	Turns upward
Auxiliary battery positive (+) → 1 (M+) Auxiliary battery negative (-) → 3 (MV)	Turns downward
Auxiliary battery positive (+) → 1 (M+) Auxiliary battery negative (-) → 2 (MH)	Turns left
Auxiliary battery positive (+) → 2 (MH) Auxiliary battery negative (-) → 1 (M+)	Turns right

If the result is not as specified, replace the outer rear view mirror assembly RH.

b.

Check the side turn signal light assembly RH.

i.

Disconnect the outer rear view mirror assembly RH connector.

ii.

1.74,1.354 2.167,1.635 true 1.219,1.573 1.563,1.344 true 1.063,1.542 1.219,1.74 0.156,0.198 10 false B 2.219,1.604 2.375,1.802 0.156,0.198 10 false E 0.083,0.094 0.396,0.292 0.313,0.198 10 false *a

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Apply auxiliary battery voltage to the terminals of the connector, and check the illumination condition.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 4 (B) Auxiliary battery negative (-) → 5 (E)	Side turn light illuminates

If the result is not as specified, inspect the side turn signal light assembly RH or replace the outer rear view mirror assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>INSPECTION201910,999999,_59,_083096,_0402630,RM100000001JJWB_01_0004,

Hide Display 87940 3.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH (for SFTM Made, w/o Panoramic View Monitor System)

a.

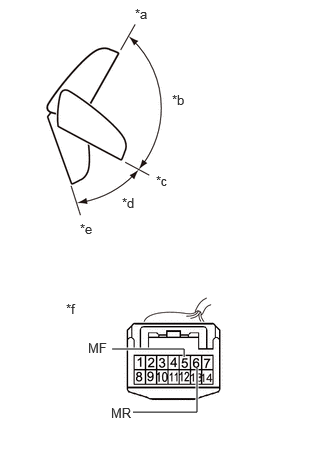

Check the operation of the retractable mirror.

NOTICE:: ·

Disconnect and reconnect the auxiliary battery between each mirror position check.

·

The mirror position cannot be changed manually when the auxiliary battery is connected. To change the mirror position manually, the auxiliary battery must be disconnected first.

i.

Disconnect the outer rear view mirror assembly LH connector.

ii.

2.135,3.76 2.458,3.76 true 1.99,4.302 1.99,3.833 true 1.854,0.115 2.167,0.271 0.313,0.156 10 false *a 1.448,1.031 1.76,1.188 0.313,0.156 10 false *b 1.656,1.823 1.969,1.979 0.313,0.156 10 false *c 2.063,2.177 2.375,2.333 0.313,0.156 10 false *d 2.438,2.396 2.75,2.552 0.313,0.156 10 false *e 1.094,3.198 1.406,3.354 0.313,0.156 10 false *f 2.531,3.667 2.844,3.865 0.313,0.198 10 false MR 1.906,4.323 2.219,4.521 0.313,0.198 10 false MF

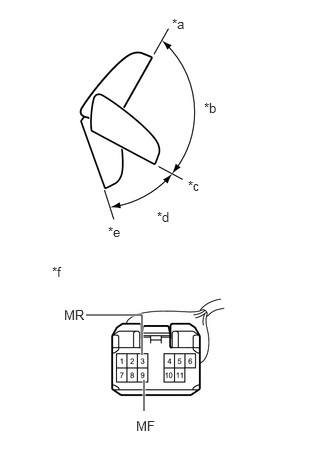

*a	(A) Forward position
*b	(B)
*c	(C) Driving position
*d	(D)
*e	(E) Retracted position
*f	Component without harness connected (Outer Rear View Mirror Assembly LH)

For each position: Disconnect the battery, set the mirror position by hand, connect the battery, and check the retractable mirror movement.

OK:

Auxiliary Battery Connection	Condition	Specified Condition
Auxiliary battery positive (+) → 6 (MR) Auxiliary battery negative (-) → 5 (MF)	Forward position (A)	Moves from (A) to (E)
Auxiliary battery positive (+) → 5 (MF) Auxiliary battery negative (-) → 6 (MR)	Forward position (A)	Does not move
Auxiliary battery positive (+) → 6 (MR) Auxiliary battery negative (-) → 5 (MF)	Position between forward position (A) and driving position (C)	Moves from (B) to (E)
Auxiliary battery positive (+) → 5 (MF) Auxiliary battery negative (-) → 6 (MR)	Position between forward position (A) and driving position (C)	Moves from (B) to (A)
Auxiliary battery positive (+) → 6 (MR) Auxiliary battery negative (-) → 5 (MF)	Driving position (C)	Moves from (C) to (E)
Auxiliary battery positive (+) → 5 (MF) Auxiliary battery negative (-) → 6 (MR)	Driving position (C)	Does not move
Auxiliary battery positive (+) → 6 (MR) Auxiliary battery negative (-) → 5 (MF)	Position between driving position (C) and retracted position (E)	Moves from (D) to (E)
Auxiliary battery positive (+) → 5 (MF) Auxiliary battery negative (-) → 6 (MR)	Position between driving position (C) and retracted position (E)	Moves from (D) to (C)
Auxiliary battery positive (+) → 6 (MR) Auxiliary battery negative (-) → 5 (MF)	Retracted position (E)	Does not move
Auxiliary battery positive (+) → 5 (MF) Auxiliary battery negative (-) → 6 (MR)	Retracted position (E)	Moves from (E) to (C)

If the result is not as specified, replace the outer rear view mirror assembly LH.

b.

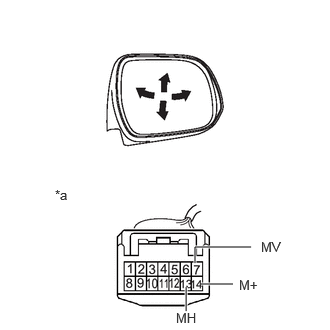

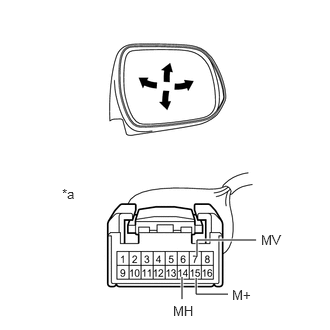

Check the operation of the mirror surface.

i.

Disconnect the outer rear view mirror assembly LH connector.

ii.

2.615,2.573 2.031,2.573 2.031,2.573 2.031,2.74 true 1.938,3.24 1.938,2.99 true 2.427,2.958 2.094,2.958 true 0.573,1.948 0.885,2.104 0.313,0.156 10 false *a 2.719,2.49 3.031,2.688 0.313,0.198 10 false MV 1.833,3.229 2.146,3.427 0.313,0.198 10 false MH 2.49,2.885 2.802,3.083 0.313,0.198 10 false M+

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Apply auxiliary battery voltage and check the operation of the mirror.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 7 (MV) Auxiliary battery negative (-) → 14 (M+)	Turns upward
Auxiliary battery positive (+) → 14 (M+) Auxiliary battery negative (-) → 7 (MV)	Turns downward
Auxiliary battery positive (+) → 14 (M+) Auxiliary battery negative (-) → 13 (MH)	Turns inside
Auxiliary battery positive (+) → 13 (MH) Auxiliary battery negative (-) → 14 (M+)	Turns outside

If the result is not as specified, replace the outer rear view mirror assembly LH.

c.

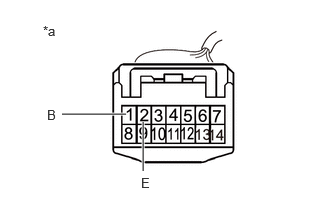

Check the side turn signal light assembly LH.

i.

Disconnect the outer rear view mirror assembly LH connector.

ii.

0.646,1.188 1.313,1.188 true 1.49,1.271 1.49,1.781 true 0.448,0.24 0.76,0.396 0.313,0.156 10 false *a 1.469,1.823 2.083,2.021 0.615,0.198 10 false E 0.49,1.115 1.104,1.313 0.615,0.198 10 false B

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Apply auxiliary battery voltage to the terminals of the connector, and check the illumination condition.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 1 (B) Auxiliary battery negative (-) → 2 (E)	Side turn signal light illuminates

If the result is not as specified, inspect the side turn signal light assembly LH or replace the outer rear view mirror assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>INSPECTION201910,999999,_59,_083096,_0402630,RM100000001JJWB_01_0003,

d.

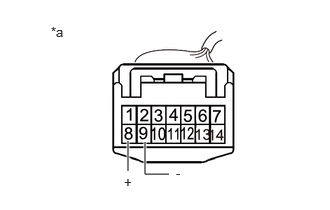

Check the operation of the mirror heater.

i.

Disconnect the outer rear view mirror assembly LH connector.

ii.

1.333,1.469 1.333,1.781 true 1.51,1.479 1.51,1.813 1.51,1.813 1.76,1.813 true 0.531,0.25 0.844,0.406 0.313,0.156 10 false *a 1.833,1.719 2.448,1.917 0.615,0.198 10 false - 1.292,1.813 1.458,2.01 0.167,0.198 10 false +

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
8 (+) - 9 (-)	25°C (77°F)	6.5 to 9.0 Ω

iii.

Connect the cable from the positive (+) auxiliary battery terminal to terminal 8 (+) and the negative (-) auxiliary battery terminal to terminal 9 (-), and then check that the mirror becomes warm.

HINT:: It takes a short time for the mirror to become warm.

OK:: Mirror becomes warm.

If the result is not as specified, inspect the outer mirror LH or replace the outer rear view mirror assembly LH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR GLASS>INSPECTION202004,999999,_59,_083099,_0400990,RM100000001MDXX_01_0010,

Hide Display 87910 4.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH (for SFTM Made, w/o Panoramic View Monitor System)

a.

Check the operation of the retractable mirror.

NOTICE:: ·

Disconnect and reconnect the auxiliary battery between each mirror position check.

·

The mirror position cannot be changed manually when the auxiliary battery is connected. To change the mirror position manually, the auxiliary battery must be disconnected first.

i.

Disconnect the outer rear view mirror assembly RH connector.

ii.

1.917,3.719 1.917,3.635 1.917,3.635 1.167,3.635 true 2.052,3.833 2.052,4.292 2.052,4.292 1.385,4.292 true 1.406,0.063 1.719,0.219 0.313,0.156 10 false *a 1.792,0.958 2.104,1.115 0.313,0.156 10 false *b 1.625,1.802 1.938,1.958 0.313,0.156 10 false *c 1.271,2.031 1.583,2.188 0.313,0.156 10 false *d 0.833,2.302 1.146,2.458 0.313,0.156 10 false *e 0.688,3.135 1,3.292 0.313,0.156 10 false *f 1.156,4.219 1.469,4.417 0.313,0.198 10 false MR 0.917,3.542 1.229,3.74 0.313,0.198 10 false MF

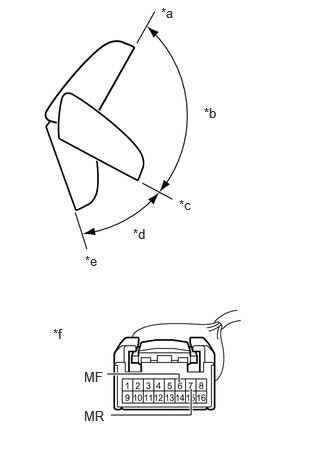

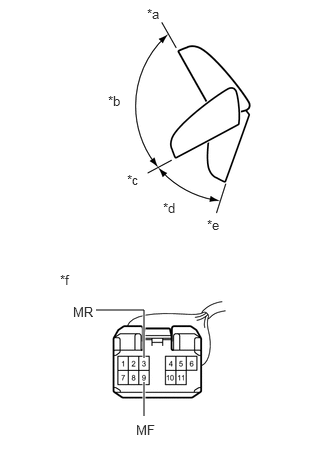

*a	(A) Forward position
*b	(B)
*c	(C) Driving position
*d	(D)
*e	(E) Retracted position
*f	Component without harness connected (Outer Rear View Mirror Assembly RH)

For each position: Disconnect the battery, set the mirror position by hand, connect the battery, and check the retractable mirror movement.

OK:

Auxiliary Battery Connection	Condition	Specified Condition
Auxiliary battery positive (+) → 6 (MR) Auxiliary battery negative (-) → 5 (MF)	Forward position (A)	Moves from (A) to (E)
Auxiliary battery positive (+) → 5 (MF) Auxiliary battery negative (-) → 6 (MR)	Forward position (A)	Does not move
Auxiliary battery positive (+) → 6 (MR) Auxiliary battery negative (-) → 5 (MF)	Position between forward position (A) and driving position (C)	Moves from (B) to (E)
Auxiliary battery positive (+) → 5 (MF) Auxiliary battery negative (-) → 6 (MR)	Position between forward position (A) and driving position (C)	Moves from (B) to (A)
Auxiliary battery positive (+) → 6 (MR) Auxiliary battery negative (-) → 5 (MF)	Driving position (C)	Moves from (C) to (E)
Auxiliary battery positive (+) → 5 (MF) Auxiliary battery negative (-) → 6 (MR)	Driving position (C)	Does not move
Auxiliary battery positive (+) → 6 (MR) Auxiliary battery negative (-) → 5 (MF)	Position between driving position (C) and retracted position (E)	Moves from (D) to (E)
Auxiliary battery positive (+) → 5 (MF) Auxiliary battery negative (-) → 6 (MR)	Position between driving position (C) and retracted position (E)	Moves from (D) to (C)
Auxiliary battery positive (+) → 6 (MR) Auxiliary battery negative (-) → 5 (MF)	Retracted position (E)	Does not move
Auxiliary battery positive (+) → 5 (MF) Auxiliary battery negative (-) → 6 (MR)	Retracted position (E)	Moves from (E) to (C)

If the result is not as specified, replace the outer rear view mirror assembly RH.

b.

Check the operation of the mirror surface.

i.

Disconnect the outer rear view mirror assembly RH connector.

ii.

2.615,2.573 2.031,2.573 2.031,2.573 2.031,2.74 true 1.938,3.24 1.938,2.99 true 2.427,2.958 2.094,2.958 true 0.573,1.948 0.885,2.104 0.313,0.156 10 false *a 2.719,2.49 3.031,2.688 0.313,0.198 10 false MV 1.833,3.229 2.146,3.427 0.313,0.198 10 false MH 2.49,2.885 2.802,3.083 0.313,0.198 10 false M+

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Apply auxiliary battery voltage and check the operation of the mirror.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 7 (MV) Auxiliary battery negative (-) → 14 (M+)	Turns upward
Auxiliary battery positive (+) → 14 (M+) Auxiliary battery negative (-) → 7 (MV)	Turns downward
Auxiliary battery positive (+) → 13 (MH) Auxiliary battery negative (-) → 14 (M+)	Turns inside
Auxiliary battery positive (+) → 14 (M+) Auxiliary battery negative (-) → 13 (MH)	Turns outside

If the result is not as specified, replace the outer rear view mirror assembly RH.

c.

Check the side turn signal light assembly RH.

i.

Disconnect the outer rear view mirror assembly RH connector.

ii.

0.646,1.188 1.313,1.188 true 1.49,1.271 1.49,1.781 true 0.448,0.24 0.76,0.396 0.313,0.156 10 false *a 1.469,1.823 2.083,2.021 0.615,0.198 10 false E 0.49,1.115 1.104,1.313 0.615,0.198 10 false B

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Apply auxiliary battery voltage to the terminals of the connector, and check the illumination condition.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 1 (B) Auxiliary battery negative (-) → 2 (E)	Side turn signal light illuminates

If the result is not as specified, inspect the side turn signal light assembly RH or replace the outer rear view mirror assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>INSPECTION201910,999999,_59,_083096,_0402630,RM100000001JJWB_01_0004,

d.

Check the operation of the mirror heater.

i.

Disconnect the outer rear view mirror assembly RH connector.

ii.

1.333,1.469 1.333,1.781 true 1.51,1.479 1.51,1.813 1.51,1.813 1.76,1.813 true 0.531,0.25 0.844,0.406 0.313,0.156 10 false *a 1.833,1.719 2.448,1.917 0.615,0.198 10 false - 1.292,1.813 1.458,2.01 0.167,0.198 10 false +

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
8 (+) - 9 (-)	25°C (77°F)	6.5 to 9.0 Ω

iii.

Connect the cable from the positive (+) auxiliary battery terminal to terminal 8 (+) and the negative (-) auxiliary battery terminal to terminal 9 (-), and then check that the mirror becomes warm.

HINT:: It takes a short time for the mirror to become warm.

OK:: Mirror becomes warm.

If the result is not as specified, inspect the outer mirror RH or replace the outer rear view mirror assembly RH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR GLASS>INSPECTION202004,999999,_59,_083099,_0400990,RM100000001MDXX_01_0011,

Hide Display 87940 5.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH (for SFTM Made, w/ Panoramic View Monitor System)

a.

Check the operation of the retractable mirror.

NOTICE:: ·

Disconnect and reconnect the auxiliary battery between each mirror position check.

·

The mirror position cannot be changed manually when the auxiliary battery is connected. To change the mirror position manually, the auxiliary battery must be disconnected first.

i.

Disconnect the outer rear view mirror assembly LH connector.

ii.

1.823,3.969 1.833,3.833 1.833,3.833 1.083,3.833 true 1.927,4.052 1.917,4.385 1.917,4.385 1.427,4.385 true 1.719,0.073 2.031,0.229 0.313,0.156 10 false *a 1.219,1.01 1.531,1.167 0.313,0.156 10 false *b 1.396,2.156 1.708,2.313 0.313,0.156 10 false *c 1.938,2.51 2.25,2.667 0.313,0.156 10 false *d 2.469,2.76 2.781,2.917 0.313,0.156 10 false *e 0.74,3.302 1.052,3.458 0.313,0.156 10 false *f 1.198,4.323 1.51,4.521 0.313,0.198 10 false MR 0.865,3.771 1.177,3.969 0.313,0.198 10 false MF

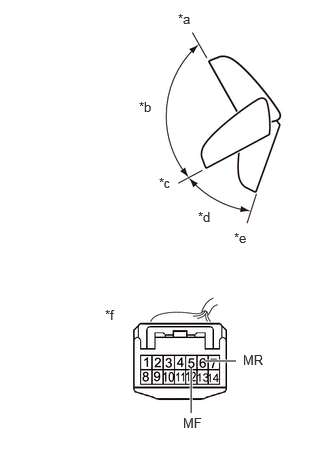

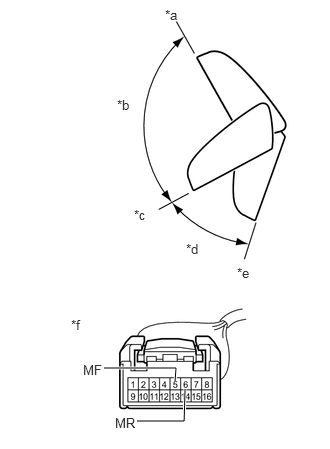

*a	(A) Forward position
*b	(B)
*c	(C) Driving position
*d	(D)
*e	(E) Retracted position
*f	Component without harness connected (Outer Rear View Mirror Assembly LH)

For each position: Disconnect the battery, set the mirror position by hand, connect the battery, and check the retractable mirror movement.

OK:

Auxiliary Battery Connection	Condition	Specified Condition
Auxiliary battery positive (+) → 6 (MR) Auxiliary battery negative (-) → 5 (MF)	Forward position (A)	Moves from (A) to (E)
Auxiliary battery positive (+) → 5 (MF) Auxiliary battery negative (-) → 6 (MR)	Forward position (A)	Does not move
Auxiliary battery positive (+) → 6 (MR) Auxiliary battery negative (-) → 5 (MF)	Position between forward position (A) and driving position (C)	Moves from (B) to (E)
Auxiliary battery positive (+) → 5 (MF) Auxiliary battery negative (-) → 6 (MR)	Position between forward position (A) and driving position (C)	Moves from (B) to (A)
Auxiliary battery positive (+) → 6 (MR) Auxiliary battery negative (-) → 5 (MF)	Driving position (C)	Moves from (C) to (E)
Auxiliary battery positive (+) → 5 (MF) Auxiliary battery negative (-) → 6 (MR)	Driving position (C)	Does not move
Auxiliary battery positive (+) → 6 (MR) Auxiliary battery negative (-) → 5 (MF)	Position between driving position (C) and retracted position (E)	Moves from (D) to (E)
Auxiliary battery positive (+) → 5 (MF) Auxiliary battery negative (-) → 6 (MR)	Position between driving position (C) and retracted position (E)	Moves from (D) to (C)
Auxiliary battery positive (+) → 6 (MR) Auxiliary battery negative (-) → 5 (MF)	Retracted position (E)	Does not move
Auxiliary battery positive (+) → 5 (MF) Auxiliary battery negative (-) → 6 (MR)	Retracted position (E)	Moves from (E) to (C)

If the result is not as specified, replace the outer rear view mirror assembly LH.

b.

Check the operation of the mirror surface.

i.

Disconnect the outer rear view mirror assembly LH connector.

ii.

2.604,2.5 2.021,2.5 2.021,2.5 2.021,2.667 true 2.333,3.167 2.083,3.167 2.083,3.167 2.083,2.896 true 1.917,3.167 1.917,2.917 true 0.573,1.948 0.885,2.104 0.313,0.156 10 false *a 2.688,2.417 3,2.615 0.313,0.198 10 false MV 1.813,3.208 2.125,3.406 0.313,0.198 10 false MH 2.385,3.083 2.698,3.281 0.313,0.198 10 false M+

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Apply auxiliary battery voltage and check the operation of the mirror.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 7 (MV) Auxiliary battery negative (-) → 15 (M+)	Turns upward
Auxiliary battery positive (+) → 15 (M+) Auxiliary battery negative (-) → 7 (MV)	Turns downward
Auxiliary battery positive (+) → 15 (M+) Auxiliary battery negative (-) → 14 (MH)	Turns right
Auxiliary battery positive (+) → 14 (MH) Auxiliary battery negative (-) → 15 (M+)	Turns left

If the result is not as specified, replace the outer rear view mirror assembly LH.

c.

Check the side turn signal light assembly LH.

i.

Disconnect the outer rear view mirror assembly LH connector.

ii.

0.5,1 1.167,1 true 1.375,1.073 1.375,1.49 true 0.448,0.24 0.76,0.396 0.313,0.156 10 false *a 1.333,1.51 1.948,1.708 0.615,0.198 10 false E 0.365,0.948 0.979,1.146 0.615,0.198 10 false B

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Apply auxiliary battery voltage to the terminals of the connector, and check the illumination condition.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 1 (B) Auxiliary battery negative (-) → 2 (E)	Side turn light illuminates

If the result is not as specified, inspect the side turn signal light assembly LH or replace the outer rear view mirror assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>INSPECTION201910,999999,_59,_083096,_0402630,RM100000001JJWB_01_0003,

d.

Check the operation of the mirror heater.

i.

Disconnect the outer rear view mirror assembly LH connector.

ii.

1.219,1.188 1.219,1.5 true 1.375,1.198 1.375,1.531 1.375,1.531 1.625,1.531 true 0.531,0.25 0.844,0.406 0.313,0.156 10 false *a 1.698,1.448 2.313,1.646 0.615,0.198 10 false - 1.177,1.542 1.344,1.74 0.167,0.198 10 false +

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
9 (+) - 10 (-)	25°C (77°F)	6.5 to 9.0 Ω

iii.

Connect the cable from the positive (+) auxiliary battery terminal to terminal 9 (+) and the negative (-) auxiliary battery terminal to terminal 10 (-), and then check that the mirror becomes warm.

HINT:: It takes a short time for the mirror to become warm.

OK:: Mirror becomes warm.

If the result is not as specified, inspect the outer mirror LH or replace the outer rear view mirror assembly LH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR GLASS>INSPECTION202004,999999,_59,_083099,_0400990,RM100000001MDXX_01_0010,

e.

Check the operation of the blind spot monitor indicator(w/ Blind Spot Monitor System).

i.

Connect 4 new 1.5 V dry-cell batteries in series.

ii.

1.385,1.188 1.385,1.5 true 1.802,1.198 1.802,1.521 true 0.531,0.25 0.844,0.406 0.313,0.156 10 false *a 1.365,1.51 1.625,1.719 0.26,0.208 10 false - 1.667,1.542 2.188,1.729 0.521,0.188 10 false BSL+

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Apply 6 V dry-cell batteries to the terminals of the connector, and check the blind spot monitor indicator condition.

OK:

Battery Connection	Specified Condition
Positive (+) end of the 6 V dry-cell battery → 13 (BSL+) Negative (-) end of the 6 V dry-cell battery → 10 (-)	Blind spot monitor indicator comes on

NOTICE:: Do not apply a voltage of 6 V or higher.

If the result is not as specified, inspect the outer mirror LH or replace the outer rear view mirror assembly LH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR GLASS>INSPECTION202004,999999,_59,_083099,_0400990,RM100000001MDXX_01_0008,

Hide Display 87910 6.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH (for SFTM Made, w/ Panoramic View Monitor System)

a.

Check the operation of the retractable mirror.

NOTICE:: ·

Disconnect and reconnect the auxiliary battery between each mirror position check.

·

The mirror position cannot be changed manually when the auxiliary battery is connected. To change the mirror position manually, the auxiliary battery must be disconnected first.

i.

Disconnect the outer rear view mirror assembly RH connector.

ii.

1.75,3.969 1.75,3.885 1.75,3.885 1,3.885 true 1.875,4.063 1.875,4.313 1.875,4.313 1.208,4.313 true 1.677,0.052 1.99,0.208 0.313,0.156 10 false *a 2.125,1.094 2.438,1.25 0.313,0.156 10 false *b 1.865,2.052 2.177,2.208 0.313,0.156 10 false *c 1.385,2.354 1.698,2.51 0.313,0.156 10 false *d 0.885,2.635 1.198,2.792 0.313,0.156 10 false *e 0.552,3.396 0.865,3.552 0.313,0.156 10 false *f 0.938,4.25 1.25,4.448 0.313,0.198 10 false MR 0.771,3.813 1.083,4.01 0.313,0.198 10 false MF

*a	(A) Forward position
*b	(B)
*c	(C) Driving position
*d	(D)
*e	(E) Retracted position
*f	Component without harness connected (Outer Rear View Mirror Assembly RH)

For each position: Disconnect the battery, set the mirror position by hand, connect the battery, and check the retractable mirror movement.

OK:

Auxiliary Battery Connection	Condition	Specified Condition
Auxiliary battery positive (+) → 6 (MR) Auxiliary battery negative (-) → 5 (MF)	Forward position (A)	Moves from (A) to (E)
Auxiliary battery positive (+) → 5 (MF) Auxiliary battery negative (-) → 6 (MR)	Forward position (A)	Does not move
Auxiliary battery positive (+) → 6 (MR) Auxiliary battery negative (-) → 5 (MF)	Position between forward position (A) and driving position (C)	Moves from (B) to (E)
Auxiliary battery positive (+) → 5 (MF) Auxiliary battery negative (-) → 6 (MR)	Position between forward position (A) and driving position (C)	Moves from (B) to (A)
Auxiliary battery positive (+) → 6 (MR) Auxiliary battery negative (-) → 5 (MF)	Driving position (C)	Moves from (C) to (E)
Auxiliary battery positive (+) → 5 (MF) Auxiliary battery negative (-) → 6 (MR)	Driving position (C)	Does not move
Auxiliary battery positive (+) → 6 (MR) Auxiliary battery negative (-) → 5 (MF)	Position between driving position (C) and retracted position (E)	Moves from (D) to (E)
Auxiliary battery positive (+) → 5 (MF) Auxiliary battery negative (-) → 6 (MR)	Position between driving position (C) and retracted position (E)	Moves from (D) to (C)
Auxiliary battery positive (+) → 6 (MR) Auxiliary battery negative (-) → 5 (MF)	Retracted position (E)	Does not move
Auxiliary battery positive (+) → 5 (MF) Auxiliary battery negative (-) → 6 (MR)	Retracted position (E)	Moves from (E) to (C)

If the result is not as specified, replace the outer rear view mirror assembly RH.

b.

Check the operation of the mirror surface.

i.

Disconnect the outer rear view mirror assembly RH connector.

ii.

2.667,2.5 2.052,2.5 2.052,2.5 2.052,2.667 true 2.375,3.063 2.042,3.063 2.042,3.063 2.042,2.896 true 1.896,2.885 1.896,3.115 true 0.646,1.938 0.958,2.094 0.313,0.156 10 false *a 2.719,2.417 3.031,2.615 0.313,0.198 10 false MV 1.802,3.156 2.115,3.354 0.313,0.198 10 false MH 2.417,2.99 2.729,3.188 0.313,0.198 10 false M+

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Apply auxiliary battery voltage and check the operation of the mirror.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 7 (MV) Auxiliary battery negative (-) → 15 (M+)	Turns upward
Auxiliary battery positive (+) → 15 (M+) Auxiliary battery negative (-) → 7 (MV)	Turns downward
Auxiliary battery positive (+) → 14 (MH) Auxiliary battery negative (-) → 15 (M+)	Turns left
Auxiliary battery positive (+) → 15 (M+) Auxiliary battery negative (-) → 14 (MH)	Turns right

If the result is not as specified, replace the outer rear view mirror assembly RH.

c.

Check the side turn signal light assembly RH.

i.

Disconnect the outer rear view mirror assembly RH connector.

ii.

0.5,1 1.167,1 true 1.375,1.073 1.375,1.49 true 0.448,0.24 0.76,0.396 0.313,0.156 10 false *a 1.333,1.51 1.948,1.708 0.615,0.198 10 false E 0.365,0.948 0.979,1.146 0.615,0.198 10 false B

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Apply auxiliary battery voltage to the terminals of the connector, and check the illumination condition.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 1 (B) Auxiliary battery negative (-) → 2 (E)	Side turn light illuminates

If the result is not as specified, inspect the side turn signal light assembly RH or replace the outer rear view mirror assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>INSPECTION201910,999999,_59,_083096,_0402630,RM100000001JJWB_01_0004,

d.

Check the operation of the mirror heater.

i.

Disconnect the outer rear view mirror assembly RH connector.

ii.

1.219,1.188 1.219,1.5 true 1.375,1.198 1.375,1.531 1.375,1.531 1.625,1.531 true 0.531,0.25 0.844,0.406 0.313,0.156 10 false *a 1.698,1.448 2.313,1.646 0.615,0.198 10 false - 1.177,1.542 1.344,1.74 0.167,0.198 10 false +

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
9 (+) - 10 (-)	25°C (77°F)	6.5 to 9.0 Ω

iii.

Connect the cable from the positive (+) auxiliary battery terminal to terminal 9 (+) and the negative (-) auxiliary battery terminal to terminal 10 (-), and then check that the mirror becomes warm.

HINT:: It takes a short time for the mirror to become warm.

OK:: Mirror becomes warm.

If the result is not as specified, inspect the outer mirror RH or replace the outer rear view mirror assembly RH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR GLASS>INSPECTION202004,999999,_59,_083099,_0400990,RM100000001MDXX_01_0011,

e.

Check the operation of the blind spot monitor indicator(w/ Blind Spot Monitor System).

i.

Connect 4 new 1.5 V dry-cell batteries in series.

ii.

1.385,1.188 1.385,1.5 true 1.802,1.198 1.802,1.521 true 0.531,0.25 0.844,0.406 0.313,0.156 10 false *a 1.365,1.51 1.625,1.719 0.26,0.208 10 false - 1.667,1.542 2.188,1.729 0.521,0.188 10 false BSR+

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Apply 6 V dry-cell batteries to the terminals of the connector, and check the blind spot monitor indicator condition.

OK:

Battery Connection	Specified Condition
Positive (+) end of the 6 V dry-cell battery → 13 (BSR+) Negative (-) end of the 6 V dry-cell battery → 10 (-)	Blind spot monitor indicator comes on

NOTICE:: Do not apply a voltage of 6 V or higher.

If the result is not as specified, inspect the outer mirror RH or replace the outer rear view mirror assembly RH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR GLASS>INSPECTION202004,999999,_59,_083099,_0400990,RM100000001MDXX_01_0009,

Hide Display 87940 7.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH (for GTMC Made, w/o Panoramic View Monitor System)

a.

Check the operation of the retractable mirror.

NOTICE:: ·

Disconnect and reconnect the auxiliary battery between each mirror position check.

·

The mirror position cannot be changed manually when the auxiliary battery is connected. To change the mirror position manually, the auxiliary battery must be disconnected first.

i.

Disconnect the outer rear view mirror assembly LH connector.

ii.

1.5,3.979 1.5,4.333 true 1,3.229 1.5,3.229 1.5,3.229 1.5,3.729 true 0.625,2.833 0.833,3 0.208,0.167 10 false *f 0.76,3.167 1,3.354 0.24,0.188 10 false MR 1.417,4.396 1.656,4.583 0.24,0.188 10 false MF 1.531,0.063 1.76,0.229 0.229,0.167 10 false *a 1.125,0.969 1.354,1.135 0.229,0.167 10 false *b 1.323,1.792 1.552,1.958 0.229,0.167 10 false *c 1.698,2.083 1.927,2.25 0.229,0.167 10 false *d 2.156,2.26 2.385,2.427 0.229,0.167 10 false *e

*a	(A) Forward position
*b	(B)
*c	(C) Driving position
*d	(D)
*e	(E) Retracted position
*f	Component without harness connected (Outer Rear View Mirror Assembly LH)

For each position: Disconnect the auxiliary battery, set the mirror position by hand, connect the auxiliary battery, and check the retractable mirror movement.

OK:

Auxiliary Battery Connection	Condition	Specified Condition
Auxiliary battery positive (+) → 3 (MR) Auxiliary battery negative (-) → 9 (MF)	Forward position (A)	Moves from (A) to (E)
Auxiliary battery positive (+) → 9 (MF) Auxiliary battery negative (-) → 3 (MR)	Forward position (A)	Does not move
Auxiliary battery positive (+) → 3 (MR) Auxiliary battery negative (-) → 9 (MF)	Position between forward position (A) and driving position (C)	Moves from (B) to (E)
Auxiliary battery positive (+) → 9 (MF) Auxiliary battery negative (-) → 3 (MR)	Position between forward position (A) and driving position (C)	Moves from (B) to (A)
Auxiliary battery positive (+) → 3 (MR) Auxiliary battery negative (-) → 9 (MF)	Driving position (C)	Moves from (C) to (E)
Auxiliary battery positive (+) → 9 (MF) Auxiliary battery negative (-) → 3 (MR)	Driving position (C)	Does not move
Auxiliary battery positive (+) → 3 (MR) Auxiliary battery negative (-) → 9 (MF)	Position between driving position (C) and retracted position (E)	Moves from (D) to (E)
Auxiliary battery positive (+) → 9 (MF) Auxiliary battery negative (-) → 3 (MR)	Position between driving position (C) and retracted position (E)	Moves from (D) to (C)
Auxiliary battery positive (+) → 3 (MR) Auxiliary battery negative (-) → 9 (MF)	Retracted position (E)	Does not move
Auxiliary battery positive (+) → 9 (MF) Auxiliary battery negative (-) → 3 (MR)	Retracted position (E)	Moves from (E) to (C)

If the result is not as specified, replace the outer rear view mirror assembly LH.

b.

Check the operation of the mirror surface.

i.

Disconnect the outer rear view mirror assembly LH connector.

ii.

2.104,2.698 2.594,2.698 true 1.969,2.646 2.365,2.354 2.365,2.354 2.604,2.354 true 1.865,2.646 2.24,2 2.24,2 2.615,2 true 0.229,0.208 0.417,0.365 0.188,0.156 10 *a 2.667,1.927 2.917,2.083 0.25,0.156 10 MH 2.656,2.281 2.906,2.438 0.25,0.156 10 M+ 2.646,2.615 2.896,2.771 0.25,0.156 10 MV

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Apply auxiliary battery voltage and check the operation of the mirror.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 6 (MV) Auxiliary battery negative (-) → 5 (M+)	Turns upward
Auxiliary battery positive (+) → 5 (M+) Auxiliary battery negative (-) → 6 (MV)	Turns downward
Auxiliary battery positive (+) → 4 (MH) Auxiliary battery negative (-) → 5 (M+)	Turns right
Auxiliary battery positive (+) → 5 (M+) Auxiliary battery negative (-) → 4 (MH)	Turns left

If the result is not as specified, replace the outer rear view mirror assembly LH.

c.

Check the side turn signal light assembly LH.

i.

Disconnect the outer rear view mirror assembly LH connector.

ii.

1.938,1.292 1.938,1.813 1.938,1.813 1.604,1.813 true 2.125,1.333 2.125,1.833 true 0.156,0.177 0.469,0.333 0.313,0.156 10 false *a 1.448,1.729 2.021,2.01 0.573,0.281 10 false B 2.104,1.885 2.583,2.042 0.479,0.156 10 false E

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Apply auxiliary battery voltage to the terminals of the connector, and check the illumination condition.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 10 (B) Auxiliary battery negative (-) → 11 (E)	Side turn light illuminates

If the result is not as specified, inspect the side turn signal light assembly LH or replace the outer rear view mirror assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>INSPECTION201910,999999,_59,_083096,_0402630,RM100000001JJWB_01_0003,

d.

Check the operation of the mirror heater.

i.

Disconnect the outer rear view mirror assembly LH connector.

ii.

1.271,0.917 1.271,0.667 1.271,0.667 0.771,0.667 true 0.833,1.698 1.25,1.698 1.25,1.698 1.25,1.333 true 0.156,0.188 0.406,0.458 0.25,0.271 10 false *a 0.625,0.594 1.031,0.75 0.406,0.156 10 false + 0.688,1.615 1.094,1.771 0.406,0.156 10 false -

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
2 (+) - 8 (-)	25°C (77°F)	7.5 to 9.1 Ω

iii.

Connect the cable from the positive (+) auxiliary battery terminal to terminal 2 (+) and the negative (-) auxiliary battery terminal to terminal 8 (-), and then check that the mirror becomes warm.

HINT:: It takes a short time for the mirror to become warm.

OK:: Mirror becomes warm.

If the result is not as specified, inspect the outer mirror LH or replace the outer rear view mirror assembly LH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR GLASS>INSPECTION202004,999999,_59,_083099,_0400990,RM100000001MDXX_01_0010,

Hide Display 87910 8.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH (for GTMC Made, w/o Panoramic View Monitor System)

a.

Check the operation of the retractable mirror.

NOTICE:: ·

Disconnect and reconnect the auxiliary battery between each mirror position check.

·

The mirror position cannot be changed manually when the auxiliary battery is connected. To change the mirror position manually, the auxiliary battery must be disconnected first.

i.

Disconnect the outer rear view mirror assembly RH connector.

ii.

0.896,3.281 1.479,3.281 1.479,3.281 1.479,3.698 true 1.5,3.958 1.5,4.281 true 0.542,2.75 0.75,2.917 0.208,0.167 10 false *f 1.792,0.167 2,0.333 0.208,0.167 10 false *a 2.125,1.042 2.333,1.208 0.208,0.167 10 false *b 1.958,1.854 2.167,2.021 0.208,0.167 10 false *c 1.635,2.177 1.844,2.344 0.208,0.167 10 false *d 1.125,2.333 1.333,2.5 0.208,0.167 10 false *e 0.667,3.198 0.927,3.365 0.26,0.167 10 false MR 1.417,4.354 1.677,4.521 0.26,0.167 10 false MF

*a	(A) Forward position
*b	(B)
*c	(C) Driving position
*d	(D)
*e	(E) Retracted position
*f	Component without harness connected (Outer Rear View Mirror Assembly RH)

For each position: Disconnect the battery, set the mirror position by hand, connect the battery, and check the retractable mirror movement.

OK:

Auxiliary Battery Connection	Condition	Specified Condition
Auxiliary battery positive (+) → 3 (MR) Auxiliary battery negative (-) → 9 (MF)	Forward position (A)	Moves from (A) to (E)
Auxiliary battery positive (+) → 9 (MF) Auxiliary battery negative (-) → 3 (MR)	Forward position (A)	Does not move
Auxiliary battery positive (+) → 3 (MR) Auxiliary battery negative (-) → 9 (MF)	Position between forward position (A) and driving position (C)	Moves from (B) to (E)
Auxiliary battery positive (+) → 9 (MF) Auxiliary battery negative (-) → 3 (MR)	Position between forward position (A) and driving position (C)	Moves from (B) to (A)
Auxiliary battery positive (+) → 3 (MR) Auxiliary battery negative (-) → 9 (MF)	Driving position (C)	Moves from (C) to (E)
Auxiliary battery positive (+) → 9 (MF) Auxiliary battery negative (-) → 3 (MR)	Driving position (C)	Does not move
Auxiliary battery positive (+) → 3 (MR) Auxiliary battery negative (-) → 9 (MF)	Position between driving position (C) and retracted position (E)	Moves from (D) to (E)
Auxiliary battery positive (+) → 9 (MF) Auxiliary battery negative (-) → 3 (MR)	Position between driving position (C) and retracted position (E)	Moves from (D) to (C)
Auxiliary battery positive (+) → 3 (MR) Auxiliary battery negative (-) → 9 (MF)	Retracted position (E)	Does not move
Auxiliary battery positive (+) → 9 (MF) Auxiliary battery negative (-) → 3 (MR)	Retracted position (E)	Moves from (E) to (C)

If the result is not as specified, replace the outer rear view mirror assembly RH.

b.

Check the operation of the mirror surface.

i.

Disconnect the outer rear view mirror assembly RH connector.

ii.

1.865,2.646 2.135,1.917 2.135,1.917 2.552,1.917 true 1.969,2.646 2.271,2.229 2.271,2.229 2.542,2.229 true 2.104,2.656 2.375,2.521 2.375,2.521 2.531,2.521 true 2.604,2.458 3.115,2.75 0.51,0.292 10 false MV 2.615,2.167 3.031,2.375 0.417,0.208 10 false M+ 2.625,1.854 3.031,2.083 0.406,0.229 10 false MH 0.24,0.177 0.438,0.333 0.198,0.156 10 false *a

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Apply auxiliary battery voltage and check the operation of the mirror.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 6 (MV) Auxiliary battery negative (-) → 5 (M+)	Turns upward
Auxiliary battery positive (+) → 5 (M+) Auxiliary battery negative (-) → 6 (MV)	Turns downward
Auxiliary battery positive (+) → 5 (M+) Auxiliary battery negative (-) → 4 (MH)	Turns left
Auxiliary battery positive (+) → 4 (MH) Auxiliary battery negative (-) → 5 (M+)	Turns right

If the result is not as specified, replace the outer rear view mirror assembly RH.

c.

Check the side turn signal light assembly RH.

i.

Disconnect the outer rear view mirror assembly RH connector.

ii.

1.917,1.313 1.917,1.75 1.917,1.75 1.583,1.75 true 2.115,1.333 2.115,1.833 true 0.156,0.177 0.469,0.333 0.313,0.156 10 false *a 1.417,1.635 1.573,1.833 0.156,0.198 10 false B 2.083,1.875 2.24,2.073 0.156,0.198 10 false E

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Apply auxiliary battery voltage to the terminals of the connector, and check the illumination condition.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 10 (B) Auxiliary battery negative (-) → 11 (E)	Side turn light illuminates

If the result is not as specified, inspect the side turn signal light assembly RH or replace the outer rear view mirror assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>INSPECTION201910,999999,_59,_083096,_0402630,RM100000001JJWB_01_0004,

d.

Check the operation of the mirror heater.

i.

Disconnect the outer rear view mirror assembly RH connector.

ii.

1.271,0.917 1.271,0.667 1.271,0.667 0.771,0.667 true 0.833,1.698 1.25,1.698 1.25,1.698 1.25,1.333 true 0.156,0.188 0.406,0.458 0.25,0.271 10 false *a 0.625,0.594 1.031,0.75 0.406,0.156 10 false + 0.688,1.615 1.094,1.771 0.406,0.156 10 false -

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
2 (+) - 8 (-)	25°C (77°F)	7.5 to 9.1 Ω

iii.

Connect the cable from the positive (+) auxiliary battery terminal to terminal 2 (+) and the negative (-) auxiliary battery terminal to terminal 8 (-), and then check that the mirror becomes warm.

HINT:: It takes a short time for the mirror to become warm.

OK:: Mirror becomes warm.

If the result is not as specified, inspect the outer mirror RH or replace the outer rear view mirror assembly RH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR GLASS>INSPECTION202004,999999,_59,_083099,_0400990,RM100000001MDXX_01_0011,

Hide Display 87940 9.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH (for GTMC Made, w/ Panoramic View Monitor System)

a.

Check the operation of the retractable mirror.

NOTICE:: ·

Disconnect and reconnect the auxiliary battery between each mirror position check.

·

The mirror position cannot be changed manually when the auxiliary battery is connected. To change the mirror position manually, the auxiliary battery must be disconnected first.

i.

Disconnect the outer rear view mirror assembly LH connector.

ii.

1.917,3.969 1.927,3.833 1.927,3.833 1.177,3.833 true 2.031,4.042 2.021,4.375 2.021,4.375 1.531,4.375 true 1.719,0.073 2.031,0.229 0.313,0.156 10 false *a 1.219,1.01 1.531,1.167 0.313,0.156 10 false *b 1.396,2.156 1.708,2.313 0.313,0.156 10 false *c 1.938,2.51 2.25,2.667 0.313,0.156 10 false *d 2.469,2.76 2.781,2.917 0.313,0.156 10 false *e 0.74,3.302 1.052,3.458 0.313,0.156 10 false *f 1.281,4.313 1.594,4.51 0.313,0.198 10 false MR 0.938,3.771 1.25,3.969 0.313,0.198 10 false MF

*a	(A) Forward position
*b	(B)
*c	(C) Driving position
*d	(D)
*e	(E) Retracted position
*f	Component without harness connected (Outer Rear View Mirror Assembly LH)

For each position: Disconnect the battery, set the mirror position by hand, connect the battery, and check the retractable mirror movement.

OK:

Auxiliary Battery Connection	Condition	Specified Condition
Auxiliary battery positive (+) → 7 (MR) Auxiliary battery negative (-) → 6 (MF)	Forward position (A)	Moves from (A) to (E)
Auxiliary battery positive (+) → 6 (MF) Auxiliary battery negative (-) → 7 (MR)	Forward position (A)	Does not move
Auxiliary battery positive (+) → 7 (MR) Auxiliary battery negative (-) → 6 (MF)	Position between forward position (A) and driving position (C)	Moves from (B) to (E)
Auxiliary battery positive (+) → 6 (MF) Auxiliary battery negative (-) → 7 (MR)	Position between forward position (A) and driving position (C)	Moves from (B) to (A)
Auxiliary battery positive (+) → 7 (MR) Auxiliary battery negative (-) → 6 (MF)	Driving position (C)	Moves from (C) to (E)
Auxiliary battery positive (+) → 6 (MF) Auxiliary battery negative (-) → 7 (MR)	Driving position (C)	Does not move
Auxiliary battery positive (+) → 7 (MR) Auxiliary battery negative (-) → 6 (MF)	Position between driving position (C) and retracted position (E)	Moves from (D) to (E)
Auxiliary battery positive (+) → 6 (MF) Auxiliary battery negative (-) → 7 (MR)	Position between driving position (C) and retracted position (E)	Moves from (D) to (C)
Auxiliary battery positive (+) → 7 (MR) Auxiliary battery negative (-) → 6 (MF)	Retracted position (E)	Does not move
Auxiliary battery positive (+) → 6 (MF) Auxiliary battery negative (-) → 7 (MR)	Retracted position (E)	Moves from (E) to (C)

If the result is not as specified, replace the outer rear view mirror assembly LH.

b.

Check the operation of the mirror surface.

i.

Disconnect the outer rear view mirror assembly LH connector.

ii.

2.75,2.49 2.167,2.49 2.167,2.49 2.167,2.656 true 2.417,3.167 2.167,3.167 2.167,3.167 2.167,2.896 true 2.042,3.167 2.042,2.917 true 0.573,1.948 0.885,2.104 0.313,0.156 10 false *a 2.802,2.417 3.115,2.615 0.313,0.198 10 false MV 1.948,3.208 2.26,3.406 0.313,0.198 10 false MH 2.5,3.083 2.813,3.281 0.313,0.198 10 false M+

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Apply auxiliary battery voltage and check the operation of the mirror.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 8 (MV) Auxiliary battery negative (-) → 16 (M+)	Turns upward
Auxiliary battery positive (+) → 16 (M+) Auxiliary battery negative (-) → 8 (MV)	Turns downward
Auxiliary battery positive (+) → 16 (M+) Auxiliary battery negative (-) → 15 (MH)	Turns right
Auxiliary battery positive (+) → 15 (MH) Auxiliary battery negative (-) → 16 (M+)	Turns left

If the result is not as specified, replace the outer rear view mirror assembly LH.

c.

Check the side turn signal light assembly LH.

i.

Disconnect the outer rear view mirror assembly LH connector.

ii.

0.5,1 1.167,1 true 1.375,1.073 1.375,1.49 true 0.448,0.24 0.76,0.396 0.313,0.156 10 false *a 1.333,1.51 1.948,1.708 0.615,0.198 10 false E 0.365,0.948 0.979,1.146 0.615,0.198 10 false B

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Apply auxiliary battery voltage to the terminals of the connector, and check the illumination condition.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 1 (B) Auxiliary battery negative (-) → 2 (E)	Side turn light illuminates

If the result is not as specified, inspect the side turn signal light assembly LH or replace the outer rear view mirror assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>INSPECTION201910,999999,_59,_083096,_0402630,RM100000001JJWB_01_0003,

d.

Check the operation of the mirror heater.

i.

Disconnect the outer rear view mirror assembly LH connector.

ii.

1.219,1.188 1.219,1.5 true 1.375,1.198 1.375,1.531 1.375,1.531 1.625,1.531 true 0.531,0.25 0.844,0.406 0.313,0.156 10 false *a 1.698,1.448 2.313,1.646 0.615,0.198 10 false - 1.177,1.542 1.344,1.74 0.167,0.198 10 false +

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
9 (+) - 10 (-)	25°C (77°F)	7.5 to 9.1 Ω

iii.

Connect the cable from the positive (+) auxiliary battery terminal to terminal 9 (+) and the negative (-) auxiliary battery terminal to terminal 10 (-), and then check that the mirror becomes warm.

HINT:: It takes a short time for the mirror to become warm.

OK:: Mirror becomes warm.

If the result is not as specified, inspect the outer mirror LH or replace the outer rear view mirror assembly LH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR GLASS>INSPECTION202004,999999,_59,_083099,_0400990,RM100000001MDXX_01_0010,

e.

Check the operation of the blind spot monitor indicator(w/ Blind Spot Monitor System).

i.

Connect 4 new 1.5 V dry-cell batteries in series.

ii.

1.385,1.188 1.385,1.5 true 1.948,1.198 1.948,1.521 true 0.531,0.25 0.844,0.406 0.313,0.156 10 false *a 1.365,1.51 1.625,1.719 0.26,0.208 10 false - 1.813,1.542 2.333,1.729 0.521,0.188 10 false BSL+

*a	Component without harness connected (Outer Rear View Mirror Assembly LH)

Apply 6 V dry-cell batteries to the terminals of the connector, and check the blind spot monitor indicator condition.

OK:

Battery Connection	Specified Condition
Positive (+) end of the 6 V dry-cell battery → 14 (BSL+) Negative (-) end of the 6 V dry-cell battery → 10 (-)	Blind spot monitor indicator comes on

NOTICE:: Do not apply a voltage of 6 V or higher.

If the result is not as specified, inspect the outer mirror LH or replace the outer rear view mirror assembly LH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR GLASS>INSPECTION202004,999999,_59,_083099,_0400990,RM100000001MDXX_01_0008,

Hide Display 87910 10.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH (for GTMC Made, w/ Panoramic View Monitor System)

a.

Check the operation of the retractable mirror.

NOTICE:: ·

Disconnect and reconnect the auxiliary battery between each mirror position check.

·

The mirror position cannot be changed manually when the auxiliary battery is connected. To change the mirror position manually, the auxiliary battery must be disconnected first.

i.

Disconnect the outer rear view mirror assembly RH connector.

ii.

1.865,3.979 1.865,3.896 1.865,3.896 1.115,3.896 true 1.99,4.052 1.99,4.323 1.99,4.323 1.156,4.323 true 1.677,0.052 1.99,0.208 0.313,0.156 10 false *a 2.125,1.094 2.438,1.25 0.313,0.156 10 false *b 1.865,2.052 2.177,2.208 0.313,0.156 10 false *c 1.385,2.354 1.698,2.51 0.313,0.156 10 false *d 0.885,2.635 1.198,2.792 0.313,0.156 10 false *e 0.552,3.396 0.865,3.552 0.313,0.156 10 false *f 0.875,4.25 1.188,4.448 0.313,0.198 10 false MR 0.875,3.844 1.188,4.042 0.313,0.198 10 false MF

*a	(A) Forward position
*b	(B)
*c	(C) Driving position
*d	(D)
*e	(E) Retracted position
*f	Component without harness connected (Outer Rear View Mirror Assembly RH)

For each position: Disconnect the battery, set the mirror position by hand, connect the battery, and check the retractable mirror movement.

OK:

Auxiliary Battery Connection	Condition	Specified Condition
Auxiliary battery positive (+) → 7 (MR) Auxiliary battery negative (-) → 6 (MF)	Forward position (A)	Moves from (A) to (E)
Auxiliary battery positive (+) → 6 (MF) Auxiliary battery negative (-) → 7 (MR)	Forward position (A)	Does not move
Auxiliary battery positive (+) → 7 (MR) Auxiliary battery negative (-) → 6 (MF)	Position between forward position (A) and driving position (C)	Moves from (B) to (E)
Auxiliary battery positive (+) → 6 (MF) Auxiliary battery negative (-) → 7 (MR)	Position between forward position (A) and driving position (C)	Moves from (B) to (A)
Auxiliary battery positive (+) → 7 (MR) Auxiliary battery negative (-) → 6 (MF)	Driving position (C)	Moves from (C) to (E)
Auxiliary battery positive (+) → 6 (MF) Auxiliary battery negative (-) → 7 (MR)	Driving position (C)	Does not move
Auxiliary battery positive (+) → 7 (MR) Auxiliary battery negative (-) → 6 (MF)	Position between driving position (C) and retracted position (E)	Moves from (D) to (E)
Auxiliary battery positive (+) → 6 (MF) Auxiliary battery negative (-) → 7 (MR)	Position between driving position (C) and retracted position (E)	Moves from (D) to (C)
Auxiliary battery positive (+) → 7 (MR) Auxiliary battery negative (-) → 6 (MF)	Retracted position (E)	Does not move
Auxiliary battery positive (+) → 6 (MF) Auxiliary battery negative (-) → 7 (MR)	Retracted position (E)	Moves from (E) to (C)

If the result is not as specified, replace the outer rear view mirror assembly RH.

b.

Check the operation of the mirror surface.

i.

Disconnect the outer rear view mirror assembly RH connector.

ii.

2.76,2.5 2.146,2.5 2.146,2.5 2.146,2.667 true 2.5,3.063 2.167,3.063 2.167,3.063 2.167,2.896 true 2.031,2.885 2.031,3.115 true 0.646,1.938 0.958,2.094 0.313,0.156 10 false *a 2.823,2.417 3.135,2.615 0.313,0.198 10 false MV 1.927,3.156 2.24,3.354 0.313,0.198 10 false MH 2.563,2.979 2.875,3.177 0.313,0.198 10 false M+

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Apply auxiliary battery voltage and check the operation of the mirror.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 8 (MV) Auxiliary battery negative (-) → 16 (M+)	Turns upward
Auxiliary battery positive (+) → 16 (M+) Auxiliary battery negative (-) → 8 (MV)	Turns downward
Auxiliary battery positive (+) → 15 (MH) Auxiliary battery negative (-) → 16 (M+)	Turns left
Auxiliary battery positive (+) → 16 (M+) Auxiliary battery negative (-) → 15 (MH)	Turns right

If the result is not as specified, replace the outer rear view mirror assembly RH.

c.

Check the side turn signal light assembly RH.

i.

Disconnect the outer rear view mirror assembly RH connector.

ii.

0.5,1 1.167,1 true 1.375,1.073 1.375,1.49 true 0.448,0.24 0.76,0.396 0.313,0.156 10 false *a 1.333,1.51 1.948,1.708 0.615,0.198 10 false E 0.365,0.948 0.979,1.146 0.615,0.198 10 false B

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Apply auxiliary battery voltage to the terminals of the connector, and check the illumination condition.

OK:

Auxiliary Battery Connection	Specified Condition
Auxiliary battery positive (+) → 1 (B) Auxiliary battery negative (-) → 2 (E)	Side turn light illuminates

If the result is not as specified, inspect the side turn signal light assembly RH or replace the outer rear view mirror assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>INSPECTION201910,999999,_59,_083096,_0402630,RM100000001JJWB_01_0004,

d.

Check the operation of the mirror heater.

i.

Disconnect the outer rear view mirror assembly RH connector.

ii.

1.219,1.188 1.219,1.5 true 1.375,1.198 1.375,1.531 1.375,1.531 1.625,1.531 true 0.531,0.25 0.844,0.406 0.313,0.156 10 false *a 1.698,1.448 2.313,1.646 0.615,0.198 10 false - 1.177,1.542 1.344,1.74 0.167,0.198 10 false +

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
9 (+) - 10 (-)	25°C (77°F)	7.5 to 9.1 Ω

iii.

Connect the cable from the positive (+) auxiliary battery terminal to terminal 9 (+) and the negative (-) auxiliary battery terminal to terminal 10 (-), and then check that the mirror becomes warm.

HINT:: It takes a short time for the mirror to become warm.

OK:: Mirror becomes warm.

If the result is not as specified, inspect the outer mirror RH or replace the outer rear view mirror assembly RH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR GLASS>INSPECTION202004,999999,_59,_083099,_0400990,RM100000001MDXX_01_0011,

e.

Check the operation of the blind spot monitor indicator(w/ Blind Spot Monitor System).

i.

Connect 4 new 1.5 V dry-cell batteries in series.

ii.

1.385,1.188 1.385,1.5 true 1.948,1.198 1.948,1.521 true 0.531,0.25 0.844,0.406 0.313,0.156 10 false *a 1.365,1.51 1.625,1.719 0.26,0.208 10 false - 1.813,1.542 2.333,1.729 0.521,0.188 10 false BSR+

*a	Component without harness connected (Outer Rear View Mirror Assembly RH)

Apply 6 V dry-cell batteries to the terminals of the connector, and check the blind spot monitor indicator condition.

OK:

Battery Connection	Specified Condition
Positive (+) end of the 6 V dry-cell battery → 14 (BSR+) Negative (-) end of the 6 V dry-cell battery → 10 (-)	Blind spot monitor indicator comes on

NOTICE:: Do not apply a voltage of 6 V or higher.

If the result is not as specified, inspect the outer mirror RH or replace the outer rear view mirror assembly RH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR GLASS>INSPECTION202004,999999,_59,_083099,_0400990,RM100000001MDXX_01_0009,

MIRROR (EXT) OUTER REAR VIEW MIRROR INSPECTION

PROCEDURE
