RM3660EC _58 Vehicle Interior _080793 METER / GAUGE / DISPLAY _0598151 METER / GAUGE SYSTEM(except 12.3 Inch Display) J

METER / GAUGE / DISPLAY METER / GAUGE SYSTEM(except 12.3 Inch Display) Engine Oil Level Sensor Circuit

DESCRIPTION

The combination meter assembly and engine oil level sensor are connected via direct line. The combination meter assembly determines the engine oil level based on the engine oil level sensor status signal.

HINT:: The coolant temperature signal and engine speed signal is sent from the ECM to the combination meter assembly via CAN communication. Because an accurate engine oil level cannot be detected when the engine is cold or operating at high speeds, warning control is only performed after the engine is warmed up and the engine is stopped or idling.

WIRING DIAGRAM

except NR Series Engine

2.156,1.344 4.604,1.542 2.448,0.198 10 false ECM 2.469,2.917 4.458,3.115 1.99,0.198 10 false Engine Oil Level Sensor 2.458,2.729 2.917,2.927 0.458,0.198 10 false C38 4.833,3.094 5.146,3.292 0.313,0.198 10 false I4 4.833,3.25 7.125,3.448 2.292,0.198 10 false Combination Meter Assembly 4.958,2.271 5.573,2.469 0.615,0.198 10 false OILW 4.667,2.271 4.979,2.469 0.313,0.198 10 false 14 5.656,1.938 6.271,2.135 0.615,0.198 10 false 12 V 3.51,2.271 3.823,2.469 0.313,0.198 10 false 1 0.563,3.448 2.802,3.688 2.24,0.24 10 false : CAN Communication Line

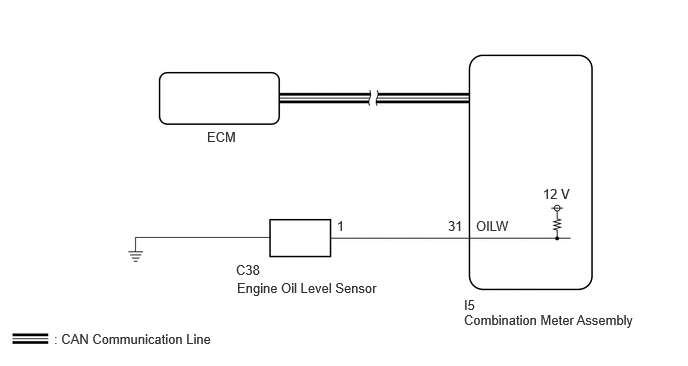

for NR Series Engine

2.156,1.344 4.604,1.542 2.448,0.198 10 false ECM 2.469,2.917 4.458,3.115 1.99,0.198 10 false Engine Oil Level Sensor 2.458,2.729 2.917,2.927 0.458,0.198 10 false C38 4.833,3.094 5.146,3.292 0.313,0.198 10 false I5 4.833,3.25 7.125,3.448 2.292,0.198 10 false Combination Meter Assembly 4.958,2.271 5.573,2.469 0.615,0.198 10 false OILW 4.667,2.271 4.979,2.469 0.313,0.198 10 false 31 5.656,1.938 6.271,2.135 0.615,0.198 10 false 12 V 3.51,2.271 3.823,2.469 0.313,0.198 10 false 1 0.563,3.448 2.802,3.688 2.24,0.24 10 false : CAN Communication Line

CAUTION / NOTICE / HINT

NOTICE:: ·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

except NR Series Engine

When replacing the combination meter assembly, update the ECU security key.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>UPDATE ECU SECURITY KEY202304,999999,_V1,_143216,_0598316,RM100000002B3ML,

·

The following troubleshooting procedure is based on the assumption that the SFI system is normal. Confirm that the SFI system is not malfunctioning before performing the following procedure.

for HV Model (for 8ZR-FXE): Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>SFI SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING201906,999999,_51,_080778,_0393982,RM100000001I22L,

for Gasoline Model (M15B-FKS): Click hereEngine / Hybrid System>M15B-FKS (ENGINE CONTROL)>SFI SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING202101,999999,_51,_096196,_0456237,RM100000001TN89,

for Gasoline Model (M15C-FKS): Click hereEngine / Hybrid System>M15C-FKS (ENGINE CONTROL)>SFI SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING202101,999999,_51,_096205,_0456238,RM100000001TNCS,

for Gasoline Model (NR Series): Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>SFI SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING201906,999999,_51,_080777,_0393969,RM100000001I1R4,

PROCEDURE

1.CHECK ENGINE OIL

Check the engine oil level and engine oil quality is normally.

for Gasoline Model (NR Series): Click hereEngine / Hybrid System>NR Series (LUBRICATION)>LUBRICATION SYSTEM>ON-VEHICLE INSPECTION201906,999999,_51,_080758,_0392358,RM100000001HQ61,

for Gasoline Model (M15B-FKS): Click hereEngine / Hybrid System>M15B-FKS (LUBRICATION)>LUBRICATION SYSTEM>ON-VEHICLE INSPECTION202304,999999,_51,_096200,_0454851,RM100000002BEZW,

for Gasoline Model (M15C-FKS): Click hereEngine / Hybrid System>M15C-FKS (LUBRICATION)>LUBRICATION SYSTEM>ON-VEHICLE INSPECTION202304,999999,_51,_096212,_0454856,RM100000002BEZX,

for HV Model (for 8ZR-FXE): Click hereEngine / Hybrid System>8ZR-FXE (LUBRICATION)>LUBRICATION SYSTEM>ON-VEHICLE INSPECTION202304,999999,_51,_080755,_0392354,RM100000002BEZY,

Result:

Proceed to
OK
NG

2.READ VALUE USING GTS

REPLACE OR ADD ENGINE OIL

2.READ VALUE USING GTS

Read the Data List according to the display on the GTS.

Body Electrical > Combination Meter > Data List

Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
Oil Level Switch	Engine oil level sensor input	OFF or ON	OFF: Engine oil level not low ON: Engine oil level low	-

Body Electrical > Combination Meter > Data List

Tester Display
Oil Level Switch

50003 409 45

Result:

Result	Proceed to
The Data List item changes correctly	A
The Data List item do not change correctly	B

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL202304,999999,_58,_080793,_0393111,RM100000002AUPM,

3.INSPECT ENGINE OIL LEVEL SENSOR

for Gasoline Model (NR Series): Click hereEngine / Hybrid System>NR Series (LUBRICATION)>OIL LEVEL SENSOR>INSPECTION201906,999999,_51,_080758,_0392362,RM100000001HQ6H,

for Gasoline Model (M15B-FKS): Click hereEngine / Hybrid System>M15B-FKS (LUBRICATION)>OIL PAN AND OIL LEVEL SENSOR>INSPECTION202101,999999,_51,_096200,_0454854,RM100000001TFYA,

for Gasoline Model (M15C-FKS): Click hereEngine / Hybrid System>M15C-FKS (LUBRICATION)>OIL PAN AND OIL LEVEL SENSOR>INSPECTION202101,999999,_51,_096212,_0454859,RM100000001TFYP,

for HV Model (for 8ZR-FXE): Click hereEngine / Hybrid System>8ZR-FXE (LUBRICATION)>OIL LEVEL SENSOR>INSPECTION201906,999999,_51,_080755,_0392357,RM100000001HQ60,

Result:

Proceed to
OK
NG

4.CONFIRM MODEL

REPLACE ENGINE OIL LEVEL SENSOR

for Gasoline Model (NR Series): Click hereEngine / Hybrid System>NR Series (LUBRICATION)>OIL LEVEL SENSOR>REMOVAL201906,999999,_51,_080758,_0392362,RM100000001HQ6F,

for Gasoline Model (M15B-FKS): Click hereEngine / Hybrid System>M15B-FKS (LUBRICATION)>OIL PAN AND OIL LEVEL SENSOR>REMOVAL202101,999999,_51,_096200,_0454854,RM100000001TFY8,

for Gasoline Model (M15C-FKS): Click hereEngine / Hybrid System>M15C-FKS (LUBRICATION)>OIL PAN AND OIL LEVEL SENSOR>REMOVAL202101,999999,_51,_096212,_0454859,RM100000001TFYN,

for HV Model (for 8ZR-FXE): Click hereEngine / Hybrid System>8ZR-FXE (LUBRICATION)>OIL LEVEL SENSOR>REMOVAL201906,999999,_51,_080755,_0392357,RM100000001HQ5Y,

4.CONFIRM MODEL

Choose the model to be inspected.

Result:

Result	Proceed to
except NR Series Engine	A
for NR Series Engine	B

5.CHECK HARNESS AND CONNECTOR (ENGINE OIL LEVEL SENSOR - COMBINATION METER ASSEMBLY)

6.CHECK HARNESS AND CONNECTOR (ENGINE OIL LEVEL SENSOR - COMBINATION METER ASSEMBLY)

5.CHECK HARNESS AND CONNECTOR (ENGINE OIL LEVEL SENSOR - COMBINATION METER ASSEMBLY)

Disconnect the I4 combination meter assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
C38-1 - I4-14 (OILW)	Always	Below 1 Ω
C38-1 or I4-14 (OILW) - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL202304,999999,_58,_080793,_0393111,RM100000002AUPM,

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.CHECK HARNESS AND CONNECTOR (ENGINE OIL LEVEL SENSOR - COMBINATION METER ASSEMBLY)

Disconnect the I5 combination meter assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
C38-1 - I5-31 (OILW)	Always	Below 1 Ω
C38-1 or I5-31 (OILW) - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL202304,999999,_58,_080793,_0393111,RM100000002AUPM,

REPAIR OR REPLACE HARNESS OR CONNECTOR
