NR Series LUBRICATION  LUBRICATION SYSTEM  ON-VEHICLE INSPECTION


PROCEDURE

Hide 1.CHECK ENGINE OIL LEVEL

a.

Warm up and stop the engine, then wait for 5 minutes.


b.

Check that the engine oil level is between the low level and full level marks on the engine oil level dipstick.

If the level is low, check for engine oil leaks and add engine oil to the full level mark.

NOTICE:

Do not fill to above the full level mark.



Hide 2.CHECK ENGINE OIL QUALITY

a.

Check the engine oil for deterioration, water intrusion, discoloration or thinning.

If the quality is visibly poor, replace the engine oil and oil filter sub-assembly.


Hide 3.INSPECT OIL PRESSURE

CAUTION:
·
A379926

To prevent injury due to contact with an operating cooling fan, keep your hands and clothing away from the cooling fans when working in the engine compartment with the engine running or the ignition switch ON.

·
A344783

To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

·
A397110

To prevent burns, do not remove the oil pressure sender gauge assembly while the engine is hot.



NOTICE:

Clean the hose and adapter of the oil pressure gauge before and after measurement.


a.

Check for DTCs.

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

NOTICE:

If any DTCs are present, perform troubleshooting in accordance with the procedure for each DTC.



b.

Remove the oil pressure sender gauge assembly.

Click hereEngine / Hybrid System>NR Series (LUBRICATION)>OIL PRESSURE SENSOR>REMOVAL

CAUTION:

Make sure the engine is cold when removing the oil pressure sender gauge assembly to prevent burns caused by hot engine oil.



c.

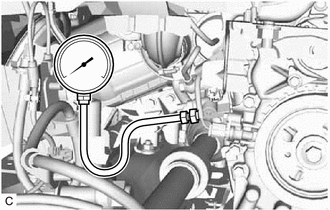

A351842

Install an oil pressure gauge with the adapter.


d.

Warm up the engine.

HINT:

After warming up the engine, the engine coolant temperature is 75 to 100°C (167 to 212°F).



e.

Check the oil pressure.

Standard Oil Pressure:
Condition Specified Condition
Idling 60 kPa (0.6 kgf/cm2, 9 psi) or higher
2000 rpm 150 kPa (1.5 kgf/cm2, 22 psi) or higher


If the result is not as specified, check the quality of the engine oil and check the oil paths for clogging. Repair or replace if necessary. If the engine oil pressure is still not as specified, check the oil pump assembly.

Click hereEngine / Hybrid System>NR Series (LUBRICATION)>OIL PUMP>INSPECTION


f.

Remove the oil pressure gauge with the adapter.

CAUTION:

Make sure the engine is cold when removing the oil pressure gauge to prevent burns caused by hot engine oil.



g.

Install the oil pressure sender gauge assembly.

Click hereEngine / Hybrid System>NR Series (LUBRICATION)>OIL PRESSURE SENSOR>INSTALLATION


h.

Inspect for engine oil leaks.

Click hereGeneral>MAINTENANCE>NR Series OIL AND OIL FILTER>REPLACEMENT
