NR Series LUBRICATION  OIL LEVEL SENSOR  INSPECTION

1.688,0.885 2.354,0.365 2.354,0.365 2.573,0.365 true 1.802,3.177 1.615,3.177 1.615,3.177 1.365,2.896 false 2.115,2.26 1.896,2.021 1.896,2.021 1.729,2.021 false 0.063,0.031 0.375,0.188 0.313,0.156 10 false *a 1.573,1.938 1.885,2.094 0.313,0.156 10 false *b 0.927,1.813 1.24,1.969 0.313,0.156 10 false *c 2.385,1.802 2.698,1.958 0.313,0.156 10 false *d 2.604,0.271 2.76,0.469 0.156,0.198 10 false 1 1.813,3.083 2.125,3.24 0.313,0.156 10 false *b

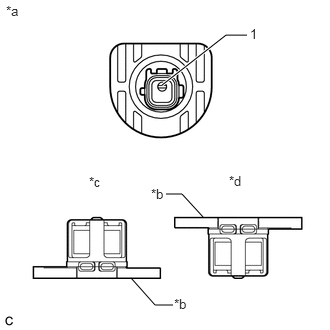

*a	Component without harness connected (Engine Oil Level Sensor)
*b	Engine Oil Level Sensor Body
*c	ON
*d	OFF

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 - Engine oil level sensor body	ON	Below 1 Ω
	OFF	10 kΩ or higher

If the result is not as specified, replace the engine oil level sensor.
