RM3660EC _51 Engine / Hybrid System _080758 NR Series LUBRICATION _0392362 OIL LEVEL SENSOR A

NR Series LUBRICATION OIL LEVEL SENSOR REMOVAL

PROCEDURE

Hide Display 51410 1.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201906,202007,_51,_080739,_0391935,RM100000001HN2A_01_0388,202007,202104,_51,_080739,_0391935,RM100000001RPXX_01_0388,202104,202205,_51,_080739,_0391935,RM100000001WEPZ_01_0388,202205,202304,_51,_080739,_0391935,RM1000000022ZNY_01_0388,202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0388,

Hide Display 2.DRAIN ENGINE OIL

Click hereGeneral>MAINTENANCE>NR Series OIL AND OIL FILTER>REPLACEMENT201906,202101,_V1,_080956,_0392373,RM100000001HQ8Y_01_0005,202101,999999,_V1,_080956,_0392373,RM100000001TTC4_01_0005,

Hide Display 12102A 3.REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE UNIT>DISASSEMBLY201906,999999,_51,_080739,_0391936,RM100000001HN2G_02_0185,

Hide Display 89491 4.REMOVE ENGINE OIL LEVEL SENSOR

a.

Disconnect the engine oil level sensor connector.

b.

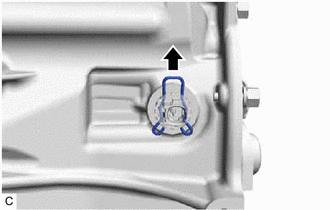

A351850

Remove the clip from the engine oil level sensor.

c.

A436894

Remove the 2 bolts and engine oil level sensor.
