RM3660EC _58 Vehicle Interior _080732 SEAT _0391516 SEAT HEATER SYSTEM D

SEAT  SEAT HEATER SYSTEM  OPERATION CHECK


CHECK THERMOSTAT IN FRONT SEAT CUSHION HEATER (SEPARATE TYPE FRONT SEAT CUSHION COVER LH)


a.

Remove the front seat cushion heater (separate type front seat cushion cover LH).

Click hereVehicle Interior>SEAT>FRONT SEAT CUSHION HEATER (for Power Seat)>REMOVAL


b.

Remove the front seatback heater (separate type front seatback cover LH).

Click hereVehicle Interior>SEAT>FRONT SEATBACK HEATER (for Power Seat)>REMOVAL


c.

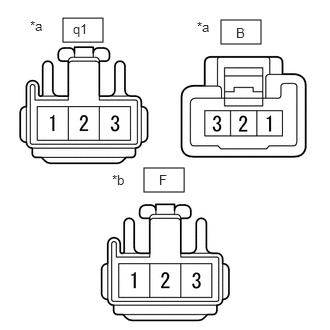

B454502C06
0.656,0.188 1.073,0.438 0.417,0.25 2.302,0.208 2.719,0.458 0.417,0.25 1.5,1.75 1.917,2 0.417,0.25 0.76,0.219 1.167,0.458 0.406,0.24 10 false q1 2.458,0.26 2.865,0.5 0.406,0.24 10 false B 1.656,1.792 2.063,2.031 0.406,0.24 10 false F 1.167,1.792 1.573,2.031 0.406,0.24 10 false *b 0.313,0.188 0.719,0.427 0.406,0.24 10 false *a 2.052,0.198 2.458,0.438 0.406,0.24 10 false *a
*a Component without harness connected
(Front Seat Cushion Heater (Separate Type Front Seat Cushion Cover LH))
*b Component without harness connected
(Front Seatback Heater (Separate Type Front Seatback Cover LH))


Connect the B front seat cushion heater (separate type front seat cushion cover LH) connector and F front seatback heater (separate type front seatback cover LH) connector.


d.

Apply auxiliary battery voltage and check the operation of the front seat heater according to the table below.

NOTICE:

To prevent the front seat heater from overheating, be sure to disconnect the auxiliary battery from the front seat heater immediately after this inspection is completed.


OK:
Auxiliary battery Connection Specified Condition
Auxiliary battery positive (+) → Terminal q1-1
·

Front seat cushion heater temperature 30 to 50°C (86 to 122°F)

·

Front seatback heater temperature 30 to 50°C (86 to 122°F)


Auxiliary battery negative (-) → Terminal q1-2 and q1-3




CHECK THERMOSTAT IN FRONT SEAT CUSHION HEATER (SEPARATE TYPE FRONT SEAT CUSHION COVER RH)


a.

Remove the front seat cushion heater (separate type front seat cushion cover RH).

Click hereVehicle Interior>SEAT>FRONT SEAT CUSHION HEATER (for Manual Seat)>REMOVAL


b.

Remove the front seatback heater (separate type front seatback cover RH).

Click hereVehicle Interior>SEAT>FRONT SEATBACK HEATER (for Manual Seat)>REMOVAL


c.

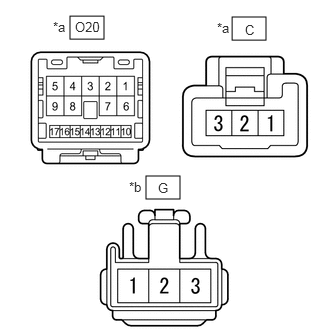

B454497C09
0.729,0.167 1.083,0.406 0.354,0.24 2.417,0.177 2.771,0.417 0.354,0.24 1.521,1.833 1.875,2.073 0.354,0.24 0.781,0.198 1.24,0.396 0.458,0.198 10 false O20 2.552,0.229 3.01,0.427 0.458,0.198 10 false C 1.646,1.875 2.104,2.073 0.458,0.198 10 false G 1.344,1.865 1.656,2.063 0.313,0.198 10 false *b 0.552,0.198 0.865,0.396 0.313,0.198 10 false *a 2.26,0.208 2.573,0.406 0.313,0.198 10 false *a
*a Component without harness connected
(Front Seat Cushion Heater (Separate Type Front Seat Cushion Cover RH))
*b Component without harness connected
(Front Seatback Heater (Separate Type Front Seatback Cover RH))


Connect the C front seat cushion heater (separate type front seat cushion cover RH) connector and G front seatback heater (separate type front seatback cover RH) connector.


d.

Apply auxiliary battery voltage and check the operation of the front seat heater according to the table below.

NOTICE:

To prevent the front seat heater from overheating, be sure to disconnect the auxiliary battery from the front seat heater immediately after this inspection is completed.


OK:
Auxiliary battery Connection Specified Condition
Auxiliary battery positive (+) → Terminal O20-6
·

Front seat cushion heater temperature 30 to 50°C (86 to 122°F)

·

Front seatback heater temperature 30 to 50°C (86 to 122°F)


Auxiliary battery negative (-) → Terminal O20-7 and O20-5
