RM3660EC _51 Engine / Hybrid System _080739 NR Series ENGINE MECHANICAL _0391935 ENGINE ASSEMBLY A

NR Series ENGINE MECHANICAL ENGINE ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: The engine assembly with transaxle is very heavy. Be sure to follow the procedure described in the repair manual, or the engine lifter may suddenly drop.

HINT:: Perform "Inspection After Repair" after replacing the engine assembly.; Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION201906,999999,_51,_080777,_0393969,RM100000001I1RE,

PROCEDURE

Hide Display 1.INSTALL ENGINE HANGERS

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0387,

Hide Display 2.REMOVE ENGINE ASSEMBLY FROM ENGINE STAND

Remove the engine assembly from the engine stand.

Hide Display 88310 3.INSTALL COMPRESSOR ASSEMBLY WITH PULLEY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>COMPRESSOR (for NR Series Engine)>INSTALLATION201906,999999,_58,_080733,_0393734,RM100000001HZKA_01_0231,

Hide Display 27020 4.INSTALL GENERATOR ASSEMBLY

Click herePower Source / Network>NR Series (BATTERY / CHARGING)>GENERATOR>INSTALLATION202304,999999,_57,_080760,_0392371,RM100000002BCFV_01_0001,

Hide Display 16620 5.INSTALL V-RIBBED BELT TENSIONER ASSEMBLY

Install the V-ribbed belt tensioner assembly to the timing chain cover assembly with the 2 bolts.

Torque:: 21 N*m (214 kgf*cm, 15 ft.*lbf)

Hide Display 16361A 6.INSTALL V-RIBBED BELT

Click hereGeneral>MAINTENANCE>NR Series DRIVE BELT>INSTALLATION201906,999999,_V1,_080956,_0392300,RM100000001HPPP_03_0012,

Hide Display 12321B 7.INSTALL DRIVE SHAFT HEAT INSULATOR SUB-ASSEMBLY

Click hereEngine / Hybrid System>NR Series (EMISSION CONTROL)>MONOLITHIC CONVERTER>INSTALLATION201906,999999,_51,_080792,_0392498,RM100000001HW77_01_0187,

Hide Display 32101B 8.INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>REAR CRANKSHAFT OIL SEAL>INSTALLATION201906,999999,_51,_080739,_0391934,RM100000001HN26_04_0460,

Hide Display 9.INSTALL ENGINE ASSEMBLY

Click hereDrivetrain>K313 (CVT)>CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY (When Not Using the Engine Support Bridge)>INSTALLATION201906,999999,_52,_080728,_0392264,RM100000001HPAJ_01_0047,

Hide Display 82121 10.INSTALL ENGINE WIRE

Connect all the connectors and clamps, and install the engine wire to the engine assembly with transaxle.

Hide Display 11363A 11.INSTALL FLYWHEEL HOUSING SIDE COVER

Install the flywheel housing side cover to the cylinder block sub-assembly.

Hide Display 28100 12.INSTALL STARTER ASSEMBLY

Click hereEngine / Hybrid System>NR Series (STARTING)>STARTER>INSTALLATION202304,999999,_51,_080759,_0392365,RM100000002BCFF,

Hide Display 13.INSTALL WATER HOSE

Install the water hose to the engine assembly with transaxle and slide the 5 clips to secure it.

Engage the 3 clamps to the engine assembly with transaxle.

Hide Display 12305 14.INSTALL ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH

HINT:: Perform this procedure only when replacement of the engine mounting insulator sub-assembly RH is necessary.

1.198,0.25 1.354,0.448 0.156,0.198 10 true C 1.51,1.958 2.073,2.146 0.563,0.188 10 true A 2.74,1.01 2.896,1.208 0.156,0.198 10 true B

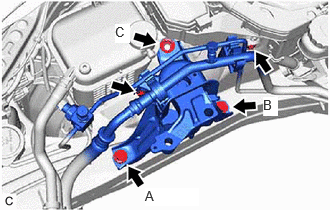

Temporarily install the engine mounting insulator sub-assembly RH to the vehicle.

Install the 2 bolts and nut in the order shown in the illustration.

Torque:: 72 N*m (734 kgf*cm, 53 ft.*lbf)

NOTICE:: Temporarily tighten the bolt (A), and then fully tighten the 2 bolts and nut in the order of (B), (A) and (C).

Connect the air conditioner tube and accessory assembly to the engine mounting insulator sub-assembly RH with the bolt and nut.

Torque:: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

Install the No. 2 earth wire to the engine mounting insulator sub-assembly RH and vehicle with the 2 bolts.

Torque:: 10.5 N*m (107 kgf*cm, 8 ft.*lbf)

Hide Display 12372A 15.INSTALL ENGINE MOUNTING INSULATOR LH

HINT:: Perform this procedure only when replacement of the engine mounting insulator LH is necessary.

0.583,0.719 0.74,0.917 0.156,0.198 10 true A 0.615,1.49 0.771,1.688 0.156,0.198 10 true C 2.448,1.917 2.604,2.115 0.156,0.198 10 true B 2.365,0.948 2.521,1.146 0.156,0.198 10 true D 1.302,0.094 1.458,0.292 0.156,0.198 10 true E

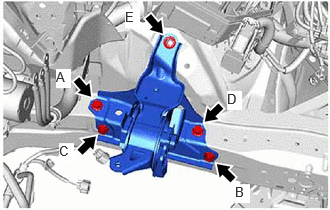

Temporarily install the engine mounting insulator LH to the vehicle.

Install the 4 bolts and nut in the order shown in the illustration.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:: Temporarily tighten the bolt (A), and then fully tighten the 4 bolts and nut in the order of (B), (C), (D), (A) and (E).

Hide Display 16.REMOVE ENGINE HANGERS

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0360,

Hide Display 17.INSTALL WIRE HARNESS CLAMP BRACKET

Install the wire harness clamp bracket to the cylinder head sub-assembly with the bolt.

Torque:: 39 N*m (398 kgf*cm, 29 ft.*lbf)

Install the engine wire to the wire harness clamp bracket with the nut.

Torque:: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

Engage the 3 clamps.

Hide Display 18.INSTALL ENGINE ASSEMBLY WITH TRANSAXLE

Using height adjustment attachments and plate lift attachments to keep the engine assembly with transaxle and front suspension crossmember sub-assembly level, set an engine lifter underneath the engine assembly with transaxle and front suspension crossmember sub-assembly.

NOTICE:: ·

Using height adjustment attachments and plate lift attachments, keep the engine assembly with transaxle horizontal.

·

Do not perform any procedures while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.

·

To prevent the oil pan sub-assembly from deforming, do not place any attachments under the oil pan sub-assembly of the engine assembly with transaxle.

Operate the engine lifter and install the engine assembly with transaxle to the vehicle.

CAUTION:: Do not raise the engine assembly with transaxle more than necessary. If the engine is raised excessively, the vehicle may also be lifted up.

NOTICE:: ·

Make sure that the engine assembly with transaxle is clear of all wiring and hoses.

·

While raising the engine assembly with transaxle into the vehicle, do not allow it to contact the vehicle.

Connect the front suspension crossmember sub-assembly to the vehicle with the 4 bolts.

Torque:: 141 N*m (1438 kgf*cm, 104 ft.*lbf)

Install the engine mounting insulator LH to the engine mounting bracket LH with the bolt and nut.

Torque:: 44 N*m (449 kgf*cm, 32 ft.*lbf)

NOTICE:: While holding the nut in place, tighten the bolt.

Install the engine mounting insulator sub-assembly RH to the engine mounting bracket RH with the 2 bolts and nut.

Torque:: Bolt : 72 N*m (734 kgf*cm, 53 ft.*lbf); Nut : 41 N*m (418 kgf*cm, 30 ft.*lbf)

Hide Display 51108A 19.INSTALL REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH

Click hereSuspension>FRONT SUSPENSION>FRONT SUSPENSION MEMBER>INSTALLATION202304,202307,_53,_080764,_0392686,RM100000002BA7Z_01_0242,202307,999999,_53,_080764,_0392686,RM100000002CQYX_01_0242,

Hide Display 51107A 20.INSTALL REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.

Hide Display 32101G 21.INSTALL DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT

Click hereDrivetrain>K313 (CVT)>CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY (When Not Using the Engine Support Bridge)>INSTALLATION201906,999999,_52,_080728,_0392264,RM100000001HPAJ_01_0064,

Hide Display 11361J 22.INSTALL FLYWHEEL HOUSING UNDER COVER

Install the flywheel housing under cover.

Hide Display 23.INSTALL FRONT DRIVE SHAFT ASSEMBLY

for TFTM Made:

Click hereDrivetrain>DRIVE SHAFT / PROPELLER SHAFT>FRONT DRIVE SHAFT ASSEMBLY (for TFTM Made)>INSTALLATION202304,202307,_52,_080779,_0392672,RM100000002BD5M,202307,999999,_52,_080779,_0392672,RM100000002CL7X,

for GTMC Made:

Click hereDrivetrain>DRIVE SHAFT / PROPELLER SHAFT>FRONT DRIVE SHAFT ASSEMBLY (for GTMC Made)>INSTALLATION202304,202307,_52,_080779,_0392671,RM100000002BD5P,202307,999999,_52,_080779,_0392671,RM100000002CL9B,

Hide Display 17410 24.INSTALL FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

Click hereEngine / Hybrid System>NR Series (EMISSION CONTROL)>MONOLITHIC CONVERTER>INSTALLATION201906,999999,_51,_080792,_0392498,RM100000001HW77_01_0150,

Hide Display 57533B 25.INSTALL FRONT FLOOR CENTER BRACE

Click hereEngine / Hybrid System>NR Series (INTAKE / EXHAUST)>EXHAUST PIPE>INSTALLATION201906,999999,_51,_080791,_0392520,RM100000001HREN_01_0045,

Hide Display 58166A 26.INSTALL FRONT FLOOR COVER LH

Click hereEngine / Hybrid System>NR Series (INTAKE / EXHAUST)>EXHAUST PIPE>INSTALLATION201906,999999,_51,_080791,_0392520,RM100000001HREN_01_0046,

Hide Display 58165C 27.INSTALL FRONT FLOOR COVER RH

HINT:: Use the same procedure as for the LH side.

Hide Display 45025D 28.CONNECT NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY

Click hereSteering>STEERING GEAR / LINKAGE>STEERING GEAR>INSTALLATION202304,202307,_55,_080765,_0392687,RM100000002BA83_01_0033,202307,999999,_55,_080765,_0392687,RM100000002CQYY_01_0033,

Hide Display 45260 29.CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>INSTALLATION202304,999999,_55,_080762,_0391589,RM100000002BCU7_01_0137,

Hide Display 45259A 30.INSTALL COLUMN HOLE COVER SILENCER SHEET

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>INSTALLATION202304,999999,_55,_080762,_0391589,RM100000002BCU7_01_0173,

Hide Display 88704 31.CONNECT SUCTION HOSE SUB-ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>COMPRESSOR (for NR Series Engine)>INSTALLATION201906,999999,_58,_080733,_0393734,RM100000001HZKA_01_0211,

Hide Display 88703 32.CONNECT DISCHARGE HOSE SUB-ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>COMPRESSOR (for NR Series Engine)>INSTALLATION201906,999999,_58,_080733,_0393734,RM100000001HZKA_01_0212,

Hide Display 23901 33.CONNECT FUEL TUBE SUB-ASSEMBLY

Click hereEngine / Hybrid System>NR Series (FUEL)>FUEL PUMP (for High Pressure)>INSTALLATION202304,999999,_51,_080750,_0393850,RM100000002BCS4_01_0016,

Hide Display 87245 34.CONNECT INLET HEATER WATER HOSE

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING UNIT (for Gasoline Model)>INSTALLATION202304,999999,_58,_080733,_0393729,RM100000002B1I3_02_0185,

Hide Display 87246 35.CONNECT OUTLET HEATER WATER HOSE

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING UNIT (for Gasoline Model)>INSTALLATION202304,999999,_58,_080733,_0393729,RM100000002B1I3_02_0186,

Hide Display 23829A 36.CONNECT FUEL VAPOR FEED HOSE

Connect the fuel vapor feed hose to the fuel vapor feed pipe and slide the clip to secure it.

Hide Display 37.CONNECT UNION TO CONNECTOR TUBE HOSE

for 8NR-FTS:

Click hereBrake>BRAKE SYSTEM (OTHER)>VACUUM PUMP (for 8NR-FTS)>INSTALLATION202304,999999,_54,_080771,_0392414,RM100000002BCS3_02_0039,

for 9NR-FTS:

Click hereBrake>BRAKE SYSTEM (OTHER)>VACUUM PUMP (for 9NR-FTS)>INSTALLATION202304,999999,_54,_080771,_0392486,RM100000002BCS1_02_0039,

Hide Display 33820B 38.CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

Click hereDrivetrain>K313 (CVT)>PARK / NEUTRAL POSITION SWITCH>INSTALLATION202304,999999,_52,_080728,_0392272,RM100000002BCJP_01_0002,

Hide Display 16554C 39.CONNECT NO. 4 INTERCOOLER COOLING WATER HOSE

Click hereEngine / Hybrid System>NR Series (INTAKE / EXHAUST)>INTERCOOLER>INSTALLATION201906,999999,_51,_080791,_0392519,RM100000001HRDL_01_0023,

Hide Display 16551C 40.CONNECT NO. 1 INTERCOOLER COOLING WATER HOSE

Click hereEngine / Hybrid System>NR Series (INTAKE / EXHAUST)>INTERCOOLER>INSTALLATION201906,999999,_51,_080791,_0392519,RM100000001HRDL_01_0022,

Hide Display 16572D 41.CONNECT NO. 2 RADIATOR HOSE

Connect the No. 2 radiator hose to the water inlet with thermostat sub-assembly and slide the clip to secure it.

Hide Display 16571C 42.CONNECT NO. 1 RADIATOR HOSE

Connect the No. 1 radiator hose to the water outlet and slide the clip to secure it.

Hide Display 74404A 43.INSTALL BATTERY CLAMP SUB-ASSEMBLY

Install the battery clamp sub-assembly to the vehicle with the 3 bolts.

Torque:: 15.4 N*m (157 kgf*cm, 11 ft.*lbf)

Engage the clamp to connect the engine wire to the battery clamp sub-assembly.

Hide Display 44.CONNECT ENGINE WIRE

Connect the engine wire to the positive (+) battery terminal with the 3 nuts.

Torque:: 7.6 N*m (77 kgf*cm, 67 in.*lbf)

Connect the engine wire to the battery clamp sub-assembly with the bolt and nut.

Torque:: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

Connect the engine wire to the vehicle with the 2 bolts.

Torque:: 10 N*m (102 kgf*cm, 7 ft.*lbf)

Hide Display 89661 45.INSTALL ECM

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>ECM>INSTALLATION202304,999999,_51,_080777,_0392337,RM100000002BCAQ,

Hide Display 17701 46.INSTALL AIR CLEANER CASE SUB-ASSEMBLY

Install the air cleaner case sub-assembly to the vehicle with the 2 bolts.

Torque:: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

Install the air cleaner filter element sub-assembly to the air cleaner case sub-assembly.

Hide Display 17705 47.INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

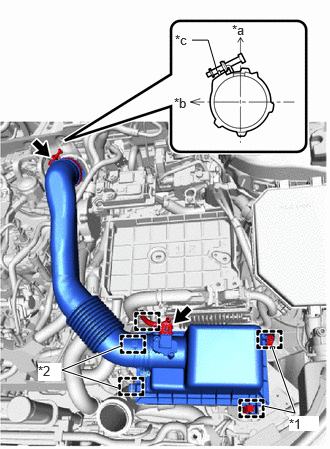

2.75,4.229 3.073,4.302 3.073,4.302 2.833,3.615 true 2,0.417 2.167,0.417 2.167,0.417 2.26,0.74 false 1.26,3.604 0.646,3.854 0.646,3.854 1.229,4.042 true 3.01,4.333 3.323,4.49 0.313,0.156 10 true *1 0.396,3.781 0.635,3.969 0.24,0.188 10 true *2 2.417,0.229 2.729,0.385 0.313,0.156 10 false *a 1.813,0.99 2.125,1.146 0.313,0.156 10 false *b 1.823,0.333 2.135,0.49 0.313,0.156 10 false *c

*1	Air Cleaner Cap Sub-assembly Clamp
*2	Guide
*a	Top of Vehicle
*b	Right Side of Vehicle
*c	Stopper

Connect the air cleaner cap with air cleaner hose to the No. 1 inlet air duct sub-assembly and tighten the hose clamp.

Torque:: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

Engage the 2 guides to install the air cleaner cap sub-assembly to the air cleaner case sub-assembly.

Engage the 2 air cleaner cap sub-assembly clamps to install the air cleaner cap sub-assembly.

Engage the clamp to the air cleaner cap sub-assembly.

Connect the mass air flow meter connector.

Hide Display 17751 48.INSTALL INLET NO. 1 AIR CLEANER

Click hereEngine / Hybrid System>NR Series (COOLING)>COOLING FAN MOTOR>INSTALLATION201906,999999,_51,_080776,_0392641,RM100000001HRWB_01_0043,

Hide Display 53289A 49.INSTALL RADIATOR SUPPORT OPENING COVER

for TFTM Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>INSTALLATION202304,202307,_59,_080736,_0392548,RM100000002AMO6_01_0032,202307,999999,_59,_080736,_0392548,RM100000002CH8W_01_0032,

for GTMC Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>INSTALLATION202304,202307,_59,_080736,_0392547,RM100000002AXCP_01_0032,202307,999999,_59,_080736,_0392547,RM100000002CHFB_01_0032,

Hide Display 55701J 50.INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY

Click hereDrivetrain>K313 (CVT)>CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY (When Using the Engine Support Bridge)>INSTALLATION202304,999999,_52,_080728,_0392263,RM100000002BCJI_01_0137,

Hide Display 55737B 51.INSTALL NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL (w/ No. 1 Heater Air Duct Splash Shield Seal)

Click hereSuspension>FRONT SUSPENSION>FRONT SHOCK ABSORBER>INSTALLATION202304,202307,_53,_080764,_0392681,RM100000002BA6W_01_0048,202307,999999,_53,_080764,_0392681,RM100000002CW5I_01_0048,

Hide Display 52.INSTALL WINDSHIELD WIPER MOTOR AND LINK

Click hereVehicle Exterior>WIPER / WASHER>FRONT WIPER MOTOR>INSTALLATION202304,202307,_59,_080767,_0392873,RM100000002AYHL,202307,999999,_59,_080767,_0392873,RM100000002CL7R,

Hide Display 53.INSTALL BATTERY

Click hereGeneral>MAINTENANCE>NR Series BATTERY>INSTALLATION202304,999999,_V1,_080956,_0392375,RM100000002BCCN_03_0001,

Hide Display 54.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Click hereGeneral>MAINTENANCE>NR Series BATTERY>INSTALLATION202304,999999,_V1,_080956,_0392375,RM100000002BCCN_03_0002,

Hide Display 55.ADD ENGINE OIL

Click hereGeneral>MAINTENANCE>NR Series OIL AND OIL FILTER>REPLACEMENT202101,999999,_V1,_080956,_0392373,RM100000001TTC4_01_0003,

Hide Display 56.ADD ENGINE COOLANT

Click hereGeneral>MAINTENANCE>NR Series COOLANT (for Engine Coolant)>REPLACEMENT201906,999999,_V1,_080956,_0392634,RM100000001HRVM_01_0005,

Hide Display 57.ADD COOLANT (for Intercooler)

Click hereGeneral>MAINTENANCE>NR Series COOLANT (for Intercooler)>REPLACEMENT201906,999999,_V1,_080956,_0392164,RM100000001HOGB_01_0011,

Hide Display 58.ADD CONTINUOUSLY VARIABLE TRANSAXLE FLUID

Click hereDrivetrain>K313 (CVT)>CONTINUOUSLY VARIABLE TRANSAXLE FLUID>ADJUSTMENT201906,999999,_52,_080728,_0392262,RM100000001HPAC,

Hide Display 59.CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REFRIGERANT>REPLACEMENT202304,999999,_58,_080733,_0393725,RM100000002B1HP_01_0002,

Hide Display 60. WARM UP ENGINE

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REFRIGERANT>REPLACEMENT202304,999999,_58,_080733,_0393725,RM100000002B1HP_01_0005,

Hide Display 61.INSPECT SHIFT LEVER POSITION

Click hereDrivetrain>K313 (CVT)>SHIFT LEVER>ON-VEHICLE INSPECTION201906,999999,_52,_080728,_0392275,RM100000001HPBL_01_0002,

Hide Display 62.ADJUST SHIFT LEVER POSITION

for TFTM Made:

Click hereDrivetrain>K313 (CVT)>TRANSMISSION CONTROL CABLE (for TFTM Made)>ADJUSTMENT201906,999999,_52,_080728,_0392273,RM100000001HTPX_01_0005,

for GTMC Made:

Click hereDrivetrain>K313 (CVT)>TRANSMISSION CONTROL CABLE (for GTMC Made)>ADJUSTMENT201906,999999,_52,_080728,_0392274,RM100000001HTSN_01_0005,

Hide Display 63.INSPECT FOR ENGINE OIL LEAK

Click hereGeneral>MAINTENANCE>NR Series OIL AND OIL FILTER>REPLACEMENT202101,999999,_V1,_080956,_0392373,RM100000001TTC4_01_0008,

Hide Display 64.INSPECT FOR COOLANT LEAK

Click hereEngine / Hybrid System>NR Series (COOLING)>COOLING SYSTEM>ON-VEHICLE INSPECTION201906,999999,_51,_080776,_0392635,RM100000001HRVO_01_0001,

Hide Display 65.INSPECT FOR COOLANT LEAK (for Intercooler)

Click hereEngine / Hybrid System>NR Series (INTAKE / EXHAUST)>COOLANT (for Intercooler)>ON-VEHICLE INSPECTION201906,999999,_51,_080791,_0392516,RM100000001HRD8_01_0001,

Hide Display 66.INSPECT FOR CONTINUOUSLY VARIABLE TRANSAXLE FLUID LEAK

Hide Display 67.INSPECT FOR REFRIGERANT LEAK

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REFRIGERANT>REPLACEMENT202304,999999,_58,_080733,_0393725,RM100000002B1HP_01_0004,

Hide Display 68.INSPECT FOR FUEL LEAK

Click hereEngine / Hybrid System>NR Series (FUEL)>FUEL SYSTEM>ON-VEHICLE INSPECTION202304,999999,_51,_080750,_0393845,RM100000002BH2I_01_0001,

Hide Display 69.INSPECT FOR EXHAUST GAS LEAK

Click hereEngine / Hybrid System>NR Series (INTAKE / EXHAUST)>EXHAUST PIPE>INSTALLATION201906,999999,_51,_080791,_0392520,RM100000001HREN_01_0041,

Hide Display 70.CHECK ENGINE OIL LEVEL

Click hereEngine / Hybrid System>NR Series (LUBRICATION)>LUBRICATION SYSTEM>ON-VEHICLE INSPECTION201906,999999,_51,_080758,_0392358,RM100000001HQ61_01_0001,

Hide Display 71.INSPECT RADIATOR RESERVE TANK ENGINE COOLANT LEVEL

Click hereEngine / Hybrid System>NR Series (COOLING)>COOLING SYSTEM>ON-VEHICLE INSPECTION201906,999999,_51,_080776,_0392635,RM100000001HRVO_01_0002,

Hide Display 51444A 72.INSTALL REAR ENGINE UNDER COVER LH

Install the rear engine under cover LH to the vehicle with the 5 clips.

Install the screw.

Hide Display 51443C 73.INSTALL REAR ENGINE UNDER COVER RH

Install the rear engine under cover RH to the vehicle with the 5 clips.

Install the screw.

Hide Display 51410 74.INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY

Install the No. 1 engine under cover assembly to the vehicle with the 4 bolts and 10 clips.

Torque:: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

Hide Display 75.INSTALL FRONT WHEELS

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>INSTALLATION202304,202307,_V1,_080956,_0392691,RM100000002B9S7_01_0001,202307,999999,_V1,_080956,_0392691,RM100000002CWKE_01_0001,

Hide Display 76.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

Click hereSuspension>ALIGNMENT / HANDLING DIAGNOSIS>FRONT WHEEL ALIGNMENT>ADJUSTMENT202304,202307,_53,_080763,_0392675,RM100000002AYX9,202307,999999,_53,_080763,_0392675,RM100000002CWH8,

Hide Display 77.PERFORM INITIALIZATION

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>THROTTLE BODY>INSTALLATION201906,999999,_51,_080777,_0392336,RM100000001HQ1S_01_0025,

Hide Display 78.INSPECT IGNITION TIMING

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE>ON-VEHICLE INSPECTION201906,999999,_51,_080739,_0391929,RM100000001HN1S_01_0008,

Hide Display 79.INSPECT ENGINE IDLE SPEED

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE>ON-VEHICLE INSPECTION201906,999999,_51,_080739,_0391929,RM100000001HN1S_01_0016,

Hide Display 80.INSPECT CO/HC

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE>ON-VEHICLE INSPECTION201906,999999,_51,_080739,_0391929,RM100000001HN1S_01_0011,

Hide Display 81.CHECK SPEED SENSOR SIGNAL

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for Gasoline Model (NR Series))>TEST MODE PROCEDURE202304,999999,_54,_080770,_0599814,RM100000002BA8E,

Hide Display 82. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202304,999999,_V1,_143216,_0598315,RM100000002B3MJ,
