RM3660EC _53 Suspension _080763 ALIGNMENT / HANDLING DIAGNOSIS _0392675 FRONT WHEEL ALIGNMENT N

ALIGNMENT / HANDLING DIAGNOSIS  FRONT WHEEL ALIGNMENT  ADJUSTMENT


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after completing the front wheel alignment procedure are shown below.

Necessary Procedures After Procedure Performed (for HV Model)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*: The vehicle height changes because of suspension or tire replacement.

Front wheel alignment adjustment
1.

Perform "Reset Memory"

2.

Perform "Calibration"


·

DTCs are stored

·

ABS warning light illuminates

·

Brake system warning light (yellow indicator) illuminates

·

Slip indicator light illuminates

·

Electronically controlled brake system disabled or malfunctions


(Click here)
Tires Rear television camera assembly optical axis (Back camera position setting)* Parking Assist Monitor System (Click here)
Parking assist ECU initialization Panoramic View Monitor System (Click here)

Necessary Procedures After Procedure Performed (for Gasoline Model)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*: The vehicle height changes because of suspension or tire replacement.

Front wheel alignment adjustment
for NR Series
·

Perform "Reset Memory"

·

Perform acceleration sensor zero point calibration and store system information memorization


·

VSC is disabled or malfunctions

·

DTCs are output

·

Slip indicator light illuminates

·

ABS warning light illuminates


(Click here)
except NR Series
·

Perform "Reset Memory"

·

Perform "Calibration"


·

VSC is disabled or malfunctions

·

DTCs are output

·

Slip indicator light illuminates

·

ABS warning light illuminates


(Click here)
Tires Rear television camera assembly optical axis (Back camera position setting)* Parking Assist Monitor System (Click here)

PROCEDURE

Hide 2.MEASURE VEHICLE HEIGHT

NOTICE:
·

Before inspecting the wheel alignment, adjust the vehicle height to the specified value.

·

Be sure to perform measurement on a level surface.

·

If it is necessary to go under the vehicle for measurement, confirm that the parking brake is applied and the vehicle is secured with chocks.

·

Inspect while the vehicle is unloaded.

·

The standard value shown here is a value that is used for performing a wheel alignment and does not indicate the height of an actual vehicle.



a.

Bounce the vehicle up and down at the corners to stabilize the suspension.


b.

for Double Wishbone Type Suspension:

i.

Bounce the vehicle up and down at the corners to stabilize the suspension.


ii.

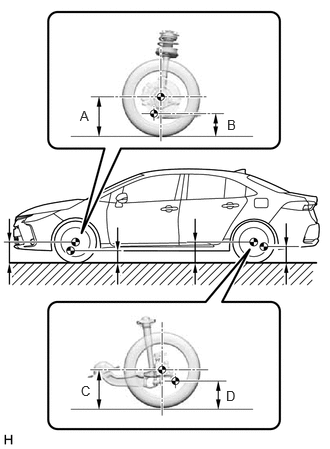

C416421N01
0.833,1.125 0.99,1.323 0.156,0.198 10 false A 2.365,1.219 2.521,1.417 0.156,0.198 10 false B 0.844,3.99 1,4.188 0.156,0.198 10 false C 2.354,4.042 2.51,4.24 0.156,0.198 10 false D

Measure the vehicle height.

Measurement Points:

A: Ground clearance of front wheel center


B: Ground clearance of center of bolt head of front lower No. 1 suspension arm sub-assembly and front suspension crossmember sub-assembly


C: Ground clearance of rear wheel center


D: Ground clearance of center of bolt head of rear No. 2 suspension arm assembly and rear suspension member sub-assembly


Vehicle Height (Unloaded Vehicle) (for TFTM Made):
Engine Tire Size Front A - B Rear C - D

*: w/ Differential Support Guard

NR Series 195/65R15
205/55R16 		95 mm (3.74 in.) 23 mm (0.906 in.)
8ZR-FXE 195/65R15 95 mm (3.74 in.)*
115 mm (4.53 in.) 		30 mm (1.18 in.)*
50 mm (1.97 in.)
205/55R16
225/45R17 		95 mm (3.74 in.)*
115 mm (4.53 in.) 		22 mm (0.87 in.)*
42 mm (1.65 in.)
M20E-FKS 205/55R16 95 mm (3.74 in.)*
115 mm (4.53 in.) 		28 mm (1.10 in.)*
48 mm (1.89 in.)
225/45R17
225/40R18 		95 mm (3.74 in.)*
115 mm (4.53 in.) 		23 mm (0.906 in.)*
43 mm (1.69 in.)
M20G-FXS 205/55R16 95 mm (3.74 in.)*
115 mm (4.53 in.) 		28 mm (1.10 in.)*
48 mm (1.89 in.)
225/45R17
225/40R18 		95 mm (3.74 in.)*
115 mm (4.53 in.) 		23 mm (0.906 in.)*
43 mm (1.69 in.)


Vehicle Height (Unloaded Vehicle) (for GTMC Made):
Engine Tire Size Front A - B Rear C - D

*1: w/ Differential Support Guard

*2: w/o Rear Stabilizer Bar

NR Series 205/55R16 95 mm (3.74 in.) 23 mm (0.906 in.)
225/45R17 115 mm (3.74 in.) 43 mm (0.906 in.)
8ZR-FXE 205/55R16*2 96 mm (3.78 in.)*1
116 mm (4.57 in.) 		31 mm (1.22 in.)*1
51 mm (2.01 in.)
205/55R16
225/45R17 		96 mm (3.78 in.)*1
116 mm (4.57 in.) 		24 mm (0.94 in.)*1
44 mm (1.73 in.)
M20C-FKS 205/55R16
225/45R17 		95 mm (3.74 in.)*1
115 mm (4.53 in.) 		23 mm (0.906 in.)*1
43 mm (1.69 in.)
M20F-FXS 205/55R16
225/45R17 		95 mm (3.74 in.)*1
115 mm (4.53 in.) 		23 mm (0.906 in.)*1
43 mm (1.69 in.)




c.

for Torsion Beam Type Suspension:

i.

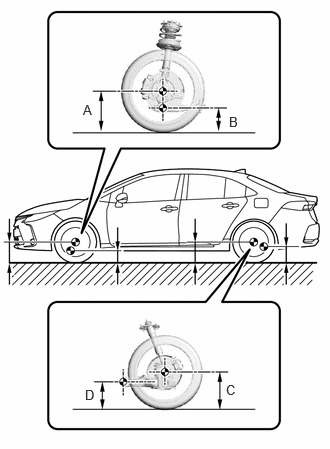

C503762N01
0.865,1.063 1.01,1.25 0.146,0.188 10 false A 0.885,4.031 1.031,4.219 0.146,0.188 10 false D 2.385,1.188 2.531,1.375 0.146,0.188 10 false B 2.354,3.979 2.5,4.167 0.146,0.188 10 false C

Measure the vehicle height.

Measurement Points:

A: Ground clearance of front wheel center


B: Ground clearance of center of bolt head of front lower No. 1 suspension arm sub-assembly and front suspension crossmember sub-assembly.


C: Ground clearance of rear wheel center


D: Ground clearance of center of bolt head of rear suspension arm bracket and rear axle beam assembly.


Vehicle Height (Unloaded Vehicle):
Engine Tire Size Front A - B Rear C - D

*: w/ Differential Support Guard

M15B-FKS
M15C-FKS 		195/65R15
205/55R16 		94 mm (3.70 in.)*
114 mm (4.49 in.) 		25 mm (0.98 in.)*
45 mm (1.77 in.)




Hide 3.INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION

NOTICE:

Inspect while the vehicle is unloaded.


a.
C132440C16
2.396,1.104 2.51,0.823 2.51,0.823 2.74,0.823 false 0.604,0.708 1.031,0.708 1.031,0.708 1.031,1.458 false 2.76,0.729 2.99,0.906 0.229,0.177 10 false *b 0.448,0.604 0.688,0.781 0.24,0.177 10 false *a
*a Turning Radius Gauge
*b Camber-caster-kingpin Gauge


Install a camber-caster-kingpin gauge and place the front wheels on the center of a turning radius gauge.


b.

Inspect the camber, caster and steering axis inclination.


c.

Inspect the camber, caster and steering axis inclination.

Camber (Unloaded Vehicle) (for TFTM Made):
Engine Tire Size Camber Inclination Right-left Difference

*: w/ Differential Support Guard

NR Series 195/65R15
205/55R16 		-0°01' +/- 0°45' (-0.02° +/- 0.75°) 0°45' (0.75°) or less
M15B-FKS 195/65R15
205/55R16 		-0°01' +/- 0°45' (-0.01° +/- 0.75°)*
-0°14' +/- 0°45' (-0.23° +/- 0.75°)
8ZR-FXE 195/65R15
205/55R16
225/45R17 		-0°01' +/- 0°45' (-0.01° +/- 0.75°)*
-0°14' +/- 0°45' (-0.23° +/- 0.75°)
M20E-FKS 205/55R16
225/45R17
225/40R18 		-0°01' +/- 0°45' (-0.02° +/- 0.75°)*
-0°14' +/- 0°45' (-0.23° +/- 0.75°)
M20G-FXS 205/55R16
225/45R17
225/40R18 		-0°01' +/- 0°45' (-0.02° +/- 0.75°)*
-0°14' +/- 0°45' (-0.23° +/- 0.75°)


Caster (Unloaded Vehicle) (for TFTM Made):
Engine Tire Size Caster Inclination Right-left Difference

*: w/ Differential Support Guard

NR Series 195/65R15
205/55R16 		6°30' +/- 0°45' (6.50° +/- 0.75°) 0°45' (0.75°) or less
M15B-FKS 195/65R15
205/55R16 		6°25' +/- 0°45' (6.42° +/- 0.75°)*
6°42' +/- 0°45' (6.70° +/- 0.75°)
8ZR-FXE 195/65R15 6°37' +/- 0°45' (6.62° +/- 0.75°)*
6°54' +/- 0°45' (6.90° +/- 0.75°)
205/55R16 6°28' +/- 0°45' (6.47° +/- 0.75°)*
6°46' +/- 0°45' (6.77° +/- 0.75°)
225/45R17 6°30' +/- 0°45' (6.50° +/- 0.75°)*
6°49' +/- 0°45' (6.82° +/- 0.75°)
M20E-FKS 205/55R16 6°36' +/- 0°45' (6.60° +/- 0.75°)*
6°53' +/- 0°45' (6.88° +/- 0.75°)
225/45R17 6°31' +/- 0°45' (6.52° +/- 0.75°)*
6°48' +/- 0°45' (6.80° +/- 0.75°)
225/40R18 6°32' +/- 0°45' (6.53° +/- 0.75°)*
6°49' +/- 0°45' (6.82° +/- 0.75°)
M20G-FXS 205/55R16 6°37' +/- 0°45' (6.62° +/- 0.75°)*
6°54' +/- 0°45' (6.90° +/- 0.75°)
225/45R17 6°32' +/- 0°45' (6.53° +/- 0.75°)*
6°49' +/- 0°45' (6.82° +/- 0.75°)
225/40R18 6°32' +/- 0°45' (6.53° +/- 0.75°)*
6°49' +/- 0°45' (6.82° +/- 0.75°)


Steering Axis Inclination (Unloaded Vehicle) (for TFTM Made):
Engine Tire Size Steering Axis Inclination Reference

*: w/ Differential Support Guard

NR Series 195/65R15
205/55R16 		12°50' (12.84°)
M15B-FKS 195/65R15
205/55R16 		12°49' (12.82°)*
13°18' (13.30°)
8ZR-FXE 195/65R15
205/55R16
225/45R17 		12°50' (12.84°)*
13°19' (13.31°)
M20E-FKS 205/55R16
225/45R17
225/40R18 		12°50' (12.83°)*
13°19' (13.32°)
M20G-FXS 205/55R16
225/45R17
225/40R18 		12°50' (12.83°)*
13°19' (13.32°)


Camber (Unloaded Vehicle) (for GTMC Made):
Engine Tire Size Camber Inclination Right-left Difference

*: w/ Differential Support Guard

NR Series 205/55R16 -0°01' +/- 0°45' (-0.02° +/- 0.75°) 0°45' (0.75°) or less
225/45R17 -0°14' +/- 0°45' (-0.24° +/- 0.75°)
M15C-FKS 205/55R16 -0°01' +/- 0°45' (-0.01° +/- 0.75°)*
-0°14' +/- 0°45' (-0.23° +/- 0.75°)
8ZR-FXE 205/55R16
225/45R17 		-0°02' +/- 0°45' (-0.03° +/- 0.75°)*
-0°15' +/- 0°45' (-0.25° +/- 0.75°)
M20C-FKS 205/55R16
225/45R17 		-0°01' +/- 0°45' (-0.02° +/- 0.75°)*
-0°14' +/- 0°45' (-0.23° +/- 0.75°)
M20F-FXS 205/55R16
225/45R17 		-0°01' +/- 0°45' (-0.02° +/- 0.75°)*
-0°14' +/- 0°45' (-0.23° +/- 0.75°)


Caster (Unloaded Vehicle) (for GTMC Made):
Engine Tire Size Caster Inclination Right-left Difference

*1: w/ Differential Support Guard

*2: w/o Rear Stabilizer Bar

NR Series 205/55R16 6°30' +/- 0°45' (6.50° +/- 0.75°) 0°45' (0.75°) or less
225/45R17 6°49' +/- 0°45' (6.82° +/- 0.75°)
M15C-FKS 205/55R16 6°25' +/- 0°45' (6.42° +/- 0.75°)*1
6°42' +/- 0°45' (6.70° +/- 0.75°)
8ZR-FXE 205/55R16*2 6°39' +/- 0°45' (6.65° +/- 0.75°)*1
6°56' +/- 0°45' (6.93° +/- 0.75°)
205/55R16 6°31' +/- 0°45' (6.52° +/- 0.75°)*1
6°49' +/- 0°45' (6.82° +/- 0.75°)
225/45R17 6°33' +/- 0°45' (6.55° +/- 0.75°)*1
6°50' +/- 0°45' (6.83° +/- 0.75°)
M20C-FKS 205/55R16
225/45R17 		6°31' +/- 0°45' (6.52° +/- 0.75°)*1
6°48' +/- 0°45' (6.80° +/- 0.75°)
M20F-FXS 205/55R16 6°31' +/- 0°45' (6.52° +/- 0.75°)*1
6°48' +/- 0°45' (6.80° +/- 0.75°)
225/45R17 6°32' +/- 0°45' (6.53° +/- 0.75°)*1
6°49' +/- 0°45' (6.82° +/- 0.75°)


Steering Axis Inclination (Unloaded Vehicle) (for GTMC Made):
Engine Tire Size Steering Axis Inclination Reference

*: w/ Differential Support Guard

NR Series 205/55R16 12°50' (12.84°)
225/45R17 13°19' (13.32°)
M15C-FKS 205/55R16 12°49' (12.82°)*
13°18' (13.30°)
8ZR-FXE 205/55R16
225/45R17 		12°52' (12.87°)*
13°21' (13.35°)
M20C-FKS 205/55R16
225/45R17 		12°50' (12.83°)*
13°19' (13.32°)
M20F-FXS 205/55R16
225/45R17 		12°50' (12.83°)*
13°19' (13.32°)



Hide 4.ADJUST CAMBER

NOTICE:

Inspect toe-in after the camber has been adjusted.


a.

Remove the front wheel.

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL


b.

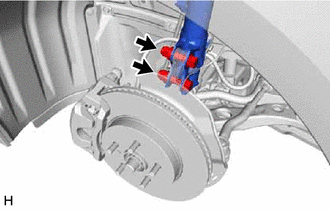

C397739

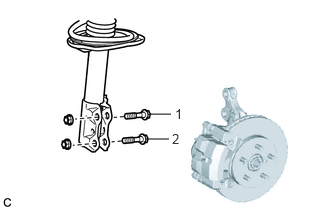

Remove the 2 nuts on the lower side of the front shock absorber assembly.

NOTICE:

Keep the bolts inserted.



c.

Remove the top and bottom bolts one at a time and confirm that the steering knuckle can move freely in the front shock absorber assembly.

HINT:
·

Reinstall each bolt after removing it and confirming steering knuckle movement.

·

If the steering knuckle does not move freely in the front shock absorber assembly, clean the contact surfaces of the front shock absorber assembly and the steering knuckle.




d.

Temporarily install the 2 nuts. (Step A)


e.
C199624N01
1.01,0.125 1.167,0.323 0.156,0.198 10 - 1.875,0.052 2.031,0.25 0.156,0.198 10 +

Fully push or pull the front axle hub in the direction of the required adjustment. (Step B)


f.
C397739

Tighten the 2 nuts.

Torque:
270 N*m (2753 kgf*cm, 199 ft.*lbf)

NOTICE:

Keep the bolts from rotating when tightening the nuts.



g.

Install the front wheel.

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>INSTALLATION


h.

Bounce the vehicle up and down at the corners to stabilize the suspension.


i.

Check the camber.

Camber (Unloaded Vehicle) (for TFTM Made):
Engine Tire Size Camber Inclination Right-left Difference

*: w/ Differential Support Guard

NR Series 195/65R15
205/55R16 		-0°01' +/- 0°45' (-0.02° +/- 0.75°) 0°45' (0.75°) or less
M15B-FKS 195/65R15
205/55R16 		-0°01' +/- 0°45' (-0.01° +/- 0.75°)*
-0°14' +/- 0°45' (-0.23° +/- 0.75°)
8ZR-FXE 195/65R15
205/55R16
225/45R17 		-0°01' +/- 0°45' (-0.01° +/- 0.75°)*
-0°14' +/- 0°45' (-0.23° +/- 0.75°)
M20E-FKS 205/55R16
225/45R17
225/40R18 		-0°01' +/- 0°45' (-0.01° +/- 0.75°)*
-0°14' +/- 0°45' (-0.23° +/- 0.75°)
M20G-FXS 205/55R16
225/45R17
225/40R18 		-0°01' +/- 0°45' (-0.01° +/- 0.75°)*
-0°14' +/- 0°45' (-0.23° +/- 0.75°)


Camber (Unloaded Vehicle) (for GTMC Made):
Engine Tire Size Camber Inclination Right-left Difference

*: w/ Differential Support Guard

NR Series 205/55R16 -0°01' +/- 0°45' (-0.02° +/- 0.75°) 0°45' (0.75°) or less
225/45R17 -0°14' +/- 0°45' (-0.24° +/- 0.75°)
M15C-FKS 205/55R16 -0°01' +/- 0°45' (-0.01° +/- 0.75°)*
-0°14' +/- 0°45' (-0.23° +/- 0.75°)
8ZR-FXE 205/55R16
225/45R17 		-0°02' +/- 0°45' (-0.03° +/- 0.75°)*
-0°15' +/- 0°45' (-0.25° +/- 0.75°)
M20C-FKS 205/55R16
225/45R17 		-0°01' +/- 0°45' (-0.02° +/- 0.75°)*
-0°14' +/- 0°45' (-0.23° +/- 0.75°)
M20F-FXS 205/55R16
225/45R17 		-0°01' +/- 0°45' (-0.02° +/- 0.75°)*
-0°14' +/- 0°45' (-0.23° +/- 0.75°)


i.
C348856N02
1.563,1.188 1.781,1.188 false 1.542,1.448 1.76,1.448 false 1.823,1.104 1.979,1.302 0.156,0.198 10 false 1 1.792,1.365 1.948,1.563 0.156,0.198 10 false 2

If the measured value is not within the specification, calculate the required adjustment amount using the formula below.

Camber adjustment amount = center of the specified range - measured value

Check the combination of the installed bolts. Select appropriate bolts from the tables below to adjust the camber to the specified values.

HINT:

Try to adjust the camber to the center of the specified values.


To move the axle hub toward (+) in step B To move the axle hub toward (-) in step B
Refer to table (1) (To move the axle hub toward the positive side) Refer to table (2) (To move the axle hub toward the negative side)

The vehicle body and suspension may be damaged if the camber cannot be correctly adjusted according to the table above.

NOTICE:

Replace the nut with a new one when replacing the bolt.



ii.

Table (1) (To move the axle hub toward the positive side)

C212217C01
2.052,0.531 2.188,0.74 0.135,0.208 10 1 2.052,1.146 2.188,1.354 0.135,0.208 10 2 2.521,0.792 2.75,0.99 0.229,0.198 10 *c 3.219,1.406 3.448,1.594 0.229,0.188 10 *d 5.979,0.792 6.198,0.99 0.219,0.198 10 *e 5.271,0.792 5.521,0.99 0.25,0.198 10 *d 4.604,1.406 4.781,1.583 0.177,0.177 10 *f 3.917,1.406 4.125,1.615 0.208,0.208 10 *e 4.396,6.375 4.583,6.552 0.188,0.177 10 *f 5.969,1.396 6.177,1.552 0.208,0.156 10 *f 5.271,1.406 5.469,1.583 0.198,0.177 10 *f 6.656,1.396 6.833,1.552 0.177,0.156 10 *f 6.646,0.792 6.854,0.969 0.208,0.177 10 *f 2.542,2.99 2.719,3.219 0.177,0.229 10 A 2.542,4.188 2.771,4.406 0.229,0.219 10 F 2.542,3.469 2.771,3.688 0.229,0.219 10 C 2.542,3.938 2.74,4.156 0.198,0.219 10 E 2.542,3.24 2.729,3.448 0.188,0.208 10 B 2.542,3.708 2.729,3.927 0.188,0.219 10 D 3.927,3.01 4.177,3.24 0.25,0.229 10 C 5.271,3 5.51,3.229 0.24,0.229 10 E 3.229,3.01 3.406,3.219 0.177,0.208 10 B 4.604,3 4.792,3.24 0.188,0.24 10 D 3.229,2.76 3.448,2.99 0.219,0.229 10 G 3.229,3.24 3.406,3.448 0.177,0.208 10 C 3.229,3.708 3.448,3.938 0.219,0.229 10 E 3.229,3.469 3.427,3.698 0.198,0.229 10 D 3.229,3.938 3.427,4.167 0.198,0.229 10 F 3.927,2.51 4.115,2.74 0.188,0.229 10 G 3.927,2.76 4.135,2.969 0.208,0.208 10 A 3.927,3.708 4.115,3.938 0.188,0.229 10 F 3.917,3.469 4.083,3.688 0.167,0.219 10 E 3.927,3.24 4.135,3.458 0.208,0.219 10 D 4.604,2.281 4.802,2.531 0.198,0.25 10 G 6.656,1.563 6.833,1.823 0.177,0.26 10 G 5.979,1.813 6.26,2.063 0.281,0.25 10 G 5.271,2.031 5.458,2.281 0.188,0.25 10 G 6.656,1.813 6.813,2.042 0.156,0.229 10 A 6.656,2.281 6.844,2.531 0.188,0.25 10 C 6.656,2.76 6.885,3.01 0.229,0.25 10 E 6.656,2.031 6.833,2.26 0.177,0.229 10 B 6.656,2.51 6.875,2.781 0.219,0.271 10 D 5.979,2.031 6.177,2.292 0.198,0.26 10 A 5.979,2.51 6.188,2.75 0.208,0.24 10 C 5.979,2.281 6.26,2.531 0.281,0.25 10 B 5.979,2.76 6.167,2.99 0.188,0.229 10 D 5.979,3 6.115,3.208 0.135,0.208 10 F 5.271,3.24 5.49,3.448 0.219,0.208 10 F 5.271,2.281 5.406,2.51 0.135,0.229 10 A 5.271,2.76 5.448,2.969 0.177,0.208 10 C 5.271,2.51 5.438,2.74 0.167,0.229 10 B 4.604,2.51 4.781,2.76 0.177,0.25 10 A 4.604,2.76 4.781,2.969 0.177,0.208 10 B 4.604,3.24 4.813,3.458 0.208,0.219 10 E 4.604,3.469 4.813,3.698 0.208,0.229 10 F 1.625,5.073 1.76,5.281 0.135,0.208 10 A 5.094,5.073 5.229,5.281 0.135,0.208 10 F 3.052,5.073 3.188,5.281 0.135,0.208 10 C 4.406,5.073 4.542,5.281 0.135,0.208 10 E 2.344,5.073 2.479,5.281 0.135,0.208 10 B 3.729,5.073 3.865,5.281 0.135,0.208 10 D 5.802,5.073 5.938,5.281 0.135,0.208 10 G 1.073,5.5 1.208,5.708 0.135,0.208 10 1 1.104,6.135 1.24,6.344 0.135,0.208 10 2 3.042,6.375 3.229,6.531 0.188,0.156 10 *f 3.719,6.375 3.958,6.542 0.24,0.167 10 *f 5.083,6.375 5.292,6.573 0.208,0.198 10 *f 5.094,5.75 5.292,5.917 0.198,0.167 10 *f 4.385,5.75 4.604,5.917 0.219,0.167 10 *e 2.333,6.375 2.542,6.542 0.208,0.167 10 *e 1.625,6.375 1.854,6.552 0.229,0.177 10 *d 3.719,5.75 3.927,5.938 0.208,0.188 10 *d 3.01,5.75 3.208,5.938 0.198,0.188 10 *c 1.625,5.75 1.844,5.948 0.219,0.198 10 *c 2.333,5.75 2.521,5.906 0.188,0.156 10 *c 5.802,6.365 6.021,6.563 0.219,0.198 10 *c 5.76,5.76 5.969,5.948 0.208,0.188 10 *c 0.177,1.563 2.198,1.75 2.021,0.188 10 -1°30' to -1°15' (-1.50° to -1.25°) 0.406,2.76 1.969,2.948 1.563,0.188 10 -0°15' to 0° (-0.25° to 0°) 0.208,2.51 2.156,2.729 1.948,0.219 10 -0°30' to -0°15' (-0.5° to -0.25°) 0.208,2.281 2.156,2.479 1.948,0.198 10 -0°45' to -0°30' (-0.75° to -0.5°) 0.271,2.031 2.104,2.208 1.833,0.177 10 -1°00' to -0°45' (-1° to -0.75°) 0.26,1.813 2.094,2.021 1.833,0.208 10 -1°15' to -1°00' (-1.25° to -1°) 0.354,3.938 2.01,4.115 1.656,0.177 10 1°00' to 1°15' (1° to 1.25°) 0.354,3.708 2,3.906 1.646,0.198 10 0°45' to 1°00' (0.75° to 1°) 0.302,3.469 2.073,3.646 1.771,0.177 10 0°30' to 0°45' (0.5° to 0.75°) 0.302,3.24 2.073,3.417 1.771,0.177 10 0°15' to 0°30' (0.25° to 0.5°) 0.448,3 1.917,3.198 1.469,0.198 10 0° to 0°15' (0° to 0.25°) 0.302,4.188 2.073,4.365 1.771,0.177 10 1°15' to 1°30' (1.25° to 1.5°) 2.542,1.406 2.76,1.604 0.219,0.198 10 *c 3.219,0.792 3.448,0.969 0.229,0.177 10 *c 3.917,0.792 4.135,1.01 0.219,0.219 10 *c 4.604,0.792 4.823,1.01 0.219,0.219 10 *c 5.979,3 6.24,3.24 0.26,0.24 10 F 1.156,0.625 1.333,0.792 0.177,0.167 10 *a 0.625,1.115 0.802,1.281 0.177,0.167 10 *b 0.875,4.792 1.198,5.021 0.323,0.229 12 *B 0.063,0.135 0.333,0.333 0.271,0.198 12 *A
*A Table (1) (To move the axle hub toward the positive side) *B Selected Bolt Combination
*a Installed Bolt *b Adjusting Value
*c Standard Bolt *d 90105-17009 (for NR Series)
90105-17013 (expect NR Series)
*e 90105-17010 (for NR Series)
90105-17014 (expect NR Series) 		*f 90105-17011 (for NR Series)
90105-17015 (expect NR Series)



iii.

Table (2) (To move the axle hub toward the negative side)

C212218C01
2.052,0.531 2.188,0.74 0.135,0.208 10 1 2.052,1.146 2.188,1.354 0.135,0.208 10 2 1.635,5.052 1.771,5.26 0.135,0.208 10 A 5.094,5.052 5.229,5.26 0.135,0.208 10 F 3.052,5.052 3.188,5.26 0.135,0.208 10 C 4.406,5.052 4.542,5.26 0.135,0.208 10 E 2.344,5.052 2.479,5.26 0.135,0.208 10 B 3.729,5.052 3.865,5.26 0.135,0.208 10 D 5.802,5.052 5.938,5.26 0.135,0.208 10 G 1.073,5.5 1.208,5.708 0.135,0.208 10 1 1.104,6.135 1.24,6.344 0.135,0.208 10 2 0.177,1.563 2.198,1.75 2.021,0.188 10 -1°30' to -1°15' (-1.50° to -1.25°) 0.406,2.76 1.969,2.948 1.563,0.188 10 -0°15' to 0° (-0.25° to 0°) 0.208,2.521 2.156,2.74 1.948,0.219 10 -0°30' to -0°15' (-0.5° to -0.25°) 0.208,2.281 2.156,2.479 1.948,0.198 10 -0°45' to -0°30' (-0.75° to -0.5°) 0.271,2.031 2.104,2.208 1.833,0.177 10 -1°00' to -0°45' (-1° to -0.75°) 0.26,1.813 2.094,2.021 1.833,0.208 10 -1°15' to -1°00' (-1.25° to -1°) 0.354,3.938 2.01,4.115 1.656,0.177 10 1°00' to 1°15' (1° to 1.25°) 0.354,3.708 2,3.906 1.646,0.198 10 0°45' to 1°00' (0.75° to 1°) 0.302,3.469 2.073,3.646 1.771,0.177 10 0°30' to 0°45' (0.5° to 0.75°) 0.302,3.24 2.073,3.417 1.771,0.177 10 0°15' to 0°30' (0.25° to 0.5°) 0.448,3 1.917,3.198 1.469,0.198 10 0° to 0°15' (0° to 0.25°) 0.302,4.188 2.073,4.365 1.771,0.177 10 1°15' to 1°30' (1.25° to 1.5°) 1.156,0.625 1.333,0.792 0.177,0.167 10 *a 0.625,1.115 0.802,1.281 0.177,0.167 10 *b 0.875,4.792 1.167,5.021 0.292,0.229 12 *B 0.063,0.135 0.417,0.354 0.354,0.219 12 *A 5.292,2.76 5.427,2.969 0.135,0.208 10 E 5.292,3.708 5.427,3.917 0.135,0.208 10 G 5.292,2.521 5.427,2.729 0.135,0.208 10 F 5.292,3.469 5.427,3.677 0.135,0.208 10 A 5.292,3 5.427,3.208 0.135,0.208 10 C 5.292,3.24 5.427,3.448 0.135,0.208 10 B 2.542,2.76 2.677,2.969 0.135,0.208 10 A 2.542,1.563 2.677,1.771 0.135,0.208 10 F 2.542,2.281 2.677,2.49 0.135,0.208 10 C 2.542,1.813 2.677,2.021 0.135,0.208 10 E 2.542,2.521 2.677,2.729 0.135,0.208 10 B 2.542,2.031 2.677,2.24 0.135,0.208 10 D 3.229,2.76 3.365,2.969 0.135,0.208 10 B 3.229,3 3.365,3.208 0.135,0.208 10 G 3.229,2.521 3.365,2.729 0.135,0.208 10 C 3.229,2.031 3.365,2.24 0.135,0.208 10 E 3.229,2.281 3.365,2.49 0.135,0.208 10 D 3.229,1.813 3.375,2.021 0.146,0.208 10 F 3.927,2.76 4.063,2.969 0.135,0.208 10 C 3.927,3.24 4.063,3.448 0.135,0.208 10 G 3.927,3 4.063,3.208 0.135,0.208 10 A 3.927,2.031 4.063,2.24 0.135,0.208 10 F 3.927,2.281 4.063,2.49 0.135,0.208 10 E 3.927,2.521 4.063,2.729 0.135,0.208 10 D 4.604,2.76 4.74,2.969 0.135,0.208 10 D 4.604,3.469 4.74,3.677 0.135,0.208 10 G 4.604,3.24 4.74,3.448 0.135,0.208 10 A 4.604,3 4.74,3.208 0.135,0.208 10 B 4.604,2.521 4.74,2.729 0.135,0.208 10 E 4.604,2.281 4.74,2.49 0.135,0.208 10 F 5.99,3.938 6.125,4.146 0.135,0.208 10 G 5.99,3.708 6.125,3.917 0.135,0.208 10 A 5.99,3.24 6.125,3.448 0.135,0.208 10 C 5.99,3.469 6.125,3.677 0.135,0.208 10 B 5.99,3 6.125,3.208 0.135,0.208 10 D 5.99,2.76 6.125,2.969 0.135,0.208 10 F 6.688,4.188 6.823,4.396 0.135,0.208 10 G 6.688,3.938 6.823,4.146 0.135,0.208 10 A 6.688,3.469 6.823,3.677 0.135,0.208 10 C 6.688,3 6.823,3.208 0.135,0.208 10 E 6.688,3.708 6.823,3.917 0.135,0.208 10 B 6.688,3.24 6.823,3.448 0.135,0.208 10 D 2.51,0.792 2.729,0.969 0.219,0.177 10 *c 3.219,1.396 3.406,1.573 0.188,0.177 10 *d 5.969,0.781 6.115,0.938 0.146,0.156 10 *e 5.271,0.792 5.469,0.979 0.198,0.188 10 *d 4.604,1.396 4.781,1.573 0.177,0.177 10 *f 3.906,1.396 4.083,1.573 0.177,0.177 10 *e 5.979,1.396 6.188,1.552 0.208,0.156 10 *f 5.281,1.396 5.479,1.573 0.198,0.177 10 *f 6.656,1.396 6.833,1.552 0.177,0.156 10 *f 6.656,0.792 6.823,0.958 0.167,0.167 10 *f 2.51,1.396 2.688,1.573 0.177,0.177 10 *c 3.219,0.792 3.396,0.948 0.177,0.156 10 *c 3.927,0.792 4.115,0.979 0.188,0.188 10 *c 4.604,0.792 4.781,0.958 0.177,0.167 10 *c 4.385,6.375 4.531,6.531 0.146,0.156 10 *f 3.01,6.375 3.198,6.531 0.188,0.156 10 *f 3.708,6.375 3.948,6.542 0.24,0.167 10 *f 5.094,6.375 5.302,6.573 0.208,0.198 10 *f 5.083,5.75 5.271,5.906 0.188,0.156 10 *f 4.375,5.75 4.573,5.906 0.198,0.156 10 *e 2.313,6.375 2.521,6.542 0.208,0.167 10 *e 1.625,6.375 1.771,6.531 0.146,0.156 10 *d 3.688,5.75 3.875,5.938 0.188,0.188 10 *d 3.01,5.75 3.208,5.938 0.198,0.188 10 *c 1.625,5.74 1.802,5.927 0.177,0.188 10 *c 2.323,5.75 2.5,5.906 0.177,0.156 10 *c 5.781,6.375 5.969,6.542 0.188,0.167 10 *c 5.771,5.75 5.979,5.938 0.208,0.188 10 *c
*A Table (2) (To move the axle hub toward the negative side) *B Selected Bolt Combination
*a Installed Bolt *b Adjusting Value
*c Standard Bolt *d 90105-17009 (for NR Series)
90105-17013 (expect NR Series)
*e 90105-17010 (for NR Series)
90105-17014 (expect NR Series) 		*f 90105-17011 (for NR Series)
90105-17015 (expect NR Series)




j.

If the camber was out of adjustment in the previous step, perform the adjust camber steps mentioned above. In step A, replace the existing bolts with the selected bolts.

HINT:

Replace one bolt at a time when replacing both bolts.



Hide 5.INSPECT TOE-IN

NOTICE:

Inspect while the vehicle is unloaded.


a.

Bounce the vehicle up and down at the corners to stabilize the suspension.


b.

Release the parking brake and move the shift lever to N (for CVT).


c.

Release the parking brake and move the shift lever to neutral (for Manual Transaxle).


d.

Push the vehicle straight ahead approximately 5 m (16.4 ft.). (Step C)


e.
C188968C01
0.833,0.583 0.833,1.115 false 1.365,0.583 1.365,0.99 1.365,0.99 0.833,0.99 false 2.521,1.333 2.521,1.667 false 0.74,1.135 0.917,1.302 0.177,0.167 10 *a 2.427,1.698 2.604,1.854 0.177,0.156 10 *b
*a Tread Center Mark
*b Dimension B
V100135

Front of the Vehicle


Put tread center marks on the rearmost points of the front wheels and measure the distance between the marks (dimension B).


f.

Slowly push the vehicle straight ahead to cause the front wheels to rotate 180°. Use the front tire valve as a reference point.

HINT:

Do not allow the wheels to rotate more than 180°. If the wheels rotate more than 180°, perform the procedure from step C again.



g.
C188969C01
0.646,1.271 0.646,1.635 false 1.917,0.542 2.052,0.698 0.135,0.156 10 C 3.073,0.552 3.208,0.708 0.135,0.156 10 D 2.5,0.719 2.635,0.875 0.135,0.156 10 A 2.51,1.542 2.646,1.698 0.135,0.156 10 B 0.563,1.656 0.74,1.813 0.177,0.156 10 *a
*a Dimension A
V100135

Front of the Vehicle


Measure the distance between the tread center marks on the front of the wheels (dimension A).

Toe-in (Unloaded Vehicle) (for TFTM Made):
Engine Tire Size Specified Condition

*: w/ Differential Support Guard

NR Series 195/65R15
205/55R16 		C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)
M15B-FKS 195/65R15
205/55R16 		C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°07' +/- 0°11' (0.11° +/- 0.18°)
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.)
8ZR-FXE 195/65R15
205/55R16
225/45R17 		C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°06' +/- 0°11' (0.10° +/- 0.18°)
B - A: 1.1 +/- 2.0 mm (0.0433 +/- 0.0787 in.)
M20E-FKS 205/55R16 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°07' +/- 0°11' (0.11° +/- 0.18°)
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.)
225/45R17 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°06' +/- 0°11' (0.10° +/- 0.18°)
B - A: 1.1 +/- 2.0 mm (0.0433 +/- 0.0787 in.)
225/40R18 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°06' +/- 0°11' (0.11° +/- 0.18°)
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.)
M20G-FXS 205/55R16 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°07' +/- 0°11' (0.11° +/- 0.18°)
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.)
225/45R17 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°06' +/- 0°11' (0.10° +/- 0.18°)
B - A: 1.1 +/- 2.0 mm (0.0433 +/- 0.0787 in.)
225/40R18 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°06' +/- 0°11' (0.11° +/- 0.18°)
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.)


Toe-in (Unloaded Vehicle) (for GTMC Made):
Engine Tire Size Specified Condition

*: w/ Differential Support Guard

NR Series 205/55R16 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)
225/45R17 C + D: 0°06' +/- 0°11' (0.10° +/- 0.18°)
B - A: 1.1 +/- 2.0 mm (0.0433 +/- 0.0787 in.)
M15C-FKS 205/55R16 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°06' +/- 0°11' (0.10° +/- 0.18°)
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.)
8ZR-FXE 205/55R16
225/45R17 		C + D: 0°04' +/- 0°11' (0.06° +/- 0.18°)*
B - A: 0.7 +/- 2.0 mm (0.0276 +/- 0.0787 in.)*
C + D: 0°06' +/- 0°11' (0.10° +/- 0.18°)
B - A: 1.0 +/- 2.0 mm (0.0394 +/- 0.0787 in.)
M20C-FKS 205/55R16 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°07' +/- 0°11' (0.11° +/- 0.18°)
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.)
225/45R17 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°06' +/- 0°11' (0.10° +/- 0.18°)
B - A: 1.1 +/- 2.0 mm (0.0433 +/- 0.0787 in.)
M20F-FXS 205/55R16 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°07' +/- 0°11' (0.11° +/- 0.18°)
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.)
225/45R17 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°06' +/- 0°11' (0.10° +/- 0.18°)
B - A: 1.1 +/- 2.0 mm (0.0433 +/- 0.0787 in.)


HINT:

Measure "B - A" only when "C + D" cannot be measured.


If the toe-in is not within the specified range, adjust it at the steering rack ends.


Hide 6.ADJUST TOE-IN

a.

Separate the steering rack boot clips from the steering rack boot.


b.

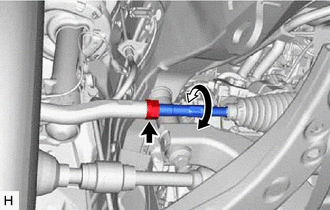

C397741

Loosen the tie rod end sub-assembly lock nuts.


c.

Turn the right and left steering rack ends by an equal amount to adjust the toe-in.

HINT:
·

If the toe-in measurement is greater than the specified range (too much toe-out), extend the shorter rack end so that the difference in length is within the specified range.

·

If the toe-in measurement is less than the specified range (too much toe-in), shorten the longer rack end so that the difference in length is within the specified range.




d.
C317577C06
1.625,0.51 1.781,0.708 0.156,0.198 10 false A 1.667,1.365 1.823,1.563 0.156,0.198 10 false B 1.031,0.323 1.188,0.521 0.156,0.198 10 false C 2.208,0.344 2.365,0.542 0.156,0.198 10 false D
V100135

Front of the Vehicle


Measure the toe-in.

Toe-in (Unloaded Vehicle) (for TFTM Made):
Engine Tire Size Specified Condition

*: w/ Differential Support Guard

NR Series 195/65R15
205/55R16 		C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)
M15B-FKS 195/65R15
205/55R16 		C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°07' +/- 0°11' (0.11° +/- 0.18°)
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.)
8ZR-FXE 195/65R15
205/55R16
225/45R17 		C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°06' +/- 0°11' (0.10° +/- 0.18°)
B - A: 1.1 +/- 2.0 mm (0.0433 +/- 0.0787 in.)
M20E-FKS 205/55R16 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°07' +/- 0°11' (0.11° +/- 0.18°)
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.)
225/45R17 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°06' +/- 0°11' (0.10° +/- 0.18°)
B - A: 1.1 +/- 2.0 mm (0.0433 +/- 0.0787 in.)
225/40R18 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°06' +/- 0°11' (0.11° +/- 0.18°)
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.)
M20G-FXS 205/55R16 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°07' +/- 0°11' (0.11° +/- 0.18°)
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.)
225/45R17 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°06' +/- 0°11' (0.10° +/- 0.18°)
B - A: 1.1 +/- 2.0 mm (0.0433 +/- 0.0787 in.)
225/40R18 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°06' +/- 0°11' (0.11° +/- 0.18°)
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.)


Toe-in (Unloaded Vehicle) (for GTMC Made):
Engine Tire Size Specified Condition

*: w/ Differential Support Guard

NR Series 205/55R16 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)
225/45R17 C + D: 0°06' +/- 0°11' (0.10° +/- 0.18°)
B - A: 1.1 +/- 2.0 mm (0.0433 +/- 0.0787 in.)
M15C-FKS 205/55R16 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°06' +/- 0°11' (0.10° +/- 0.18°)
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.)
8ZR-FXE 205/55R16
225/45R17 		C + D: 0°04' +/- 0°11' (0.06° +/- 0.18°)*
B - A: 0.7 +/- 2.0 mm (0.0276 +/- 0.0787 in.)*
C + D: 0°06' +/- 0°11' (0.10° +/- 0.18°)
B - A: 1.0 +/- 2.0 mm (0.0394 +/- 0.0787 in.)
M20C-FKS 205/55R16 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°07' +/- 0°11' (0.11° +/- 0.18°)
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.)
225/45R17 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°06' +/- 0°11' (0.10° +/- 0.18°)
B - A: 1.1 +/- 2.0 mm (0.0433 +/- 0.0787 in.)
M20F-FXS 205/55R16 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°07' +/- 0°11' (0.11° +/- 0.18°)
B - A: 1.2 +/- 2.0 mm (0.0472 +/- 0.0787 in.)
225/45R17 C + D: 0°04' +/- 0°11' (0.07° +/- 0.18°)*
B - A: 0.8 +/- 2.0 mm (0.0315 +/- 0.0787 in.)*
C + D: 0°06' +/- 0°11' (0.10° +/- 0.18°)
B - A: 1.1 +/- 2.0 mm (0.0433 +/- 0.0787 in.)


HINT:

Perform adjustments so that the value is as close as possible to the median of the specified range.



e.

Tighten the tie rod end sub-assembly lock nuts.

Torque:
74 N*m (755 kgf*cm, 55 ft.*lbf)


f.

Place the steering rack boots on the seats and install the steering rack boot clips.

HINT:

Make sure that the steering rack boots are not twisted.



Hide 7.INSPECT WHEEL ANGLE

a.
C132439C03
0.863,0.204 1.036,0.381 0.173,0.177 10 *b 0.538,0.204 0.713,0.381 0.176,0.177 10 *a 2.397,0.204 2.57,0.381 0.173,0.177 10 *b 2.725,0.204 2.901,0.381 0.176,0.177 10 *a
*a Inside
*b Outside
V100135

Front of the Vehicle


Put tread center marks on the rearmost points of a turning radius gauge.


b.

Turn the steering wheel fully to the left and right and measure the turning angle.

NOTICE:

Inspect while the vehicle is unloaded.


Wheel Turning Angle (Unloaded Vehicle) (for TFTM Made):
Engine Tire Size Inside Wheel Outside Wheel

*: w/ Differential Support Guard

NR Series 195/65R15
205/55R16 		40°39' +/- 2°00' (40.65° +/- 2.00°) 34°07' (34.12°)
M15B-FKS 195/65R15
205/55R16 		40°40' +/- 2°00' (40.67° +/- 2.00°)*
40°01' +/- 2°00' (40.02° +/- 2.00°) 		34°08' (34.14°)*
33°46' (33.77°)
8ZR-FXE 195/65R15
205/55R16 		40°39' +/- 2°00' (40.65° +/- 2.00°)*
40°00' +/- 2°00' (40.00° +/- 2.00°) 		34°08' (34.13°)*
33°45' (33.75°)
225/45R17 38°16' +/- 2°00' (38.27° +/- 2.00°)*
37°41' +/- 2°00' (37.69° +/- 2.00°) 		32°44' (32.73°)*
32°23' (32.38°)
M20E-FKS 205/55R16 40°39' +/- 2°00' (40.65° +/- 2.00°)*
40°00' +/- 2°00' (40.00° +/- 2.00°) 		34°08' (34.13°)*
33°46' (33.77°)
225/45R17
225/40R18 		38°16' +/- 2°00' (38.27° +/- 2.00°)*
37°41' +/- 2°00' (37.69° +/- 2.00°) 		32°44' (32.73°)*
32°23' (32.38°)
M20G-FXS 205/55R16 40°39' +/- 2°00' (40.65° +/- 2.00°)*
40°00' +/- 2°00' (40.00° +/- 2.00°) 		34°08' (34.13°)*
33°46' (33.77°)
225/45R17
225/40R18 		38°16' +/- 2°00' (38.27° +/- 2.00°)*
37°41' +/- 2°00' (37.69° +/- 2.00°) 		32°44' (32.73°)*
32°23' (32.38°)


Wheel Turning Angle (Unloaded Vehicle) (for GTMC Made):
Engine Tire Size Inside Wheel Outside Wheel

*: w/ Differential Support Guard

NR Series 205/55R16 40°39' +/- 2°00' (40.65° +/- 2.00°) 34°07' (34.12°)
225/45R17 37°41' +/- 2°00' (37.68° +/- 2.00°) 32°22' (32.37°)
M15C-FKS 205/55R16 40°40' +/- 2°00' (40.67° +/- 2.00°)*
40°01' +/- 2°00' (40.02° +/- 2.00°) 		34°08' (34.14°)*
33°46' (33.77°)
8ZR-FXE 205/55R16 40°37' +/- 2°00' (40.62° +/- 2.00°)*
39°58' +/- 2°00' (39.97° +/- 2.00°) 		34°06' (34.10°)*
33°43' (33.72°)
225/45R17 38°14' +/- 2°00' (38.23° +/- 2.00°)*
37°39' +/- 2°00' (37.65° +/- 2.00°) 		32°42' (32.70°)*
32°21' (32.35°)
M20C-FKS 205/55R16 40°39' +/- 2°00' (40.65° +/- 2.00°)*
40°00' +/- 2°00' (40.00° +/- 2.00°) 		34°08' (34.13°)*
33°46' (33.77°)
225/45R17 38°16' +/- 2°00' (38.27° +/- 2.00°)*
37°41' +/- 2°00' (37.69° +/- 2.00°) 		32°44' (32.73°)*
32°23' (32.38°)
M20F-FXS 205/55R16 40°39' +/- 2°00' (40.65° +/- 2.00°)*
40°00' +/- 2°00' (40.00° +/- 2.00°) 		34°08' (34.13°)*
33°46' (33.77°)
225/45R17 38°16' +/- 2°00' (38.27° +/- 2.00°)*
37°41' +/- 2°00' (37.69° +/- 2.00°) 		32°44' (32.73°)*
32°23' (32.38°)


If the right and left inside wheel angles differ from the specified value, check and adjust the right and left steering rack end lengths.



Hide 8. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

Hide 10. PERFORM ACCELERATION SENSOR ZERO POINT CALIBRATION AND STORE SYSTEM INFORMATION MEMORIZATION (for Gasoline Model)

for NR Series: Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for Gasoline Model (NR Series))>UTILITY
