RM3660EC _51 Engine / Hybrid System _080739 NR Series ENGINE MECHANICAL _0391935 ENGINE ASSEMBLY A

NR Series ENGINE MECHANICAL ENGINE ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during engine assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of ECM	Perform Vehicle Identification Number (VIN) or frame number registration	DTC is stored	(201906,999999,_51,_080777,_0393969,RM100000001I1RD,)
	1. Reset memory 2. Deceleration sensor zero point calibration 3. CVT oil pressure calibration	· Large shift shock · Deterioration of fuel efficiency	(201906,999999,_52,_080728,_0392261,RM100000001HP98,)
	Code registration (Immobiliser system)	Engine start	See Service Bulletin for the registration method
Replacement of piston ring	Clear Heavy Knock History	-	(201906,999999,_51,_080777,_0393969,RM100000001I1RE,)
· Replacement of engine assembly · Gas leaks from exhaust system	Inspection After Repair	· Poor idle, etc. · Engine start function, etc.	(201906,999999,_51,_080777,_0393969,RM100000001I1RE,)
Replacement of starter assembly	Clear the number of starter operations	Stop and Start System	(201906,999999,_51,_080774,_0393362,RM100000001HXHH,)
Replacement of battery	Integrated current value initialization	Stop and Start System	(201906,999999,_51,_080774,_0393362,RM100000001HXHH,)
Replacement of continuously variable transaxle assembly	Air bleed the oil pump with motor assembly	Stop and Start System	(201906,999999,_51,_080774,_0393362,RM100000001HXHH,)
Replacement of continuously variable transaxle assembly	1. Reset memory 2. Deceleration sensor zero point calibration 3. CVT oil pressure calibration	· Large shift shock · Deterioration of fuel efficiency	(201906,999999,_52,_080728,_0392261,RM100000001HP98,)
Replacement of CVT fluid	Air bleed the oil pump with motor assembly	Stop and Start System	(201906,999999,_51,_080774,_0393362,RM100000001HXHH,)
Replacement of CVT fluid	ATF thermal degradation estimate reset	The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly	(201906,999999,_52,_080728,_0392261,RM100000001HP98,)
Tires	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
Suspension parts	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
Front wheel alignment adjustment	· Perform "Reset Memory" · Perform acceleration sensor zero point calibration and store system information memorization	· VSC is disabled or malfunctions · DTCs are stored · Slip indicator light illuminates · ABS warning light illuminates	(202304,999999,_54,_080770,_0599814,RM100000002BA8F,)

CAUTION:

2.219,0.813 2.646,0.813 false 2.698,0.729 3.01,0.927 0.313,0.198 10 false *a

*a	An Object Exceeding Weight Limit of Engine Lifter

The engine assembly with transaxle is very heavy. Be sure to follow the procedure described in the repair manual, or the engine lifter may suddenly drop or the engine assembly with transaxle may fall off the engine lifter.

To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
Pre-collision System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Lane Tracing Assist System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)

PROCEDURE

Hide Display 1. PRECAUTION

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202304,202502,_V1,_143216,_0598315,RM100000002B3MI,202502,999999,_V1,_143216,_0598315,RM100000002RP07,

Hide Display 2.RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REFRIGERANT>REPLACEMENT202304,999999,_58,_080733,_0393725,RM100000002B1HP_01_0001,

Hide Display 3. DISCHARGE FUEL SYSTEM PRESSURE

Click hereEngine / Hybrid System>NR Series (FUEL)>FUEL SYSTEM>PRECAUTION202304,999999,_51,_080750,_0393845,RM100000002BH2H,

Hide Display 4. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

Hide Display 5.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Click hereGeneral>MAINTENANCE>NR Series BATTERY>REMOVAL202304,999999,_V1,_080956,_0392375,RM100000002BCCL_05_0005,

Hide Display 6.SECURE STEERING WHEEL

Click hereSteering>STEERING GEAR / LINKAGE>STEERING GEAR>REMOVAL202304,202307,_55,_080765,_0392687,RM100000002BA81_01_0124,202307,999999,_55,_080765,_0392687,RM100000002CQYW_01_0124,

Hide Display 7.REMOVE FRONT WHEELS

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL202304,202307,_V1,_080956,_0392691,RM100000002B9S6_01_0001,202307,999999,_V1,_080956,_0392691,RM100000002CWK9_01_0001,

Hide Display 51410 8.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

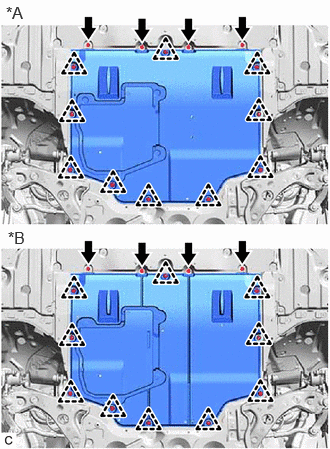

0.063,0.031 0.438,0.271 0.375,0.24 12 false *A 0.083,2.375 0.458,2.615 0.375,0.24 12 false *B

*A	Type A
*B	Type B

Remove the 4 bolts, 10 clips and No. 1 engine under cover assembly from the vehicle.

Hide Display 51444A 9.REMOVE REAR ENGINE UNDER COVER LH

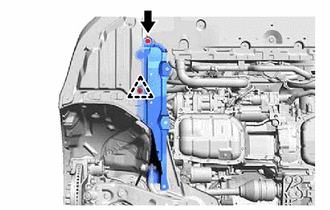

Remove the 3 clips.

Remove the screw.

Remove the clip and rear engine under cover LH from the vehicle.

Hide Display 51443C 10.REMOVE REAR ENGINE UNDER COVER RH

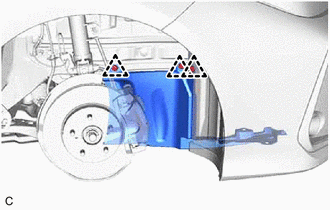

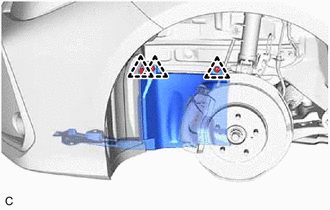

Remove the 3 clips.

Remove the screw.

Remove the clip and rear engine under cover RH from the vehicle.

Hide Display 11.DRAIN ENGINE OIL

Click hereGeneral>MAINTENANCE>NR Series OIL AND OIL FILTER>REPLACEMENT202101,999999,_V1,_080956,_0392373,RM100000001TTC4_01_0005,

Hide Display 12.DRAIN ENGINE COOLANT

Click hereGeneral>MAINTENANCE>NR Series COOLANT (for Engine Coolant)>REPLACEMENT201906,999999,_V1,_080956,_0392634,RM100000001HRVM_01_0004,

Hide Display 13.DRAIN COOLANT (for Intercooler)

Click hereGeneral>MAINTENANCE>NR Series COOLANT (for Intercooler)>REPLACEMENT201906,999999,_V1,_080956,_0392164,RM100000001HOGB_01_0010,

Hide Display 14.DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID

Click hereDrivetrain>K313 (CVT)>OIL PAN>REMOVAL201906,999999,_52,_080728,_0392268,RM100000001HPAR_02_0002,

Hide Display 15.REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>FRONT WIPER MOTOR>REMOVAL202304,202307,_59,_080767,_0392873,RM100000002AYHJ,202307,999999,_59,_080767,_0392873,RM100000002CL7Q,

Hide Display 55737B 16.REMOVE NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL (w/ No. 1 Heater Air Duct Splash Shield Seal)

Click hereSuspension>FRONT SUSPENSION>FRONT SHOCK ABSORBER>REMOVAL202304,202307,_53,_080764,_0392681,RM100000002BA6Q_01_0045,202307,999999,_53,_080764,_0392681,RM100000002CW5B_01_0045,

Hide Display 55701J 17.REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

Click hereDrivetrain>K313 (CVT)>CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY (When Using the Engine Support Bridge)>REMOVAL202304,999999,_52,_080728,_0392263,RM100000002BCJH_02_0125,

Hide Display 18.REMOVE BATTERY

Click hereGeneral>MAINTENANCE>NR Series BATTERY>REMOVAL202304,999999,_V1,_080956,_0392375,RM100000002BCCL_05_0006,

Hide Display 53289A 19.REMOVE RADIATOR SUPPORT OPENING COVER

for TFTM Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>REMOVAL202304,202307,_59,_080736,_0392548,RM100000002AMO3_01_0020,202307,999999,_59,_080736,_0392548,RM100000002CH8T_01_0020,

for GTMC Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>REMOVAL202304,202307,_59,_080736,_0392547,RM100000002AXCM_01_0020,202307,999999,_59,_080736,_0392547,RM100000002CHFA_01_0020,

Hide Display 17751 20.REMOVE INLET NO. 1 AIR CLEANER

Click hereEngine / Hybrid System>NR Series (COOLING)>COOLING FAN MOTOR>REMOVAL201906,999999,_51,_080776,_0392641,RM100000001HRWA_02_0042,

Hide Display 17705 21.REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

1.229,2.792 0.719,2.552 0.719,2.552 1.271,2.365 true 2.781,3 3.031,3.104 3.031,3.104 2.854,2.406 true 0.427,2.427 0.656,2.635 0.229,0.208 10 true *2 3.042,3.156 3.271,3.365 0.229,0.208 10 true *1

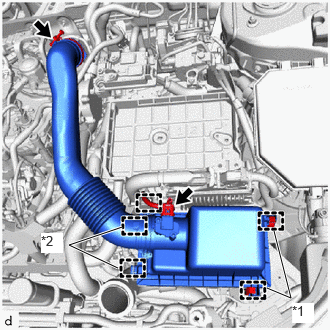

*1	Air Cleaner Cap Sub-assembly Clamp
*2	Guide

Disconnect the mass air flow meter connector.

Disengage the clamp from the air cleaner cap sub-assembly.

Disengage the 2 air cleaner cap sub-assembly clamps.

Disengage the 2 guides to separate the air cleaner cap sub-assembly from the air cleaner case sub-assembly.

Loosen the hose clamp and remove the air cleaner cap with air cleaner hose from the No. 1 inlet air duct sub-assembly.

Hide Display 17701 22.REMOVE AIR CLEANER CASE SUB-ASSEMBLY

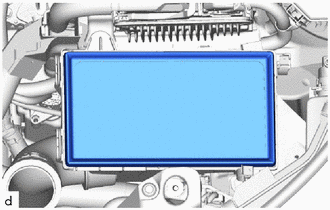

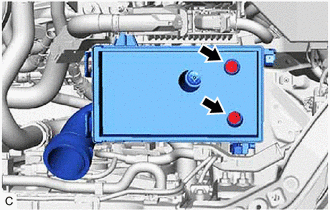

Remove the air cleaner filter element sub-assembly from the air cleaner case sub-assembly.

Remove the 2 bolts and air cleaner case sub-assembly from the vehicle.

Hide Display 89661 23.REMOVE ECM

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>ECM>REMOVAL202304,999999,_51,_080777,_0392337,RM100000002BCAH,

Hide Display 24.DISCONNECT ENGINE WIRE

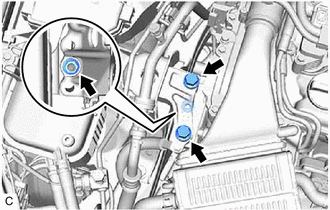

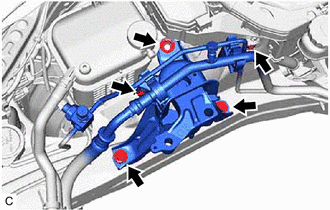

Remove the 2 bolts to separate the engine wire from the vehicle.

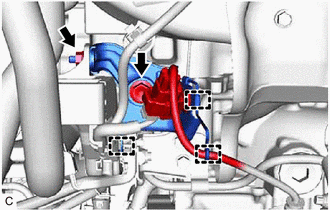

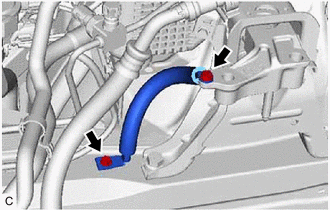

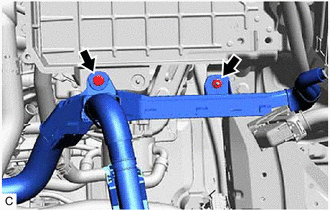

Remove the bolt and nut to separate the engine wire from the battery clamp sub-assembly.

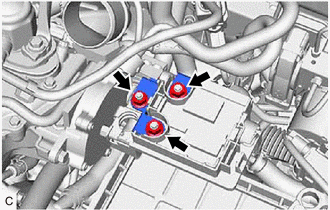

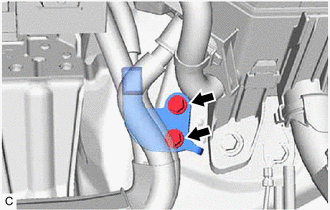

Remove the 3 nuts to separate the engine wire from the positive (+) battery terminal.

Hide Display 74404A 25.REMOVE BATTERY CLAMP SUB-ASSEMBLY

Disengage the clamp to separate the engine wire from the battery clamp sub-assembly.

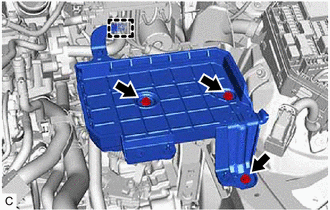

Remove the 3 bolts and battery clamp sub-assembly from the vehicle.

Hide Display 16571C 26.DISCONNECT NO. 1 RADIATOR HOSE

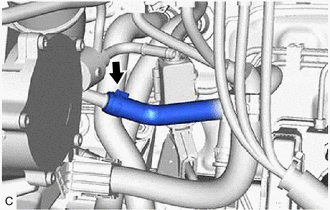

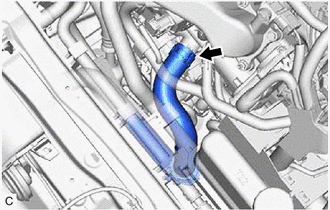

Slide the clip and disconnect the No. 1 radiator hose from the water outlet.

Hide Display 16572D 27.DISCONNECT NO. 2 RADIATOR HOSE

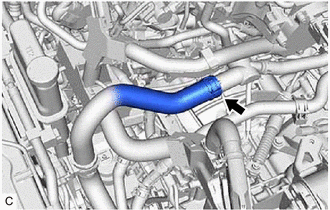

Slide the clip and disconnect the No. 2 radiator hose from the water inlet with thermostat sub-assembly.

Hide Display 16551C 28.DISCONNECT NO. 1 INTERCOOLER COOLING WATER HOSE

Click hereEngine / Hybrid System>NR Series (INTAKE / EXHAUST)>INTERCOOLER>REMOVAL201906,999999,_51,_080791,_0392519,RM100000001HRDK_01_0021,

Hide Display 16554C 29.DISCONNECT NO. 4 INTERCOOLER COOLING WATER HOSE

Click hereEngine / Hybrid System>NR Series (INTAKE / EXHAUST)>INTERCOOLER>REMOVAL201906,999999,_51,_080791,_0392519,RM100000001HRDK_01_0022,

Hide Display 33820B 30.DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

Click hereDrivetrain>K313 (CVT)>PARK / NEUTRAL POSITION SWITCH>REMOVAL202304,999999,_52,_080728,_0392272,RM100000002BCJK_02_0014,

Hide Display 31.DISCONNECT UNION TO CONNECTOR TUBE HOSE

for 8NR-FTS:

Click hereBrake>BRAKE SYSTEM (OTHER)>VACUUM PUMP (for 8NR-FTS)>REMOVAL202304,999999,_54,_080771,_0392414,RM100000002BCMD_01_0038,

for 9NR-FTS:

Click hereBrake>BRAKE SYSTEM (OTHER)>VACUUM PUMP (for 9NR-FTS)>REMOVAL202304,999999,_54,_080771,_0392486,RM100000002BCMC_01_0038,

Hide Display 23829A 32.DISCONNECT FUEL VAPOR FEED HOSE

Slide the clip and disconnect the fuel vapor feed hose from the fuel vapor feed pipe.

Hide Display 87246 33.DISCONNECT OUTLET HEATER WATER HOSE

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING UNIT (for Gasoline Model)>REMOVAL202304,202307,_58,_080733,_0393729,RM100000002B1HY_02_0200,202307,999999,_58,_080733,_0393729,RM100000002D3V5_02_0200,

Hide Display 87245 34.DISCONNECT INLET HEATER WATER HOSE

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING UNIT (for Gasoline Model)>REMOVAL202304,202307,_58,_080733,_0393729,RM100000002B1HY_02_0201,202307,999999,_58,_080733,_0393729,RM100000002D3V5_02_0201,

Hide Display 23901 35.DISCONNECT FUEL TUBE SUB-ASSEMBLY

Click hereEngine / Hybrid System>NR Series (FUEL)>FUEL PUMP (for High Pressure)>REMOVAL202304,999999,_51,_080750,_0393850,RM100000002BCBI_01_0011,

Hide Display 88703 36.DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>COMPRESSOR (for NR Series Engine)>REMOVAL201906,999999,_58,_080733,_0393734,RM100000001HZK9_01_0210,

Hide Display 88704 37.DISCONNECT SUCTION HOSE SUB-ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>COMPRESSOR (for NR Series Engine)>REMOVAL201906,999999,_58,_080733,_0393734,RM100000001HZK9_01_0211,

Hide Display 45259A 38.REMOVE COLUMN HOLE COVER SILENCER SHEET

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>REMOVAL202304,999999,_55,_080762,_0391589,RM100000002BCU5_01_0135,

Hide Display 45260 39.SEPARATE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>REMOVAL202304,999999,_55,_080762,_0391589,RM100000002BCU5_01_0126,

Hide Display 45025D 40.SEPARATE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY

Click hereSteering>STEERING GEAR / LINKAGE>STEERING GEAR>REMOVAL202304,202307,_55,_080765,_0392687,RM100000002BA81_01_0013,202307,999999,_55,_080765,_0392687,RM100000002CQYW_01_0013,

Hide Display 58166A 41.REMOVE FRONT FLOOR COVER LH

Click hereEngine / Hybrid System>NR Series (INTAKE / EXHAUST)>EXHAUST PIPE>REMOVAL201906,999999,_51,_080791,_0392520,RM100000001HREM_01_0043,

Hide Display 58165C 42.REMOVE FRONT FLOOR COVER RH

HINT:: Use the same procedure as for the LH side.

Hide Display 57533B 43.REMOVE FRONT FLOOR CENTER BRACE

Click hereEngine / Hybrid System>NR Series (INTAKE / EXHAUST)>EXHAUST PIPE>REMOVAL201906,999999,_51,_080791,_0392520,RM100000001HREM_01_0045,

Hide Display 17410 44.REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

Click hereEngine / Hybrid System>NR Series (EMISSION CONTROL)>MONOLITHIC CONVERTER>REMOVAL201906,999999,_51,_080792,_0392498,RM100000001HW76_01_0063,

Hide Display 45.REMOVE FRONT DRIVE SHAFT ASSEMBLY

for TFTM Made:

Click hereDrivetrain>DRIVE SHAFT / PROPELLER SHAFT>FRONT DRIVE SHAFT ASSEMBLY (for TFTM Made)>REMOVAL202304,202307,_52,_080779,_0392672,RM100000002BD5G,202307,999999,_52,_080779,_0392672,RM100000002CL7W,

for GTMC Made:

Click hereDrivetrain>DRIVE SHAFT / PROPELLER SHAFT>FRONT DRIVE SHAFT ASSEMBLY (for GTMC Made)>REMOVAL202304,202307,_52,_080779,_0392671,RM100000002BD5L,202307,999999,_52,_080779,_0392671,RM100000002CL92,

Hide Display 11361J 46.REMOVE FLYWHEEL HOUSING UNDER COVER

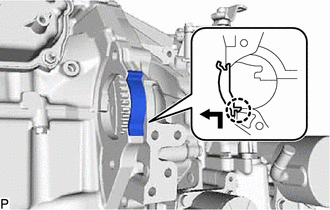

Remove the flywheel housing under cover.

Hide Display 32101G 47.REMOVE DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT

Click hereDrivetrain>K313 (CVT)>CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY (When Not Using the Engine Support Bridge)>REMOVAL202304,999999,_52,_080728,_0392264,RM100000002BCJG_02_0059,

Hide Display 51108A 48.REMOVE REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH

Click hereSuspension>FRONT SUSPENSION>FRONT SUSPENSION MEMBER>REMOVAL202304,202307,_53,_080764,_0392686,RM100000002BA7U_01_0197,202307,999999,_53,_080764,_0392686,RM100000002CQYS_01_0197,

Hide Display 51107A 49.REMOVE REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.

Hide Display 50.REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

Set the engine assembly with transaxle on an engine lifter.

NOTICE:: ·

Using height adjustment attachments and plate lift attachments, keep the engine assembly with transaxle and front suspension crossmember sub-assembly level.

·

Do not perform any procedures while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.

·

To prevent the engine assembly from unexpectedly moving, securely support the engine assembly until it is secured to an engine stand.

·

To prevent the oil pan sub-assembly from deforming, do not place any attachments under the oil pan sub-assembly of the engine assembly with transaxle.

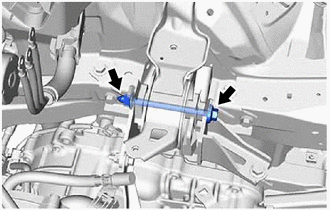

Remove the 2 bolts and nut and separate the engine mounting insulator sub-assembly RH from the engine mounting bracket RH.

Remove the bolt and nut and separate the engine mounting insulator LH from the engine mounting bracket LH.

NOTICE:: While holding the nut in place, loosen the bolt.

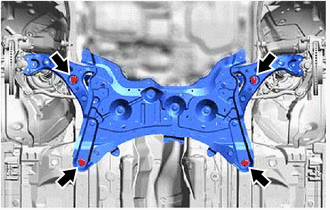

Remove the 4 bolts to separate the front suspension crossmember sub-assembly from the vehicle.

Operate the engine lifter and remove the engine assembly with transaxle from the vehicle.

NOTICE:: ·

Make sure that the engine assembly with transaxle is clear of all wiring and hoses.

·

While lowering the engine assembly with transaxle from the vehicle, do not allow it to contact the vehicle.

Hide Display 51.REMOVE WIRE HARNESS CLAMP BRACKET

Disengage the 3 clamps.

Remove the nut to separate the engine wire from the wire harness clamp bracket.

Remove the bolt and wire harness clamp bracket from the cylinder head sub-assembly.

Hide Display 52.INSTALL ENGINE HANGERS

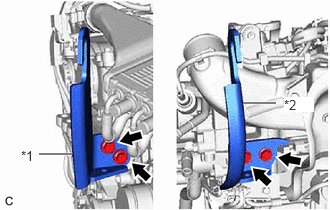

0.406,1.604 0.75,1.604 true 2.531,1.073 2.875,1.073 true 0.219,1.542 0.531,1.698 0.313,0.156 10 false *1 2.958,1.01 3.271,1.167 0.313,0.156 10 true *2

*1	No. 1 Engine Hanger
*2	No. 2 Engine Hanger
	Bolt

Install the No. 1 engine hanger and No. 2 engine hanger with the 4 bolts as shown in the illustration.

Torque:: 43 N*m (438 kgf*cm, 32 ft.*lbf)

HINT:

No. 1 Engine Hanger	12281-47060 12281-0Y090
No. 2 Engine Hanger	12282-47030 12282-0Y070
Bolt	91552-81030 90105-C0095

Using an engine sling device and engine lift, secure the engine assembly with transaxle.

NOTICE:: ·

Pay attention to the angle of the sling device as the engine assembly or No. 1 engine hanger and No. 2 engine hanger may be damaged or deformed if the angle is incorrect.

·

Do not perform any procedures while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.

Hide Display 12372A 53.REMOVE ENGINE MOUNTING INSULATOR LH

HINT:: Perform this procedure only when replacement of the engine mounting insulator LH is necessary.

Remove the 4 bolts, nut and engine mounting insulator LH from the vehicle.

Hide Display 12305 54.REMOVE ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH

HINT:: Perform this procedure only when replacement of the engine mounting insulator sub-assembly RH is necessary.

Remove the 2 bolts and No. 2 earth wire from the engine mounting insulator sub-assembly RH and vehicle.

Remove the bolt, nut and disconnect the air conditioner tube and accessory assembly.

Remove the 2 bolts, nut and engine mounting insulator sub-assembly RH from the vehicle.

Hide Display 55.REMOVE WATER HOSE

Disengage the 3 clamps from the engine assembly with transaxle.

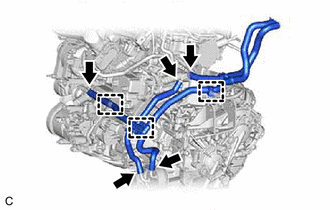

Slide the 5 clips and remove the water hose from the engine assembly with transaxle.

Hide Display 28100 56.REMOVE STARTER ASSEMBLY

Click hereEngine / Hybrid System>NR Series (STARTING)>STARTER>REMOVAL202304,999999,_51,_080759,_0392365,RM100000002BCFB,

Hide Display 11363A 57.REMOVE FLYWHEEL HOUSING SIDE COVER

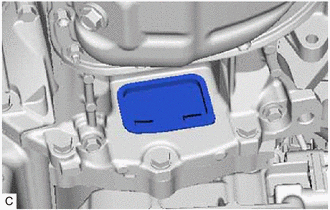

Remove the flywheel housing side cover from the cylinder block sub-assembly.

Hide Display 82121 58.REMOVE ENGINE WIRE

Disconnect all the clamps and connectors and remove the engine wire from the engine assembly with transaxle.

Hide Display 59.REMOVE ENGINE ASSEMBLY

Click hereDrivetrain>K313 (CVT)>CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY (When Not Using the Engine Support Bridge)>REMOVAL202304,999999,_52,_080728,_0392264,RM100000002BCJG_02_0037,

Hide Display 32101B 60.REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>REAR CRANKSHAFT OIL SEAL>REMOVAL202304,999999,_51,_080739,_0391934,RM100000002BCMO_03_0369,

Hide Display 12321B 61.REMOVE DRIVE SHAFT HEAT INSULATOR SUB-ASSEMBLY

Click hereEngine / Hybrid System>NR Series (EMISSION CONTROL)>MONOLITHIC CONVERTER>REMOVAL201906,999999,_51,_080792,_0392498,RM100000001HW76_01_0126,

Hide Display 16361A 62.REMOVE V-RIBBED BELT

Click hereGeneral>MAINTENANCE>NR Series DRIVE BELT>REMOVAL201906,999999,_V1,_080956,_0392300,RM100000001HPPO_03_0020,

Hide Display 16620 63.REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

0.052,0.052 0.427,0.292 0.375,0.24 12 false *A 0.042,2.365 0.417,2.604 0.375,0.24 12 false *B

*A	Type A
*B	Type B

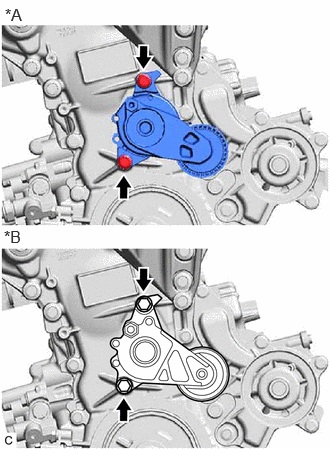

Remove the 2 bolts and V-ribbed belt tensioner assembly from the timing chain cover assembly.

Hide Display 27020 64.REMOVE GENERATOR ASSEMBLY

Click herePower Source / Network>NR Series (BATTERY / CHARGING)>GENERATOR>REMOVAL202304,999999,_57,_080760,_0392371,RM100000002BCFU_01_0004,

Hide Display 88310 65.REMOVE COMPRESSOR ASSEMBLY WITH PULLEY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>COMPRESSOR (for NR Series Engine)>REMOVAL201906,999999,_58,_080733,_0393734,RM100000001HZK9_01_0199,

Hide Display 66.INSTALL ENGINE ASSEMBLY TO ENGINE STAND

Install the engine assembly to an engine stand.

Hide Display 67.REMOVE ENGINE HANGERS

Remove the 4 bolts, No. 1 engine hanger and No. 2 engine hanger.
