RM3660EC _59 Vehicle Exterior _080767 WIPER / WASHER _0392873 FRONT WIPER MOTOR A

WIPER / WASHER  FRONT WIPER MOTOR  REMOVAL


CAUTION / NOTICE / HINT

NOTICE:

Make sure to hold the front wiper arm while lifting it, as lifting the front wiper arm by the front wiper blade may damage or deform the front wiper blade.


PROCEDURE

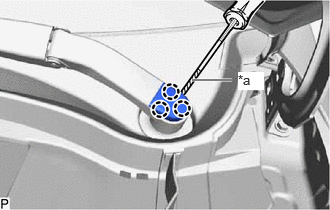

Hide 85292B 1.REMOVE FRONT WIPER ARM HEAD CAP

a.
E398812C01
2,0.833 2.417,0.833 true 2.479,0.75 2.75,0.938 0.271,0.188 10 true *a
*a Protective Tape


Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws to remove the front wiper arm head cap.

HINT:

Use the same procedure for the RH side and LH side.



Hide 2.REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH

a.

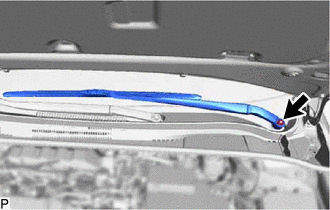

E398813

Remove the nut and front wiper arm and blade assembly LH.

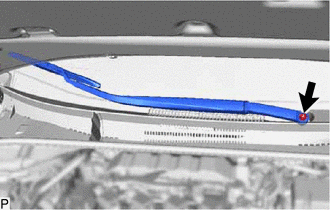

Hide 3.REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH

a.
E398814

Remove the nut and front wiper arm and blade assembly RH.


Hide 55754F 4.REMOVE COWL WATER EXTRACT SHIELD LH

a.
E512090

Disengage the 2 claws and guide.


b.

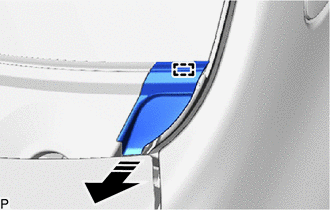

E512091C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the guide to remove the cowl water extract shield LH as shown in the illustration.


Hide 55753D 5.REMOVE COWL WATER EXTRACT SHIELD RH

HINT:

Use the same procedure as for the LH side.


Hide 55708 6.REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

NOTICE:

To prevent damage to the windshield glass, remove any foreign matter (sand, dust, etc.) from around the contacting surfaces of the cowl top ventilator louver sub-assembly and windshield glass.


a.

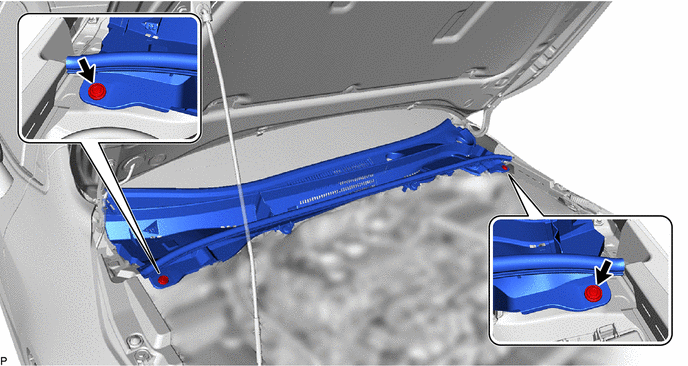

Remove the 2 clips.

E512092


b.

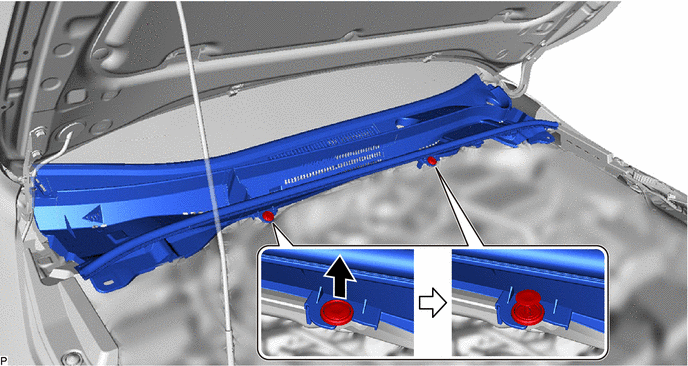

Disconnect the 2 clips as shown in the illustration.

E512093

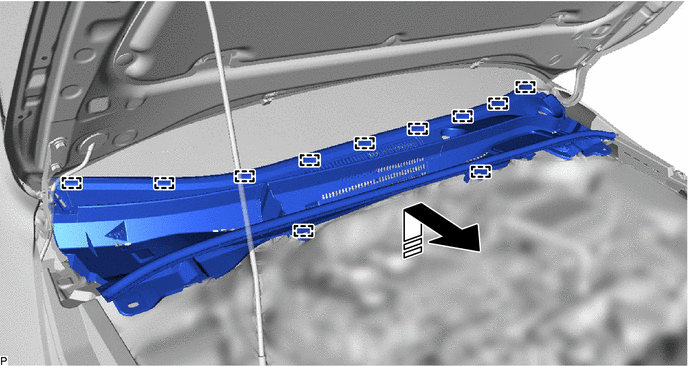

c.

Disengage the 11 guides to remove the cowl top ventilator louver sub-assembly as shown in the illustration.

E512094C01
0,0 0,0 false
V113147

Remove in this Direction - -



Hide 7.REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

a.

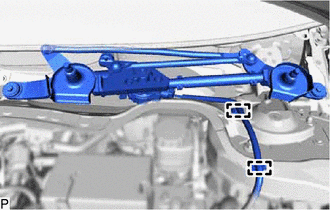

E411968

Disengage the 2 clamps.

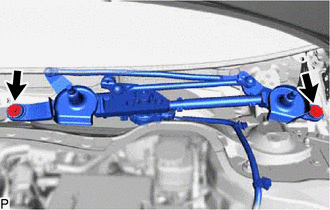

b.
E411969

Remove the 2 bolts.


c.

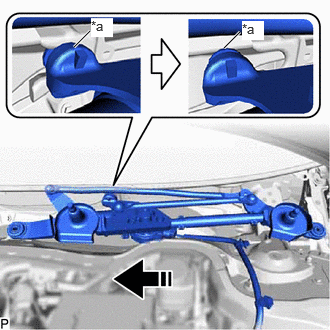

E411970C02
0.938,0.323 0.771,0.49 true 2.5,0.333 2.333,0.5 true 0.948,0.188 1.177,0.385 0.229,0.198 10 true *a 2.521,0.219 2.75,0.417 0.229,0.198 10 true *a
*a Motor Grommet
V113147

Remove in this Direction


Disengage the motor grommet as shown in the illustration.


d.

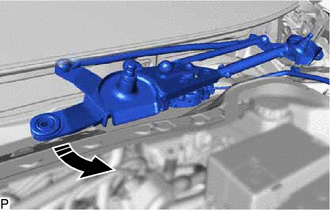

E411971C01
0,0 0,0 false
V113147

Pull out in this Direction


Pull out the windshield wiper motor and link assembly as shown in the illustration.

NOTICE:

Be careful not to damage the windshield glass when removing the windshield wiper motor and link assembly.



e.

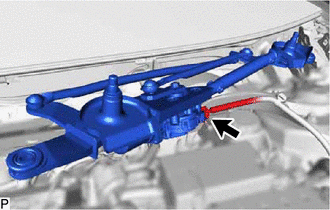

E411973

Disconnect the connector to remove the windshield wiper motor and link assembly.

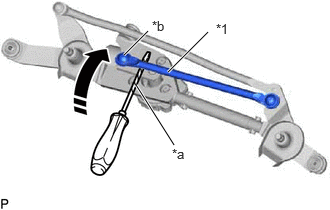

Hide 85110 8.REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY

a.
E398836C02
1.75,0.75 2.167,0.333 true 1.292,0.573 1.542,0.323 true 1.417,0.885 1.813,1.51 true 2.25,0.219 2.49,0.417 0.24,0.198 10 false *1 1.583,0.188 1.823,0.385 0.24,0.198 10 false *b 1.792,1.521 2.031,1.719 0.24,0.198 10 false *a
*1 No. 1 Wiper Link Rod
*a Protective Tape
*b Pivot of Windshield Wiper Motor Assembly
V113147

Remove in this Direction


Using a screwdriver with its tip wrapped with protective tape, separate the No. 1 wiper link rod from the pivot of the windshield wiper motor assembly as shown in the illustration.

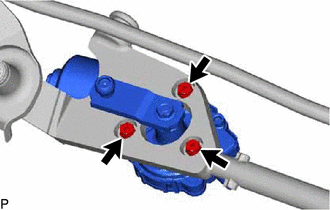

b.
E398837

Remove the 3 bolts.

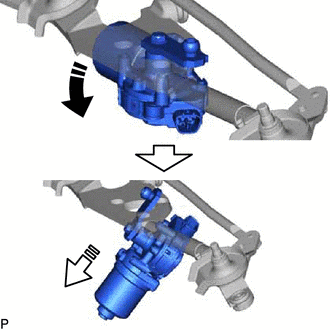

c.
E398838C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Move the windshield wiper motor assembly in the direction indicated by the arrow (1), then pull the windshield wiper motor assembly in the direction indicated by the arrow (2) shown in the illustration to remove it from the wiper link assembly.
