RM3660EC _56 Audio / Visual / Telematics _080753 TELEMATICS _0397006 TELEMATICS SYSTEM(for Gasoline Model) J

TELEMATICS  TELEMATICS SYSTEM(for Gasoline Model)  Received Voice Signal Circuit

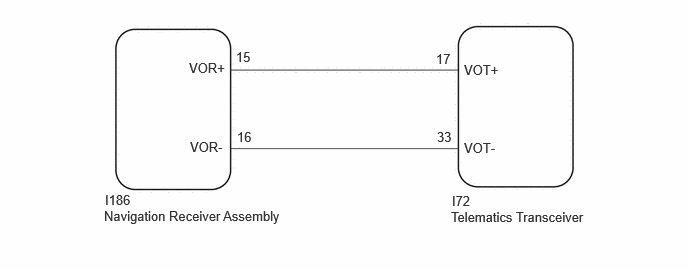

WIRING DIAGRAM

E515101E01
2.458,0.51 3.073,0.708 0.615,0.198 10 false 15 1.969,0.625 2.583,0.823 0.615,0.198 10 false VOR+ 1.979,1.448 2.594,1.646 0.615,0.198 10 false VOR- 4.833,0.646 5.448,0.844 0.615,0.198 10 false VOT+ 4.833,1.458 5.448,1.656 0.615,0.198 10 false VOT- 1.094,2 1.708,2.198 0.615,0.198 10 false I186 1.083,2.167 3.115,2.458 2.031,0.292 10 false Navigation Receiver Assembly 2.469,1.344 2.76,1.542 0.292,0.198 10 false 16 4.552,1.344 4.844,1.542 0.292,0.198 10 false 33 4.542,0.531 4.833,0.729 0.292,0.198 10 false 17 4.708,2.01 5.323,2.208 0.615,0.198 10 false I72 4.698,2.177 6.271,2.396 1.573,0.219 10 false Telematics Transceiver

CAUTION / NOTICE / HINT

NOTICE:
·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Telematics System.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM (for Gasoline Model)>PRECAUTION

·

Before replacing the telematics transceiver, refer to Service Bulletin.



PROCEDURE

1.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER)
a.

Disconnect the I186 navigation receiver assembly connector.


b.

Disconnect the I72 telematics transceiver connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I186-15 (VOR+) - I72-17 (VOT+) Always Below 1 Ω
I186-16 (VOR-) - I72-33 (VOT-) Always Below 1 Ω
I186-15 (VOR+) - Body ground Always 10 kΩ or higher
I186-16 (VOR-) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

2.CHECK TELEMATICS TRANSCEIVER

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.CHECK TELEMATICS TRANSCEIVER
a.

Remove the telematics transceiver with the connectors still connected.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


b.
E427042C10
1.469,0.583 1.917,0.885 0.448,0.302 0.823,2.042 1.073,3.094 1.073,3.094 1.25,3.094 true 0.792,1.948 0.969,1.229 0.969,1.229 1.135,1.229 true 1.188,1.146 2.052,1.427 0.865,0.281 10 false VOT+ (17) 1.313,3.021 1.958,3.271 0.646,0.25 10 false VOT- (33) 0.208,0.24 0.458,0.427 0.25,0.188 10 false *a 1.573,0.646 2.208,1.01 0.635,0.365 10 false I72

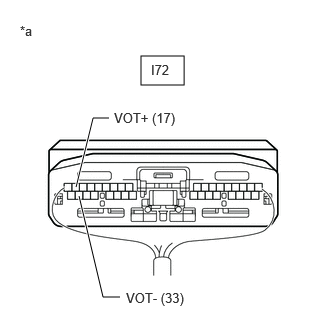

*a Component with harness connected
(Telematics Transceiver)


Check for pulses according to the value(s) in the table below.

Standard:
Tester Connection Condition Specified Condition
I72-17 (VOT+) - Body ground Calling while using the operator service A waveform synchronized with the sent voice is output
I72-33 (VOT-) - Body ground Calling while using the operator service A waveform synchronized with the sent voice is output



Result:
Proceed to
OK
NG



OK

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL


NG

3.REPLACE TELEMATICS TRANSCEIVER
