AUDIO / VIDEO  AUDIO AND VISUAL SYSTEM(for Gasoline Model with Radio and Display Type (except 10.25 Inch Display))  Speaker Circuit


DESCRIPTION

The sound signals amplified by the radio and display receiver assembly are sent to the speakers from the radio and display receiver assembly via the speaker circuit.

If there is a short in a speaker circuit, the radio and display receiver assembly detects it and stops output to the speakers.

Thus sound cannot be heard from the speakers even if there is no malfunction in the radio and display receiver assembly, telematics transceiver or speakers.

If a short is detected in a speaker circuit, no sound can be heard from the speakers.

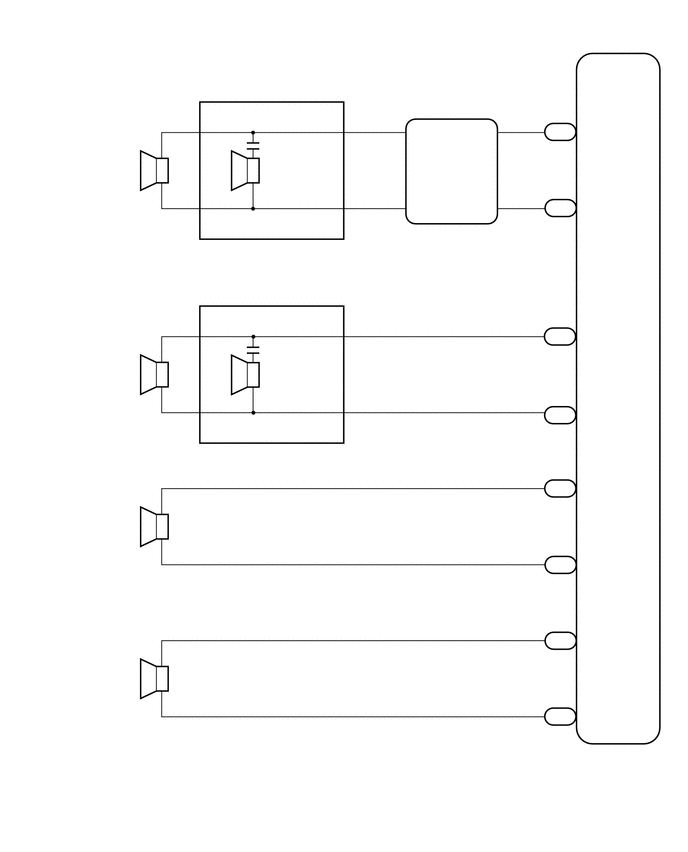

WIRING DIAGRAM

for 6 Speakers
E489785
5.354,7.844 7.031,8.292 1.677,0.448 10 false Radio and Display Receiver Assembly 1.667,2.573 3.938,3.073 2.271,0.5 10 false Front No. 2 Speaker Assembly RH 5.781,1.094 5.885,1.25 0.104,0.156 10 false 1 3.615,1.177 3.719,1.333 0.104,0.156 10 false 4 3.615,1.979 3.719,2.135 0.104,0.156 10 false 2 1.927,1.188 2.031,1.344 0.104,0.156 10 false 3 1.938,1.979 2.042,2.135 0.104,0.156 10 false 1 2.135,1.177 2.24,1.333 0.104,0.156 10 false + 2.135,1.99 2.24,2.146 0.104,0.156 10 false - 2.813,1.99 4.198,2.25 1.385,0.26 10 false -*1, TWR-*2 2.729,1.188 3.854,1.375 1.125,0.188 10 false +*1, TWR+*2 5.708,1.281 6.115,1.521 0.406,0.24 10 false I165 1.656,2.406 1.917,2.563 0.26,0.156 10 false I76 0.146,1.625 1.427,2.281 1.281,0.656 10 false Front No. 1 Speaker Assembly RH 0.146,1.458 0.406,1.615 0.26,0.156 10 false K1 1.667,4.688 3.948,5.042 2.281,0.354 10 false Front No. 2 Speaker Assembly LH 3.625,3.313 3.729,3.469 0.104,0.156 10 false 4 3.625,4.104 3.729,4.26 0.104,0.156 10 false 2 1.927,3.302 2.031,3.458 0.104,0.156 10 false 3 1.948,4.115 2.052,4.271 0.104,0.156 10 false 1 2.146,3.281 2.25,3.438 0.104,0.156 10 false + 2.156,4.104 2.26,4.26 0.104,0.156 10 false - 1.667,4.521 1.927,4.677 0.26,0.156 10 false I77 0.146,3.75 1.427,4.406 1.281,0.656 10 false Front No. 1 Speaker Assembly LH 0.146,3.563 0.406,3.719 0.26,0.156 10 false L1 0.49,5.354 1.396,6.01 0.906,0.656 10 false Rear Speaker Assembly RH 0.479,5.198 0.792,5.354 0.313,0.156 10 false M4 0.51,6.927 1.417,7.583 0.906,0.656 10 false Rear Speaker Assembly LH 0.5,6.74 0.792,6.896 0.292,0.156 10 false N4 6.073,1.281 6.365,1.438 0.292,0.156 10 false FR+ 6.052,2.104 6.313,2.26 0.26,0.156 10 false FR- 6.063,3.417 6.438,3.604 0.375,0.188 10 false FL+ 6.063,4.25 6.323,4.406 0.26,0.156 10 false FL- 6.063,5.01 6.365,5.167 0.302,0.156 10 false RR+ 6.073,5.792 6.354,5.948 0.281,0.156 10 false RR- 6.052,6.583 6.333,6.74 0.281,0.156 10 false RL+ 6.052,7.375 6.313,7.531 0.26,0.156 10 false RL- 5.781,7.177 5.885,7.333 0.104,0.156 10 false 6 5.792,6.396 5.896,6.552 0.104,0.156 10 false 2 5.781,5.604 5.885,5.76 0.104,0.156 10 false 3 5.792,4.813 5.896,4.969 0.104,0.156 10 false 1 5.781,4.042 5.885,4.198 0.104,0.156 10 false 6 5.771,3.229 5.875,3.385 0.104,0.156 10 false 2 5.792,1.885 5.896,2.042 0.104,0.156 10 false 5 1.51,2.021 1.615,2.177 0.104,0.156 10 false 1 1.521,1.375 1.625,1.531 0.104,0.156 10 false 2 1.531,4.146 1.635,4.302 0.104,0.156 10 false 1 1.531,3.51 1.635,3.667 0.104,0.156 10 false 2 1.521,5.708 1.625,5.865 0.104,0.156 10 false 1 1.521,5.083 1.625,5.24 0.104,0.156 10 false 2 1.521,7.302 1.625,7.458 0.104,0.156 10 false 1 1.521,6.677 1.625,6.833 0.104,0.156 10 false 2 4.229,2.573 5.698,3.063 1.469,0.49 10 false Telematics Transceiver 4.25,2.396 4.656,2.635 0.406,0.24 10 false I149 4.833,1.313 5.448,1.51 0.615,0.198 10 false SPI+ 4.865,2.073 5.479,2.271 0.615,0.198 10 false SPI- 4.271,2.063 4.885,2.26 0.615,0.198 10 false SPO- 4.271,1.313 4.885,1.51 0.615,0.198 10 false SPO+ 5.208,1.188 5.313,1.344 0.104,0.156 10 false 1 5.229,2 5.333,2.156 0.104,0.156 10 false 2 4.115,1.188 4.219,1.344 0.104,0.156 10 false 3 4.115,1.969 4.219,2.125 0.104,0.156 10 false 4 5.708,2.083 6.115,2.323 0.406,0.24 10 false I165 5.708,3.417 6.115,3.656 0.406,0.24 10 false I165 5.708,4.24 6.115,4.479 0.406,0.24 10 false I165 5.708,5.01 6.115,5.25 0.406,0.24 10 false I164 5.719,5.802 6.125,6.042 0.406,0.24 10 false I164 5.719,6.594 6.125,6.833 0.406,0.24 10 false I164 5.708,7.375 6.115,7.615 0.406,0.24 10 false I164 0.792,7.833 3.781,8.51 2.99,0.677 10 false *1: except ALLION 0.792,8.146 3.781,8.823 2.99,0.677 10 false *2: for ALLION 2.719,3.323 3.844,3.51 1.125,0.188 10 false +*1, TWR+*2 2.802,4.125 4.188,4.385 1.385,0.26 10 false -*1, TWR-*2

for 4 Speakers
E418504
0.156,1.469 0.469,1.667 0.313,0.198 10 false K1 0.156,1.656 2.323,2.24 2.167,0.583 10 false Front No. 1 Speaker Assembly RH 2.458,2.01 2.667,2.229 0.208,0.219 10 false 1 2.458,1.375 2.667,1.594 0.208,0.219 10 false 2 5.771,1.094 5.979,1.313 0.208,0.219 10 false 1 5.771,1.896 5.979,2.115 0.208,0.219 10 false 5 5.792,3.229 6,3.448 0.208,0.219 10 false 2 5.781,4 5.99,4.219 0.208,0.219 10 false 6 5.771,4.802 5.979,5.021 0.208,0.219 10 false 1 5.781,5.604 5.99,5.823 0.208,0.219 10 false 3 5.792,6.396 6,6.615 0.208,0.219 10 false 2 5.792,7.188 6,7.406 0.208,0.219 10 false 6 6.052,1.323 6.438,1.531 0.385,0.208 10 false FR+ 6.042,2.094 6.427,2.302 0.385,0.208 10 false FR- 6.063,3.417 6.448,3.625 0.385,0.208 10 false FL+ 6.063,4.219 6.448,4.427 0.385,0.208 10 false FL- 6.063,5.01 6.448,5.219 0.385,0.208 10 false RR+ 6.063,5.792 6.448,6 0.385,0.208 10 false RR- 0.177,3.823 2.302,4.521 2.125,0.698 10 false Front No. 1 Speaker Assembly LH 0.188,3.625 0.5,3.823 0.313,0.198 10 false L1 2.469,4.146 2.677,4.365 0.208,0.219 10 false 1 2.469,3.49 2.677,3.708 0.208,0.219 10 false 2 6.052,7.385 6.438,7.594 0.385,0.208 10 false RL- 6.063,6.594 6.448,6.802 0.385,0.208 10 false RL+ 0.542,7 2.271,7.875 1.729,0.875 10 false Rear Speaker Assembly LH 0.542,5.438 2.333,6.083 1.792,0.646 10 false Rear Speaker Assembly RH 0.542,5.26 0.854,5.458 0.313,0.198 10 false M4 0.531,6.813 0.844,7.01 0.313,0.198 10 false N4 2.479,5.729 2.688,5.948 0.208,0.219 10 false 1 2.479,5.083 2.688,5.302 0.208,0.219 10 false 2 2.469,7.323 2.677,7.542 0.208,0.219 10 false 1 2.458,6.656 2.667,6.875 0.208,0.219 10 false 2 5.354,7.875 7.052,8.5 1.698,0.625 10 false Radio and Display Receiver Assembly 5.708,1.302 6.094,1.51 0.385,0.208 10 false I165 3.802,2.552 5.292,3.167 1.49,0.615 10 false Telematics Transceiver 3.813,2.385 4.271,2.583 0.458,0.198 10 false I149 4.573,1.333 5.188,1.531 0.615,0.198 10 false SPI+ 4.604,2.073 5.219,2.271 0.615,0.198 10 false SPI- 4.052,1.323 4.667,1.521 0.615,0.198 10 false SPO+ 4.031,2.073 4.646,2.271 0.615,0.198 10 false SPO- 4.979,1.188 5.188,1.406 0.208,0.219 10 false 1 5.01,1.99 5.219,2.208 0.208,0.219 10 false 2 3.854,1.177 4.063,1.396 0.208,0.219 10 false 3 3.844,1.969 4.052,2.188 0.208,0.219 10 false 4 5.708,2.094 6.094,2.302 0.385,0.208 10 false I165 5.708,3.427 6.094,3.635 0.385,0.208 10 false I165 5.719,4.208 6.104,4.417 0.385,0.208 10 false I165 5.708,5.021 6.094,5.229 0.385,0.208 10 false I164 5.719,5.802 6.104,6.01 0.385,0.208 10 false I164 5.719,6.583 6.104,6.792 0.385,0.208 10 false I164 5.719,7.385 6.104,7.594 0.385,0.208 10 false I164


CAUTION / NOTICE / HINT

NOTICE:
·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Audio and Visual System.

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>AUDIO AND VISUAL SYSTEM (for Gasoline Model with Radio and Display Type (except 10.25 Inch Display))>PRECAUTION

·

Before replacing the telematics transceiver, refer to Service Bulletin.



PROCEDURE

1.CHECK MODEL
a.

Choose the model to be inspected.

Result:
Result Proceed to
for 6 Speakers A
for 4 Speakers B




A

2.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - FRONT NO. 1 SPEAKER ASSEMBLY - FRONT NO. 2 SPEAKER ASSEMBLY - REAR SPEAKER ASSEMBLY)

B

7.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - FRONT NO. 1 SPEAKER ASSEMBLY - REAR SPEAKER ASSEMBLY)
2.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - FRONT NO. 1 SPEAKER ASSEMBLY - FRONT NO. 2 SPEAKER ASSEMBLY - REAR SPEAKER ASSEMBLY)
a.

Disconnect the I165 and I164 radio and display receiver assembly connectors.


b.

Disconnect the K1 and L1 front No. 1 speaker assembly connectors.


c.

Disconnect the I76 and I77 front No. 2 speaker assembly connectors.


d.

Disconnect the N4 and M4 rear speaker assembly connectors.


e.

Disconnect the I149 telematics transceiver connector.


f.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

*1: except ALLION

*2: for ALLION

I165-1 (FR+) - I149-1 (SPI+) Always Below 1 Ω
I165-5 (FR-) - I149-2 (SPI-) Always Below 1 Ω
I149-3 (SPO+) - I76-4 (+*1, TWR-*2) Always Below 1 Ω
I149-4 (SPO-) - I76-2 (-*1, TWR*2) Always Below 1 Ω
I165-2 (FL+) - I77-4 ((+*1, TWR-*2) Always Below 1 Ω
I165-6 (FL-) - I77-2 ((-*1, TWR*2) Always Below 1 Ω
I76-3 (+) - K1-2 Always Below 1 Ω
I76-1 (-) - K1-1 Always Below 1 Ω
I77-3 (+) - L1-2 Always Below 1 Ω
I77-1 (-) - L1-1 Always Below 1 Ω
I164-1 (RR+) - M4-2 Always Below 1 Ω
I164-3 (RR-) - M4-1 Always Below 1 Ω
I164-2 (RL+) - N4-2 Always Below 1 Ω
I164-6 (RL-) - N4-1 Always Below 1 Ω
I165-1 (FR+) or I149-1 (SPI+) - Body ground Always 10 kΩ or higher
I165-5 (FR-) or I149-2 (SPI-) - Body ground Always 10 kΩ or higher
I149-3 (SPO+) or I76-4 (+*1, TWR-*2) - Body ground Always 10 kΩ or higher
I149-4 (SPO-) or I76-2 (-*1, TWR*2) - Body ground Always 10 kΩ or higher
I165-2 (FL+) or I77-4 (+*1, TWR-*2) - Body ground Always 10 kΩ or higher
I165-6 (FL-) or I77-2 (-*1, TWR*2) - Body ground Always 10 kΩ or higher
I164-1 (RR+) or M4-2 - Body ground Always 10 kΩ or higher
I164-3 (RR-) or M4-1 - Body ground Always 10 kΩ or higher
I164-2 (RL+) or N4-2 - Body ground Always 10 kΩ or higher
I164-6 (RL-) or N4-1 - Body ground Always 10 kΩ or higher
I76-3 (+) or K1-2 - Body ground Always 10 kΩ or higher
I76-1 (-) or K1-1 - Body ground Always 10 kΩ or higher
I77-3 (+) or L1-2 - Body ground Always 10 kΩ or higher
I77-1 (-) or L1-1 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

3.INSPECT TELEMATICS TRANSCEIVER

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.INSPECT TELEMATICS TRANSCEIVER
a.

Remove the telematics transceiver.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


b.

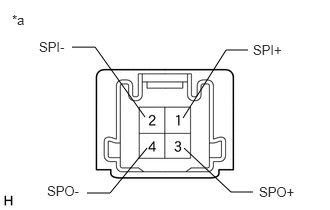

E418548C02
1.906,1.229 2.354,0.521 2.354,0.521 2.583,0.521 false 1.917,1.542 2.406,2 2.406,2 2.635,2 false 1.531,1.542 1.146,2.01 1.146,2.01 0.906,2.01 false 1.51,1.219 0.99,0.49 0.99,0.49 0.75,0.49 false 2.698,1.917 3.313,2.115 0.615,0.198 10 false SPO+ 2.635,0.438 3.25,0.635 0.615,0.198 10 false SPI+ 0.406,0.406 1.021,0.604 0.615,0.198 10 false SPI- 0.49,1.906 1.104,2.104 0.615,0.198 10 false SPO- 0.125,0.125 0.438,0.323 0.313,0.198 10 false *a
*a Component without harness connected
(Telematics Transceiver)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 (SPI+) - 3 (SPO+) Always Below 1 Ω
2 (SPI-) - 4 (SPO-) Always Below 1 Ω
1 (SPI+) - 2 (SPI-) Always 10 kΩ or higher
3 (SPO+) - 4 (SPO-) Always 10 kΩ or higher
1 (SPI+) or 3 (SPO+) - Body ground Always 10 kΩ or higher
2 (SPI-) or 4 (SPO-) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

4.INSPECT FRONT NO. 1 SPEAKER ASSEMBLY

NG

REPLACE TELEMATICS TRANSCEIVER

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


4.INSPECT FRONT NO. 1 SPEAKER ASSEMBLY
a.

Remove the front No. 1 speaker assembly.

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>FRONT DOOR SPEAKER>REMOVAL


b.

Inspect the front No. 1 speaker assembly.

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>FRONT DOOR SPEAKER>INSPECTION


Result:
Proceed to
OK
NG



OK

5.INSPECT REAR SPEAKER ASSEMBLY

NG

REPLACE FRONT NO. 1 SPEAKER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>FRONT DOOR SPEAKER>REMOVAL


5.INSPECT REAR SPEAKER ASSEMBLY
a.

Remove the rear speaker assembly.

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>REAR DOOR SPEAKER>REMOVAL


b.

Inspect the rear speaker assembly.

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>REAR DOOR SPEAKER>INSPECTION


Result:
Proceed to
OK
NG



OK

6.REPLACE FRONT NO. 2 SPEAKER ASSEMBLY

NG

REPLACE REAR SPEAKER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>REAR DOOR SPEAKER>REMOVAL


7.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - FRONT NO. 1 SPEAKER ASSEMBLY - REAR SPEAKER ASSEMBLY)
a.

Disconnect the I165 and I164 radio and display receiver assembly connectors.


b.

Disconnect the K1 and L1 front No. 1 speaker assembly connectors.


c.

Disconnect the N4 and M4 rear speaker assembly connectors.


d.

Disconnect the I149 telematics transceiver connector.


e.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I165-1 (FR+) - I149-1 (SPI+) Always Below 1 Ω
I165-5 (FR-) - I149-2 (SPI-) Always Below 1 Ω
I149-3 (SPO+) - K1-2 Always Below 1 Ω
I149-4 (SPO-) - K1-1 Always Below 1 Ω
I165-2 (FL+) - L1-2 Always Below 1 Ω
I165-6 (FL-) - L1-1 Always Below 1 Ω
I164-1 (RR+) - M4-2 Always Below 1 Ω
I164-3 (RR-) - M4-1 Always Below 1 Ω
I164-2 (RL+) - N4-2 Always Below 1 Ω
I164-6 (RL-) - N4-1 Always Below 1 Ω
I165-1 (FR+) or I149-1 (SPI+) - Body ground Always 10 kΩ or higher
I165-5 (FR-) or I149-2 (SPI-) - Body ground Always 10 kΩ or higher
I149-3 (SPO+) or K1-2 - Body ground Always 10 kΩ or higher
I149-4 (SPO-) or K1-1 - Body ground Always 10 kΩ or higher
I165-2 (FL+) or L1-2 - Body ground Always 10 kΩ or higher
I165-6 (FL-) or L1-1 - Body ground Always 10 kΩ or higher
I164-1 (RR+) or M4-2 - Body ground Always 10 kΩ or higher
I164-3 (RR-) or M4-1 - Body ground Always 10 kΩ or higher
I164-2 (RL+) or N4-2 - Body ground Always 10 kΩ or higher
I164-6 (RL-) or N4-1 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

8.INSPECT TELEMATICS TRANSCEIVER

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

8.INSPECT TELEMATICS TRANSCEIVER
a.

Remove the telematics transceiver.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


b.
E418548C02
1.906,1.229 2.354,0.521 2.354,0.521 2.583,0.521 false 1.917,1.542 2.406,2 2.406,2 2.635,2 false 1.531,1.542 1.146,2.01 1.146,2.01 0.906,2.01 false 1.51,1.219 0.99,0.49 0.99,0.49 0.75,0.49 false 2.698,1.917 3.313,2.115 0.615,0.198 10 false SPO+ 2.635,0.438 3.25,0.635 0.615,0.198 10 false SPI+ 0.406,0.406 1.021,0.604 0.615,0.198 10 false SPI- 0.49,1.906 1.104,2.104 0.615,0.198 10 false SPO- 0.125,0.125 0.438,0.323 0.313,0.198 10 false *a
*a Component without harness connected
(Telematics Transceiver)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 (SPI+) - 3 (SPO+) Always Below 1 Ω
2 (SPI-) - 4 (SPO-) Always Below 1 Ω
1 (SPI+) - 2 (SPI-) Always 10 kΩ or higher
3 (SPO+) - 4 (SPO-) Always 10 kΩ or higher
1 (SPI+) or 3 (SPO+) - Body ground Always 10 kΩ or higher
2 (SPI-) or 4 (SPO-) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

9.INSPECT FRONT NO. 1 SPEAKER ASSEMBLY

NG

REPLACE TELEMATICS TRANSCEIVER

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


9.INSPECT FRONT NO. 1 SPEAKER ASSEMBLY
a.

Remove the front No. 1 speaker assembly.

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>FRONT DOOR SPEAKER>REMOVAL


b.

Inspect the front No. 1 speaker assembly.

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>FRONT DOOR SPEAKER>INSPECTION


Result:
Proceed to
OK
NG



OK

10.INSPECT REAR SPEAKER ASSEMBLY

NG

REPLACE FRONT NO. 1 SPEAKER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>FRONT DOOR SPEAKER>REMOVAL
