RM3660EC _56 Audio / Visual / Telematics _080751 AUDIO / VIDEO _0392317 FRONT DOOR SPEAKER A

AUDIO / VIDEO FRONT DOOR SPEAKER REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 69284F 1.REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY201906,202101,_59,_080735,_0392099,RM100000001HO0T_01_0001,202101,202104,_59,_080735,_0392099,RM100000001TOOX_01_0001,202104,202107,_59,_080735,_0392099,RM100000001W09X_01_0001,202107,202205,_59,_080735,_0392099,RM100000001XPT4_01_0001,202205,202304,_59,_080735,_0392099,RM10000000237IY_01_0001,202304,202307,_59,_080735,_0392099,RM100000002BHWZ_01_0001,202307,999999,_59,_080735,_0392099,RM100000002D0BD_01_0001,

Hide Display 74640E 2.REMOVE FRONT DOOR ASSIST GRIP ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY201906,202101,_59,_080735,_0392099,RM100000001HO0T_01_0250,202101,202104,_59,_080735,_0392099,RM100000001TOOX_01_0250,202104,202107,_59,_080735,_0392099,RM100000001W09X_01_0250,202107,202205,_59,_080735,_0392099,RM100000001XPT4_01_0250,202205,202304,_59,_080735,_0392099,RM10000000237IY_01_0250,202304,202307,_59,_080735,_0392099,RM100000002BHWZ_01_0250,202307,999999,_59,_080735,_0392099,RM100000002D0BD_01_0250,

Hide Display 3.REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY201906,202101,_59,_080735,_0392099,RM100000001HO0T_01_0062,202101,202104,_59,_080735,_0392099,RM100000001TOOX_01_0062,202104,202107,_59,_080735,_0392099,RM100000001W09X_01_0062,202107,202205,_59,_080735,_0392099,RM100000001XPT4_01_0062,202205,202304,_59,_080735,_0392099,RM10000000237IY_01_0062,202304,202307,_59,_080735,_0392099,RM100000002BHWZ_01_0062,202307,999999,_59,_080735,_0392099,RM100000002D0BD_01_0062,

Hide Display 4.REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY201906,202101,_59,_080735,_0392099,RM100000001HO0T_01_0106,202101,202104,_59,_080735,_0392099,RM100000001TOOX_01_0106,202104,202107,_59,_080735,_0392099,RM100000001W09X_01_0106,202107,202205,_59,_080735,_0392099,RM100000001XPT4_01_0106,202205,202304,_59,_080735,_0392099,RM10000000237IY_01_0106,202304,202307,_59,_080735,_0392099,RM100000002BHWZ_01_0106,202307,999999,_59,_080735,_0392099,RM100000002D0BD_01_0106,

Hide Display 67602 5.REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY201906,202101,_59,_080735,_0392099,RM100000001HO0T_01_0005,202101,202104,_59,_080735,_0392099,RM100000001TOOX_01_0005,202104,202107,_59,_080735,_0392099,RM100000001W09X_01_0005,202107,202205,_59,_080735,_0392099,RM100000001XPT4_01_0005,202205,202304,_59,_080735,_0392099,RM10000000237IY_01_0005,202304,202307,_59,_080735,_0392099,RM100000002BHWZ_01_0005,202307,999999,_59,_080735,_0392099,RM100000002D0BD_01_0005,

Hide Display 86160 6.REMOVE FRONT NO. 1 SPEAKER ASSEMBLY

NOTICE:: Do not touch the speaker cone.

a.

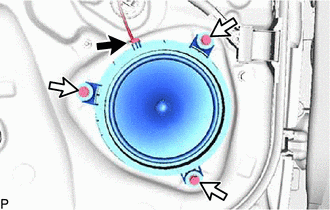

E399781

Disconnect the connector.

b.

Remove the 3 screws.

c.

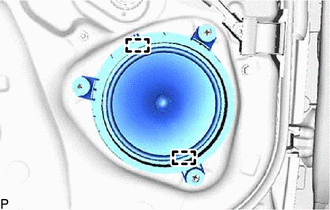

E399782

Disengage the 2 guides to remove the front No. 1 speaker assembly.
