RM3660EC _56 Audio / Visual / Telematics _080751 AUDIO / VIDEO _0392318 REAR DOOR SPEAKER A

AUDIO / VIDEO REAR DOOR SPEAKER REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 69284G 1.REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY201906,202101,_59,_080735,_0392100,RM100000001HO0X_01_0001,202101,202104,_59,_080735,_0392100,RM100000001TOOZ_01_0001,202104,202107,_59,_080735,_0392100,RM100000001VMMZ_01_0001,202107,202205,_59,_080735,_0392100,RM100000001X72Q_01_0001,202205,202304,_59,_080735,_0392100,RM10000000237IZ_01_0001,202304,202307,_59,_080735,_0392100,RM100000002BHX0_01_0001,202307,999999,_59,_080735,_0392100,RM100000002D0BF_01_0001,

Hide Display 2.REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY201906,202101,_59,_080735,_0392100,RM100000001HO0X_01_0047,202101,202104,_59,_080735,_0392100,RM100000001TOOZ_01_0047,202104,202107,_59,_080735,_0392100,RM100000001VMMZ_01_0047,202107,202205,_59,_080735,_0392100,RM100000001X72Q_01_0047,202205,202304,_59,_080735,_0392100,RM10000000237IZ_01_0047,202304,202307,_59,_080735,_0392100,RM100000002BHX0_01_0047,202307,999999,_59,_080735,_0392100,RM100000002D0BF_01_0047,

Hide Display 67604 3.REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY201906,202101,_59,_080735,_0392100,RM100000001HO0X_01_0004,202101,202104,_59,_080735,_0392100,RM100000001TOOZ_01_0004,202104,202107,_59,_080735,_0392100,RM100000001VMMZ_01_0004,202107,202205,_59,_080735,_0392100,RM100000001X72Q_01_0004,202205,202304,_59,_080735,_0392100,RM10000000237IZ_01_0004,202304,202307,_59,_080735,_0392100,RM100000002BHX0_01_0004,202307,999999,_59,_080735,_0392100,RM100000002D0BF_01_0004,

Hide Display 86160B 4.REMOVE REAR SPEAKER ASSEMBLY

NOTICE:: Do not touch the speaker cone.

a.

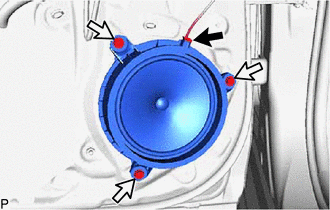

E399784

Disconnect the connector.

b.

Remove the 3 screws.

c.

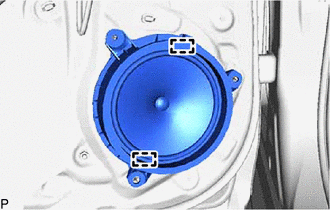

E399785

Disengage the 2 guides to remove the rear speaker assembly.
