NR Series ENGINE CONTROL SFI SYSTEM P034031 Camshaft Position Sensor "A" Bank 1 or Single Sensor No Signal
DESCRIPTION
Refer to DTC P034011.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory | Note |
|---|---|---|---|---|---|---|
| P034031 | Camshaft Position Sensor "A" Bank 1 or Single Sensor No Signal | Diagnosis Condition:
·
The engine is running (600 rpm or more) Abnormal condition: ·
No camshaft position sensor (for intake camshaft) signal Malfunction Time: ·
5 seconds or more Trip logic: ·
1 trip detection logic Detection Conditions: ·
Continuous* Sensors/components used for detection (Main): ·
Camshaft position sensor (for intake camshaft) Sensors/components used for detection (Related): ·
Crankshaft position sensor |
·
Open or short in camshaft position sensor (for intake camshaft) circuit ·
Camshaft position sensor (for intake camshaft) ·
ECM |
Comes on | DTC stored | SAE Code: P0340 |
*: When the engine is being stopped or started automatically by stop and start system control, the ECM does not monitor the crankshaft position sensor signal.
Reference: Inspection using an oscilloscope.
MONITOR DESCRIPTION
When the engine is running and no camshaft position sensor (for intake camshaft) signal is received for 5 seconds or more, the ECM determines that the camshaft position sensor (for intake camshaft) circuit is malfunctioning and illuminates the MIL and stores a DTC.
MONITOR STRATEGY
| Required Sensors/Components (Main) | Camshaft position sensor (for intake camshaft) |
| Required Sensors/Components (Related) | Crankshaft position sensor |
| Frequency of Operation | Continuous |
CONFIRMATION DRIVING PATTERN
- HINT:
- ·
After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
·When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the ignition switch off and wait for at least 30 seconds.
Start the engine [A].
Turn the GTS on.
Idle the engine for 10 seconds or more [B].
Enter the following menus: Powertrain / Engine / Trouble Codes [C].
Read the pending DTCs.
- HINT:
- ·
If a pending DTC is output, the system is malfunctioning.
·If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine / Utility / All Readiness.
Proceed to the next screen and enter the DTC to be checked.
Check the DTC judgment result.
| GTS Display | Description |
|---|---|
| NORMAL | ·
DTC judgment completed ·
System normal |
| ABNORMAL | ·
DTC judgment completed ·
System abnormal |
| INCOMPLETE | ·
DTC judgment not completed ·
Perform driving pattern after confirming DTC enabling conditions |
- HINT:
- ·
If the judgment result is NORMAL, the system is normal.
·If the judgment result is ABNORMAL, the system is malfunctioning.
·[A] to [C]: Normal judgment procedure.
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
·When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
WIRING DIAGRAM
CAUTION / NOTICE / HINT
- HINT:
- ·
If no problem is found through this diagnostic troubleshooting procedure, there may be a mechanical problem with the engine.
·Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Enter the following menus: Powertrain / Engine / Trouble Codes.
Read the DTCs.
- Powertrain > Engine > Trouble Codes
- 50001 372
- Result:
Result Proceed to DTC P034031 is output A DTC P034031 and P034011 or P034015 are output B
- HINT:
-
If DTC P034011 or P034015 is output, perform troubleshooting for it first.
A
B

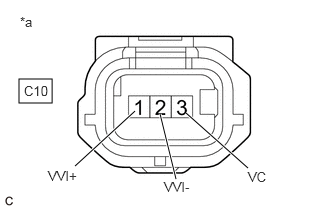

| *a | Front view of wire harness connector
(to Camshaft Position Sensor (for Intake Camshaft)) |
- HINT:
-
Make sure that the connector is properly connected. If it is not, securely connect it and check for DTCs again.
Disconnect the camshaft position sensor (for intake camshaft) connector.
Turn the ignition switch to ON.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition C10-3 (VC) - Body ground Ignition switch ON 4.5 to 5.5 V C10-1 (VVI+) - Body ground Ignition switch ON 3.0 to 5.0 V
Turn the ignition switch off.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition C10-2 (VVI-) - Body ground Ignition switch off Below 1 Ω
- Result:
Proceed to OK NG
OK
NG
Remove the camshaft position sensor (for intake camshaft).
Confirm that there is no oil on the connecting parts of the camshaft position sensor (for intake camshaft) connector.
- OK:
There is no oil on the connecting parts of the camshaft position sensor (for intake camshaft) connector.
- Result:
Proceed to OK NG
OK
NG

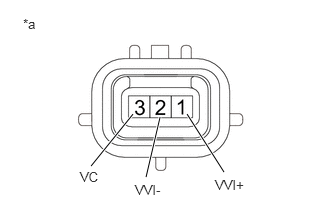

| *a | Component without harness connected
(Camshaft Position Sensor (for Intake Camshaft)) |
Disconnect the camshaft position sensor (for intake camshaft) connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 3 (VC) - 1 (VVI+) Always 10 kΩ or higher 3 (VC) - 2 (VVI-) Always 10 kΩ or higher 1 (VVI+) - 2 (VVI-) Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
Disconnect the camshaft position sensor (for intake camshaft) connector.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition C10-1 (VVI+) - C78-82 (VV1+) Always Below 1 Ω C10-2 (VVI-) - C78-114 (VV1-) Always Below 1 Ω C10-3 (VC) - C78-113 (VCV1) Always Below 1 Ω C10-1 (VVI+) or C78-82 (VV1+) - Body ground and other terminals Always 10 kΩ or higher C10-2 (VVI-) or C78-114 (VV1-) - Body ground and other terminals Always 10 kΩ or higher C10-3 (VC) or C78-113 (VCV1) - Body ground and other terminals Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
