NR Series ENGINE CONTROL CAMSHAFT POSITION SENSOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during camshaft position sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of battery	Integrated current value initialization	Stop and Start System	(201906,999999,_51,_080774,_0393362,RM100000001HXHH,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
Pre-collision System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Lane Tracing Assist System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)

PROCEDURE

Hide Display 1.REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)

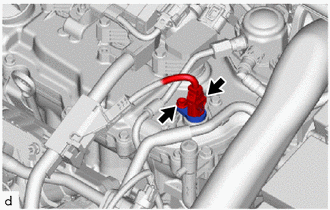

Disconnect the camshaft position sensor connector.

Remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.

NOTICE:: If the camshaft position sensor has been struck or dropped, replace it.

Hide Display 2.REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>FRONT WIPER MOTOR>REMOVAL202304,202307,_59,_080767,_0392873,RM100000002AYHJ,202307,999999,_59,_080767,_0392873,RM100000002CL7Q,

Hide Display 55737B 3.REMOVE NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL (w/ No. 1 Heater Air Duct Splash Shield Seal)

Click hereSuspension>FRONT SUSPENSION>FRONT SHOCK ABSORBER>REMOVAL202304,202307,_53,_080764,_0392681,RM100000002BA6Q_01_0045,202307,999999,_53,_080764,_0392681,RM100000002CW5B_01_0045,

Hide Display 55701J 4.REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

Click hereSuspension>FRONT SUSPENSION>FRONT SHOCK ABSORBER>REMOVAL202304,202307,_53,_080764,_0392681,RM100000002BA6Q_01_0036,202307,999999,_53,_080764,_0392681,RM100000002CW5B_01_0036,

Hide Display 5.REMOVE BATTERY

Click hereGeneral>MAINTENANCE>NR Series BATTERY>REMOVAL202304,999999,_V1,_080956,_0392375,RM100000002BCCL,

Hide Display 17705 6.REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0369,

Hide Display 7.REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)

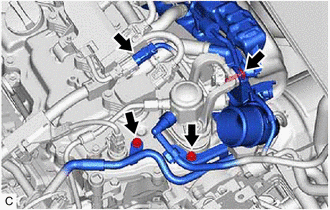

Remove the bolt and disconnect the inlet No. 1 air duct sub-assembly from the fuel pump protector.

Remove the 2 bolts and separate the fuel vapor feed pipe from the cylinder head cover sub-assembly.

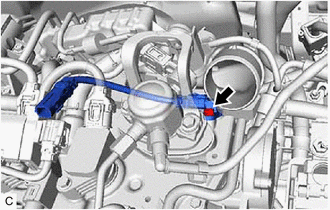

Disconnect the sensor wire connector.

Remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.

NOTICE:: If the camshaft position sensor has been struck or dropped, replace it.

Disconnect the camshaft position sensor connector to remove the camshaft position sensor from the sensor wire.
