NR Series ENGINE CONTROL  SFI SYSTEM  DTC CHECK / CLEAR


NOTICE:

When the diagnosis system is changed from normal mode to check mode or vice versa, all DTCs and Freeze Frame Data recorded in normal mode are cleared. Before changing modes, always check and make a note of DTCs and Freeze Frame Data.


HINT:
·

DTCs which are stored in the ECM can be displayed on the GTS. The GTS can display the confirmed, pending and permanent DTCs.

·

If a malfunction is detected during the current driving cycle, confirmed and permanent DTCs are stored.

·

Some DTCs are not stored if the ECM does not detect the same malfunction again during a second consecutive driving cycle. However, such malfunctions, detected on only one occasion, are stored as pending DTCs.

·

Confirmed and pending DTCs can be cleared by using the GTS or by disconnecting the cable from the negative (-) battery terminal. However, permanent DTCs cannot be cleared using either of these two methods.

·

After clearing current DTCs using the GTS (or by disconnecting the cable from the negative (-) battery terminal), permanent DTCs can be cleared when the universal trip is performed and then the system is determined to be normal for the relevant DTCs. The driving pattern to obtain a normal judgment is described under the "Confirmation Driving Pattern" for the respective DTC.

To clear permanent DTCs, all of the following conditions must be are met:

-

There is a history that universal trip driving was performed.

-

The vehicle has been judged as normal for 2 trips. (Normal judgment does not have to be performed in 2 consecutive trip, but normal judgment should occur in the latest trip.) (not for misfire and fuel system DTCs)

-

No malfunctions are detected.

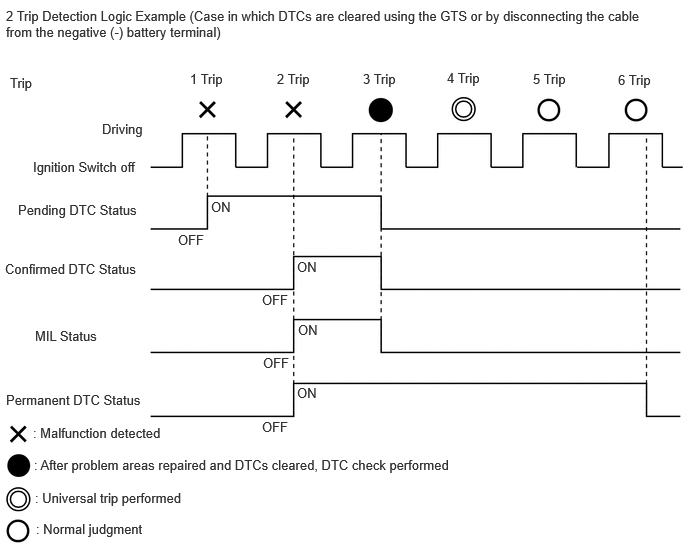

2 Trip Detection Logic Examples
Pending DTC Store condition Malfunction detected
Clear condition System determined to be normal
or
DTCs cleared using GTS
or
Cable disconnected from negative (-) battery terminal
Confirmed DTC Store condition Malfunction detected (2nd trip)
Clear condition No malfunctions in 40 driving cycles
or
DTCs cleared using GTS
or
Cable disconnected from negative (-) battery terminal
Permanent DTC Store condition Malfunction detected (2nd trip)
Clear condition Ignition switch turned to ON after normal judgment obtained in 3 consecutive driving cycles
or
After DTCs cleared using GTS or cable disconnected from negative (-) battery terminal, universal trip performed and normal judgment obtained for 2 trips (not for misfire and fuel system DTCs)
or
After DTCs cleared using GTS or cable disconnected from negative (-) battery terminal, malfunction not detected when universal trip driving performed (misfire and fuel system DTCs)
MIL ON Malfunction detected (2nd trip)
OFF Ignition switch turned to ON after normal judgment obtained in 3 consecutive driving cycles
or
DTCs cleared using GTS
or
Cable disconnected from negative (-) battery terminal

A198847E63
0.052,0 1.813,0.177 1.76,0.177 10 false 2 Trip Detection Example 0.146,0.333 0.521,0.552 0.375,0.219 10 false Trip 0.042,1.656 1.51,1.865 1.469,0.208 10 false Pending DTC Status 0.042,2.25 1.594,2.51 1.552,0.26 10 false Confirmed DTC Status 0.042,2.958 0.781,3.125 0.74,0.167 10 false MIL Status 0.042,3.604 1.531,3.771 1.49,0.167 10 false Permanent DTC Status 1.531,0.333 2.031,0.573 0.5,0.24 10 false 1 Trip 2.365,0.333 2.99,0.594 0.625,0.26 10 false 2 Trip 3.208,0.333 3.729,0.563 0.521,0.229 10 false 3 Trip 4.042,0.323 4.427,0.51 0.385,0.188 10 false 4 Trip 4.896,0.333 5.365,0.542 0.469,0.208 10 false 5 Trip 5.74,0.333 6.125,0.521 0.385,0.188 10 false 6 Trip 6.542,0.333 7.083,0.521 0.542,0.188 10 false 43 Trip 0.708,0.969 1.156,1.146 0.448,0.177 10 false Driving 0.031,1.323 1.74,1.865 1.708,0.542 10 false Ignition Switch off 0.354,4.083 1.823,4.271 1.469,0.188 10 false : Malfunction detected 0.354,4.396 1.542,4.583 1.188,0.188 10 false : Normal judgment 1.729,1.74 2,1.896 0.271,0.156 10 false ON 1.375,2.094 1.688,2.271 0.313,0.177 10 false OFF 2.573,2.365 2.844,2.521 0.271,0.156 10 false ON 2.219,2.719 2.531,2.896 0.313,0.177 10 false OFF 2.573,3.021 2.844,3.177 0.271,0.156 10 false ON 2.219,3.365 2.531,3.542 0.313,0.177 10 false OFF 2.573,3.677 2.844,3.833 0.271,0.156 10 false ON 2.219,4.021 2.531,4.198 0.313,0.177 10 false OFF

A392745E50
0.063,0.083 6.719,0.552 6.656,0.469 10 false 2 Trip Detection Logic Example (Case in which DTCs are cleared using the GTS or by disconnecting the cable from the negative (-) battery terminal) 0.104,0.781 0.719,0.979 0.615,0.198 10 false Trip 1.979,0.74 2.469,0.969 0.49,0.229 10 false 1 Trip 2.885,0.74 3.375,0.969 0.49,0.229 10 false 2 Trip 3.781,0.74 4.271,0.969 0.49,0.229 10 false 3 Trip 4.656,0.729 5.146,0.958 0.49,0.229 10 false 4 Trip 5.552,0.74 6.042,0.969 0.49,0.229 10 false 5 Trip 6.438,0.75 6.927,0.979 0.49,0.229 10 false 6 Trip 1.063,1.26 2.792,1.5 1.729,0.24 10 false Driving 0.344,1.656 2.073,1.896 1.729,0.24 10 false Ignition Switch off 0.188,2.104 1.917,2.344 1.729,0.24 10 false Pending DTC Status 0.052,2.719 1.781,2.958 1.729,0.24 10 false Confirmed DTC Status 0.365,3.417 2.094,3.656 1.729,0.24 10 false MIL Status 0.063,4.083 1.792,4.323 1.729,0.24 10 false Permanent DTC Status 2.198,2.073 2.688,2.302 0.49,0.229 10 false ON 3.094,2.698 3.583,2.927 0.49,0.229 10 false ON 3.104,3.354 3.594,3.583 0.49,0.229 10 false ON 3.094,4.01 3.583,4.24 0.49,0.229 10 false ON 1.854,2.417 2.344,2.646 0.49,0.229 10 false OFF 2.729,3.042 3.219,3.271 0.49,0.229 10 false OFF 2.74,3.698 3.229,3.927 0.49,0.229 10 false OFF 2.729,4.365 3.219,4.594 0.49,0.229 10 false OFF 0.344,4.427 2.073,4.667 1.729,0.24 10 false : Malfunction detected 0.354,4.76 5.094,4.99 4.74,0.229 10 false : After problem areas repaired and DTCs cleared, DTC check performed 0.365,5.104 2.469,5.354 2.104,0.25 10 false : Universal trip performed 0.375,5.427 1.948,5.688 1.573,0.26 10 false : Normal judgment

HINT:
·

Obtaining a normal judgment and performing a universal trip driving pattern can be done in the same driving cycle or in different driving cycles.

·

It is unnecessary to obtain a normal judgment if the output DTCs are misfire or fuel system DTCs.



CHECK DTC


a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine / Trouble Codes.

Powertrain > Engine > Trouble Codes
50001 372

e.

Check the DTC(s) and Freeze Frame Data, and then write them down.

HINT:
GTS Display Description
Test Failed Shows the malfunction judgment results during the current trip.
Pending Shows the malfunction judgment results up to now. (Indicates the possibility of a malfunction when no DTC is confirmed.)
Confirmed Shows the DTCs confirmed up to now. (The number of current trips differs for each DTC.)



f.

Check the details of the DTC(s).

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>SFI SYSTEM>DIAGNOSTIC TROUBLE CODE CHART



CLEAR DTC (Using the GTS)


a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine / Trouble Codes.


e.

Clear the DTCs.

Powertrain > Engine > Clear DTCs
50002 372


CLEAR DTC (Without using GTS)


a.

Perform either of the following operations:

NOTICE:
·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the battery.

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART




i.

Disconnect the cable from the negative (-) battery terminal for more than 1 minute.


ii.

Remove the EFI NO. 1 and ETCS fuses from the No. 1 engine room relay block and No. 1 junction block assembly located inside the engine compartment for more than 1 minute.




CLEAR PERMANENT DTC


OUTLINE

After clearing current DTCs using the GTS (or by disconnecting the cable from the negative (-) battery terminal), permanent DTCs can be cleared when the universal trip is performed and then the system is determined to be normal for the relevant DTCs. The driving pattern to obtain a normal judgment is described under the "Confirmation Driving Pattern" for the respective DTC.

To clear permanent DTCs, all of the following conditions must be are met:

-

There is a history that universal trip driving was performed.

-

The vehicle has been judged as normal for 2 trips. (Normal judgment does not have to be performed in 2 consecutive trip, but normal judgment should occur in the latest trip.) (not for misfire and fuel system DTCs)

-

No malfunctions are detected.



a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine / Trouble Codes.

Powertrain > Engine > Trouble Codes
50001 372
HINT:

If "PERMANENT" in the top right of the screen displays "YES", permanent DTCs are stored.



e.

Select the "Generic" tab.


f.

Check if permanent DTCs are stored.

HINT:

If permanent DTCs are not output, it is not necessary to continue this procedure.



g.

Clear the DTCs.

Powertrain > Engine > Clear DTCs
50002 372
NOTICE:

Do not clear the DTCs or disconnect the cable from the battery terminal after performing this step.



h.

Perform the universal trip.

HINT:

The driving pattern to obtain a normal judgment and the universal trip driving can be performed consecutively in the same driving cycle.

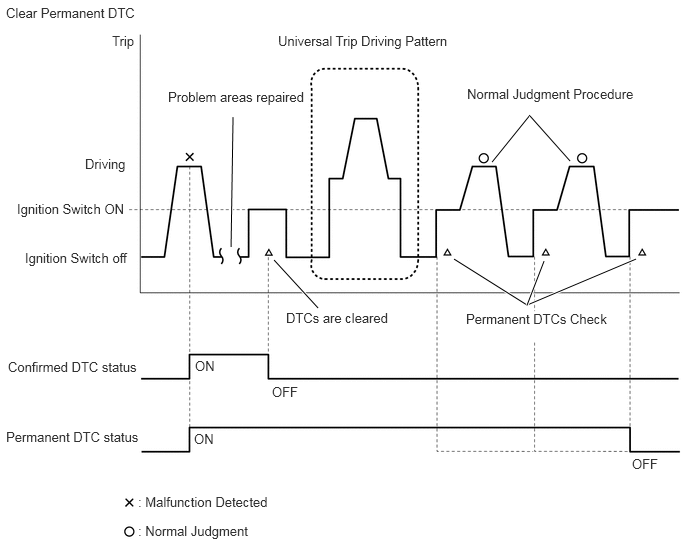

A392748E02
2.406,2.573 2.427,1.219 true 5.125,1.688 5.521,1.198 true 5.938,1.677 5.521,1.208 true 5.49,3.177 4.729,2.698 true 5.49,3.177 6.625,2.698 true 5.49,3.177 5.667,2.719 true 3.313,3.208 2.854,2.708 true 0.063,0.052 1.563,0.26 1.5,0.208 10 false Clear Permanent DTC 1.167,0.344 1.563,0.583 0.396,0.24 10 false Trip 2.896,0.344 4.875,0.615 1.979,0.271 10 false Universal Trip Driving Pattern 1.75,0.927 3.313,1.229 1.563,0.302 10 false Problem areas repaired 4.865,0.896 6.75,1.146 1.885,0.25 10 false Normal Judgment Procedure 4.854,3.24 6.417,3.563 1.563,0.323 10 true Permanent DTCs Check 2.979,3.229 4.115,3.542 1.135,0.313 10 true DTCs are cleared 0.885,1.625 1.375,1.917 0.49,0.292 10 false Driving 0.177,2.094 1.542,2.458 1.365,0.365 10 false Ignition Switch ON 0.26,2.604 1.448,2.948 1.188,0.344 10 false Ignition Switch off 0.083,3.74 1.635,4.104 1.552,0.365 10 false Confirmed DTC status 0.063,4.469 1.615,4.833 1.552,0.365 10 false Permanent DTC status 2.031,3.729 2.521,4.021 0.49,0.292 10 false ON 2.021,4.49 2.51,4.781 0.49,0.292 10 false ON 2.833,4 3.323,4.292 0.49,0.292 10 false OFF 6.583,4.75 7.073,5.042 0.49,0.292 10 false OFF 1.438,5.146 3,5.458 1.563,0.313 10 true : Malfunction Detected 1.438,5.448 3,5.76 1.563,0.313 10 true : Normal Judgment

A398920E04
0.073,0.083 1.927,0.333 1.854,0.25 10 false Universal Trip Driving Pattern 3.354,0.438 5.042,0.708 1.688,0.271 10 false Total of 5 minutes or more 1.146,1.156 3.135,1.5 1.99,0.344 10 false 40 km/h 1.25,2.323 3.073,2.573 1.823,0.25 10 false Idling 0.427,2.635 3.49,2.833 3.063,0.198 10 false Ignition Switch ON 0.552,2.938 2.083,3.198 1.531,0.26 10 false Ignition Switch off 2.156,2.698 4.104,2.969 1.948,0.271 10 false 30 seconds or more 3.198,3.198 5.021,3.469 1.823,0.271 10 false 10 minutes or more

1.

Start the engine and wait for 30 seconds or more.

2.

Drive the vehicle at 40 km/h (25 mph) or more for a total of 5 minutes or more.

CAUTION:

When performing a driving pattern, obey all speed limits and traffic laws.


HINT:

It is possible to complete the drive pattern even if the vehicle decelerates to less than 40 km/h (25 mph) during the driving cycle provided that the vehicle is driven at 40 km/h (25 mph) or more for a total of 5 minutes.


3.

Allow 10 minutes or more to elapse from the time the engine started.



i.

Turn the ignition switch off and wait for 2 minutes or more.


j.

Turn the ignition switch to ON.


k.

Enter the following menus: Powertrain / Engine / Trouble Codes.

Powertrain > Engine > Trouble Codes
50001 372

l.

Check that the permanent DTCs have been cleared.

HINT:

If permanent DTCs are not output, it is not necessary to continue this procedure.



m.

Perform the normal judgment procedure in the respective confirmation driving pattern of each output DTC.

HINT:
·

Confirmation driving patterns do not need to be performed for misfire and fuel system DTCs.

·

Do not turn the ignition switch off by mistake during this step.




n.

Start the engine and wait for 5 seconds or more.


o.

Turn the ignition switch off and wait for 2 minutes or more.


p.

Turn the ignition switch to ON.


q.

Enter the following menus: Powertrain / Engine / Trouble Codes.

Powertrain > Engine > Trouble Codes
50001 372

r.

Check that the permanent DTCs have been cleared.

HINT:

If permanent DTCs are not output, it is not necessary to continue this procedure.



s.

Perform the normal judgment procedure in the respective confirmation driving pattern of each output DTC.

HINT:
·

Confirmation driving patterns do not need to be performed for misfire and fuel system DTCs.

·

Do not turn the ignition switch off by mistake during this step.




t.

Start the engine and wait for 5 seconds or more.


u.

Turn the ignition switch off and wait for 2 minutes or more.


v.

Turn the ignition switch to ON.


w.

Enter the following menus: Powertrain / Engine / Trouble Codes.

Powertrain > Engine > Trouble Codes
50001 372

x.

Check that the permanent DTCs have been cleared.

HINT:
·

The permanent DTCs are cleared when the universal trip is completed.

·

If permanent DTCs are still present after the universal trip, turn the ignition switch off and wait for a while. Then, confirm that the permanent DTCs have been cleared.
