NETWORKING  CAN COMMUNICATION SYSTEM  Slide Door ECU RH Communication Stop Mode


DESCRIPTION

Detection Item Symptom Trouble Area
Slide Door ECU RH Communication Stop Mode Communication stop for "Rear Door RH (RR-Door)" is indicated on the "Communication Bus Check" screen of the GTS.
(Click here)
·

Slide door motor unit RH branch wire or connector

·

Power source circuit of slide door motor unit RH

·

Slide door motor unit RH ground circuit

·

Slide door motor unit RH

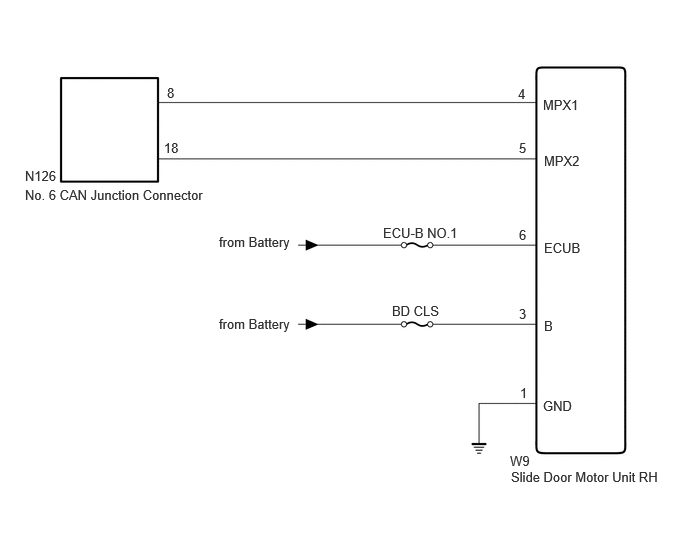

WIRING DIAGRAM

for Wagon
C405880E17
0.26,1.948 2.229,2.24 1.969,0.292 10 false No. 6 CAN Junction Connector 0.26,1.75 0.729,2.01 0.469,0.26 10 false N126 1.708,1.458 2.042,1.719 0.333,0.26 10 false 18 1.74,0.885 2.073,1.146 0.333,0.26 10 false 8 5.396,0.896 5.729,1.156 0.333,0.26 10 false 4 5.406,1.458 5.74,1.719 0.333,0.26 10 false 5 3.99,2.344 5.083,2.656 1.094,0.313 10 false ECU-B NO.1 5.406,2.365 5.74,2.625 0.333,0.26 10 false 6 5.406,3.188 5.74,3.448 0.333,0.26 10 false 3 2.281,2.438 3.76,2.708 1.479,0.271 10 false from Battery 5.417,4.01 5.75,4.271 0.333,0.26 10 false 1 5.656,4.146 5.99,4.406 0.333,0.26 10 false GND 5.667,3.313 6,3.573 0.333,0.26 10 false B 5.667,2.5 6.26,2.74 0.594,0.24 10 false ECUB 5.656,1.01 6.281,1.26 0.625,0.25 10 false MPX1 5.667,1.594 6.344,1.906 0.677,0.313 10 false MPX2 5.313,4.719 5.646,4.979 0.333,0.26 10 false W9 5.323,4.885 6.906,5.375 1.583,0.49 10 false Slide Door Motor Unit RH 4.083,3.156 5.031,3.49 0.948,0.333 10 false BD CLS 2.281,3.292 3.76,3.563 1.479,0.271 10 false from Battery

except Wagon
C405880E37
0.26,1.948 2.229,2.24 1.969,0.292 10 false No.11 CAN Junction Connector 0.26,1.75 0.729,2.01 0.469,0.26 10 false N221 1.708,1.458 2.042,1.719 0.333,0.26 10 false 16 1.74,0.885 2.073,1.146 0.333,0.26 10 false 5 5.396,0.896 5.729,1.156 0.333,0.26 10 false 4 5.406,1.458 5.74,1.719 0.333,0.26 10 false 5 3.99,2.344 5.083,2.656 1.094,0.313 10 false ECU-B NO.1 5.406,2.365 5.74,2.625 0.333,0.26 10 false 6 5.406,3.188 5.74,3.448 0.333,0.26 10 false 3 2.281,2.438 3.76,2.708 1.479,0.271 10 false from Battery 5.417,4.01 5.75,4.271 0.333,0.26 10 false 1 5.656,4.146 5.99,4.406 0.333,0.26 10 false GND 5.667,3.313 6,3.573 0.333,0.26 10 false B 5.667,2.5 6.26,2.74 0.594,0.24 10 false ECUB 5.656,1.01 6.281,1.26 0.625,0.25 10 false MPX1 5.667,1.594 6.344,1.906 0.677,0.313 10 false MPX2 5.313,4.719 5.646,4.979 0.333,0.26 10 false W9 5.323,4.885 6.906,5.375 1.583,0.49 10 false Slide Door Motor Unit RH 4.083,3.156 5.031,3.49 0.948,0.333 10 false BD CLS 2.281,3.292 3.76,3.563 1.479,0.271 10 false from Battery

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING

·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the battery.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM>DIAGNOSIS SYSTEM



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR OPEN IN CAN BUS WIRE (SLIDE DOOR MOTOR UNIT RH BRANCH WIRE)
a.

Disconnect the cable from the negative (-) battery terminal.


b.

Disconnect the W9 slide door motor unit RH connector.

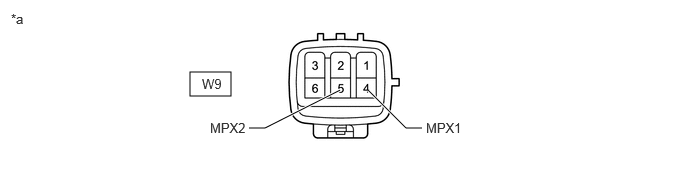

C407713C19
1.979,0.75 2.406,1 0.427,0.25 2.594,1.333 2.76,1.333 2.76,1.333 3.542,0.938 true 4.396,1.333 4.229,1.333 4.229,1.333 3.833,0.938 true 0.115,0.115 0.427,0.313 0.313,0.198 10 false *a 2.104,0.792 2.417,0.99 0.313,0.198 10 false W9 4.438,1.25 4.906,1.458 0.469,0.208 10 false MPX1 2.188,1.25 2.656,1.458 0.469,0.208 10 false MPX2
*a Front view of wire harness connector
(to Slide Door Motor Unit RH) 		- -



c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
W9-4 (MPX1) - W9-5 (MPX2) Cable disconnected from negative (-) battery terminal 54 to 69 Ω



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.

Measure the resistance according to the value(s) in the table below.

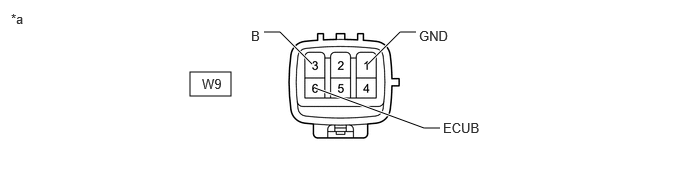

C407713C28
1.979,0.75 2.406,1 0.427,0.25 4.583,1.333 4.417,1.333 4.417,1.333 3.281,0.917 true 3.25,0.667 2.917,0.333 2.917,0.333 2.75,0.333 true 3.833,0.667 4.167,0.333 4.167,0.333 4.333,0.333 true 0.115,0.115 0.427,0.313 0.313,0.198 10 false *a 2.104,0.792 2.417,0.99 0.313,0.198 10 false W9 4.615,1.25 5.083,1.458 0.469,0.208 10 false ECUB 2.615,0.292 3.083,0.5 0.469,0.208 10 false B 4.365,0.292 4.833,0.5 0.469,0.208 10 false GND
*a Front view of wire harness connector
(to Slide Door Motor Unit RH) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
W9-1 (GND) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω



b.

Reconnect the cable to the negative (-) battery terminal.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
W9-3 (B) - Body ground Always 11 to 14 V
W9-6 (ECUB) - Body ground Always 11 to 14 V



Result:
Proceed to
OK
NG



OK

REPLACE SLIDE DOOR MOTOR UNIT RH

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR MOTOR>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
