RM35X0E _53 Suspension _078885 TIRE PRESSURE MONITORING _0382739 TIRE PRESSURE WARNING SYSTEM C

TIRE PRESSURE MONITORING  TIRE PRESSURE WARNING SYSTEM  C2198  Initialization Switch (for Test Mode DTC)


DESCRIPTION

During test mode, when the tire pressure warning reset switch is on, the tire pressure warning light comes on and when the tire pressure warning reset switch is off, the tire pressure warning light blinks at 0.125 second intervals.

DTC No. Detection Item DTC Detection Condition Trouble Area Note
C2198 Initialization Switch (for Test Mode DTC) Test mode procedure is performed.
·

Tire pressure warning reset switch

·

Harness or connector

·

Tire pressure warning ECU and receiver


-

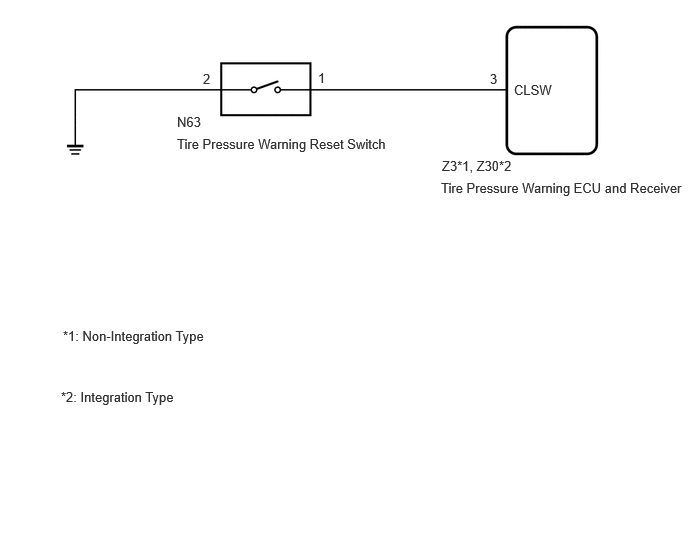

WIRING DIAGRAM

C420988E03
1.844,1.188 2.302,1.385 0.458,0.198 10 false N63 1.844,1.417 4.438,1.677 2.594,0.26 10 false Tire Pressure Warning Reset Switch 2.115,0.74 2.271,0.938 0.156,0.198 10 false 2 3.313,0.729 3.469,0.927 0.156,0.198 10 false 1 5.354,0.854 5.969,1.052 0.615,0.198 10 false CLSW 5.104,0.74 5.26,0.938 0.156,0.198 10 false 3 4.604,1.646 6.292,1.844 1.688,0.198 10 false Z3*1, Z30*2 4.594,1.875 7.135,2.177 2.542,0.302 10 false Tire Pressure Warning ECU and Receiver 0.656,3.417 3.771,3.635 3.115,0.219 10 false *1: Non-Integration Type 0.635,4.052 3.135,4.323 2.5,0.271 10 false *2: Integration Type

CAUTION / NOTICE / HINT

NOTICE:
·

When replacing the tire pressure warning ECU and receiver, read the transmitter IDs and number of the transmitters (4 or 5) stored in the old ECU using the GTS and write them down before removal.



PROCEDURE

1.INSPECT TIRE PRESSURE WARNING RESET SWITCH
a.

Turn the ignition switch off.




Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (TIRE PRESSURE WARNING RESET SWITCH - TIRE PRESSURE WARNING ECU AND RECEIVER)

NG

2.CHECK HARNESS AND CONNECTOR (TIRE PRESSURE WARNING RESET SWITCH - TIRE PRESSURE WARNING ECU AND RECEIVER)
a.

Disconnect the N63 tire pressure warning reset switch connector.


b.

Disconnect the Z3*1 or Z30*2 tire pressure warning ECU and receiver connector.

*1: Non-Integration Type

*2: Integration Type



c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Non-Integration Type:
Tester Connection Condition Specified Condition
Z3-3 (CLSW) - N63-1 Always Below 1 Ω
Z3-3 (CLSW) or N63-1 - Body ground Always 10 kΩ or higher
N63-2 - Body ground Always Below 1 Ω

Integration Type:
Tester Connection Condition Specified Condition
Z30-3 (CLSW) - N63-1 Always Below 1 Ω
Z30-3 (CLSW) or N63-1 - Body ground Always 10 kΩ or higher
N63-2 - Body ground Always Below 1 Ω


Result:
Proceed to
OK
NG




OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
