TIRE PRESSURE WARNING RESET SWITCH(except 7 Inch Multi-information Display)
A
TIRE PRESSURE MONITORING TIRE PRESSURE WARNING RESET SWITCH(except 7 Inch Multi-information Display) REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RHD and LHD sides.
·The following procedure is for the LHD side.
PROCEDURE
67912A
1.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE LH
67914B
2.REMOVE FRONT DOOR SCUFF PLATE LH
62112
3.REMOVE COWL SIDE TRIM BOARD LH
55641
4.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER
5.REMOVE TIRE PRESSURE WARNING RESET SWITCH
a.

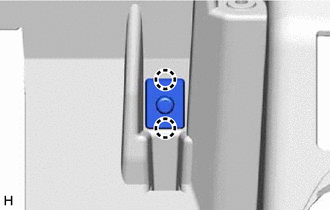

for LHD:
i.
Detach the 2 claws to remove the tire pressure warning reset switch.
b.

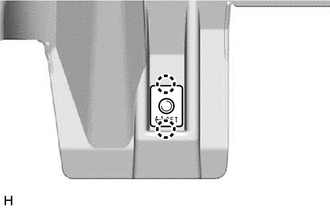

for RHD:
i.
Detach the 2 claws to remove the tire pressure warning reset switch.
