TIRE PRESSURE MONITORING  TIRE PRESSURE WARNING RESET SWITCH  INSPECTION

0.854,1.396 1.583,1.396 true 1.948,1.396 2.667,1.396 true 2.74,1.313 3.031,1.51 0.292,0.198 10 false INT 0.677,1.323 0.844,1.49 0.167,0.167 10 false E 0.083,0.083 0.25,0.25 0.167,0.167 10 false *a

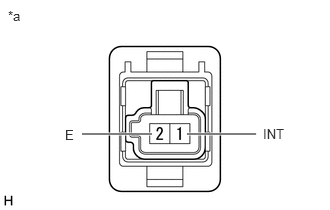

*a	Component without harness connected (Tire Pressure Warning Reset Switch)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Switch Condition	Specified Condition
1 (INT) - 2 (E)	On	Below 1 Ω
	Off	10 kΩ or higher

If the result is not as specified, replace the tire pressure warning reset switch.
