FRONT SUSPENSION  FRONT STABILIZER BAR  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front stabilizer bar removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure Necessary Procedure Effect/Inoperative when not Performed Link
Disconnect cable from negative battery terminal Memorize steering angle neutral point Parking assist monitor system (Click here)
Panoramic view monitor system (Click here)
ECM
for 7GR-FKS:

Perform Vehicle Identification Number (VIN) or frame number registration


DTC P063051 is output (Click here)
for 1GD-FTV:

Perform Vehicle Identification Number (VIN) or frame number registration


DTC is stored w/ DPF:(Click here)
w/ EGR Cooler:(Click here)
for Water Cooled Type Intercooler:(Click here)
w/o EGR Cooler:(Click here)
ECU communication ID registration Engine start function See Service Bulletin for the registration method.
for RC60J:

Performing iMT installation information reset


·

iMT system

·

DTCs are output


for 7GR-FKS:(Click here)
for 1GD-FTV:(Click here)
for 7GR-FKS:
·

Engine assembly

·

Air leaks from intake system

·

Gas leaks from exhaust system


Inspection after repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)
for 1GD-FTV:

Engine assembly


Clear crank time compensation data Engine starting w/ DPF:(Click here)
w/ EGR Cooler:(Click here)
for Water Cooled Type Intercooler:(Click here)
w/o EGR Cooler:(Click here)
·

Input injector compensation code

·

Pilot quantity learning


Engine starting w/ DPF:(Click here)
w/ EGR Cooler:(Click here)
for Water Cooled Type Intercooler:(Click here)
w/o EGR Cooler:(Click here)
w/ Stop and Start System:

Starter assembly

NOTICE:

When the starter assembly is replaced, "STARTER relay" and "STARTER NO.2 relay" must be also replaced.



Clear the number of starter operations Stop and start system (Click here)
for AE60E:
·

Automatic transmission assembly

·

Transmission valve body assembly

·

Any of the shift solenoid valve


Reset memory
·

Large shift shock

·

Engine overruns


7GR-FKS:(Click here)
1GD-FTV:(Click here)
for AE60E:

Automatic transmission fluid


ATF thermal degradation estimate reset The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly
Front wheel alignment adjustment
w/ VSC OFF Switch:
·

Perform reset memory

·

Perform acceleration sensor zero point calibration and store system information memorization


·

VSC is disabled or malfunctions

·

DTCs are output

·

Slip indicator light illuminates

·

ABS warning light illuminates


(Click here)
Suspension, tires, etc. Television camera assembly optical axis (Back camera position setting) Parking assist monitor system (Click here)
·

Parking assist ECU initialization

·

Adjust steering angle


Panoramic view monitor system (Click here)
Replacement of the rear height control sensor sub-assembly LH, removal and reinstallation of the rear height control sensor sub-assembly LH, replacement of the suspension, etc. have been performed Perform headlight ECU sub-assembly LH initialization Lighting system (EXT) (Click here)

CAUTION:
·
A346363C01
2.219,0.813 2.646,0.813 false 2.698,0.729 3.01,0.927 0.313,0.198 10 false *a
*a An Object Exceeding Weight Limit of Engine Lifter


The engine assembly with transaxle is very heavy. Be sure to follow the procedure described in the repair manual, or the engine lifter may suddenly drop or the engine assembly with transaxle may fall off the engine lifter.

·
A344783

To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.



HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Stop and start system

Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 48810 2.REMOVE FRONT STABILIZER LINK ASSEMBLY LH

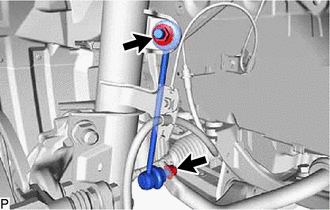

a.
C409634

Remove the 2 nuts and front stabilizer link assembly LH from the front stabilizer bar and front shock absorber assembly.

NOTICE:

Do not damage the boot of the ball joint.


HINT:

If the ball joint turns together with the nut, use an 8 mm hexagon socket wrench to hold the stud bolt.



Hide 48820B 3.REMOVE FRONT STABILIZER LINK ASSEMBLY RH

HINT:

Perform the same procedure as for the LH side.


Hide 48829A 6.REMOVE FRONT NO. 1 STABILIZER BRACKET LH

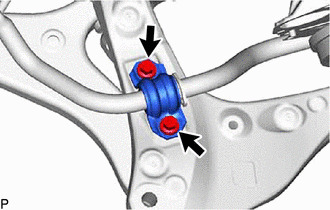

a.
C410943

Remove the 2 bolts and front No. 1 stabilizer bracket LH from the front frame assembly.


Hide 48824A 7.REMOVE FRONT NO. 1 STABILIZER BRACKET RH

HINT:

Perform the same procedure as for the LH side.


Hide 48811 8.REMOVE FRONT STABILIZER BAR

a.

Remove the front stabilizer bar with 2 front No. 1 stabilizer bar bushings from the front frame assembly.


Hide 48815E 9.REMOVE FRONT NO. 1 STABILIZER BAR BUSHING LH

a.

Remove the front No. 1 stabilizer bar bushing LH from the front stabilizer bar.


Hide 48815D 10.REMOVE FRONT NO. 1 STABILIZER BAR BUSHING RH

HINT:

Perform the same procedure as for the LH side.
