RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0381156 FRONT DOOR COURTESY SWITCH(for 4 Door) A

LIGHTING (INT) FRONT DOOR COURTESY SWITCH(for 4 Door) REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RHD and LHD vehicles.

·

The procedure listed below is for the LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 1.REMOVE REAR SEAT ASSEMBLY

for Folding Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>REMOVAL201902,999999,_58,_078601,_0382458,RM100000001G55U,

for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest)>REMOVAL201906,999999,_58,_078601,_0396036,RM100000001IFKF,

for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0381332,RM100000001FZL1,

for Commuter, 4-Passenger Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 4-Passenger Seat)>REMOVAL201902,999999,_58,_078601,_0381333,RM100000001FZL6,

for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0387386,RM100000001HB4S,

for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0381334,RM100000001FZLB,

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0381335,RM100000001FZLG,

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)>REMOVAL201902,999999,_58,_078601,_0387367,RM100000001HB4X,

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest)>REMOVAL201902,999999,_58,_078601,_0387368,RM100000001HB52,

Hide Display 2.REMOVE REAR SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR) (for Full-trim)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Full-trim)>REMOVAL201902,999999,_58,_078602,_0389937,RM100000001HCBE_09_0004,

Hide Display 58777A 3.REMOVE TOOL BAG HOLDER (for Full-trim)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0052,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0052,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0052,

Hide Display 67935 4.REMOVE BACK DOOR SCUFF PLATE (for Full-trim)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0027,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0027,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0027,

Hide Display 62640M 5.REMOVE REAR QUARTER TRIM BOARD ASSEMBLY LH (for Full-trim)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0031,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0031,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0031,

Hide Display 74617A 6.REMOVE ASSIST GRIP PLUG (for Slide Door Side, w/ Assist Grip)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0050,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0050,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0050,

Hide Display 74611F 7.REMOVE PILLAR ASSIST GRIP ASSEMBLY C (for Slide Door Side, w/ Assist Grip)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0049,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0049,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0049,

Hide Display 62620K 8.REMOVE SIDE TRIM BOARD ASSEMBLY LH (for Full-trim, High Roof)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0051,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0051,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0051,

Hide Display 67912A 9.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0046,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0046,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0046,

Hide Display 67914B 10.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0001,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0001,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0001,

Hide Display 62312B 11.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

HINT:: Pull back the front door opening trim weatherstrip LH so that the lower center pillar garnish LH can be removed.; Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR OPENING TRIM WEATHERSTRIP>REMOVAL201902,999999,_59,_078503,_0385652,RM100000001GNFL_02_0003,

Hide Display 74733 12.REMOVE NO. 1 HAND GRIP COVER (for LHD, w/ Hand Rail)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Semi-trim)>REMOVAL201906,202208,_58,_078375,_0380060,RM100000001IXV1_02_0022,202208,202310,_58,_078375,_0380060,RM1000000024I16_02_0022,202310,999999,_58,_078375,_0380060,RM100000002EPY3_02_0022,

Hide Display 74707 13.REMOVE NO. 1 HAND GRIP FRAME SUB-ASSEMBLY (for LHD, w/ Hand Rail)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Semi-trim)>REMOVAL201906,202208,_58,_078375,_0380060,RM100000001IXV1_02_0023,202208,202310,_58,_078375,_0380060,RM1000000024I16_02_0023,202310,999999,_58,_078375,_0380060,RM100000002EPY3_02_0023,

Hide Display 74733 14.REMOVE NO. 1 HAND GRIP COVER (for RHD, w/ Hand Rail)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0056,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0056,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0056,

Hide Display 74708 15.REMOVE NO. 2 HAND GRIP FRAME SUB-ASSEMBLY (for RHD, w/ Hand Rail)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0057,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0057,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0057,

Hide Display 67918E 16.REMOVE REAR DOOR SCUFF PLATE LH (for Slide Door Side)

HINT:: Use the same procedure described for the RH side.; ·

except Full Cover Type:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Semi-trim)>REMOVAL201906,202208,_58,_078375,_0380060,RM100000001IXV1_02_0011,202208,202310,_58,_078375,_0380060,RM1000000024I16_02_0011,202310,999999,_58,_078375,_0380060,RM100000002EPY3_02_0011,

·

for Full Cover Type:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0014,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0014,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0014,

Hide Display 67872A 17.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP LH (for Slide Door Side)

HINT:: Pull back the rear door opening trim weatherstrip LH so that the lower center pillar garnish LH can be removed.; Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (except Wagon)>REMOVAL201906,202310,_59,_078503,_0385653,RM100000001JGPJ_02_0010,202310,999999,_59,_078503,_0385653,RM100000002EPZ5_02_0010,

Hide Display 73233 18.REMOVE OUTER LAP BELT ANCHOR COVER

for Semi-trim:

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Semi-trim)>REMOVAL201902,202310,_58,_078602,_0387551,RM100000001GXXS_02_0120,202310,999999,_58,_078602,_0387551,RM100000002EQ3P_02_0120,

for Full-trim:

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Full-trim)>REMOVAL201902,202310,_58,_078602,_0387529,RM100000001GXU3_02_0114,202310,999999,_58,_078602,_0387529,RM100000002EQ3Z_02_0114,

Hide Display 73220 19.REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

for Semi-trim:

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Semi-trim)>REMOVAL201902,202310,_58,_078602,_0387551,RM100000001GXXS_02_0121,202310,999999,_58,_078602,_0387551,RM100000002EQ3P_02_0124,

for Full-trim:

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Full-trim)>REMOVAL201902,202310,_58,_078602,_0387529,RM100000001GXU3_02_0115,202310,999999,_58,_078602,_0387529,RM100000002EQ3Z_02_0124,

Hide Display 74617A 20.REMOVE ASSIST GRIP PLUG (for Slide Door Side, w/ Assist Grip)

Hide Display 74680 21.REMOVE PILLAR ASSIST GRIP ASSEMBLY B (for Slide Door Side, w/ Assist Grip)

Hide Display 62520B 22.REMOVE QUARTER TRIM PANEL ASSEMBLY LH (for Full-trim)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0033,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0033,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0033,

Hide Display 62414A 23.REMOVE LOWER CENTER PILLAR GARNISH LH (for Semi-trim)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Semi-trim)>REMOVAL201906,202208,_58,_078375,_0380060,RM100000001IXV1_02_0013,202208,202310,_58,_078375,_0380060,RM1000000024I16_02_0013,202310,999999,_58,_078375,_0380060,RM100000002EPY3_02_0013,

Hide Display 84233 24.REMOVE FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

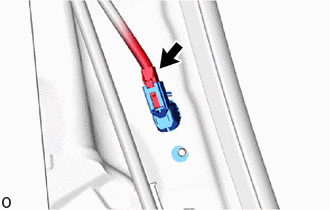

Disconnect the connector.

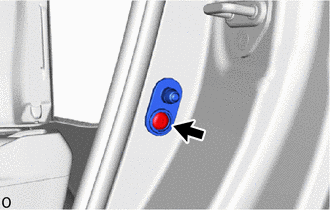

Using a T30 "TORX" socket wrench, remove the "TORX" screw and front door courtesy light switch assembly.
