SEAT BELT OCCUPANT DETECTION SENSOR(for Separate Seat Type) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 71511A 1.INSTALL FRONT SEAT CUSHION PAD RH (OCCUPANT DETECTION SENSOR)

HINT:: When installing the front seat cushion cover sub-assembly RH, refer to the Precaution section in order to prevent wrinkles from forming.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION201902,999999,_58,_078601,_0381328,RM100000001G566,

Attach the hook and install the front seat cushion cover sub-assembly RH to the front seat cushion pad RH (occupant detection sensor).

NOTICE:: Be careful not to damage the front seat cushion cover sub-assembly RH.

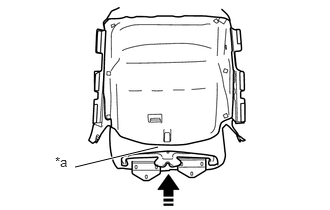

0.781,1.74 1.646,1.531 true 0.573,1.604 0.74,1.781 0.167,0.177 10 false *a

*a	Band
	Install in this Direction

Attach the band.

Hide Display 2.INSTALL FRONT SEAT CUSHION COVER WITH PAD

Attach the hook and install the front seat cushion cover with pad.

Attach the hook.

Attach the claw.

Hide Display 3.INSTALL FRONT SEATBACK ASSEMBLY

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW0F_03_0020,202208,999999,_58,_078601,_0381328,RM1000000024I2K_03_0020,

Hide Display 71861K 4.INSTALL FRONT SEAT INNER CUSHION SHIELD RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW0F_03_0022,202208,999999,_58,_078601,_0381328,RM1000000024I2K_03_0022,

Hide Display 71811T 5.INSTALL FRONT SEAT CUSHION SHIELD RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW0F_03_0024,202208,999999,_58,_078601,_0381328,RM1000000024I2K_03_0024,

Hide Display 72525M 6.INSTALL RECLINING ADJUSTER RELEASE HANDLE RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW0F_03_0027,202208,999999,_58,_078601,_0381328,RM1000000024I2K_03_0027,

Hide Display 72551K 7.INSTALL RECLINING HINGE COVER RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW0F_03_0028,202208,999999,_58,_078601,_0381328,RM1000000024I2K_03_0028,

Hide Display 71130B 8.INSTALL FRONT SEAT LEG ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW0F_03_0002,202208,999999,_58,_078601,_0381328,RM1000000024I2K_03_0002,

Hide Display 71139M 9.INSTALL FRONT SEAT OUTER LEG COVER RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW0F_03_0035,202208,999999,_58,_078601,_0381328,RM1000000024I2K_03_0035,

Hide Display 71139N 10.INSTALL FRONT SEAT INNER LEG COVER RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW0F_03_0003,202208,999999,_58,_078601,_0381328,RM1000000024I2K_03_0003,

Hide Display 11.INSTALL FRONT SEAT ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>INSTALLATION201906,999999,_58,_078601,_0381328,RM100000001J8ZE,

Hide Display 12.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 13. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (w/ Front Seat Side Airbag)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 14. PERFORM DIAGNOSTIC SYSTEM CHECK (w/ Front Seat Side Airbag)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 15.CHECK SRS WARNING LIGHT (w/ Front Seat Side Airbag)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>OPERATION CHECK201902,999999,_58,_079257,_0385034,RM100000001GJPW,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 16.INSPECT SEAT BELT WARNING SYSTEM

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>OPERATION CHECK201906,999999,_58,_078602,_0385912,RM100000001IZZ0,
