SEAT OCCUPANT DETECTION SENSOR(for Power Captain Seat) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedures listed below are for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

·

The procedure listed below is a representative example.

·

Use the same procedure for first row and second row, unless otherwise specified.

PROCEDURE

Hide Display 79136C 1.INSTALL NO. 1 SEAT CUSHION PAD LH (OCCUPANT DETECTION SENSOR)

HINT:: When installing a No. 1 seat cushion cover sub-assembly LH, refer to Precaution in order to prevent wrinkles from forming.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION201902,999999,_58,_078601,_0381328,RM100000001G566,

1.865,3.74 1.927,3.104 1.927,3.104 2.125,3.104 false 2.146,2.99 2.458,3.146 0.313,0.156 10 false *a 1.365,0.646 1.563,0.854 0.198,0.208 10 true (1) 1.927,0.646 2.125,0.854 0.198,0.208 10 true (2) 1.656,1.198 1.854,1.406 0.198,0.208 10 true (3) 1.208,1.198 1.406,1.406 0.198,0.208 10 true (4) 2.083,1.198 2.281,1.406 0.198,0.208 10 true (5) 1.646,1.646 1.844,1.854 0.198,0.208 10 true (6) 1.177,1.646 1.375,1.854 0.198,0.208 10 true (7) 2.115,1.646 2.313,1.854 0.198,0.208 10 true (8) 2.385,0.583 2.583,0.792 0.198,0.208 10 true (9) 2.469,0.823 2.75,1.031 0.281,0.208 10 true (10) 2.531,1.25 2.813,1.458 0.281,0.208 10 true (11) 2.365,0.333 2.646,0.542 0.281,0.208 10 true (12) 2.354,0.063 2.635,0.271 0.281,0.208 10 true (13) 0.802,0.583 1.073,0.792 0.271,0.208 10 true (14) 0.708,0.823 0.979,1.031 0.271,0.208 10 true (15) 0.656,1.24 0.927,1.448 0.271,0.208 10 true (16) 0.823,0.323 1.094,0.531 0.271,0.208 10 true (17) 0.823,0.052 1.094,0.26 0.271,0.208 10 true (18)

*a	Hog Ring Pliers
	Fastening tape

Attach the fastening tape.

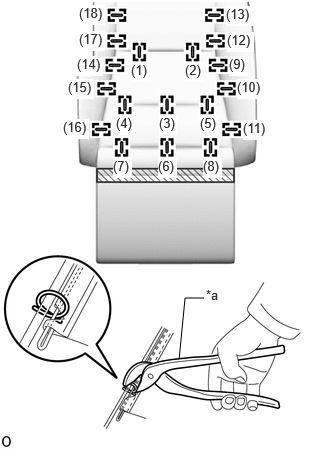

Using hog ring pliers, install the No. 1 seat cushion pad LH (occupant detection sensor) to the No. 1 seat cushion cover sub-assembly LH with 18 new hog rings in the order shown in the illustration.

NOTICE:: ·

Be careful not to damage the No. 1 seat cushion cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seat cushion cover sub-assembly LH.

1.75,3.99 1.823,3.396 1.823,3.396 2,3.396 false 2.01,3.281 2.198,3.469 0.188,0.188 10 false *a

*a	Hog Ring Pliers

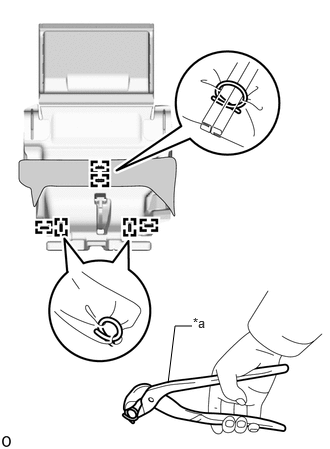

Using hog ring pliers, install 6 new hog rings.

NOTICE:: Be careful not to damage the No. 1 seat cushion cover sub-assembly LH.
