7GR-FKS FUEL FUEL MAIN VALVE REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel main valve assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Battery terminal is disconnected/reconnected | Memorize steering angle neutral point | Parking assist monitor system | ( 201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
|
| Panoramic view monitor system | (201906,999999,_56,_079315,_0396274,RM100000001IGR3,)
|
||
| Replacement of fuel pump with filter assembly | Inspection after repair | ·
Poor idle, etc. ·
Engine start function, etc. |
(201902,999999,_51,_078720,_0381907,RM100000001G2VV,)
|
- HINT:
-
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- ·
Learning completes when vehicle is driven
Effect/Inoperative when not Performed Necessary Procedures Link Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. ( 201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system
·Learning completes when vehicle is operated normally
Effect/Inoperative when not Performed Necessary Procedures Link Power slide door system Fully close the slide door by hand.
- HINT:
-
Initialization is not necessary if the above procedures are performed while the slide door is closed.
( 201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -
- CAUTION:
- ·
Never perform work on fuel system components near any possible ignition sources.
·Vaporized fuel could ignite, resulting in a serious accident.
·
Do not perform work on fuel system components without first disconnecting the cable from the negative (-) battery terminal.
·Sparks could cause vaporized fuel to ignite, resulting in a serious accident.
PROCEDURE
1. PRECAUTION
- NOTICE:
-
After turning the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.
2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
77020A
3.REMOVE FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY
23217D
4.REMOVE FUEL PUMP FILTER
23070
5.REMOVE FUEL MAIN VALVE ASSEMBLY
Remove the fuel main valve assembly (for High Pressure).

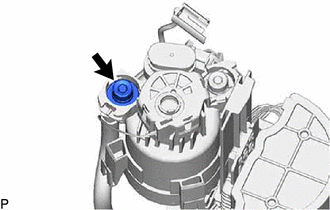

Remove the clip from the fuel suction plate sub-assembly (fuel filter).
- NOTICE:
-
Do not damage the fuel suction plate sub-assembly (fuel filter).

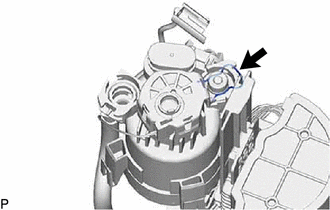

Remove the fuel main valve assembly (for High Pressure) from the fuel suction plate sub-assembly (fuel filter).
- NOTICE:
-
Do not damage the fuel suction plate sub-assembly (fuel filter).
| *1 | O-ring |
Remove the 2 O-rings from the fuel main valve assembly (for High Pressure).
Remove the fuel main valve assembly (for Low Pressure).

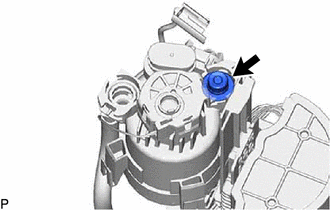

Remove the clip from the fuel suction plate sub-assembly (fuel filter).
- NOTICE:
-
Do not damage the fuel suction plate sub-assembly (fuel filter).

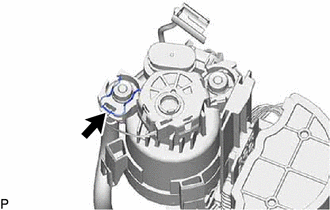

Remove the fuel main valve assembly (for Low Pressure) from the fuel suction plate sub-assembly (fuel filter).
- NOTICE:
-
Do not damage the fuel suction plate sub-assembly (fuel filter).
| *1 | O-ring |
Remove the 2 O-rings from the fuel main valve assembly (for Low Pressure).
