7GR-FKS FUEL FUEL PUMP DISASSEMBLY

CAUTION / NOTICE / HINT

NOTICE:

0.26,1.75 0.698,1.75 true 2.146,1.906 2.583,1.906 true 0.083,1.656 0.323,1.854 0.24,0.198 10 false *a 2.625,1.802 2.865,2 0.24,0.198 10 false *a

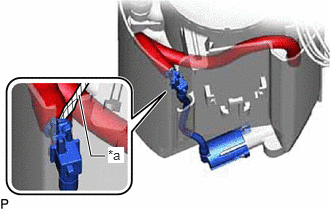

Tube

Do not disconnect the tube shown in the illustration when disassembling the fuel suction with pump and gauge tube assembly. Doing so will cause reassembly of the fuel suction with pump and gauge tube assembly to be impossible as the tube is pressed into the fuel suction plate sub-assembly.

Click hereEngine / Hybrid System>7GR-FKS (FUEL)>FUEL SYSTEM>PRECAUTION201902,201906,_51,_079024,_0383258,RM100000001G9W3,201906,202310,_51,_079024,_0383258,RM100000001IZVI,202310,999999,_51,_079024,_0383258,RM100000002G341,

PROCEDURE

Hide Display 83320 1.REMOVE FUEL SENDER GAUGE ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (FUEL)>FUEL SENDER GAUGE ASSEMBLY>REMOVAL201902,201906,_51,_079024,_0383268,RM100000001G9X7_01_0016,201906,202310,_51,_079024,_0383268,RM100000001IZVU_01_0016,202310,999999,_51,_079024,_0383268,RM100000002G329_01_0016,

Hide Display 2.REMOVE NO. 1 FUEL SUB-TANK

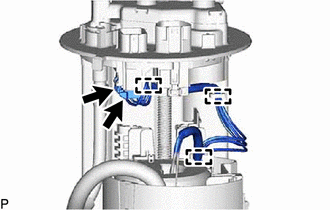

Disconnect the 2 fuel pump connectors.

Detach the 3 clamps.

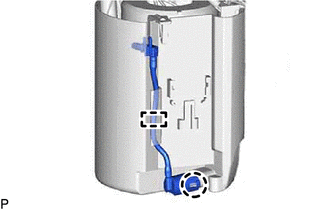

Detach the claw and clamp, disconnect the jet pump.

0.823,0.99 0.948,1.625 0.948,1.625 1.094,1.625 true 1.125,1.531 1.292,1.698 0.167,0.167 10 true *a

*a	Protective Tape

Using a screwdriver, remove the jet pump from the No. 1 fuel sub-tank.

NOTICE:: Do not damage the No. 1 fuel sub-tank.

HINT:: Tape the screwdriver tip before use.

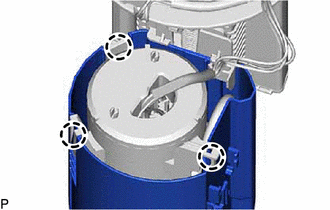

Using a screwdriver, detach the 3 claws and remove the No. 1 fuel sub-tank.

NOTICE:: Do not damage the No. 1 fuel sub-tank.

Hide Display 23217D 3.REMOVE FUEL PUMP FILTER

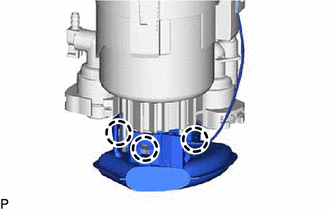

Detach the 3 claws from the holes and disconnect the fuel pump filter from the fuel suction plate sub-assembly (fuel filter).

NOTICE:: Do not damage the fuel suction plate sub-assembly (fuel filter).

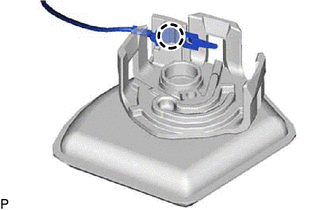

Detach the claw to disconnect the fuel pump harness from the fuel pump filter.

NOTICE:: Do not damage the fuel pump filter.

Hide Display 4.REMOVE FUEL PUMP

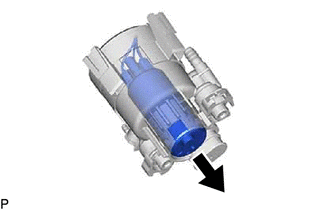

Remove the fuel pump from the fuel suction plate sub-assembly (fuel filter).

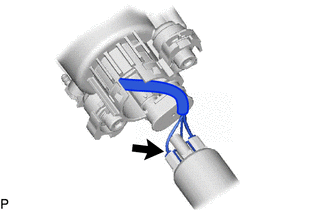

Disconnect the fuel pump harness connector to remove the fuel pump harness from the fuel pump.

0.708,4.26 0.844,4.438 0.844,4.438 1.042,4.438 true 2.323,0.833 2.896,0.833 true 2.333,0.667 2.604,0.479 2.604,0.479 2.865,0.479 true 2.948,0.417 3.24,0.625 0.292,0.208 10 false *1 2.969,0.76 3.25,0.979 0.281,0.219 10 false *2 2.073,1.781 2.323,1.969 0.25,0.188 10 false *a 2.146,2.344 2.375,2.542 0.229,0.198 10 false *a 1.115,4.365 1.438,4.604 0.323,0.24 10 false *1

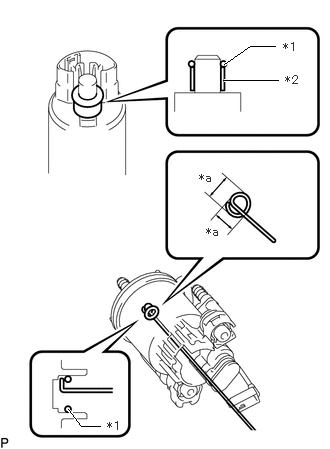

*1	O-Ring
*2	Fuel Pump Spacer
*a	5.0 mm (0.197 in.)

Remove the O-ring and fuel pump spacer from the fuel pump.

HINT:: If the O-ring still remains in the fuel suction plate sub-assembly (fuel filter), remove it using a wire tip (1 mm diameter) that is formed as shown in the illustration.
