RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0382358 SPOT LIGHT(for LH Side) A

LIGHTING (INT) SPOT LIGHT(for LH Side) REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RHD and LHD vehicles.

·

The procedure listed below is for the LHD vehicles.

PROCEDURE

Hide Display 1.REMOVE REAR SEAT ASSEMBLY

for Folding Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>REMOVAL201902,999999,_58,_078601,_0382458,RM100000001G55U,

for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest)>REMOVAL201906,999999,_58,_078601,_0396036,RM100000001IFKF,

for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0381332,RM100000001FZL1,

for Commuter, 4-Passenger Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 4-Passenger Seat)>REMOVAL201902,999999,_58,_078601,_0381333,RM100000001FZL6,

for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0387386,RM100000001HB4S,

for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0381334,RM100000001FZLB,

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0381335,RM100000001FZLG,

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)>REMOVAL201902,999999,_58,_078601,_0387367,RM100000001HB4X,

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest)>REMOVAL201902,999999,_58,_078601,_0387368,RM100000001HB52,

Hide Display 2.REMOVE REAR SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Full-trim)>REMOVAL201902,999999,_58,_078602,_0389937,RM100000001HCBE_09_0004,

Hide Display 3.REMOVE REAR SEAT OUTER BELT ASSEMBLY LH

0,0 0,0 false

Open in this Direction

Using moulding remover D, detach the claw and open the cover as shown in the illustration.

Remove the bolt.

Hide Display 58777A 4.REMOVE TOOL BAG HOLDER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0052,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0052,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0052,

Hide Display 67935 5.REMOVE BACK DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0027,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0027,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0027,

Hide Display 62640M 6.REMOVE REAR QUARTER TRIM BOARD ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0031,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0031,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0031,

Hide Display 72681E 7.REMOVE REAR SEAT HOOK (w/ Seat Hook)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0024,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0024,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0024,

Hide Display 62472D 8.REMOVE REAR UPPER PILLAR GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0025,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0025,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0025,

Hide Display 62639A 9.REMOVE QUARTER PILLAR GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0022,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0022,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0022,

Hide Display 62620K 10.REMOVE SIDE TRIM BOARD ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0051,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0051,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0051,

Hide Display 62460A 11.REMOVE REAR ROOF SIDE RAIL GARNISH ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0034,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0034,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0034,

Hide Display 81360T 12.REMOVE SPOT LIGHT ASSEMBLY (for Rear Side)

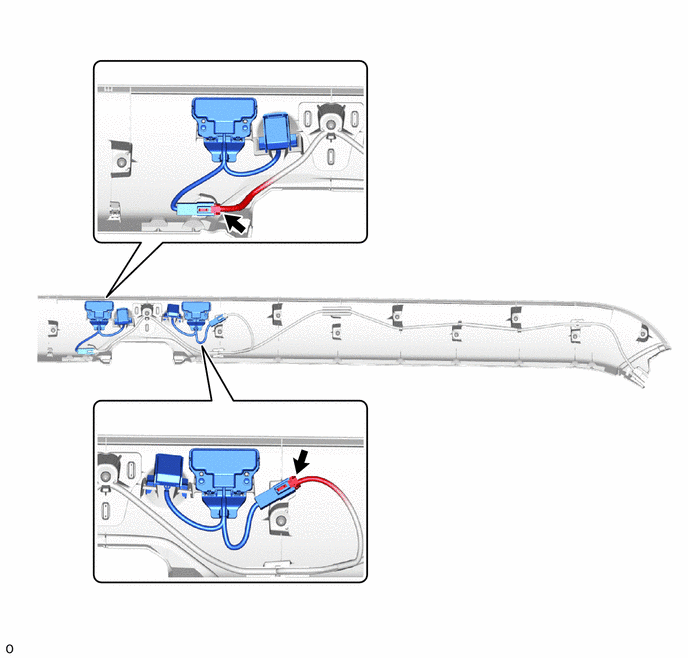

Disconnect the 2 connectors.

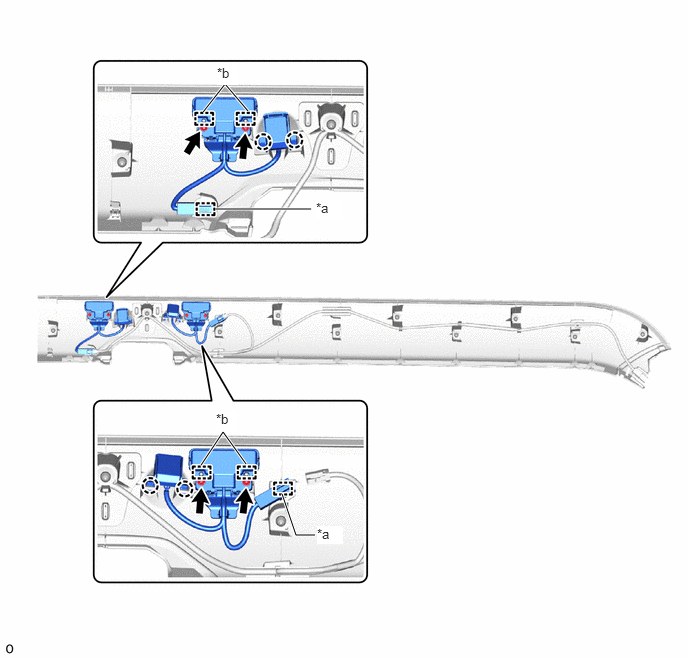

Remove the 4 screws.

Detach the clamp, claw and guide and remove the 2 spot light assemblies.

2.115,1.167 2.344,0.875 2.344,0.875 2.583,1.156 true 2.094,4.844 2.323,4.5 2.323,4.5 2.563,4.833 true 2.938,5.146 3.083,5.573 3.083,5.573 3.281,5.573 true 2.24,2.177 3.24,2.177 true 2.25,4.281 2.469,4.49 0.219,0.208 10 true *b 2.26,0.677 2.479,0.885 0.219,0.208 10 true *b 3.302,5.479 3.573,5.667 0.271,0.188 10 true *a 3.292,2.083 3.563,2.281 0.271,0.198 10 true *a

Clamp

Guide

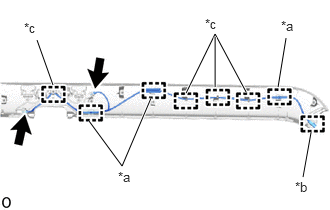

Hide Display 82214E 13.REMOVE NO. 2 ROOM LIGHT WIRE (for Rear Side)

HINT:: Perform this procedure only when replacing the No. 2 room light wire.

0.385,0.417 0.552,0.885 true 1.573,1.021 1.271,1.729 1.271,1.729 0.927,1.26 true 2.563,0.958 2.24,0.354 2.24,0.354 1.938,0.969 true 2.24,0.385 2.24,0.906 true 3.24,1.375 3.156,1.844 true 2.979,0.396 2.896,0.906 true 1.229,1.76 1.458,1.969 0.229,0.208 10 false *a 3.073,1.865 3.313,2.073 0.24,0.208 10 false *b 0.25,0.208 0.521,0.417 0.271,0.208 10 false *c 2.135,0.167 2.323,0.365 0.188,0.198 10 false *c 2.927,0.188 3.156,0.396 0.229,0.208 10 false *a

*a	Wire Harness Clamp
*b	Clamp
*c	Guide

Disconnect the 2 connectors.

Detach the wire harness clamp, clamp and guide and remove the No. 2 room light wire.

Hide Display 67912A 14.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0046,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0046,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0046,

Hide Display 67914B 15.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0001,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0001,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0001,

Hide Display 62312B 16.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

HINT:: Pull back the front door opening trim weatherstrip LH so that the lower center pillar garnish LH can be removed.; Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR OPENING TRIM WEATHERSTRIP>REMOVAL201902,999999,_59,_078503,_0385652,RM100000001GNFL_02_0003,

Hide Display 73178C 17.REMOVE SEAT BELT ANCHOR COVER CAP

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Full-trim)>REMOVAL201902,202310,_58,_078602,_0387529,RM100000001GXU3_02_0113,202310,999999,_58,_078602,_0387529,RM100000002EQ3Z_02_0113,

Hide Display 73233 18.REMOVE OUTER LAP BELT ANCHOR COVER

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Full-trim)>REMOVAL201902,202310,_58,_078602,_0387529,RM100000001GXU3_02_0114,202310,999999,_58,_078602,_0387529,RM100000002EQ3Z_02_0114,

Hide Display 73220 19.REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Full-trim)>REMOVAL201902,202310,_58,_078602,_0387529,RM100000001GXU3_02_0115,202310,999999,_58,_078602,_0387529,RM100000002EQ3Z_02_0124,

Hide Display 62520B 20.REMOVE QUARTER TRIM PANEL ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0033,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0033,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0033,

Hide Display 62412 21.REMOVE CENTER PILLAR GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0058,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0058,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0058,

Hide Display 62440D 22.REMOVE FRONT ROOF SIDE RAIL GARNISH ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0059,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0059,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0059,

Hide Display 81360T 23.REMOVE SPOT LIGHT ASSEMBLY (for Front Side)

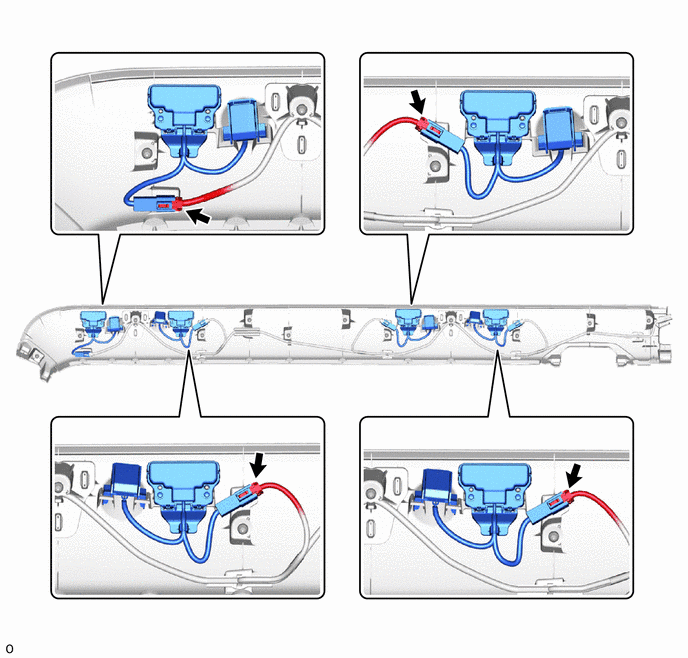

Disconnect the 4 connectors.

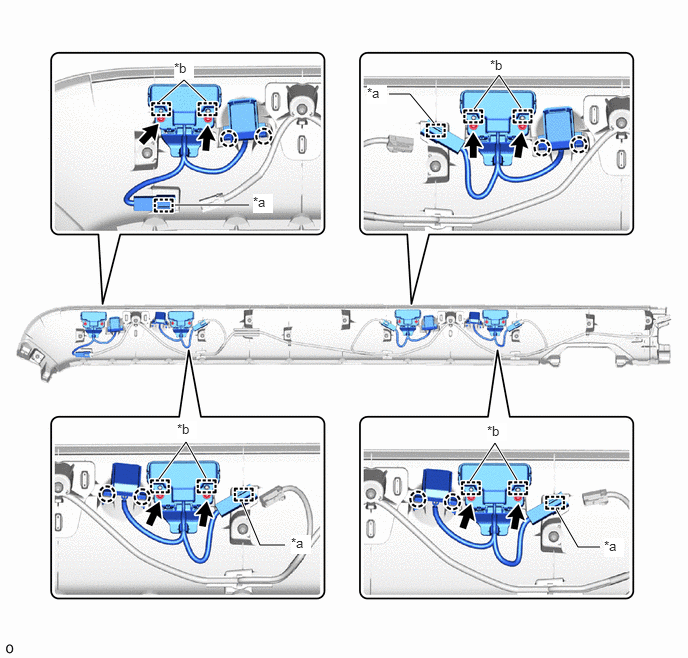

Remove the 8 screws.

Detach the clamp, claw and guide and remove the 4 spot light assemblies.

1.656,1.063 1.917,0.833 1.917,0.833 2.146,1.052 true 1.823,2.135 2.594,2.135 true 2.521,5.229 2.708,5.677 2.708,5.677 2.969,5.677 true 5.792,5.302 6.021,5.698 6.021,5.698 6.25,5.698 true 4.052,0.979 4.271,0.979 4.271,0.979 4.521,1.281 true 4.938,1.135 5.198,0.781 5.198,0.781 5.427,1.125 true 4.896,5.01 5.156,4.615 5.156,4.615 5.385,5 true 1.656,4.99 1.938,4.604 1.938,4.604 2.146,4.979 true 2.635,2.021 2.844,2.219 0.208,0.198 10 true *a 1.813,0.625 2.021,0.813 0.208,0.188 10 true *b 5.104,0.594 5.313,0.781 0.208,0.188 10 true *b 5.073,4.406 5.281,4.594 0.208,0.188 10 true *b 1.844,4.385 2.052,4.573 0.208,0.188 10 true *b 3.823,0.885 4.031,1.083 0.208,0.198 10 true *a 6.292,5.604 6.5,5.802 0.208,0.198 10 true *a 3.031,5.573 3.24,5.771 0.208,0.198 10 true *a

Clamp

Guide

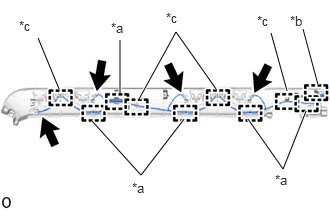

Hide Display 82214C 24.REMOVE ROOM LIGHT WIRE (for Front Side)

HINT:: Perform this procedure only when replacing the room light wire.

0.396,0.396 0.615,0.927 true 0.958,1.26 1.469,1.823 1.469,1.823 1.917,1.24 true 1.25,0.417 1.25,0.969 true 2.25,0.927 1.833,0.333 1.833,0.333 1.448,1.031 true 2.583,1.24 2.948,1.76 2.948,1.76 3.188,1.156 true 3.156,0.302 3.313,0.885 true 2.823,0.344 2.99,0.948 true 3.021,0.135 3.24,0.313 0.219,0.177 10 false *b 0.198,0.188 0.417,0.385 0.219,0.198 10 false *c 1.375,1.875 1.594,2.052 0.219,0.177 10 false *a 2.865,1.792 3.083,1.969 0.219,0.177 10 false *a 2.677,0.135 2.875,0.323 0.198,0.188 10 false *c 1.156,0.208 1.375,0.385 0.219,0.177 10 false *a 1.729,0.104 1.948,0.302 0.219,0.198 10 false *c

*a	Wire Harness Clamp
*b	Clamp
*c	Guide

Disconnect the 4 connectors.

Detach the wire harness clamp, clamp and guide and remove the room light wire.
