LIGHTING (EXT) HAZARD WARNING SWITCH INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for RHD and LHD vehicles.
·The procedure listed below is for LHD vehicles.
PROCEDURE
84330

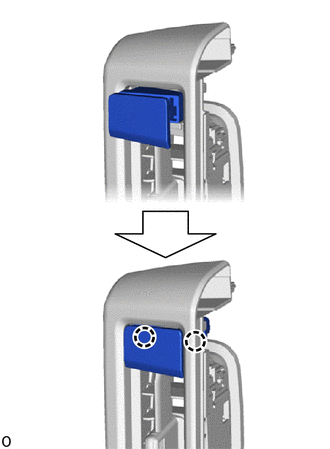

1.INSTALL HAZARD WARNING SIGNAL SWITCH ASSEMBLY
Attach the claw to install the hazard warning signal switch assembly.
55670
2.INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
55414A
3.INSTALL INSTRUMENT CLUSTER FINISH PANEL END (for Semi-trim)
55413D
4.INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (for Full-trim)
55320
5.INSTALL LOWER NO. 2 INSTRUMENT PANEL ASSEMBLY (for Full-trim)
55434B
6.INSTALL CENTER LOWER INSTRUMENT PANEL FINISH PANEL (for Full-trim)
55900
7.INSTALL AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)
55405B
8.INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for Manual Air Conditioning System)
35970F
9.INSTALL POSITION INDICATOR HOUSING ASSEMBLY (for Automatic Transmission)
58840Q
10.INSTALL SHIFTING HOLE COVER ASSEMBLY (for Manual Transmission)
33504F
11.INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
for Manual Transmission:
for Automatic Transmission:
33622
12.CONNECT NO. 1 SHIFT LEVER KNOB COVER (for Automatic Transmission)
55646
13.INSTALL NO. 3 INSTRUMENT PANEL UNDER COVER (for Full-trim)
58534E
14.INSTALL CENTER FLOOR CARPET COVER LH (for Full-trim)
58533C
15.INSTALL CENTER FLOOR CARPET COVER RH (for Full-trim)
16.INSTALL CONSOLE BOX ASSEMBLY (for Full-trim)
55438A
17.INSTALL NO. 2 INSTRUMENT PANEL FINISH PANEL RETAINER (for Full-trim)
55312
18.INSTALL LOWER INSTRUMENT PANEL (for Full-trim)
55317A
19.INSTALL INSTRUMENT SIDE PANEL RH (for Full-trim)
62111C
20.INSTALL COWL SIDE TRIM BOARD RH (for Full-trim)
55012A
21.INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY (for Full-trim)
55632B
22.INSTALL NO. 2 INSTRUMENT PANEL UNDER TRAY SUPPORT (for Full-trim)
67913B
23.INSTALL FRONT DOOR SCUFF PLATE RH (for Full-trim)
- HINT:
-
Use the same procedure described for the LH side.
67911B
24.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE RH (for Full-trim)
- HINT:
-
Use the same procedure described for the LH side.
55642
25.INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER (for Full-trim)
55044C
26.INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
73900
27.INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (for Full-trim, w/ Knee Airbag)
55313
28.INSTALL LOWER INSTRUMENT PANEL LH (for Full-trim, w/o Knee Airbag)
55445B
29.INSTALL INSTRUMENT PANEL FINISH PLATE (for Full-trim, w/o Knee Airbag)
55433B
30.INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL (for Full-trim)
55432D
31.INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL (for Full-trim)
77306
32.INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY (for Full-trim)
53601
33.INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY (for Full-trim)
55641
34.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER (for Full-trim)
55318C
35.INSTALL INSTRUMENT SIDE PANEL LH (for Full-trim)
55011A
36.INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY (for Full-trim)
55631A
37.INSTALL NO. 1 INSTRUMENT PANEL UNDER TRAY STOPPER (for Full-trim)
62112
38.INSTALL COWL SIDE TRIM BOARD LH (for Full-trim)
67914B
39.INSTALL FRONT DOOR SCUFF PLATE LH (for Full-trim)
67912A
40.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE LH (for Full-trim)
41.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for Full-trim, w/ Knee Airbag)
42. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (for Full-trim, w/ Knee Airbag)
- HINT:
-
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
43. PERFORM DIAGNOSTIC SYSTEM CHECK (for Full-trim, w/ Knee Airbag)
44.CHECK SRS WARNING LIGHT (for Full-trim, w/ Knee Airbag)
