RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0384419 SWITCH HOUSING A

LIGHTING (EXT) SWITCH HOUSING INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 84319 1.INSTALL STEERING WHEEL SWITCH HOUSING

If reusing the steering wheel switch housing:

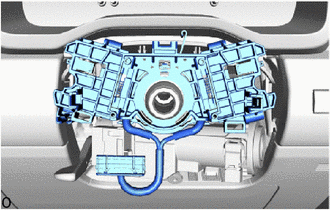

Using pliers, support the band clamp while loosened and set the steering wheel switch housing.

ii.

0,0 0,0 false

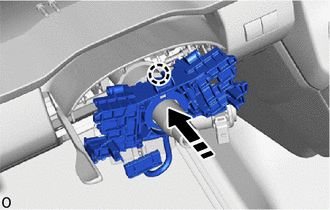

Install in this Direction

Push the steering wheel switch housing forward to attach the claw to install it.

iii.

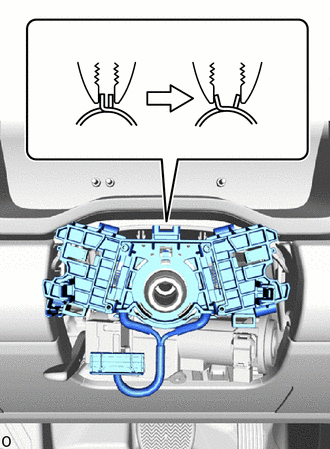

Tighten the band clamp.

If installing a new steering wheel switch housing:

Set the steering wheel switch in place.

ii.

0,0 0,0 false

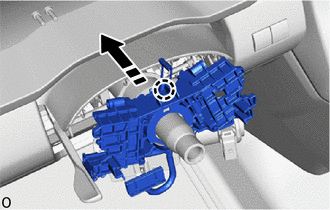

Install in this Direction

Push the steering wheel switch housing forward to attach the claw to install it.

iii.

0,0 0,0 false

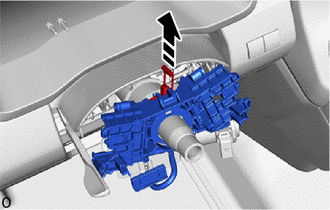

Remove in this Direction

Remove the pin to tighten the band clamp.

Hide Display 84329 2.INSTALL TURN SIGNAL SWITCH

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT DIMMER SWITCH>INSTALLATION201902,999999,_59,_079256,_0384442,RM100000001GGPE_01_0048,

Hide Display 84650 3.INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>WIPER SWITCH>INSTALLATION201902,999999,_59,_079320,_0385306,RM100000001GLLB_01_0001,

Hide Display 4.INSTALL SPIRAL CABLE

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SPIRAL CABLE>INSTALLATION201906,999999,_58,_079257,_0384936,RM100000001INDW,

Hide Display 5.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 6. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 7.PERFORM DIAGNOSTIC SYSTEM CHECK

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 8.CHECK SRS WARNING LIGHT

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>OPERATION CHECK201902,999999,_58,_079257,_0385034,RM100000001GJPW,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 9.PERFORM SYSTEM INITIALIZATION AND CALIBRATION

Click hereVehicle Exterior>LIGHTING (EXT)>SWITCH HOUSING>REMOVAL201906,999999,_59,_079256,_0384419,RM100000001IFT7,
