SUPPLEMENTAL RESTRAINT SYSTEMS CURTAIN SHIELD AIRBAG ASSEMBLY(for Front Side) DISPOSAL

CAUTION / NOTICE / HINT

CAUTION:: Before performing pre-disposal deployment of any SRS part, review and closely follow all applicable environmental and hazardous material regulations. Pre-disposal deployment may be considered hazardous material treatment.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: ·

An airbag or pretensioner may be activated by static electricity. To prevent this, be sure to touch a metal surface with your bare hands to discharge static electricity before performing this procedure.

·

Do not perform this procedure indoors or on rough roads where safety cannot be ensured. Also, do not deploy SRS parts near residential areas.

·

If this procedure is performed indoors or on rough roads where safety cannot be ensured, unforeseen injuries may occur. Also, the deployment noise creates a nuisance to nearby residents.

HINT:: When scrapping a vehicle equipped with an SRS or disposing of the front curtain shield airbag assembly, be sure to deploy the airbag first in accordance with the following procedure. If any abnormality occurs with the airbag deployment, contact the Service Department of the distributor.

Hide Display 2.DISPOSE OF FRONT CURTAIN SHIELD AIRBAG ASSEMBLY LH (When Installed to Vehicle)

NOTICE:: ·

When disposing of a front curtain shield airbag assembly LH, use an unneeded vehicle to deploy the airbag.

·

Be sure to perform the following procedure when deploying the airbag.

HINT:: Prepare a battery as the power source to deploy the airbag.

0.99,1.208 0.792,0.771 0.792,0.771 0.646,0.771 false 0.323,0.688 0.781,0.885 0.458,0.198 10 SST

Check the function of SST.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>STEERING PAD>DISPOSAL201906,999999,_58,_079257,_0384935,RM100000001INDR_01_0011,

SST: 09082-00700

Refer to Precaution.

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,202310,_58,_079257,_0387732,RM100000001IMN3,202310,999999,_58,_079257,_0387732,RM100000002G3KG,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,202310,_58,_079257,_0385034,RM100000001GJPR,202310,999999,_58,_079257,_0385034,RM100000002G3NC,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,202310,_58,_079257,_0396679,RM100000001IJ80,202310,999999,_58,_079257,_0396679,RM100000002G3UJ,

Disconnect the cable from the negative (-) battery terminal.

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,202310,_V1,_078672,_0387105,RM100000001IWL9,202310,999999,_V1,_078672,_0387105,RM100000002G4PK,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,202310,_V1,_078672,_0387106,RM100000001IWLA,202310,999999,_V1,_078672,_0387106,RM100000002G4PR,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Remove the roof headlining assembly.

for Wagon:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,202310,_58,_078375,_0396474,RM100000001IHQ5,202310,999999,_58,_078375,_0396474,RM100000002EPUU,

for Semi-trim:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Semi-trim)>REMOVAL201906,202208,_58,_078375,_0380060,RM100000001IXV1,202208,202310,_58,_078375,_0380060,RM1000000024I16,202310,999999,_58,_078375,_0380060,RM100000002EPY3,

for Full-trim:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4,202208,202310,_58,_078375,_0381233,RM1000000024I19,202310,999999,_58,_078375,_0381233,RM100000002EPY5,

Disconnect the airbag connector.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201902,999999,_58,_079257,_0387732,RM100000001GZ7A,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201902,999999,_58,_079257,_0385034,RM100000001GNBX,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201906,999999,_58,_079257,_0396679,RM100000001IJ8B,

0.271,1.385 1.906,1.281 1.906,1.281 1.729,1.531 false 1.125,1.531 1.885,1.292 false 1.948,1.177 2.406,1.375 0.458,0.198 10 false SST

Install SST.

for Standard Roof:

After connecting the following SST to each other, connect them to the front curtain shield airbag assembly LH.

SST: 09082-00700 09082-00820

CAUTION:: ·

Do not deploy the front curtain shield airbag assembly LH if it rattles due to looseness and the tightening bolts and clips, etc., for the inflator and deployment part of the front curtain shield airbag assembly LH falling off.

·

Do not deploy the front curtain shield airbag assembly LH if the deployment part fell off.

·

If the front curtain shield airbag assembly LH is deployed when it rattles or parts have fallen off, the front curtain shield airbag assembly LH may fly off and cause serious injuries.

ii.

for High Roof:

After connecting the following SST to each other, connect them to the front curtain shield airbag assembly LH.

SST: 09082-00700 09082-00802 (09082-10801, 09082-20801)

CAUTION:: ·

Do not deploy the front curtain shield airbag assembly LH if it rattles due to looseness and the tightening bolts and clips, etc., for the inflator and deployment part of the front curtain shield airbag assembly LH falling off.

·

Do not deploy the front curtain shield airbag assembly LH if the deployment part fell off.

·

If the front curtain shield airbag assembly LH is deployed when it rattles or parts have fallen off, the front curtain shield airbag assembly LH may fly off and cause serious injuries.

iii.

0.458,1.167 0.677,1.167 false 0.677,1.167 0.927,1.396 false 1.698,1.802 2.01,1.958 0.313,0.156 10 false *a 0.177,1.104 0.573,1.323 0.396,0.219 10 false SST

*a	10 m (32.8 ft.) or more

Move SST at least 10 m (32.8 ft.) away from the rear side window of the vehicle.

iv.

Maintaining sufficient clearance for SST wire harness in the front side window, close all doors and windows of the vehicle.

CAUTION:: ·

Do not deploy with all the doors and door windows open.

·

If deployed with all the doors and door windows open, dust and gas may enter the eyes or be breathed in.

NOTICE:: Take care not to damage SST wire harness.

Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal.

Deploy the airbag.

Check that no one is inside the vehicle or within a 10 m (32.8 ft.) radius of the vehicle.

ii.

Press SST activation switch to deploy the airbag.

CAUTION:: ·

Do not deploy with people inside or around the vehicle.

·

If deployed with people inside or around the vehicle, serious injuries may occur.

HINT:: The airbag is deployed as the LED of SST activation switch comes on.

Remove the front curtain shield airbag assembly LH.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CURTAIN SHIELD AIRBAG ASSEMBLY (for Front Side)>REMOVAL201906,202310,_58,_079257,_0384939,RM100000001IINC,202310,999999,_58,_079257,_0384939,RM100000002EPRU,

CAUTION:: ·

The front curtain shield airbag assembly LH becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.

·

If not left alone for 30 minutes or more, burns may occur when touched.

·

Do not apply water etc. to a front curtain shield airbag assembly LH with a deployed airbag.

·

If water is applied to the front curtain shield airbag assembly LH immediately after deployment, burns may occur from the resulting steam.

·

Always wear safety glasses and gloves when handling a deployed front curtain shield airbag assembly LH.

·

If the front curtain shield airbag assembly LH is touched without wearing safety glasses and gloves, hot parts may cause burns and dust may enter the eyes.

·

After removal, quickly seal the front curtain shield airbag assembly LH in a plastic bag.

Dispose of the front curtain shield airbag assembly LH.

Place the front curtain shield airbag assembly LH in a plastic bag, tie it tightly and dispose of it according to local regulations.

CAUTION:: ·

The front curtain shield airbag assembly LH becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.

·

If not left alone for 30 minutes or more, burns may occur when touched.

·

Do not apply water etc. to a front curtain shield airbag assembly LH with a deployed airbag.

·

If water is applied to the front curtain shield airbag assembly LH immediately after deployment, burns may occur from the resulting steam.

·

Always wear safety glasses and gloves when handling a deployed front curtain shield airbag assembly LH.

·

If the front curtain shield airbag assembly LH is touched without wearing safety glasses and gloves, hot parts may cause burns and dust may enter the eyes.

·

Never dispose of a front curtain shield airbag assembly LH with an undeployed airbag.

·

If an undeployed front curtain shield airbag assembly LH is disposed of, and then deploys for any reason, unforeseen injuries may occur.

·

Always wash your hands with water after completing the operation.

Hide Display 3.DISPOSE OF FRONT CURTAIN SHIELD AIRBAG ASSEMBLY LH (When not Installed to Vehicle)

NOTICE:: Be sure to observe the following procedure when deploying the airbag.

HINT:: Prepare a battery as the power source to deploy the airbag.

0.99,1.208 0.792,0.771 0.792,0.771 0.646,0.771 false 0.323,0.688 0.781,0.885 0.458,0.198 10 SST

Check the function of SST.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>STEERING PAD>DISPOSAL201906,999999,_58,_079257,_0384935,RM100000001INDR_01_0012,

SST: 09082-00700

Refer to Precaution.

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,202310,_58,_079257,_0387732,RM100000001IMN3,202310,999999,_58,_079257,_0387732,RM100000002G3KG,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,202310,_58,_079257,_0385034,RM100000001GJPR,202310,999999,_58,_079257,_0385034,RM100000002G3NC,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,202310,_58,_079257,_0396679,RM100000001IJ80,202310,999999,_58,_079257,_0396679,RM100000002G3UJ,

Disconnect the cable from the negative (-) battery terminal.

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,202310,_V1,_078672,_0387105,RM100000001IWL9,202310,999999,_V1,_078672,_0387105,RM100000002G4PK,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,202310,_V1,_078672,_0387106,RM100000001IWLA,202310,999999,_V1,_078672,_0387106,RM100000002G4PR,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Remove the front curtain shield airbag assembly LH.

for Standard Roof:

Cut off the 5 cable ties and detach the wire harness clamp to remove the center retainer.

for High Roof:

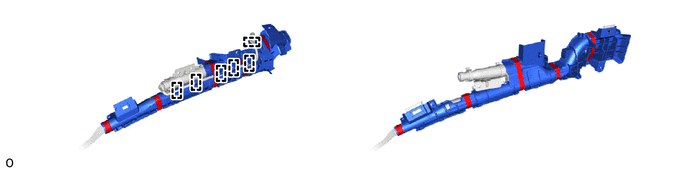

Cut off the 5 cable ties and remove the center retainer.

0.531,0.083 0.854,0.396 0.323,0.313 12 false *A 3.573,0.083 3.896,0.396 0.323,0.313 12 false *B

for Standard Roof

for High Roof

2.021,0.427 2.333,0.583 0.313,0.156 10 false *a

Cut Here

Cut off the deployment section of the curtain shield airbag assembly.

CAUTION:: ·

Wear safety glasses and gloves.

·

The dust may enter the eyes or be breathed in.

for Standard Roof:

Disconnect the airbag connector to remove the front curtain shield airbag wire.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201902,999999,_58,_079257,_0387732,RM100000001GZ7A,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201902,999999,_58,_079257,_0385034,RM100000001GNBX,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201906,999999,_58,_079257,_0396679,RM100000001IJ8B,

2.854,0.99 3.094,1.167 0.24,0.177 10 false *a

*a	Wire Diameter
	Stripped Wire Cross Sectional Area

Using braided wire, tie down the front curtain shield airbag assembly LH to an unneeded tire.

Wire:: Cross-sectional area of stripped wire; 1.25 mm² (0.0019 in.²) or more

CAUTION:: If the wire harness is too thin or an alternative object is used to tie down the front curtain shield airbag assembly LH, it may snap when the airbag is deployed. Always use a wire for vehicle use with a cross-sectional area of at least 1.25 mm² (0.0019 in.²).

HINT:: To calculate the area of the cross-sectional area of stripped wire:; Area = 3.14 x (Diameter)² / 4

1.458,0.26 1.698,0.51 0.24,0.25 10 *a 0.958,1.49 1.188,1.771 0.229,0.281 10 *b

*a	Width
*b	Inner Diameter

Position the front curtain shield airbag assembly inside the tire with the outlet facing inside.

Minimum tire size:: Must exceed the following dimensions; Width:; 185 mm (7.28 in.); Inner diameter:; 360 mm (1.18 ft.)

CAUTION:

0.698,1.885 1.354,1.885 true 1.875,2.677 0.979,2.844 true 0.792,2.771 1.104,2.927 0.313,0.156 10 false *a 0.521,1.802 0.833,1.958 0.313,0.156 10 false *b

*a	Outlet
*b	Remove looseness

Do not install the front curtain shield airbag assembly LH with the outlet facing down.

When securing the front curtain shield airbag assembly LH, make sure there is no looseness in the wire harness.

If installed with the outlet facing down or looseness in the wire harness, the deployed front curtain shield airbag assembly LH and tire may fly off and cause serious injuries.

NOTICE:: The tire may be damaged by the airbag deployment, so use an unneeded tire.

Install SST.

1.823,1.656 1.042,1.448 1.042,1.448 1.375,1.958 false 0.719,1.365 1.177,1.563 0.458,0.198 10 false SST

After connecting the following SST to each other, connect them to the front curtain shield airbag assembly LH.

SST: 09082-00802 (09082-10801, 09082-20801)

Place the tires.

1.167,0.792 1.167,2.771 1.167,2.771 1.51,2.771 true 1.167,2.229 1.5,2.229 true 1.177,1.25 1.51,1.25 true 0.948,0.802 1.542,0.802 true 0.719,0.667 1.031,0.823 0.313,0.156 10 false *a

*a	Tires (2 or more)

Place at least 2 tires under the tire to which the front curtain shield airbag assembly LH is tied.

Minimum Tire Size:: Width:; 185 mm (7.28 in.); Inner Diameter:; 360 mm (1.18 ft.)

NOTICE:: Do not place SST connector under the tire because it could be damaged.

ii.

Place at least 2 tires onto the tire to which the front curtain shield airbag assembly LH is tied. The top tire should have a wheel installed.

NOTICE:: The wheel and tires may be damaged by the airbag deployment, so use an unneeded wheel and tires.

iii.

Tie the tires together with 2 wires.

Install SST.

0.375,2.688 0.375,2.927 false 1.26,2.76 1.5,2.917 0.24,0.156 10 false *a 0.25,2.958 0.583,3.156 0.333,0.198 10 false SST

*a	10 m (32.8 ft.) or more

Connect the SST connector.

SST: 09082-00700

NOTICE:: To avoid damaging SST connector or wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for SST wire harness inside the tire.

ii.

Move SST at least 10 m (32.8 ft.) away from the airbag tied down to the tire.

Deploy the airbag.

Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal.

ii.

Check that no one is within a 10 m (32.8 ft.) radius of the tire to which the front curtain shield airbag assembly LH is tied.

iii.

Press SST activation switch to deploy the airbag.

CAUTION:: ·

Do not deploy with people around the tire.

·

If deployed with people around the tire, serious injuries may occur.

HINT:: The airbag is deployed as the LED of SST activation switch comes on.

Dispose of the front curtain shield airbag assembly LH.

CAUTION:: ·

The front curtain shield airbag assembly LH becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.

·

If not left alone for 30 minutes or more, burns may occur when touched.

·

Do not apply water etc. to a front curtain shield airbag assembly LH with a deployed airbag.

·

If water is applied to the front curtain shield airbag assembly LH immediately after deployment, burns may occur from the resulting steam.

·

Always wear safety glasses and gloves when handling a deployed front curtain shield airbag assembly LH.

·

If the front curtain shield airbag assembly LH is touched without wearing safety glasses and gloves, hot parts may cause burns and dust may enter the eyes.

·

Never dispose of a front curtain shield airbag assembly LH with an undeployed airbag.

·

If an undeployed front curtain shield airbag assembly LH is disposed of, and then deploys for any reason, unforeseen injuries may occur.

·

Always wash your hands with water after completing the operation.

Remove the front curtain shield airbag assembly LH from the tire.

ii.

Place the front curtain shield airbag assembly LH in a plastic bag, tie it tightly, and dispose of it according to local regulations.
